RGBlink MSP 315-4

The RGBlink MSP 315-4 is an HDBaseT transmitter and receiver set that extends an HDMI 1.4 signal over a single Cat 5e or Cat 6a cable: 1080p up to 70 m, 4K at 30 Hz up to 40 m. The cable also carries bi-directional IR and RS-232 signals and PoE power, so a power adapter is needed at one end only. The set supports HDCP 2.2.

A ceiling-mounted projector, a display in a hall or a screen at the other end of the building: instead of a long HDMI cable, one network cable between the transmitter at the source and the receiver at the display is enough.

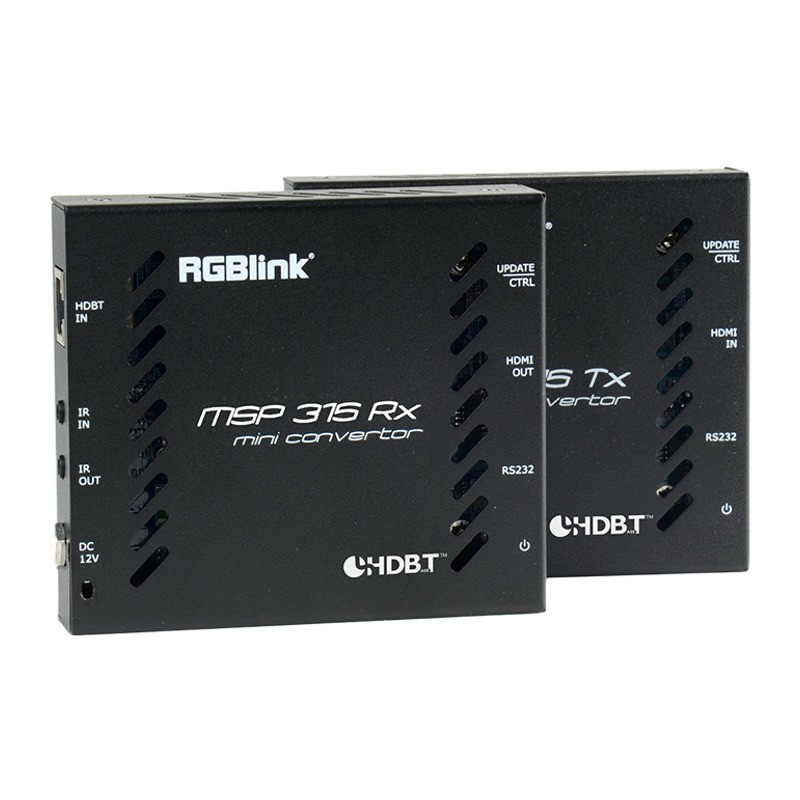

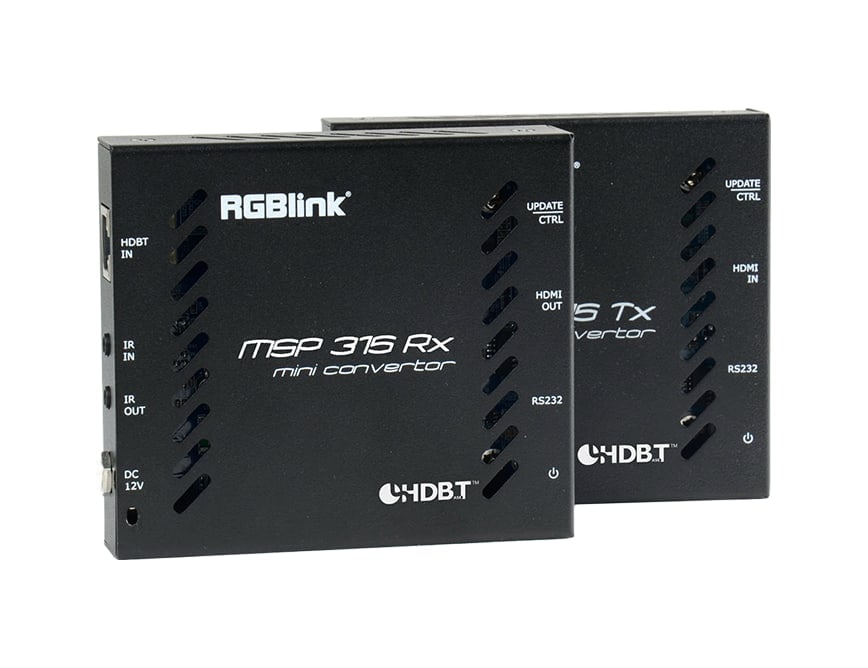

Transmitter and receiver as a set

The set comes as a ready-to-use pair of transmitter (TX) and receiver (RX). The transmitter connects to the HDMI source, the receiver to the display or projector, and a Cat 5e or Cat 6a cable with RJ45 connectors links the two units.

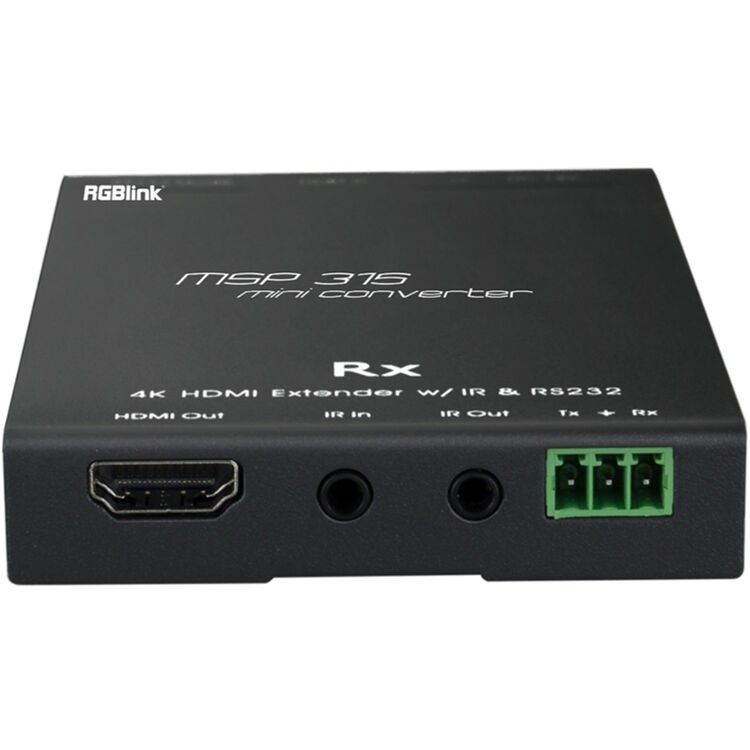

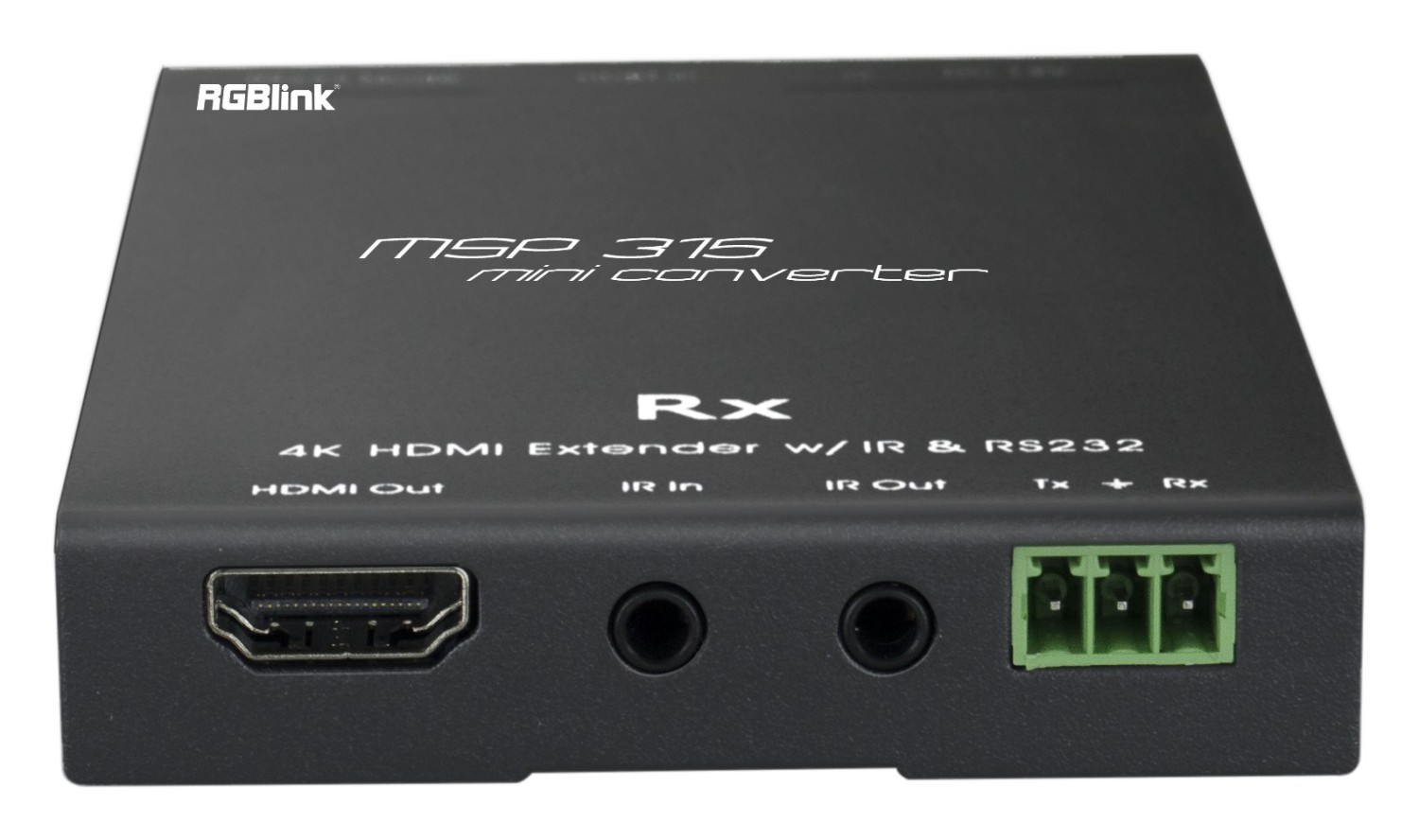

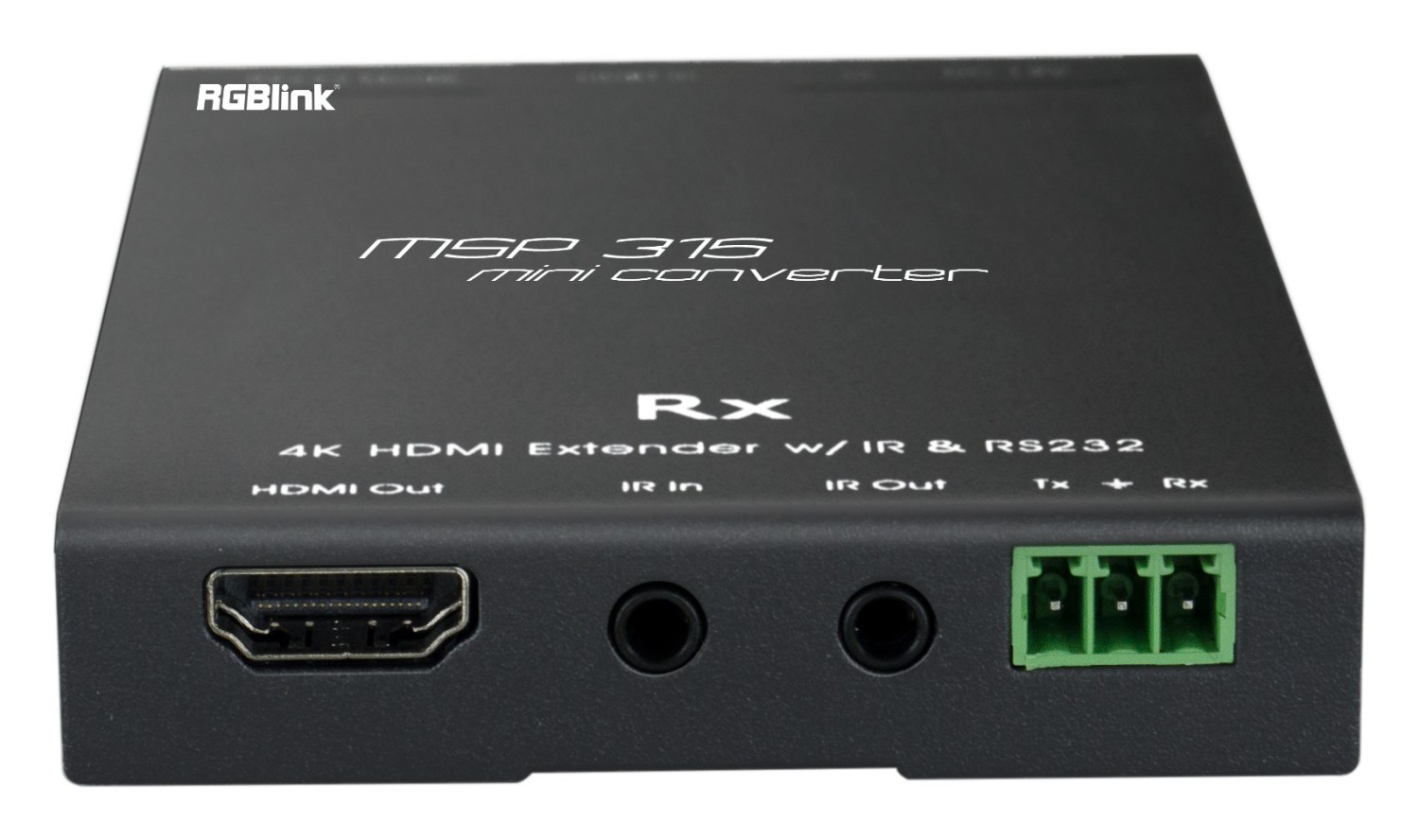

Receiver: HDMI, IR and RS-232

The receiver has an HDMI 1.4 output, IR input and output (3.5 mm jack) and an RS-232 terminal block. Through them you control the display or the source at the other end of the line – with a remote control or a control system.

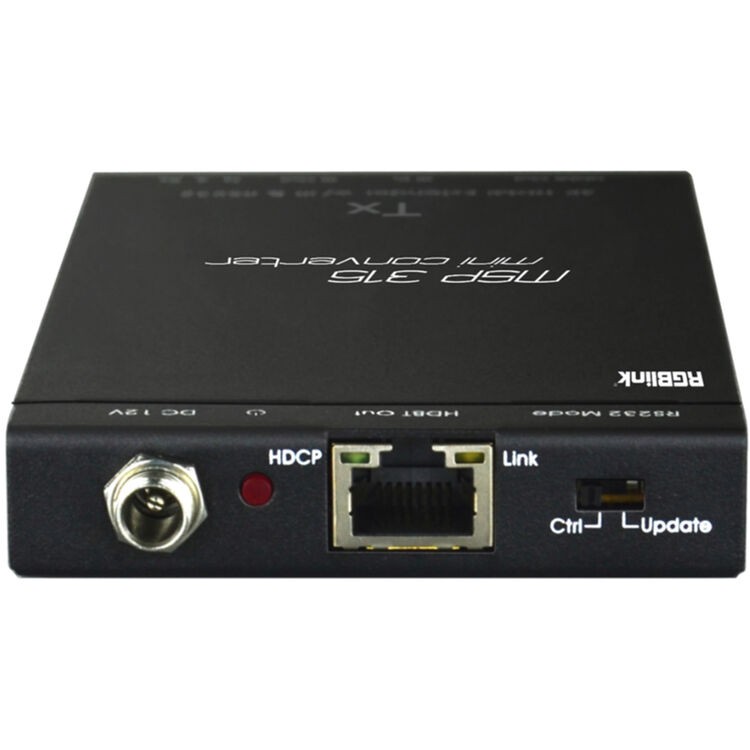

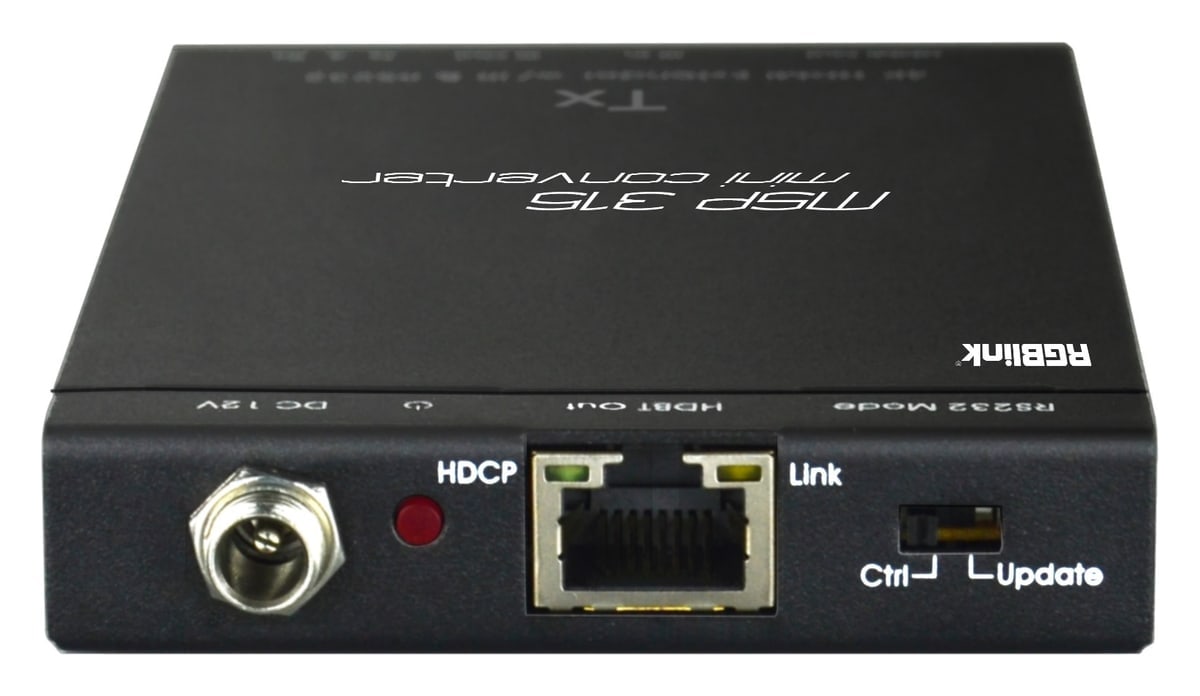

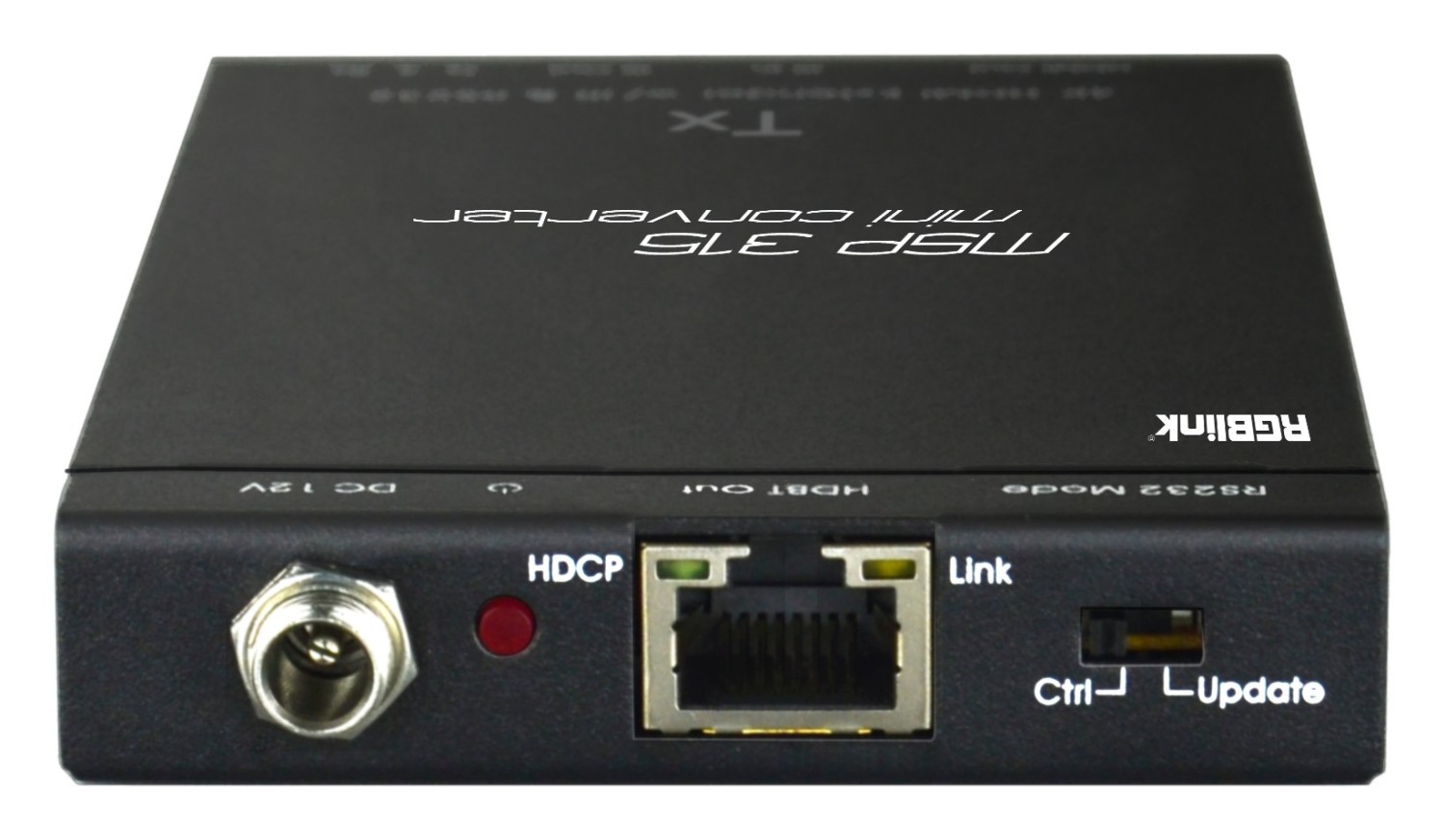

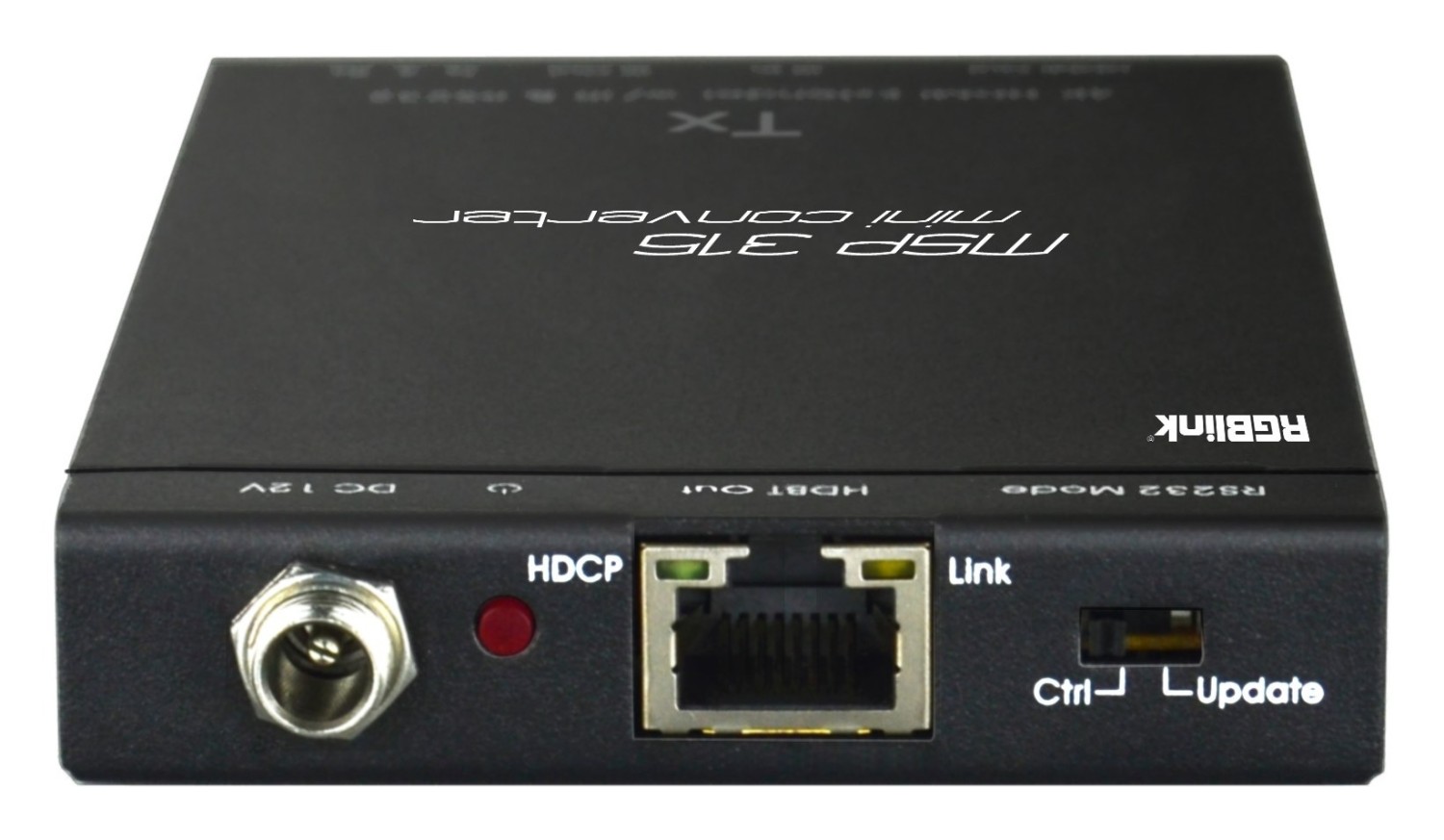

Transmitter: HDBaseT and power

The transmitter carries the HDBaseT port (RJ45), a DC 12 V power input, an HDCP indicator and a DIP switch to choose between RS-232 control and firmware update. Thanks to PoE (max. 125 mA) a power adapter is needed at one end only.

More information

The RGBlink MSP 315-4 HDMI 1.4 to HDBaseT Extender Set provides a reliable and efficient way to extend HDMI video, audio, and control signals over long distances using a single Cat 5e or Cat 6a cable. Consisting of a transmitter and receiver pair, the system supports 4K30 video transmission up to 131 feet and 1080p60 video up to 230 feet, making it well suited for professional AV environments.

The MSP 315-4 is fully HDCP 2.2 compliant and supports 1080p 3D video, ensuring compatibility with protected and legacy content. Bidirectional RS-232 and IR passthrough allow seamless remote device control, while PoE (Power over Ethernet) enables the system to be powered from one end, simplifying installation and reducing cable clutter. Its compact form factor allows easy integration into racks, lecterns, or behind displays, making it ideal for corporate, educational, and commercial AV applications.

Key features

• HDMI to HDBaseT transmitter and receiver set
• Extends 4K30 HDMI video up to 131 ft (40 m)
• Extends 1080p60 HDMI video up to 230 ft (70 m)
• HDBaseT transmission over Cat 5e/6a cable
• HDCP 2.2 compliant
• Supports 1080p 3D video
• Bidirectional RS-232 and IR passthrough
• PoE support (power over the cable from one end)
• Compact design for flexible installation
