RGBlink MSP 314-4

The RGBlink MSP 314-4 is a compact fiber-optic DVI extender set (TX & RX) that transmits high-resolution video up to 2000 meters over single-mode fiber. Supporting WUXGA, HDMI 1.4 (4Kx2K@30Hz), EDID storage, and EMI resistance, it is perfect for portable AV setups, conference rooms, and professional installations requiring long-distance, reliable DVI extension.

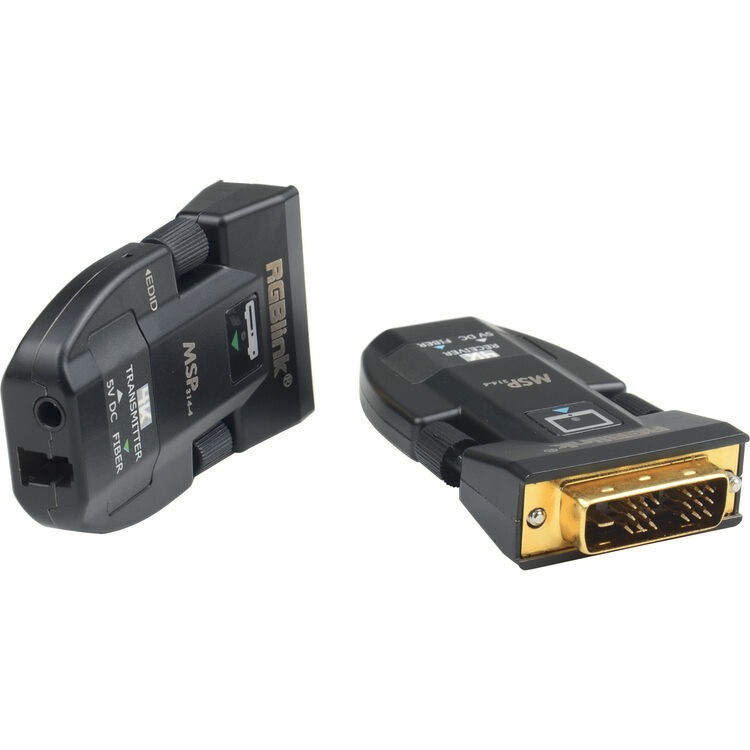

The MSP 314-4 is a compact transmitter and receiver set that plugs straight into the DVI connectors of the source and the display. It carries a picture of up to 3840 × 2160 at 30 Hz over optical fibre for up to 2 km, with no rack and no extra cabling.

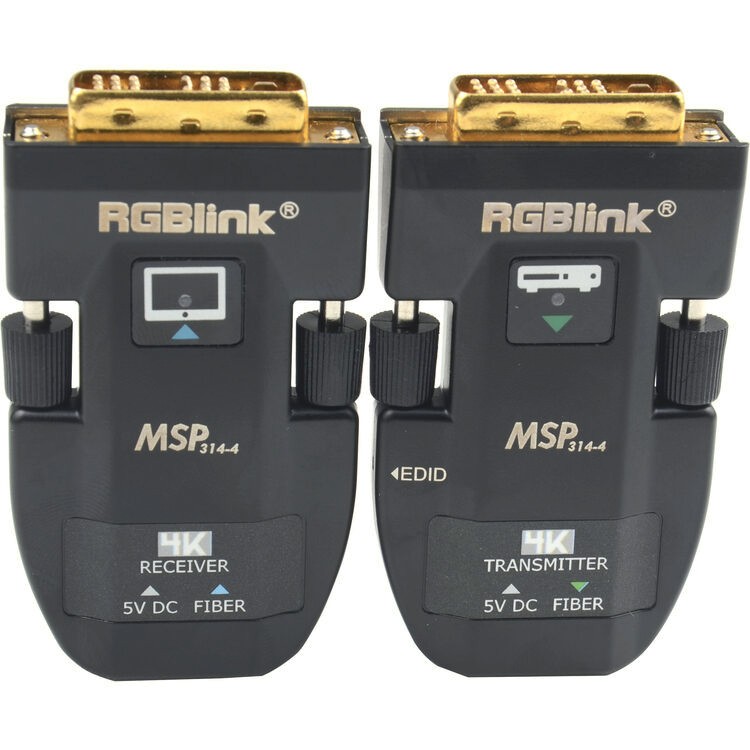

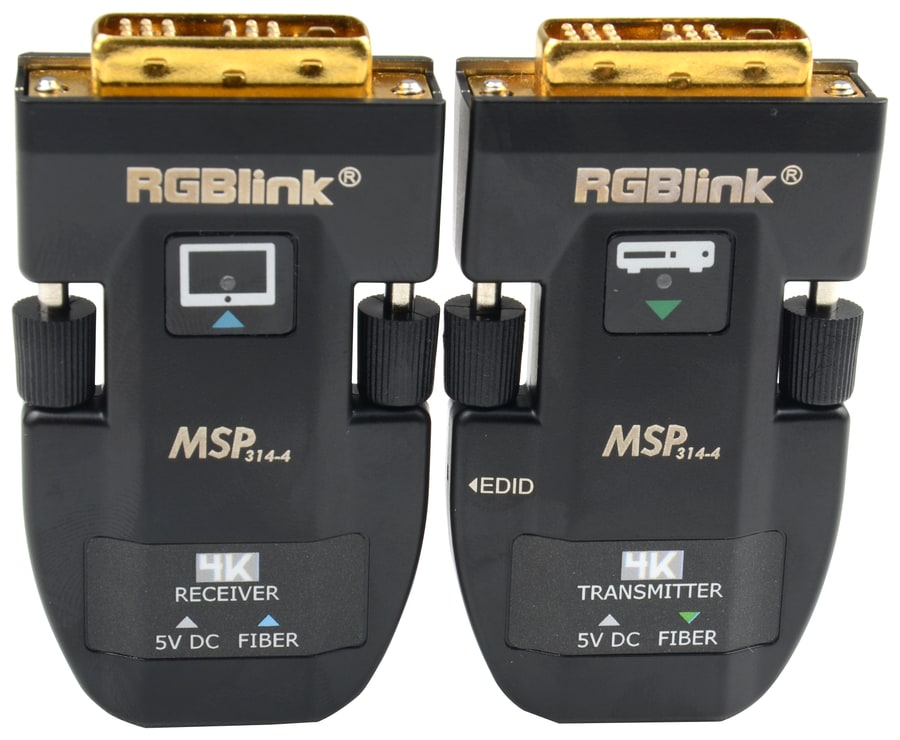

Transmitter and receiver right in the DVI connector

Both modules plug straight into the DVI output of the source and the DVI input of the display, so they need no rack or shelf space. At the press of a button the transmitter stores the display's EDID, and both parts are powered from the supplied 5 V adapters. The set also carries 3840 × 2160 at 30 Hz (HDMI 1.4 via an adapter).

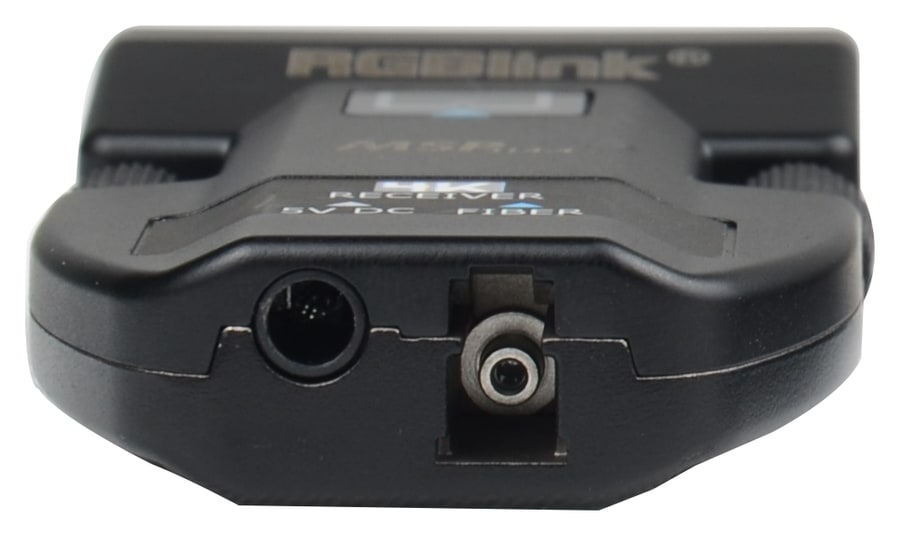

Fibre up to 2 km

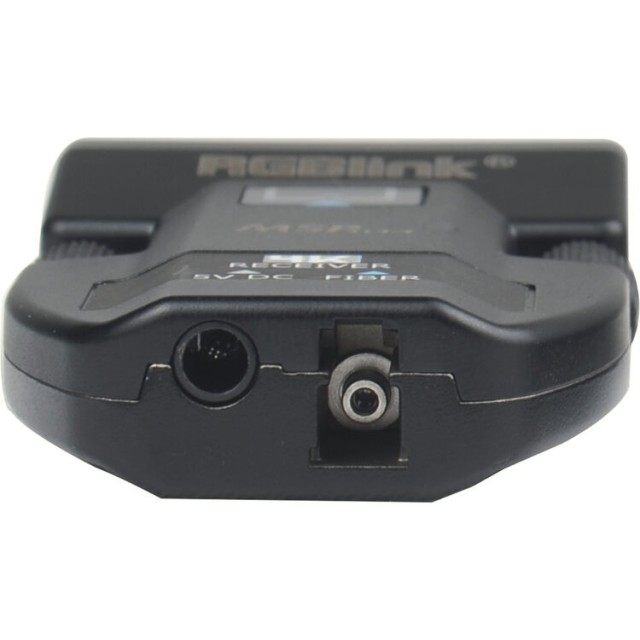

Each module has one LC connector and a 5 V power connector. The transmitter converts four TMDS pairs into a 10.2 Gb/s serial signal and sends it with a 1310 nm laser; over single-mode fibre it reaches 2 km. Multimode fibre must be OM3 or better. The metal housing limits electromagnetic interference.

More information

The RGBlink MSP 314-4 is a versatile DVI-over-fiber extender system that allows you to extend high-quality video signals over long distances with minimal interference. The compact transmitter and receiver units feature integral LC fiber connectors and support resolutions up to WUXGA (1920×1200@60Hz) and HDMI 1.4 (4Kx2K@30Hz). Using single-mode fiber, video can be transmitted up to 2000 meters, while multi-mode fiber supports distances up to 300 meters.

Designed for plug-and-play installation, the MSP 314-4 avoids bulky racks and is ideal for portable applications. The units include EDID storage for easy display compatibility and are engineered to resist electromagnetic interference. With support for both SMPTE and VESA resolutions, the system ensures high-quality video for professional and commercial AV setups, broadcast facilities, and education environments.

Key Features:

• Supports DVI (D-DVI) and HDMI 1.4 signals
• Resolution support: WUXGA 1920×1200@60Hz, 4Kx2K@30Hz
• Single-mode fiber: up to 2000 meters transmission
• Multi-mode fiber: up to 300 meters
• EDID storage for automatic display recognition
• Resistant to electromagnetic interference (EMI)
• Compact, lightweight, and easy to install
