RGBlink MSP 314-2

The RGBlink MSP 314-2 is a compact DVI fiber extender that transmits high-definition video signals over long distances using multi-mode or single-mode fiber. Supporting VESA resolutions up to WUXGA (1920×1200) and SMPTE formats, it is ideal for extending DVI signals up to 300 m on multi-mode fiber or 2000 m on single-mode fiber for professional AV installations and control rooms.

The MSP 314-2 is a compact transmitter and receiver set that plugs straight into the DVI connectors of the source and the display. It carries a picture of up to 2560 × 816 at 60 Hz over optical fibre for up to 2 km, with no rack and no extra cabling.

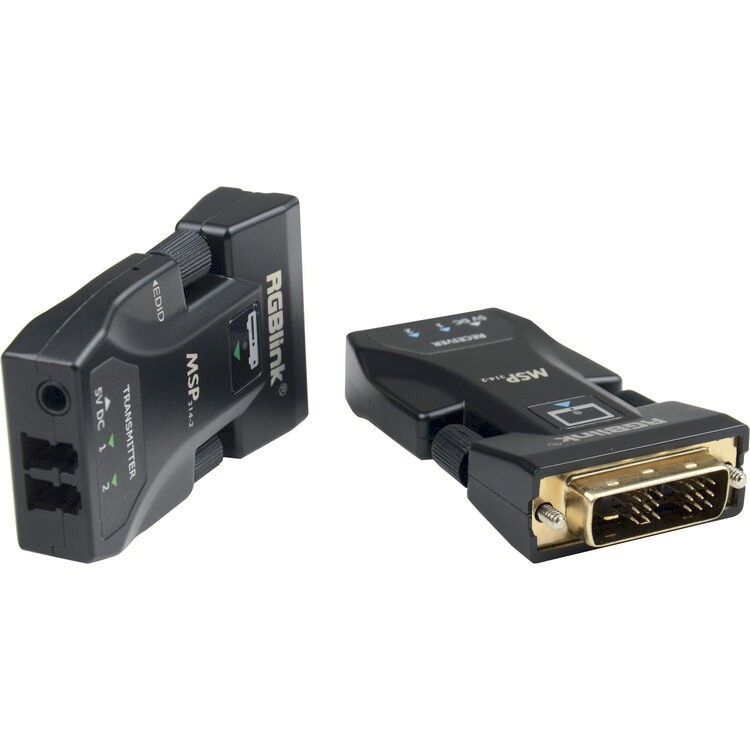

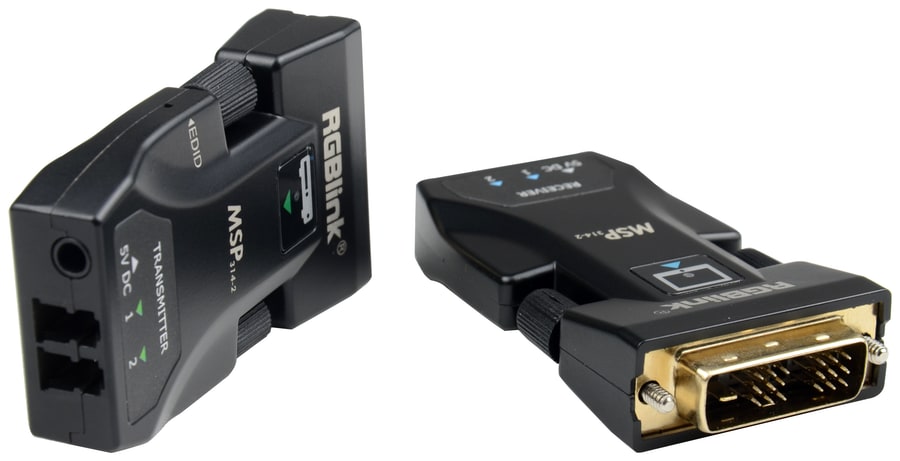

Transmitter and receiver right in the DVI connector

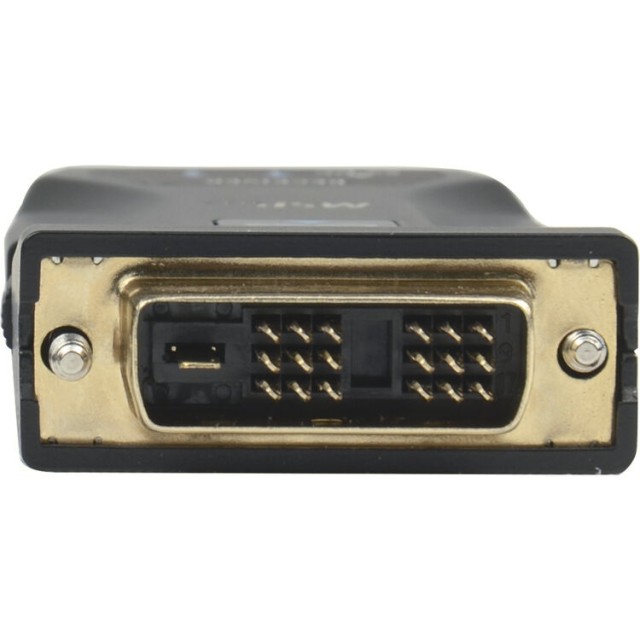

Both modules plug straight into the DVI output of the source and the DVI input of the display, so they need no rack or shelf space. At the press of a button the transmitter stores the display's EDID, and both parts are powered from the supplied 5 V adapters. The set carries VESA up to 2560 × 816 and SMPTE formats up to 1080p60.

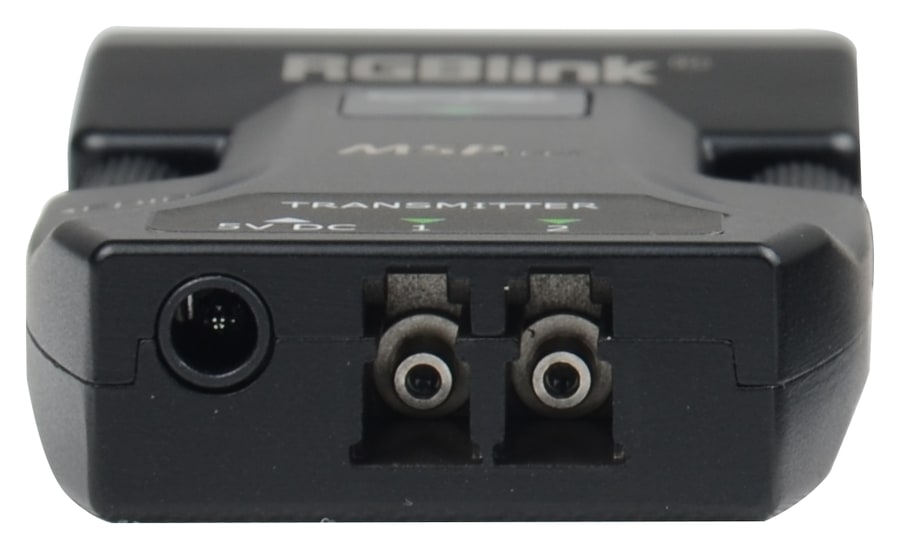

Fibre up to 2 km

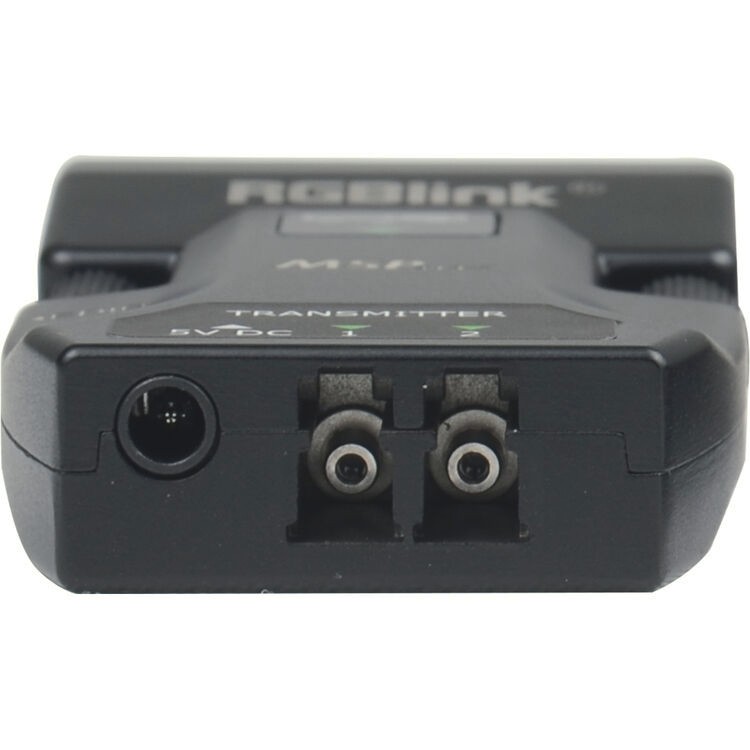

Each module has two LC connectors and a 5 V power connector. A built-in WDM wave plate and 1310/1550 nm laser diodes carry the signal over two single-mode fibres up to 2 km (20 km to order) and over multimode fibre up to 300 m.

More information

The RGBlink MSP 314-2 is a high-performance DVI fiber extender designed to reliably transmit video signals over long distances while maintaining image quality. Equipped with a built-in WDM wave plate and 1310 nm/1550 nm laser diode optical source, it supports both multi-mode fiber (50/125 µm or 62.5/125 µm) and single-mode fiber, offering transmission distances of up to 300 m and 2000 m, respectively.

The device is compatible with a wide range of resolutions, supporting VESA up to WUXGA (1920×1200) at 60 Hz and SMPTE formats including 480i, 576i, 720p, and 1080p. Its compact design makes it easy to integrate into professional AV systems, conference rooms, live event setups, and digital signage installations.

The MSP 314-2 features separate transmitter and receiver units, with DVI input/output for high-quality video and LC fiber connectors for multi-mode or single-mode optical transmission. Its low power requirement (5 V DC) and lightweight shell (0.16 kg) make it suitable for flexible deployment in various setups.

Key Features:

• Extend DVI signals over fiber: 300 m (multi-mode), 2000 m (single-mode)
• Supports VESA resolutions up to WUXGA (1920×1200) 60 Hz
• Compatible with SMPTE 480i/576i/720p/1080p formats
• Built-in WDM wave plate, 1310 nm/1550 nm laser diode optical source
• Compact, lightweight design for easy integration
• Transmitter and receiver included for plug-and-play operation
