RGBlink MSP 318N HDMI 2.0 to Fiber Extender

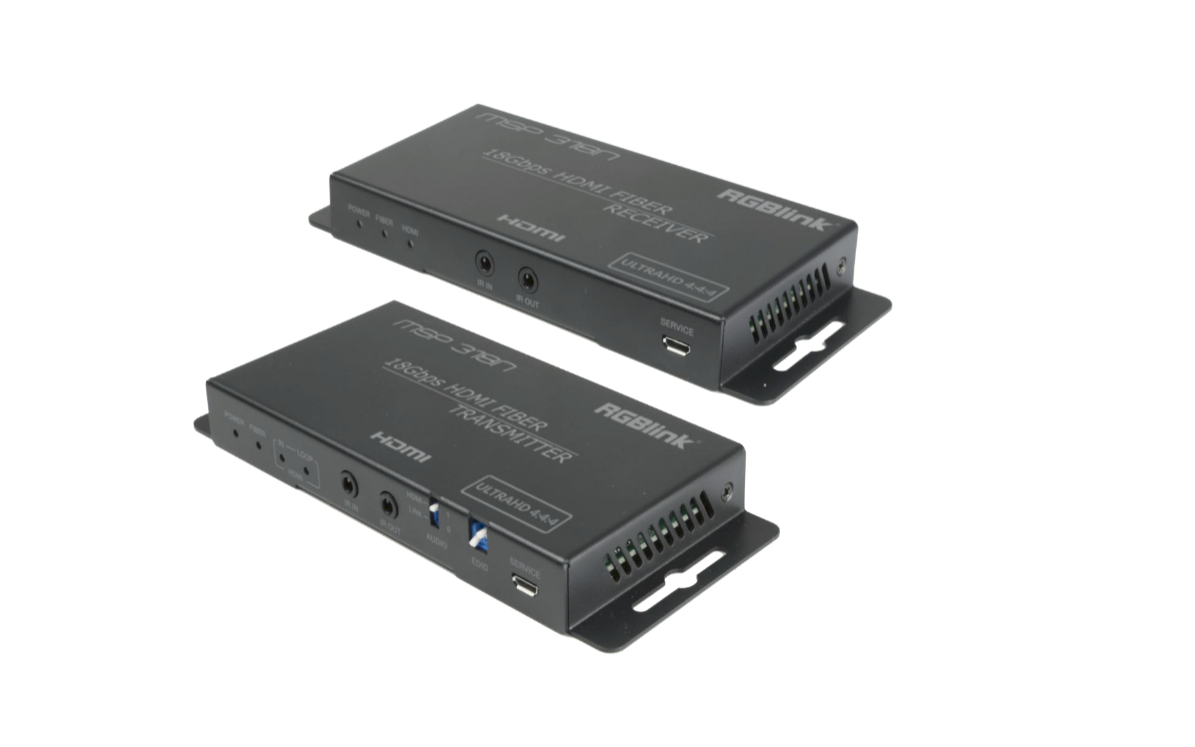

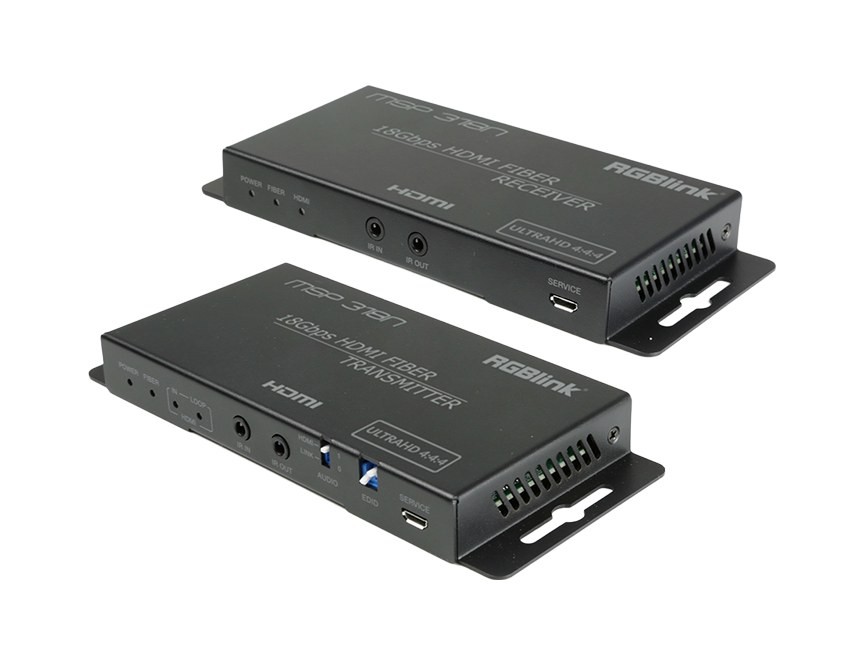

The RGBlink MSP 318N is a transmitter and receiver set that carries HDMI 2.0 up to 4K at 60 Hz in RGB 4:4:4 (18 Gb/s) with HDR over optical fibre. SFP+ modules are chosen to suit the run – single-mode up to 10 km, multi-mode up to 300 m – and are ordered separately. The transmitter has an HDMI loop-through output and audio embedding, the receiver an audio output; the fibre also carries bi-directional IR and RS-232.

When the display is far away or the run passes through an environment full of interference, optical fibre takes over the HDMI 2.0 signal. The source side keeps a preview via the loop-through output, the display side gets de-embedded audio and control of both ends.

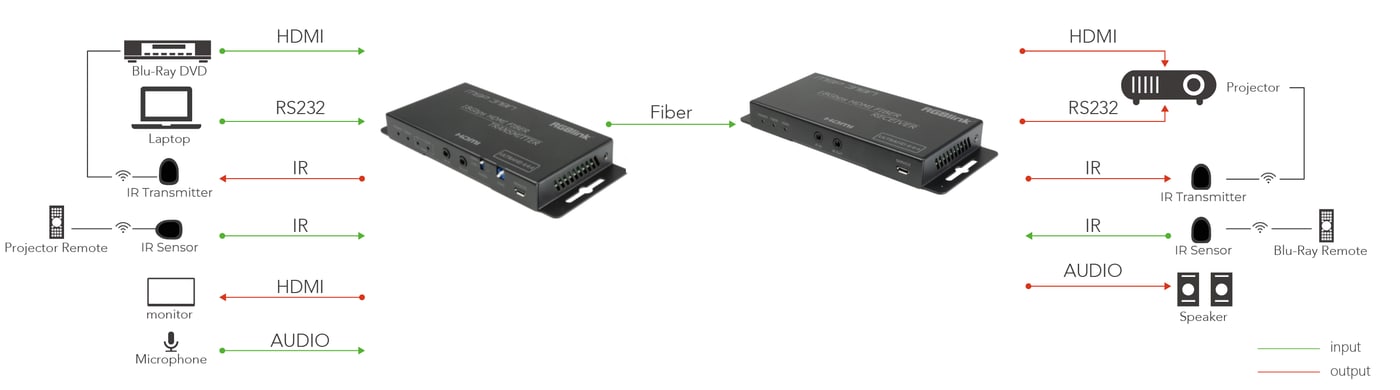

Connection

The transmitter takes HDMI from the source (Blu-ray, laptop) and audio from a microphone, connects a monitor to the HDMI loop-through output and sends the signal over optical fibre to the receiver. The receiver outputs HDMI to a projector and audio to speakers; IR cables and the RS-232 port let you control devices at both ends.

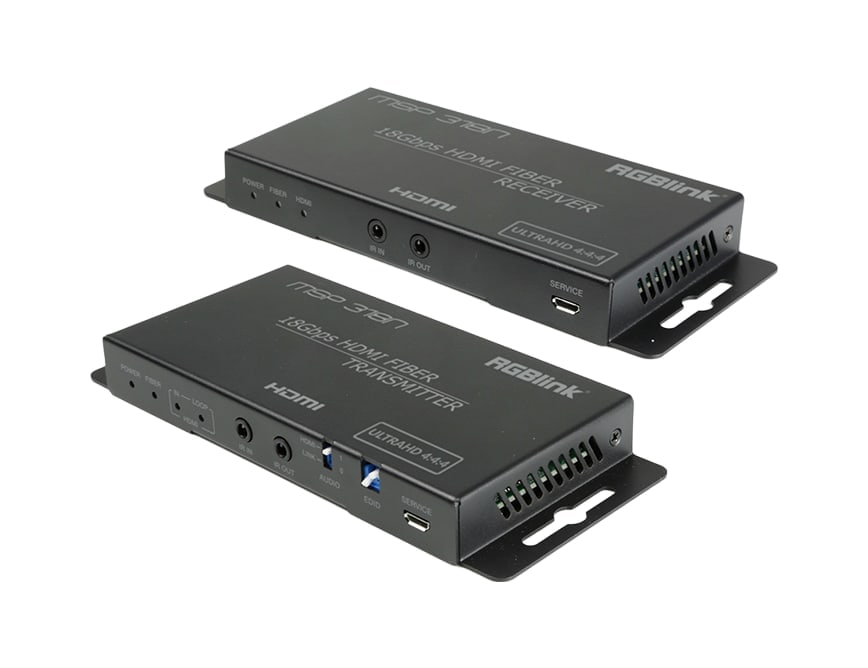

Transmitter and receiver

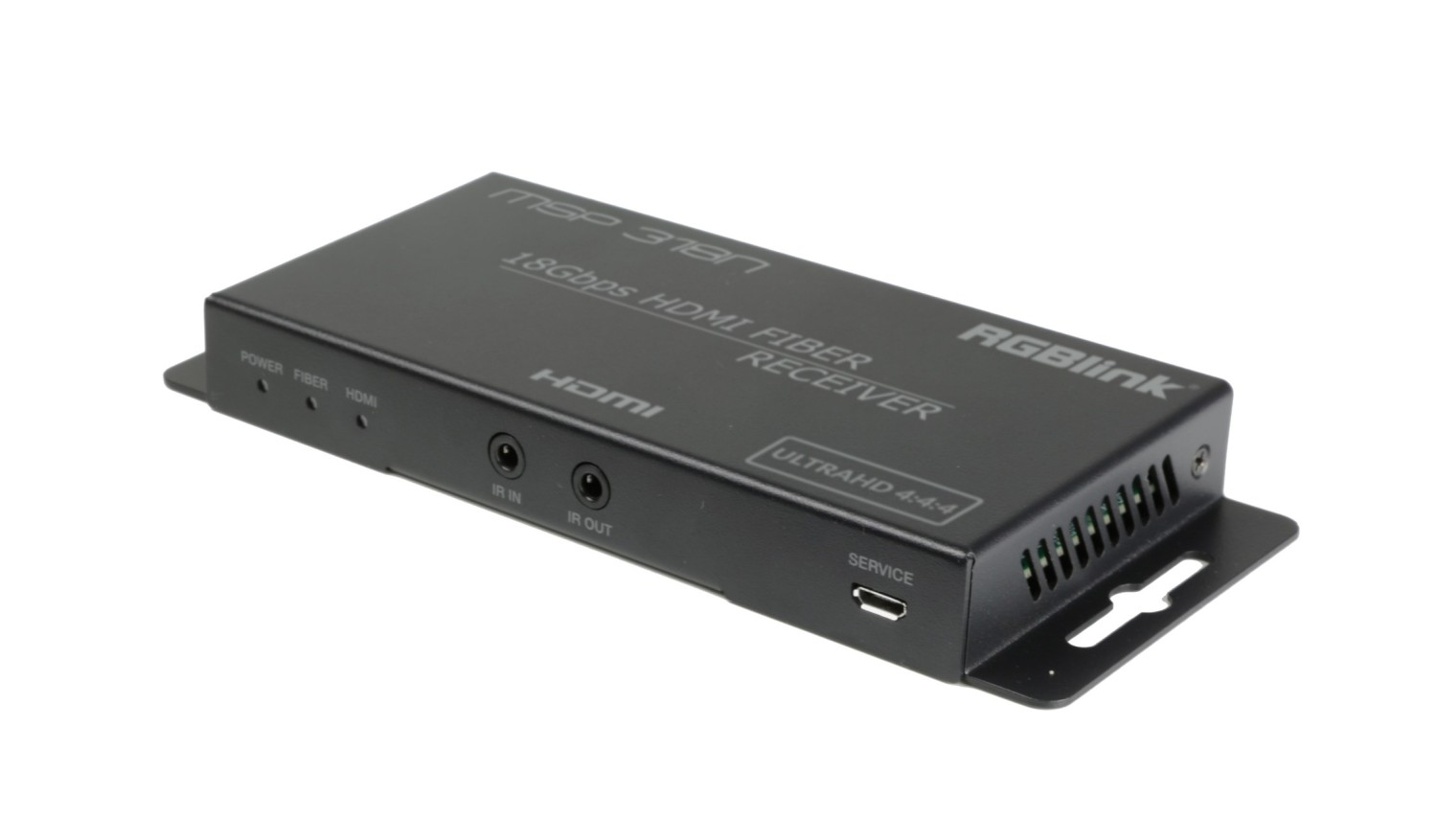

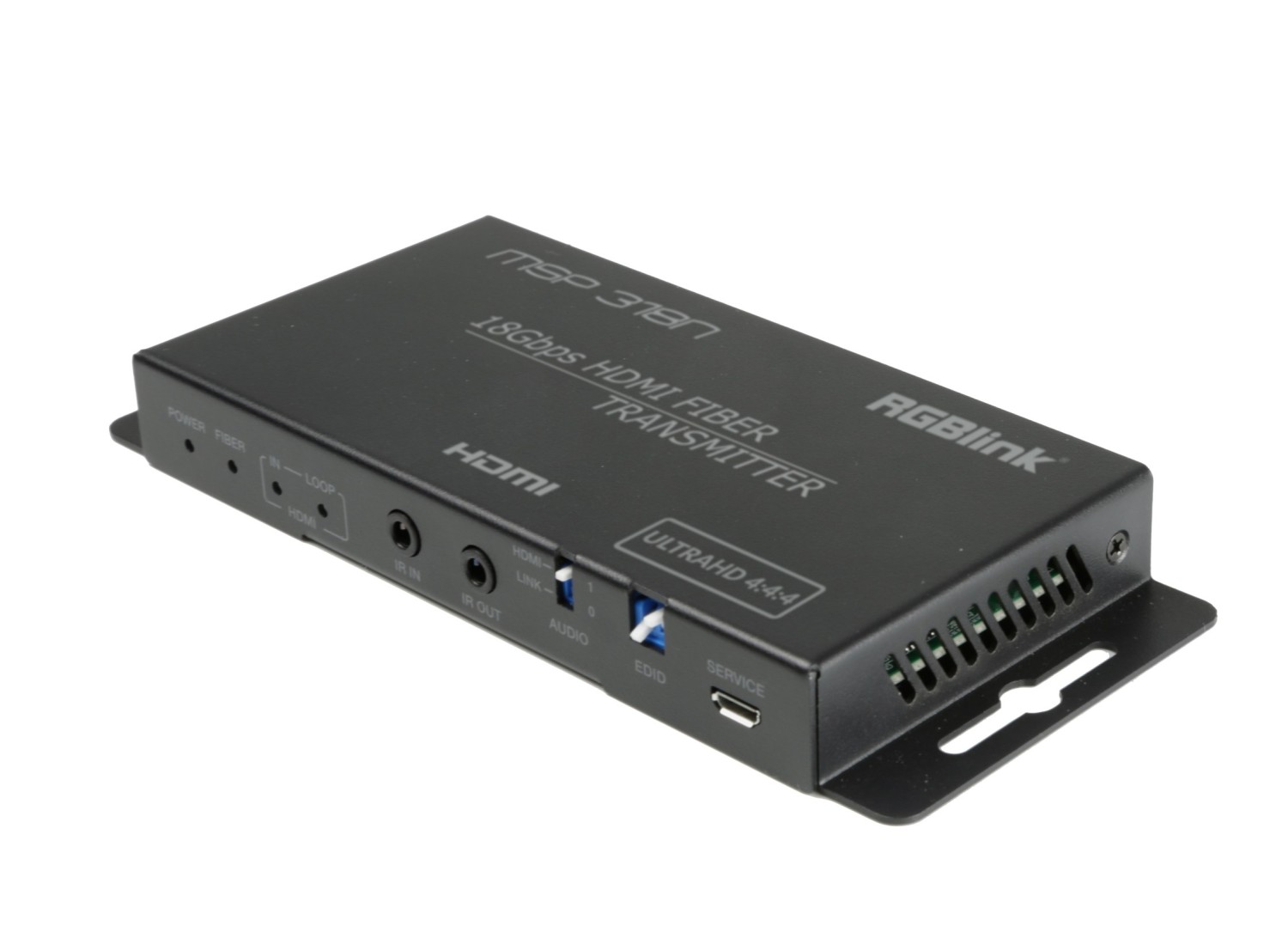

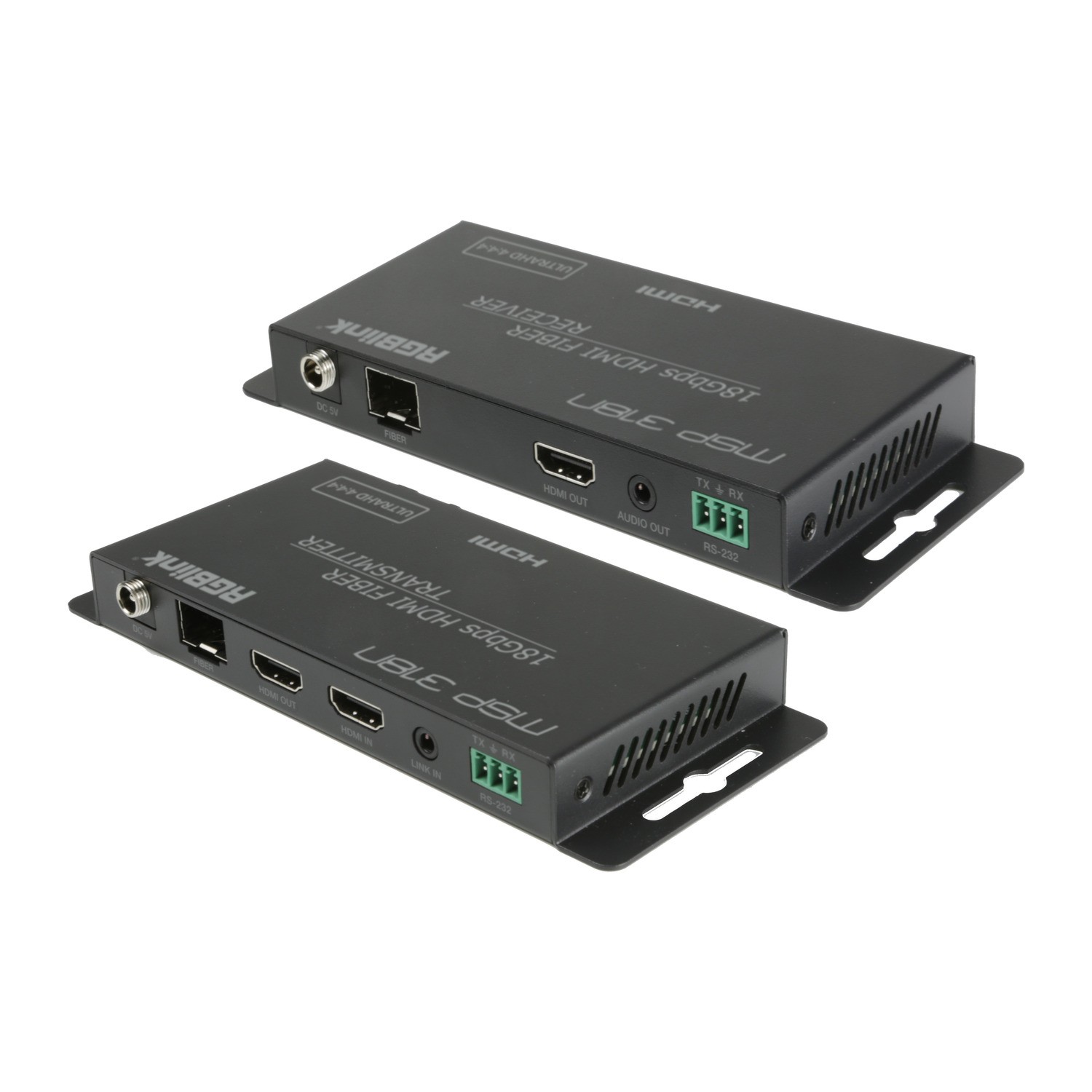

The transmitter has an HDMI 2.0 input, an HDMI loop-through output, an audio input (3.5 mm), an RS-232 port (Phoenix 3.81 mm), IR input and output and an SFP+ slot with two LC connectors. The receiver has an SFP+ slot, an HDMI 2.0 output, an audio output, RS-232 and IR. EDID is set with DIP switches.

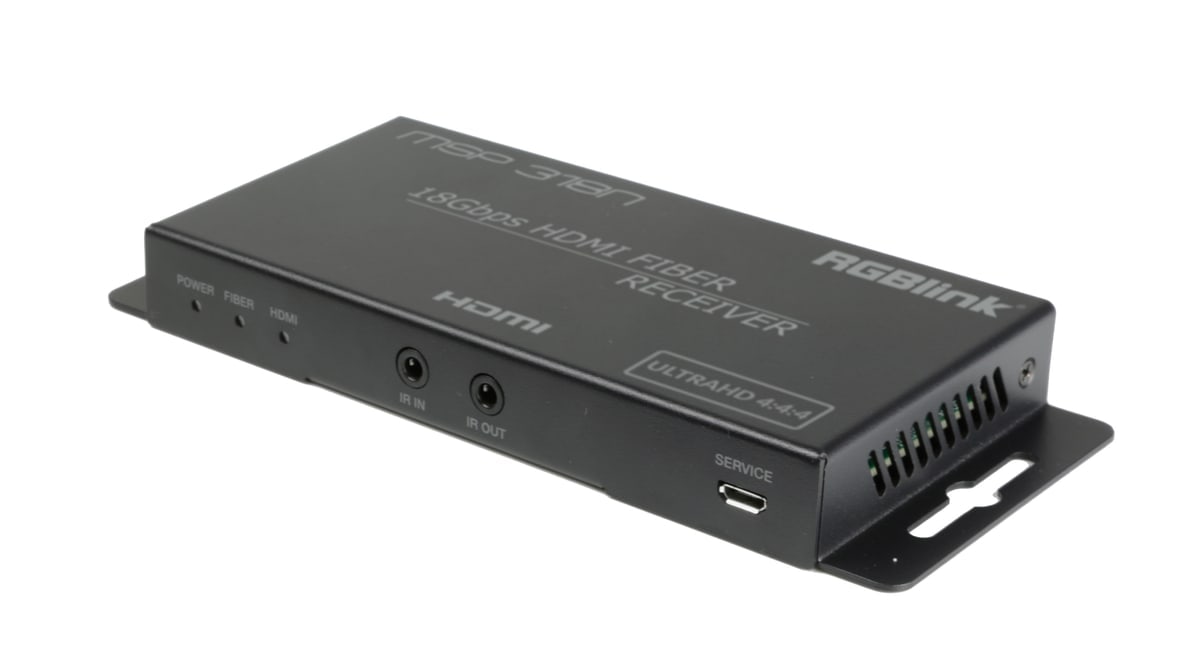

Picture, sound and control

Colour spaces RGB, YCbCr 4:4:4 / 4:2:2 and YUV 4:2:0, colour depth 8/10/12-bit at 1080p60 and 8-bit at 4K60, HDR and 3D support. It carries LPCM 2/5.1/7.1, Dolby TrueHD, DTS-HD Master Audio and DSD audio. IR works at 20–60 kHz, RS-232 at 4,800–115,200 baud.

More information

The RGBlink MSP 318N is a high-performance HDMI 2.0 fiber extender system consisting of a transmitter and receiver, engineered for professional AV, broadcast, and control room environments. It supports full-bandwidth HDMI 2.0 signals up to 18Gbps, enabling 4K@60Hz RGB 4:4:4 8-bit video with HDR and 3D formats. Compliance with HDMI 2.0b and HDCP 2.2 ensures compatibility with modern HDMI sources and displays.

The MSP 318N uses external SFP+ fiber modules (ordered separately) to support both single-mode and multi-mode fiber transmission, allowing distances up to 10 km over single-mode fiber or 300 m over multi-mode fiber. The transmitter features HDMI loop-out and audio embedding via a 3.5mm input, while the receiver supports audio extraction via a 3.5mm output. EDID management is handled through DIP switches for seamless source compatibility.

Additional professional features include bi-directional IR control, RS-232 pass-through for device control integration, and support for a wide range of video resolutions, color spaces, and audio formats. Compact, lightweight, and energy-efficient, the MSP 318N is ideal for conference rooms, broadcast facilities, digital signage, control centers, and long-distance HDMI signal distribution.

Key features

• Supports 4K@60Hz (18Gbps) RGB 4:4:4 with HDR
• HDMI 2.0b and HDCP 2.2 compliant
• External SFP+ fiber modules supported (optional)
• Transmission distance: up to 10 km (single-mode) or 300 m (multi-mode)
• Supports HDR and 3D formats
• Bi-directional IR control and RS-232 pass-through
• EDID management via DIP switch
• HDMI loop-out and audio embedding on transmitter
• Audio extraction on receiver
