RGBlink MSP 312

The RGBlink MSP 312 is a compact professional HDMI to DisplayPort format converter designed to support high-resolution 4K workflows. With HDMI 2.0 input, DisplayPort 1.2 output, HDR compatibility, and HDCP 2.2 compliance, it provides reliable signal conversion for broadcast, AV, and professional display applications.

The MSP 312 connects an HDMI 2.0 source to a DisplayPort monitor or projector at up to 4K 60 Hz, HDR included.

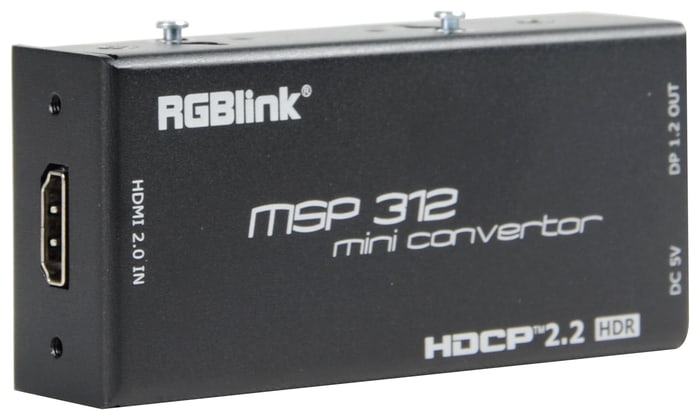

HDMI 2.0 in, DisplayPort 1.2 out

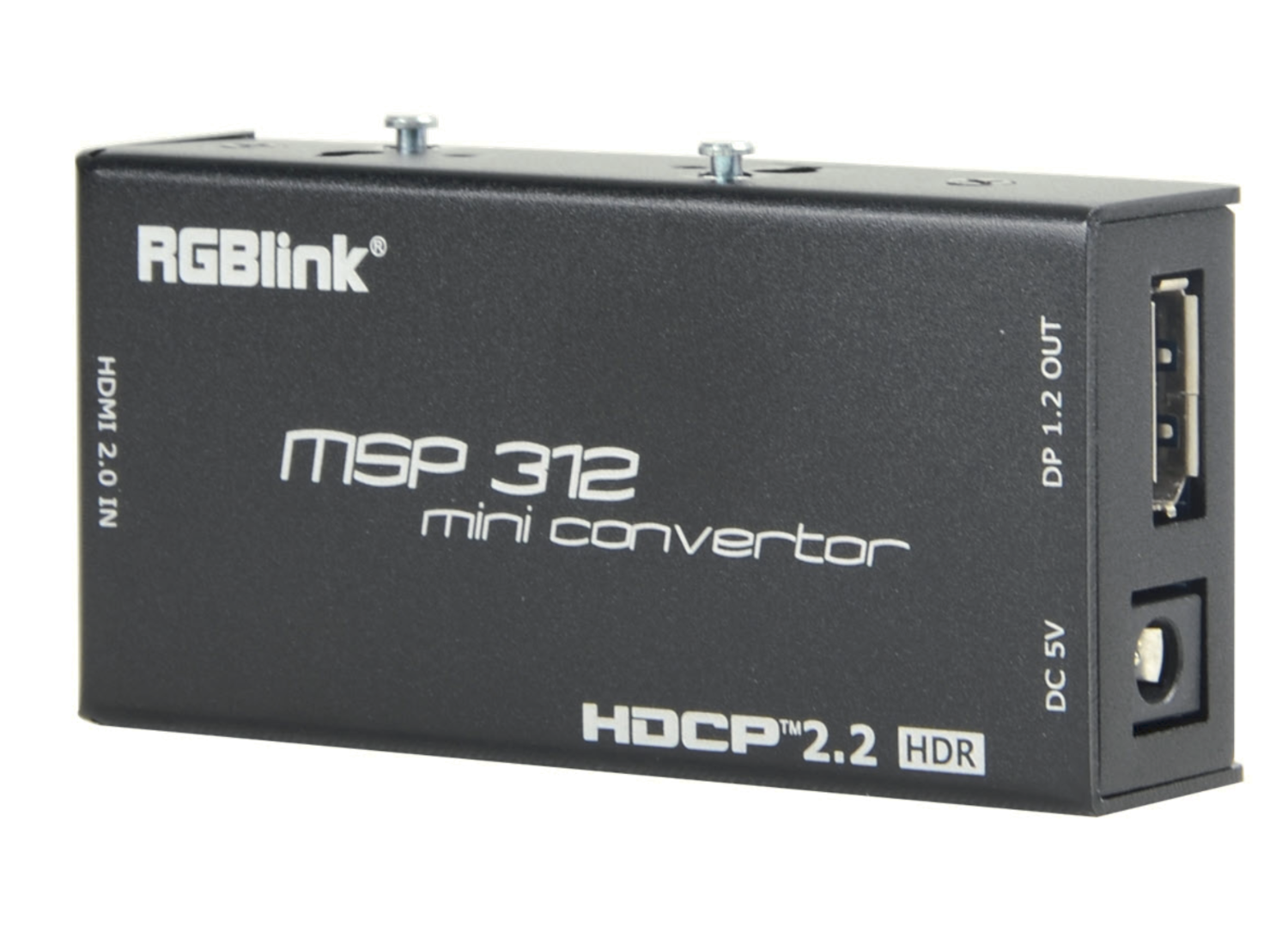

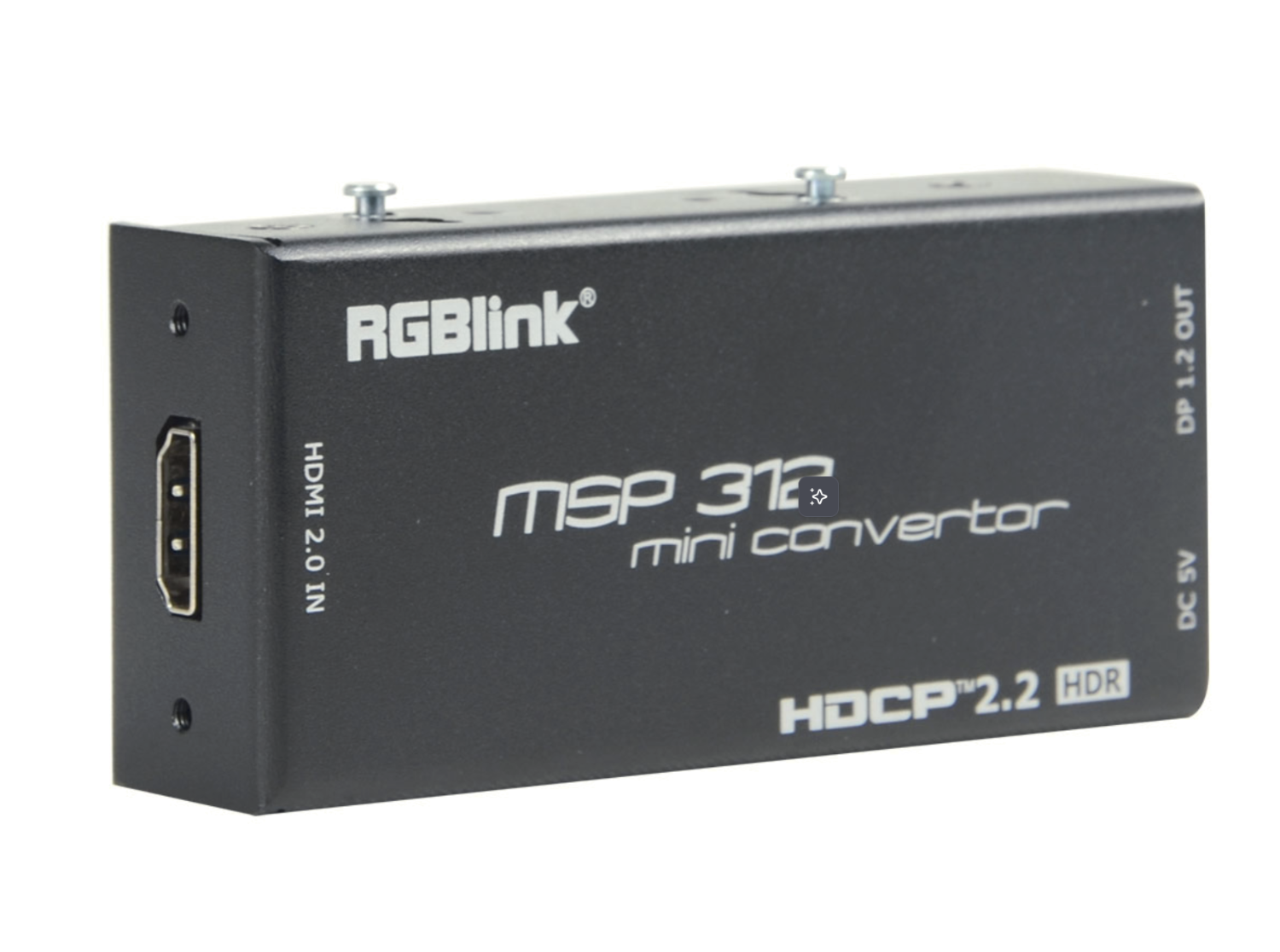

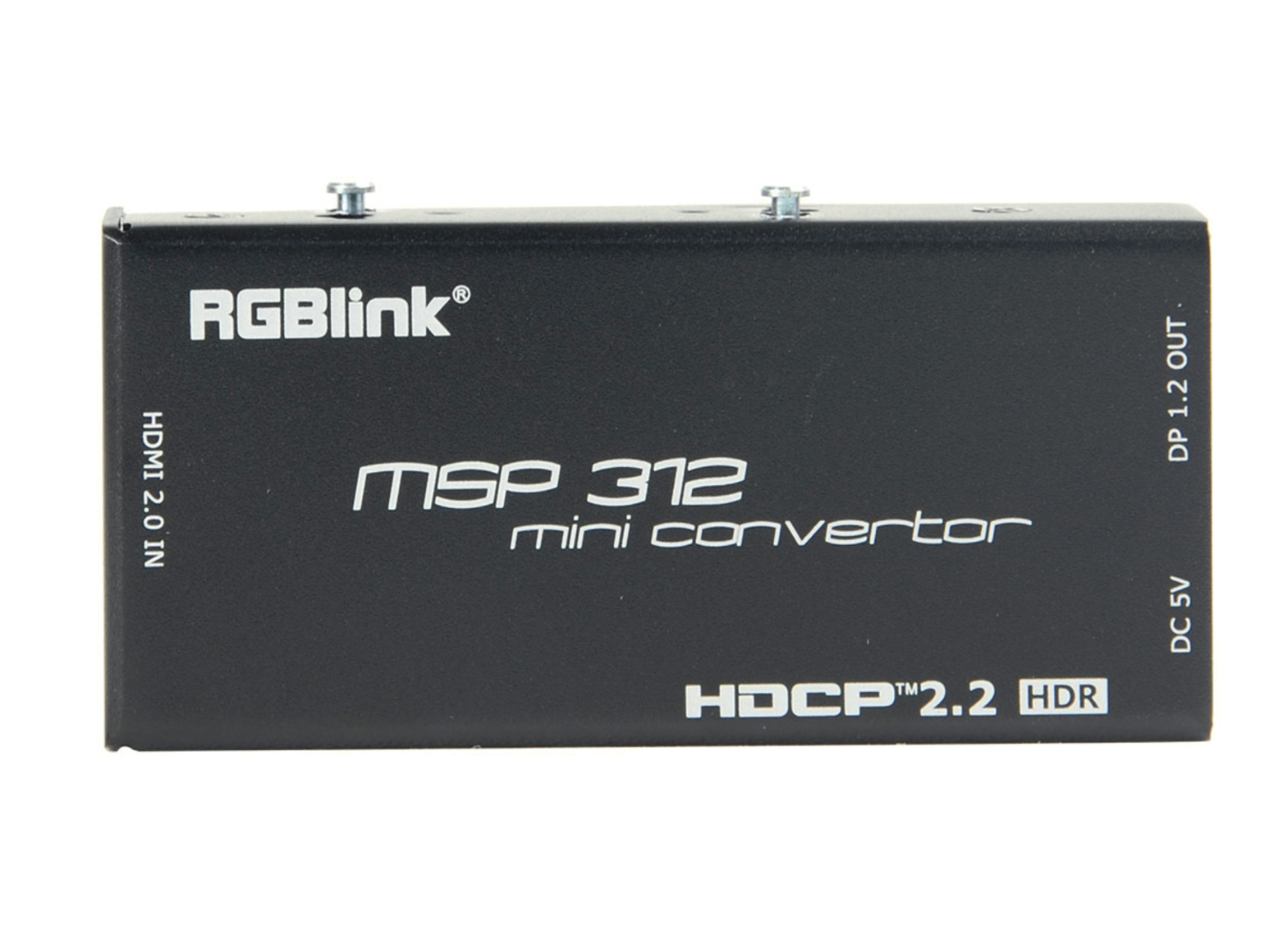

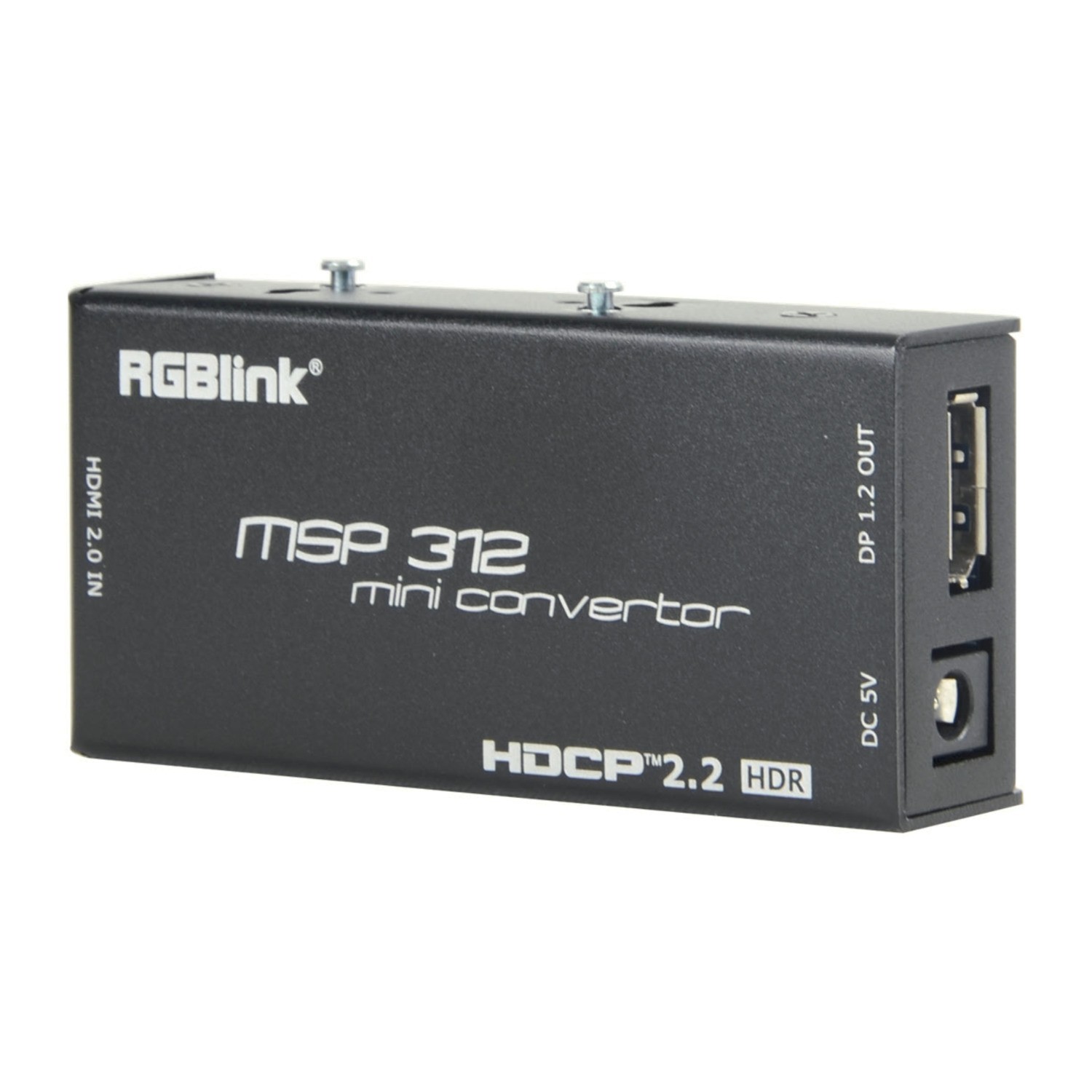

One end carries the HDMI 2.0 IN input, the other the DP 1.2 OUT output and the DC 5V power socket. The converter passes up to 3840 × 2160 at 60 Hz in RGB/YCbCr 4:4:4 colour space at 8 bits per channel, lets HDR through and complies with HDCP 2.2.

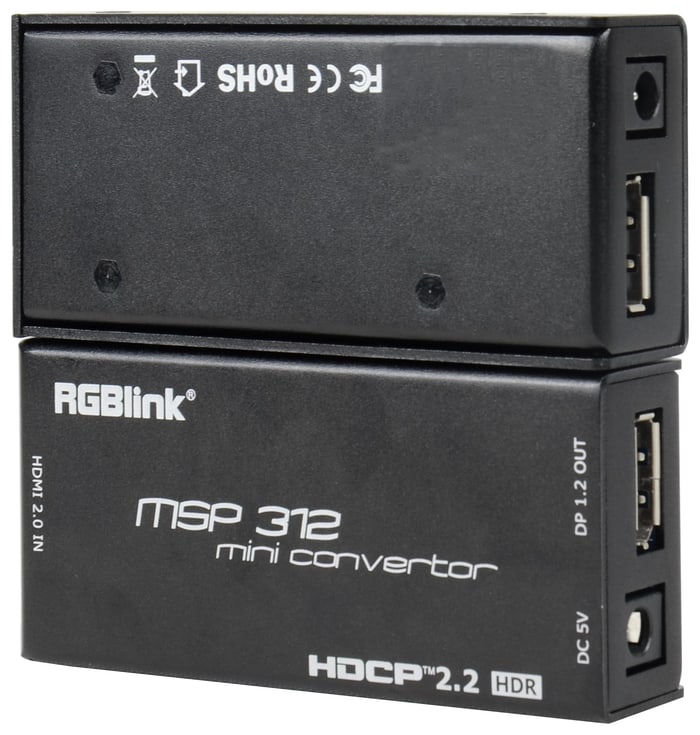

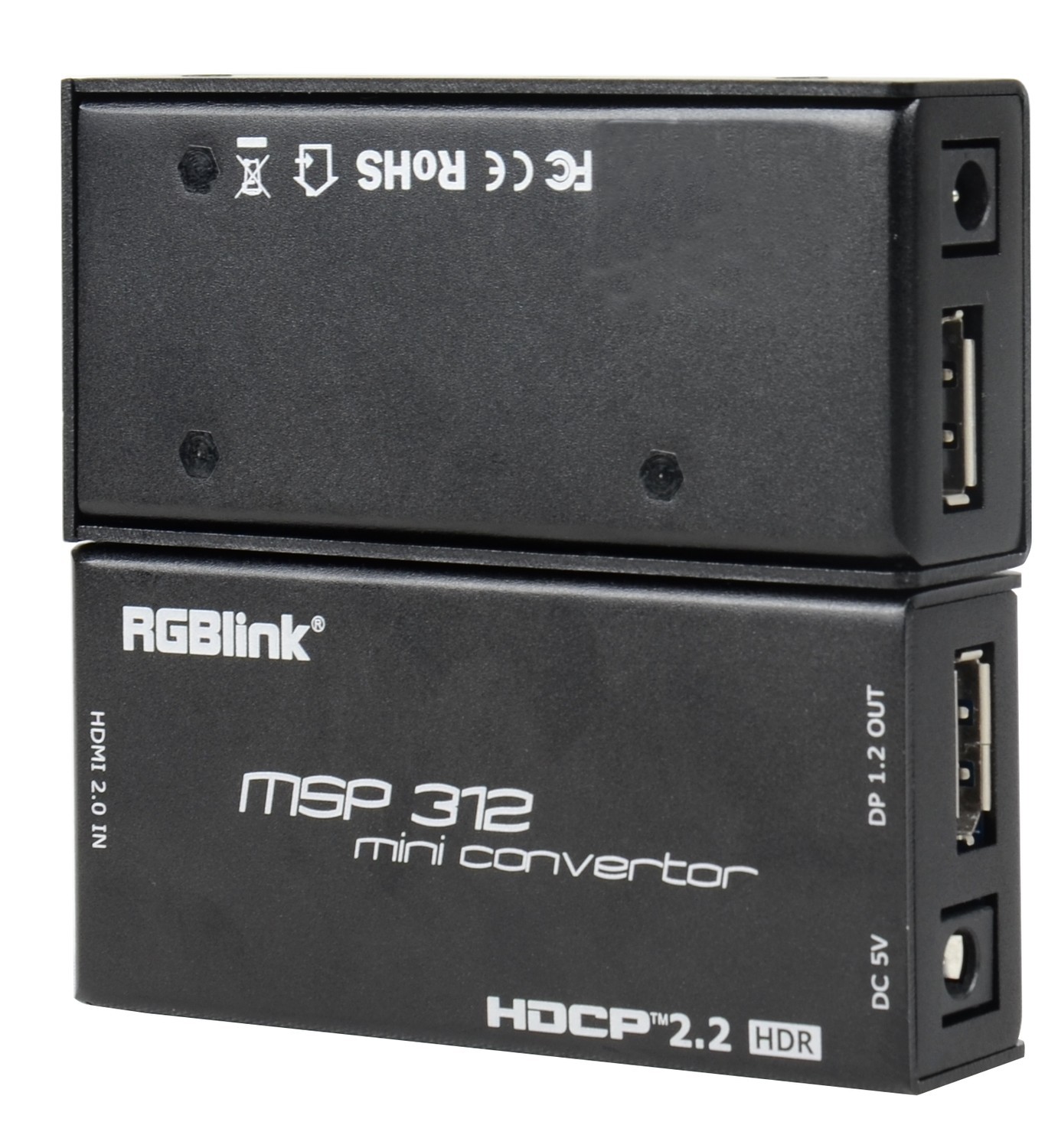

Two units in one block

Two MSP 312 converters can be slotted together into a single block. The pair or single units then fit into the MSP Garage rack frame, sold separately with a power supply under order code 920-0005-01-0.

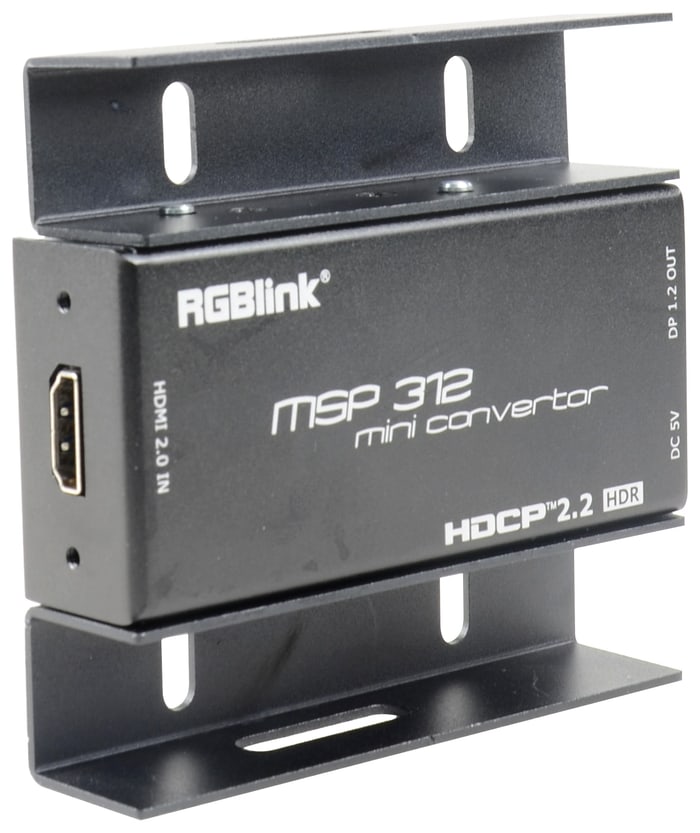

On a wall or in a rack

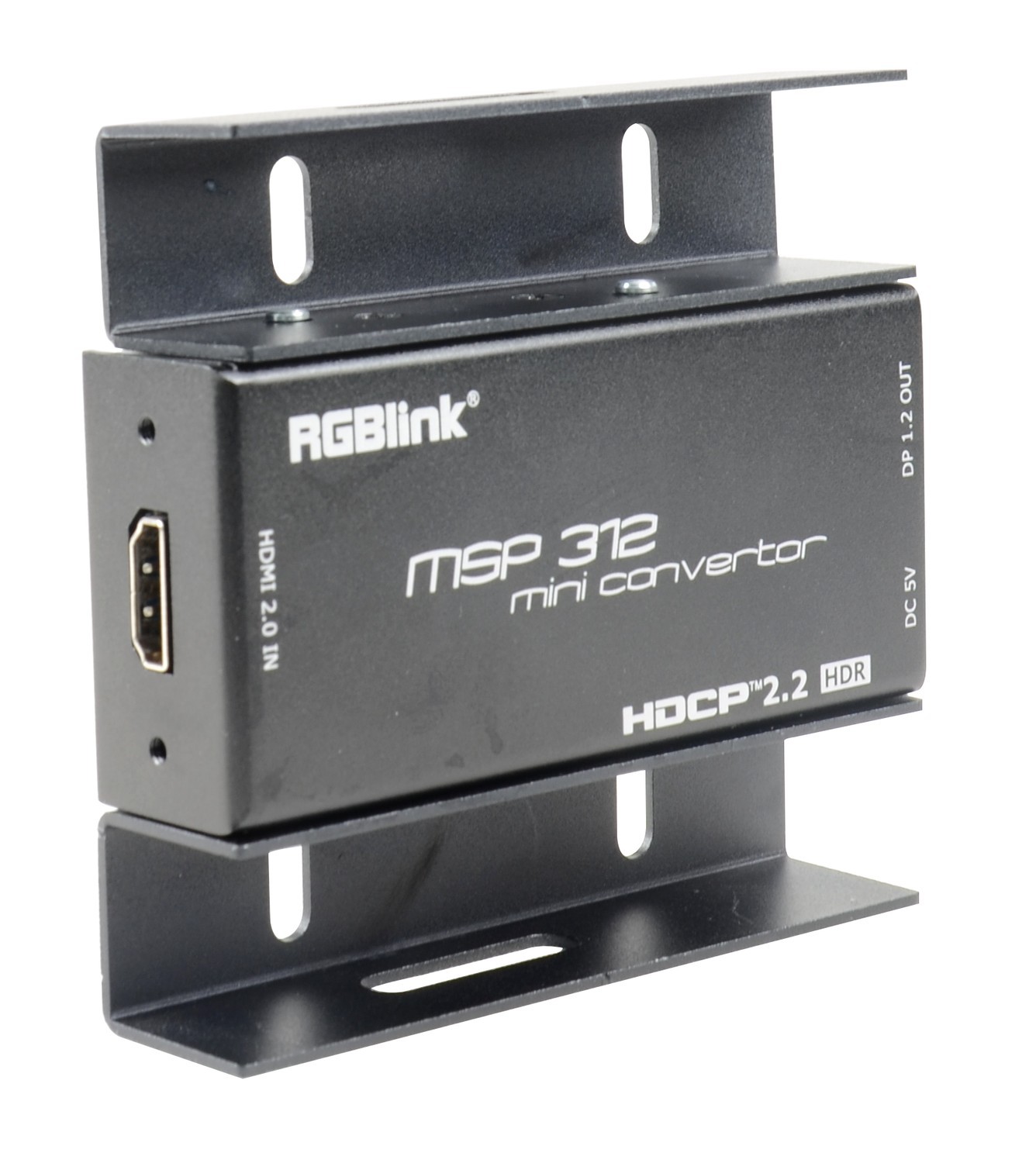

An optional set of mounting wings lets you screw the converter to a wall or into a rack. The body measures 98 × 47 × 24 mm, weighs 0.1 kg and operates from −20 to 60 °C.

More information

The RGBlink MSP 312 is a high-performance HDMI to DisplayPort converter engineered for modern 4K production and presentation environments. It supports HDMI input resolutions up to 3840×2160 at 60Hz and converts them to DisplayPort output with full support for YCbCr 4:4:4 8-bit color space and HDR (High Dynamic Range), ensuring accurate color reproduction and smooth video performance.

Fully compliant with HDCP 2.2, the MSP 312 is suitable for protected content playback and professional AV installations. Its compact design allows two units to be physically joined together for convenience and integration into RGBlink MSP Garage systems. Flexible mounting options—including rack, wall, or wing mounting via optional accessories—make it ideal for fixed installations, live production racks, control rooms, and digital signage environments. Built for reliability, the MSP 312 operates across a wide temperature range, making it a dependable solution for demanding professional use.

Key Features:

• Converts HDMI signals to DisplayPort
• Supports input resolutions up to 3840×2160 @ 60Hz
• HDMI 2.0 input and DisplayPort 1.2 output
• HDR (High Dynamic Range) compatible
• HDCP 2.2 compliant
• Supports YCbCr 4:4:4 8-bit color space
• Two units slot together into one block, compatible with MSP Garage
• Optional rack, wall, or wing mounting solutions
• Compact, lightweight design for professional installations
