RGBlink IC2 Garage

The RGBlink IC2 Garage is a versatile multipoint IP video and KVM solution that can function as either a transmitter or receiver. It supports HDMI video up to 1080p60, remote USB and serial device control, multi-view layouts, OSD text overlay, and embedded or external audio transmission over IP networks.

IC2 Garage works as a transmitter or receiver in a multipoint IP video and KVM system. It sends HDMI video up to 1080p60 and audio over an ordinary network and lets you control remote computers by keyboard and mouse from one place.

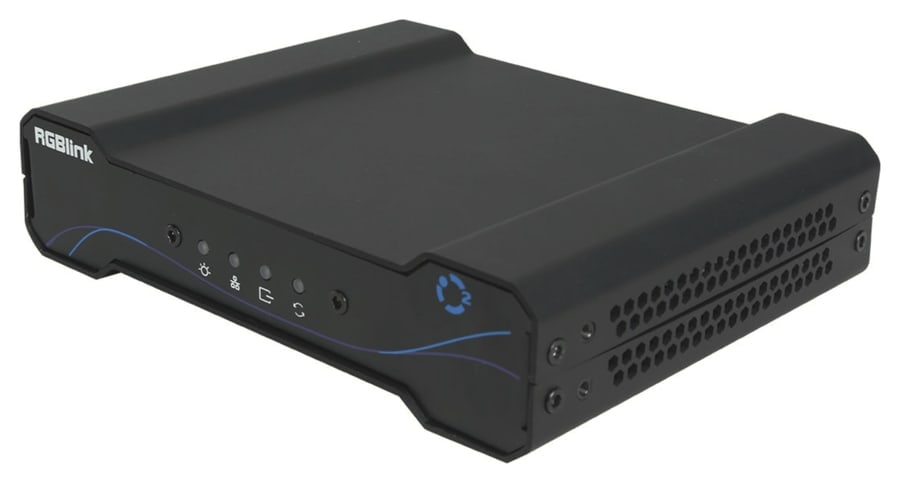

Transmitter or receiver

Each unit is set as a transmitter at the source or a receiver at the screen, so one type of device covers the whole system. The receiver combines up to four sources in one layout, adds OSD text and can zoom into details. Switching between sources is smooth and low-latency.

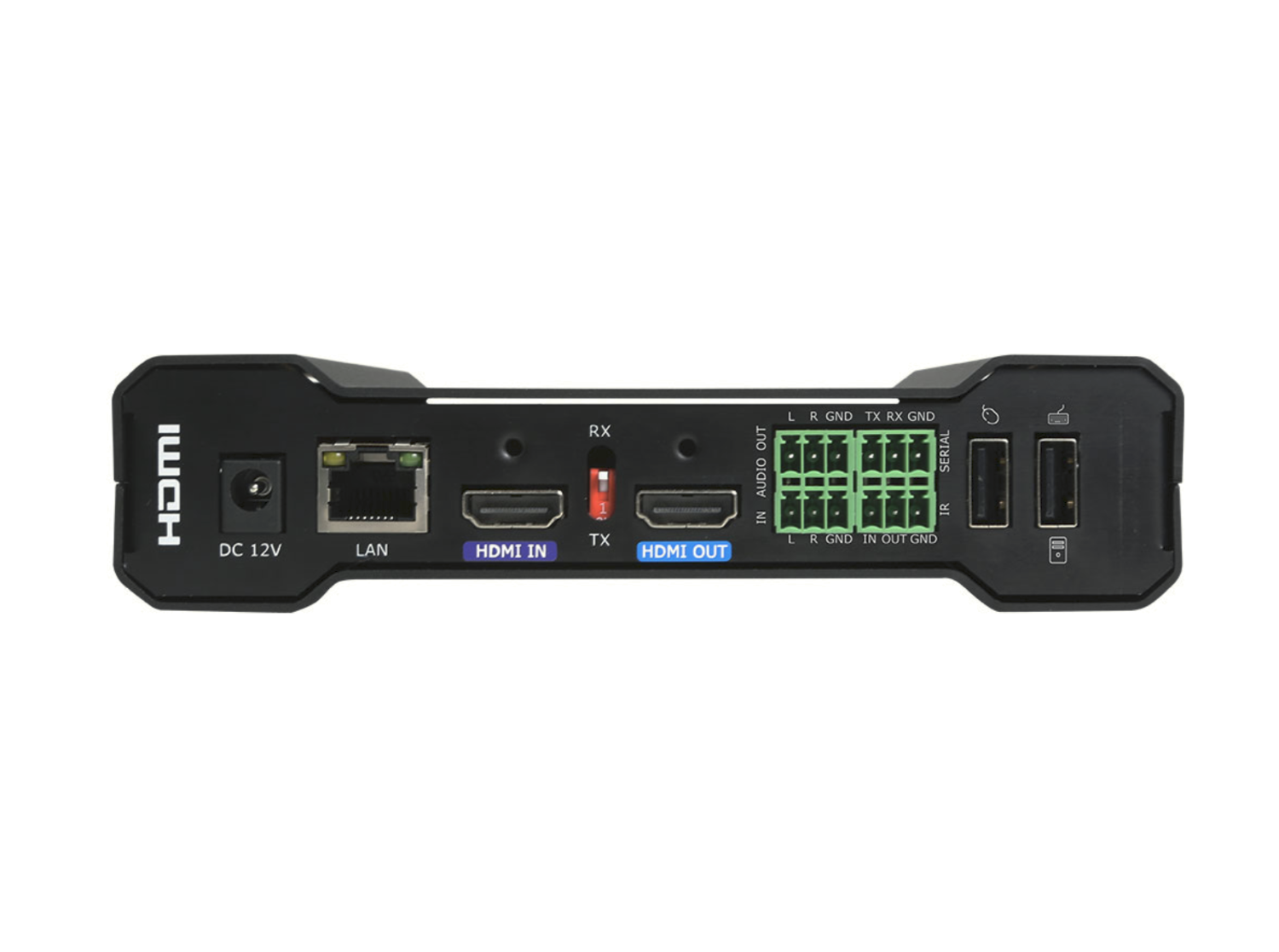

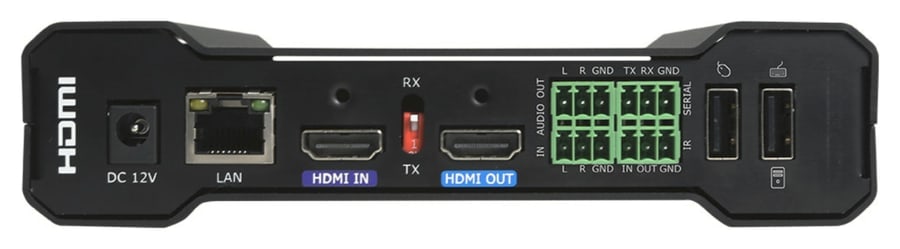

Connectors and control

USB-A ports take a keyboard and mouse, RS232 serves serially controlled devices. Audio is carried embedded in HDMI or external, as AAC or G711A. The compact housing measures 160 × 128 × 37.1 mm and weighs 0.4 kg.

More information

The RGBlink IC2 Garage is a professional multipoint IP video and KVM device designed for dynamic and flexible AV and control room environments. Each unit can be configured as a transmitter or receiver, enabling a wide range of deployment scenarios for multi-point video distribution and remote device control.

Delivering HDMI video signals up to 1080p60 with low latency and high quality, the IC2 Garage allows seamless switching between multiple video sources. Users can combine up to four video inputs into a customizable multi-view layout, add OSD text overlays, and use zoom functions for detailed monitoring. Embedded or external audio is supported, ensuring a complete AV solution.

USB-A ports and RS232 connectivity allow remote control of keyboards, mice, and serial devices, while IP-based transmission enables long-distance connectivity using standard network infrastructure. Its compact, durable design (160 × 128 × 37.1 mm, 0.4 kg) makes it ideal for corporate, educational, or broadcast installations that require centralized control and flexible video distribution.

Key Features:

• Functions as RX or TX for flexible multipoint IP video deployment
• HDMI input/output up to 1080p60 (SMPTE/VESA standards)
• Combine up to four video sources for multi-view layouts
• OSD text overlay and zoom support for advanced monitoring
• Embedded and external audio support (AAC / G711A)
• Remote control via USB-A and RS232 devices
• Seamless switching between video sources with low latency
• IP infrastructure for long-distance connectivity
• Compact, lightweight design for easy installation
