Datavideo HDR-70 HD/SD-SDI Digital Video Recorder for 19-inch Rack
SKU: 2600-0235

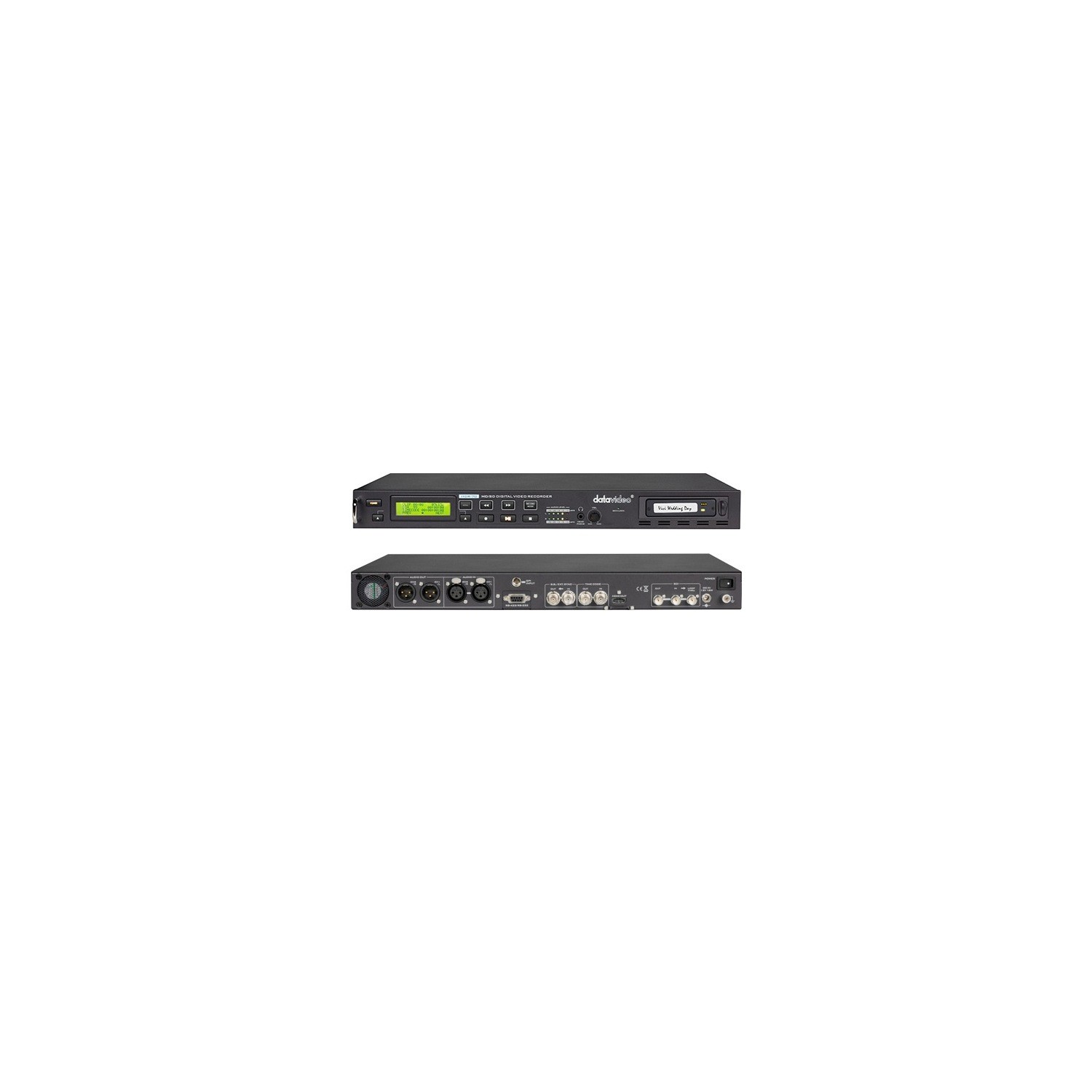

The Datavideo HDR-70 is a 1U HD/SD-SDI video recorder designed for installation in a 19″ rack. It records the SDI input signal to MPEG-2 MXF OP1A or MOV files and supports recording in both Long GOP and I-Frame modes.
2 659 € with VAT
2 197.52 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

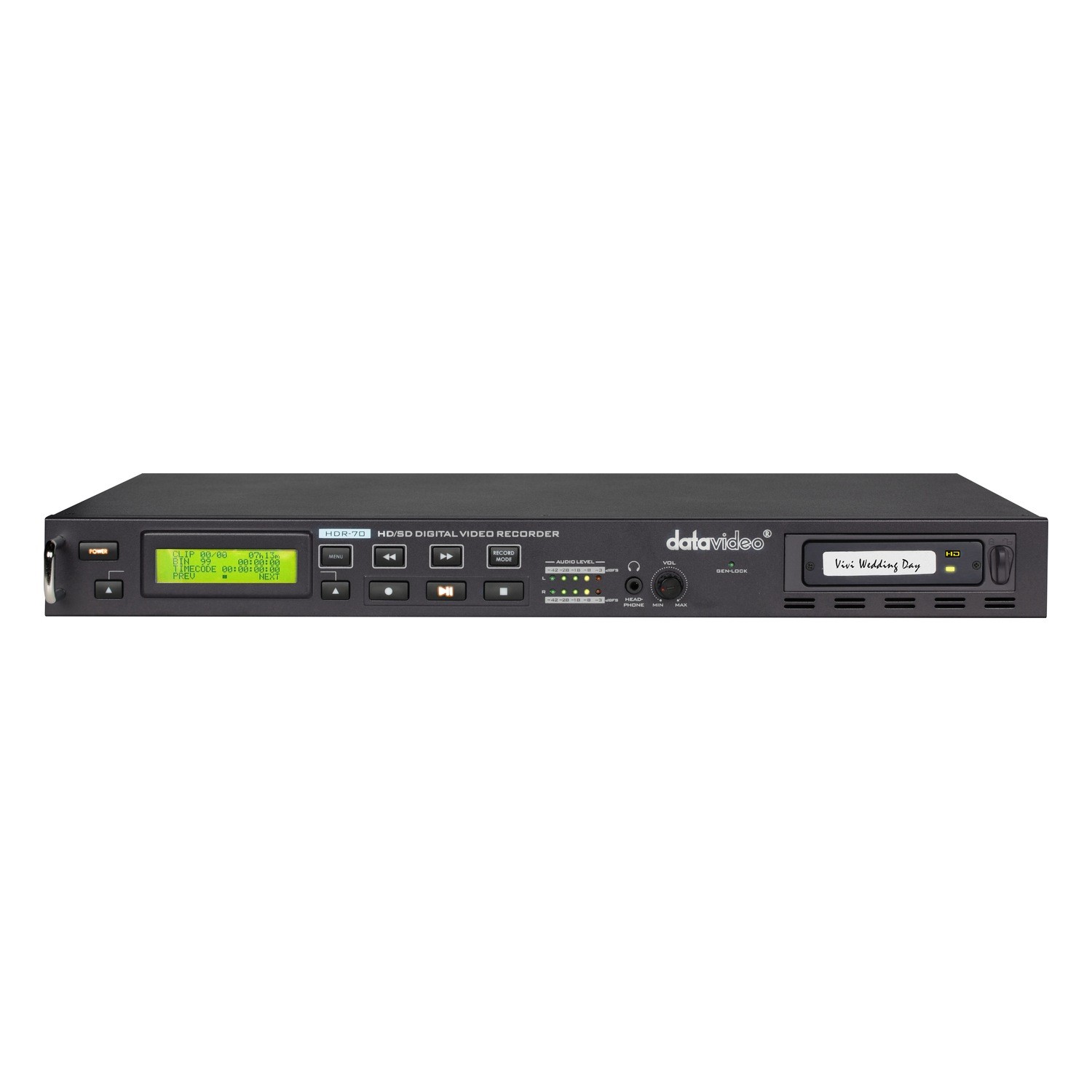

The Datavideo HDR-70 is a 1U HD/SD-SDI video recorder designed for installation in a 19″ rack. It records the SDI input signal to MPEG-2 MXF OP1A or MOV files and supports recording in both Long GOP and I-Frame modes.
The active pass-through SDI output allows you to monitor the input during recording; once recording is complete, the recording can be played back via SDI or HDMI. The device also offers balanced analog XLR audio inputs and outputs, timecode, external synchronization, and RS-232/RS-422 or GPI remote control.

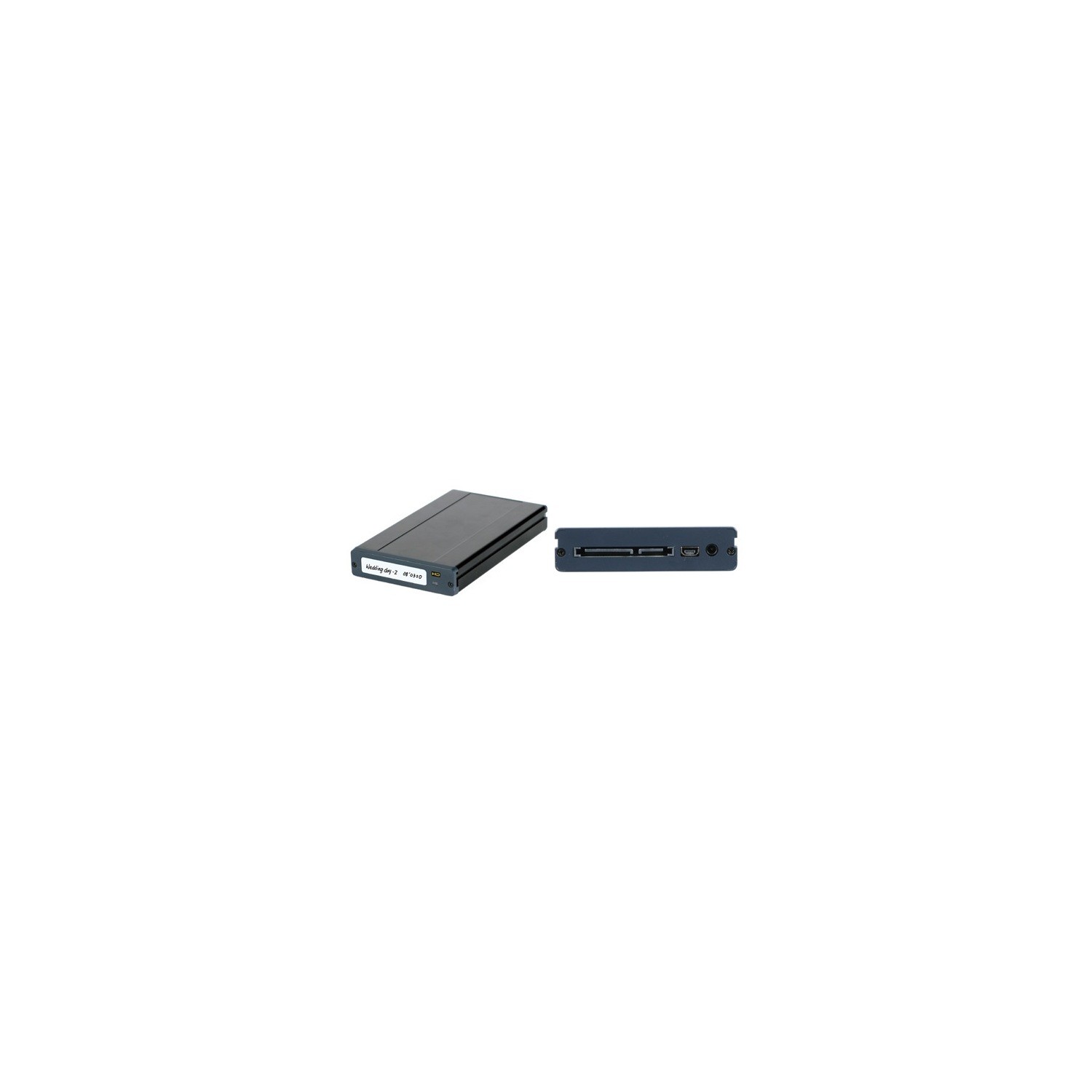

Recording is performed using a removable 2.5-inch HDD or SSD in an HE-1 cartridge. The package includes two cartridges, but the drive itself is not included. Recorded media can be transferred to a computer via USB 2.0.
HD/SD-SDI Video Recorder
The HDR-70 records and plays back both HD and SD video from an SDI input. Its 1U rack-mount design makes it easy to integrate into a control room or broadcast van. Recordings are saved as MPEG-2 MXF OP1A or MOV files; a USB 2.0 port on a removable cartridge is used to transfer media to a computer. A hard drive or SSD is not included.
Connectivity and Remote Control

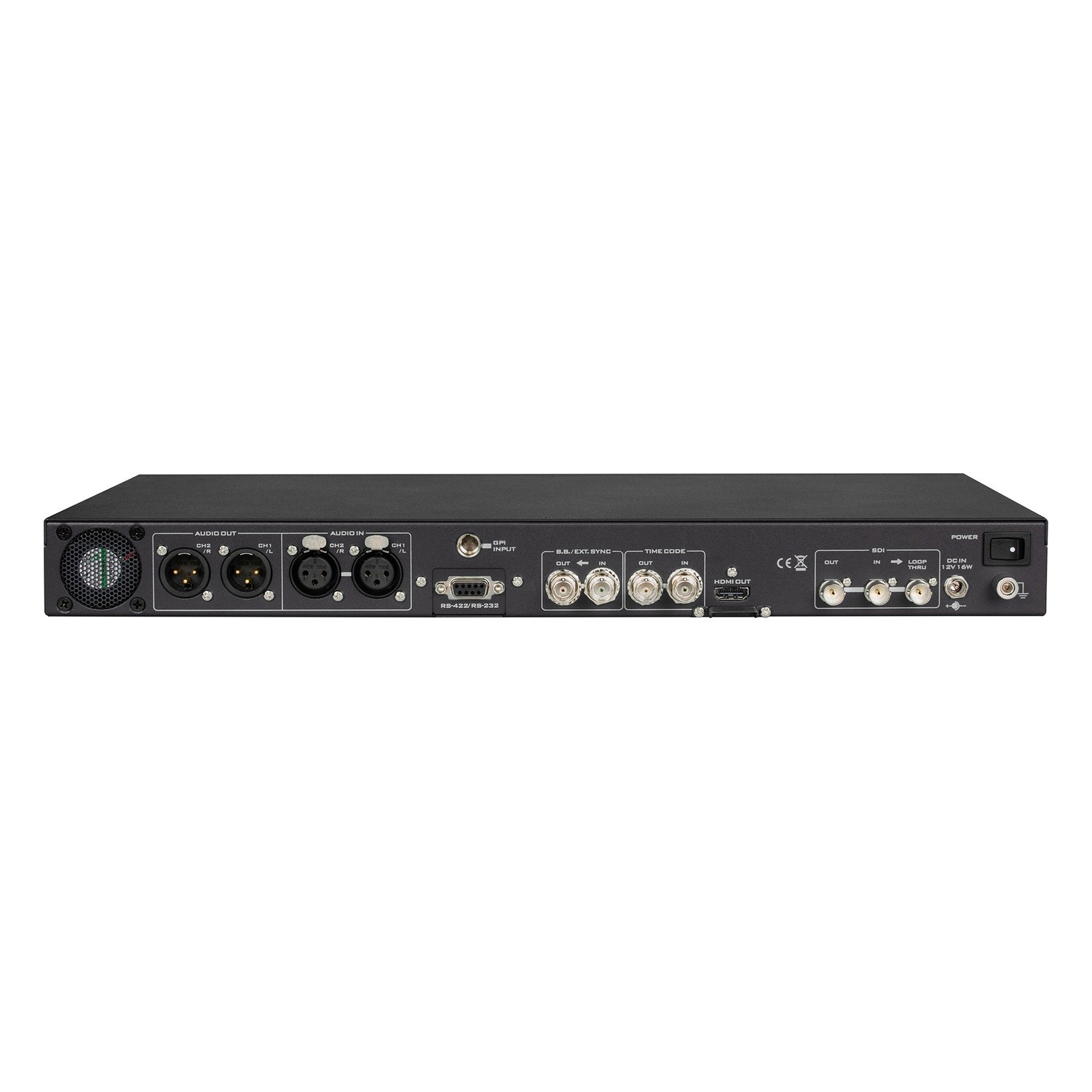

An active SDI pass-through output allows you to monitor the input signal during recording. During playback, SDI and HDMI outputs are available. Balanced XLR inputs and outputs are complemented by Black Burst or tri-level synchronization, time code input and output, and remote control via RS-232/RS-422 or GPI.
PACKAGE CONTENT
- 1× Datavideo HDR-70 video recorder
- 1× 12 V / 2 A AC/DC power adapter
- 2× HE-1 removable cartridges for 2.5″ HDD/SSD (drive not included)
- 1× USB 2.0 Y-cable, 0.5 m long
- 10× M3 × 4 mm screws for drive installation
- 2× spare M2 × 6 mm screws for the cartridge cover
- 2× HD labels for the drive cage
- 4× blank label
- 2× mounting brackets for 19″ rack installation
- 1× user manual
SPECIFICATIONS
- Type: HD/SD-SDI video recorder, 1U rack
- Video input: 1× HD/SD-SDI (BNC), active pass-through output
- Video outputs: 1× SDI, 1× HDMI; SDI pass-through output during recording
- Supported formats: 1080p 23.97/24 Hz; 1080i 50/59.94/60 Hz; 720p 50/59.94/60 Hz; 576i 50 Hz; 480i 59.94 Hz
- Codec and files: MPEG-2 Long GOP or I-Frame; MXF OP1A or MOV
- HD Long GOP: 10/25 Mb/s, 4:2:0 (1440 × 1080 or 1280 × 720); 35/50/65/120 Mb/s, 4:2:2 (1920 × 1080 or 1280 × 720)
- HD I-Frame: 80/100/125 Mb/s, 4:2:2 (1920 × 1080 or 1280 × 720)
- SD Long GOP: 8 Mb/s, 4:2:0; 15/30/50 Mb/s, 4:2:2 (720 × 480 or 720 × 576)
- SD I-Frame: 25/50 Mb/s, 4:2:2 (720 × 480 or 720 × 576)
- Audio: 8-channel embedded audio via SDI; 2-channel via HDMI; 2× balanced XLR inputs and 2× balanced XLR outputs; uncompressed PCM 48 kHz / 24 bits
- Recording medium: 1× removable 2.5″ HDD/SSD, capacity up to 1 TB; two HE-1 cartridges included; drive sold separately
- File system: NTFS
- External synchronization: Black Burst and tri-level, with loop-through output
- Timecode: input and output
- External control: RS-232/RS-422 (D-Sub 9-pin), GPI (mini XLR)
- Number of recording channels: 1 HD channel
- Approximate recording time per 10 GB: SD approximately 19 min at 50 Mb/s to 70 min at 8 Mb/s; HD approximately 8 min at 125 Mb/s to 62 min at 10 Mb/s
- Power supply: 12 V DC / 2 A
- Dimensions: 288 × 481 × 49 mm
- Weight: 3.1 kg
- Operating temperature: 0 to 40 °C
