Datavideo HBT-50 4-channel HDBaseT receiver with SDI and HDMI outputs
Free transport
SKU: 2202-0050
The Datavideo HBT-50 is a four-channel HDBaseT receiver for linking up to four compatible cameras with a control room or recorder. Each HDBaseT link carries video, PoE power and camera-control signals; with CAT 6 cable, the transmission distance can reach 100 m. Every channel provides simultaneous HDMI and SDI outputs up to 1080p60. Camera functions can be…
The Datavideo HBT-50 is a four-channel HDBaseT receiver for linking up to four compatible cameras with a control room or recorder. Each HDBaseT link carries video, PoE power and camera-control signals; with CAT 6 cable, the transmission distance can reach 100 m. Every channel provides simultaneous HDMI and SDI outputs up to 1080p60. Camera functions can be controlled through RS-232/RS-422 or DVIP, including iris and presets where supported by the camera. The receiver brings remote cameras, a production switcher and recording equipment into one clear workflow.
Four camera channels over HDBaseT
The HBT-50 links up to four compatible devices to a control room. HDBaseT carries video, PoE power and control over one cable; with CAT 6 cable, the link can reach 100 m. Each channel provides HDMI and SDI outputs up to 1080p60.
Video, power and control over distance
The HBT-50 links up to four compatible devices to a control room. HDBaseT carries video, PoE power and control over one cable; with CAT 6 cable, the link can reach 100 m. Each channel provides HDMI and SDI outputs up to 1080p60.
Send each channel to switching and recording

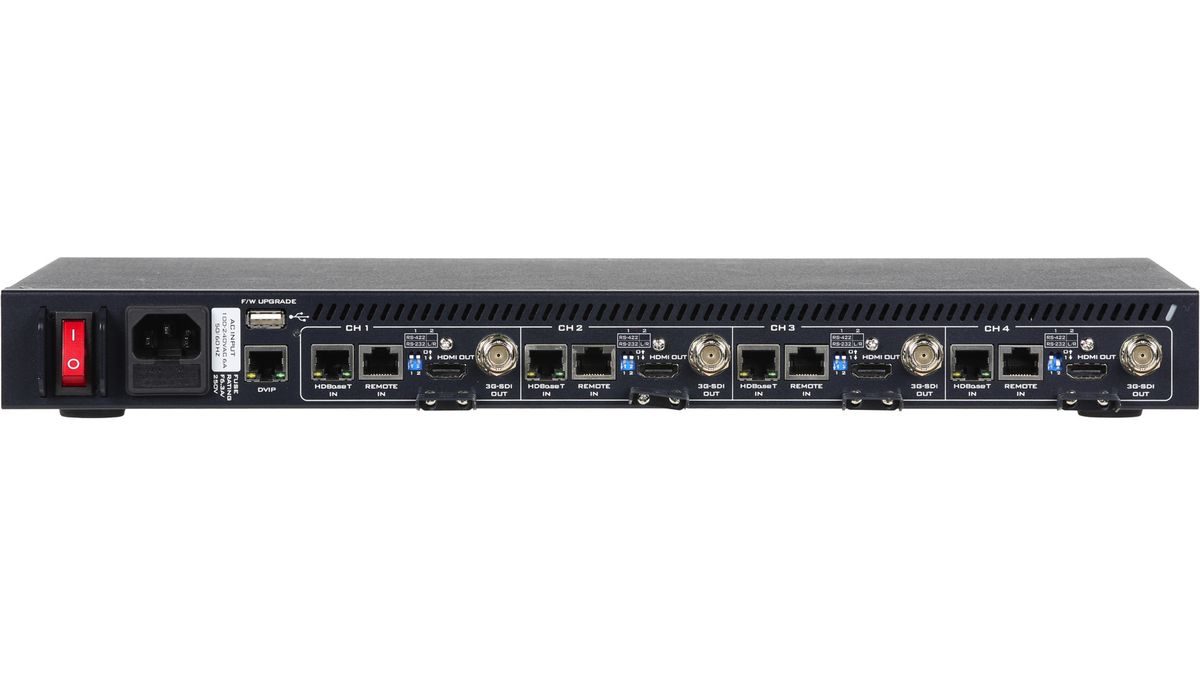

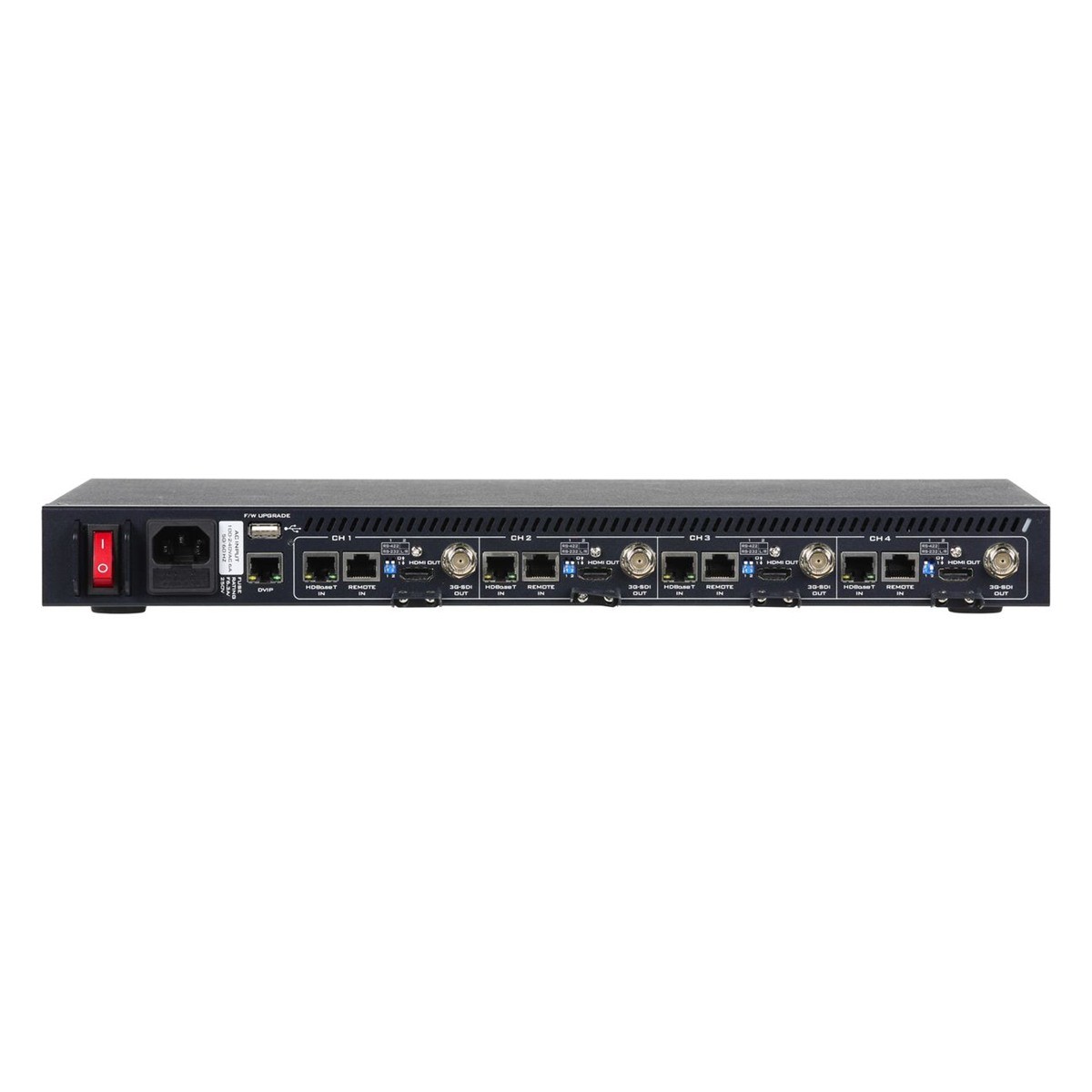

Four HDMI and four SDI outputs let you route the picture from each channel to a production switcher, recorder or other equipment. Camera control is available through four RJ-45 ports for RS-232/RS-422 or through the DVIP input.
PACKAGE CONTENT
In the box
1× Datavideo HBT-50 receiver
1× AC power cord
SPECIFICATIONS
Specifications
Model: Datavideo HBT-50
Type: HDBaseT receiver
HDBaseT inputs: 4× HDBaseT (PoE; IEEE 802.3at)
HDMI outputs: 4× HDMI, up to 1080p50/59.94/60
SDI outputs: 4× SDI, up to 1080p50/59.94/60
Control interfaces: 4× RJ-45 RS-232/RS-422; 1× RJ-45 DVIP input
PoE output: 65 W per channel
Transmission distance: Up to 100 m at 1080p50/59.94/60 over CAT 6
The Datavideo HBT-50 is a key component for signal distribution in an HDBaseT chain, converting signals from PTZ cameras to standard SDI and HDMI outputs with PoE support. To create a complete production setup, it is recommended to supplement it with a video control room, monitoring screens, and systems for audio synchronization and communication.
Monitoring and Control - Equipment for processing and displaying the SDI/HDMI output signal from the receiver.
