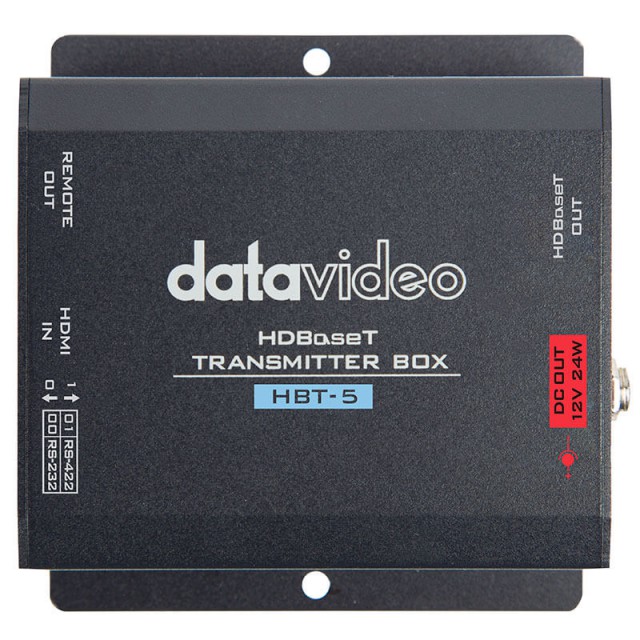

Datavideo HBT-5 HDMI to HDBaseT Transmitter

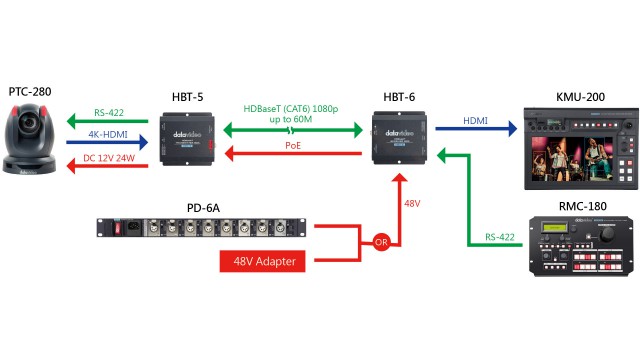

The Datavideo HBT-5 sends HDMI video and digital audio over Cat 6 cable for up to 60 m at 1080p or 35 m at 4K@30. It supports HDMI Deep Color, 3D, HDCP 2.2/1.4 and multichannel audio up to 7.1, including DTS-HD and Dolby TrueHD. EDID pass-through and learning help match the source to the display, while RS-232/RS-422 control can travel on the HDBaseT link. Its 12 V / 24 W output can power remote equipment. The compatible Datavideo HBT-6 receiver converts the link back to HDMI.

HDMI AND HDBASET OVER ONE CABLE RUN

The HBT-5 connects an HDMI source to a remote display over Cat 6 cable. Video and digital audio share the same run, reducing the number of separate cables needed for an installation.

VIDEO AND AUDIO TRANSMISSION

Transmission reaches up to 60 m at 1080p and 35 m at 4K@30. The HBT-5 supports digital audio up to 7.1 channels, HDMI Deep Color, full 3D and HDCP 2.2/1.4.

CONTROL AND CONNECTIONS

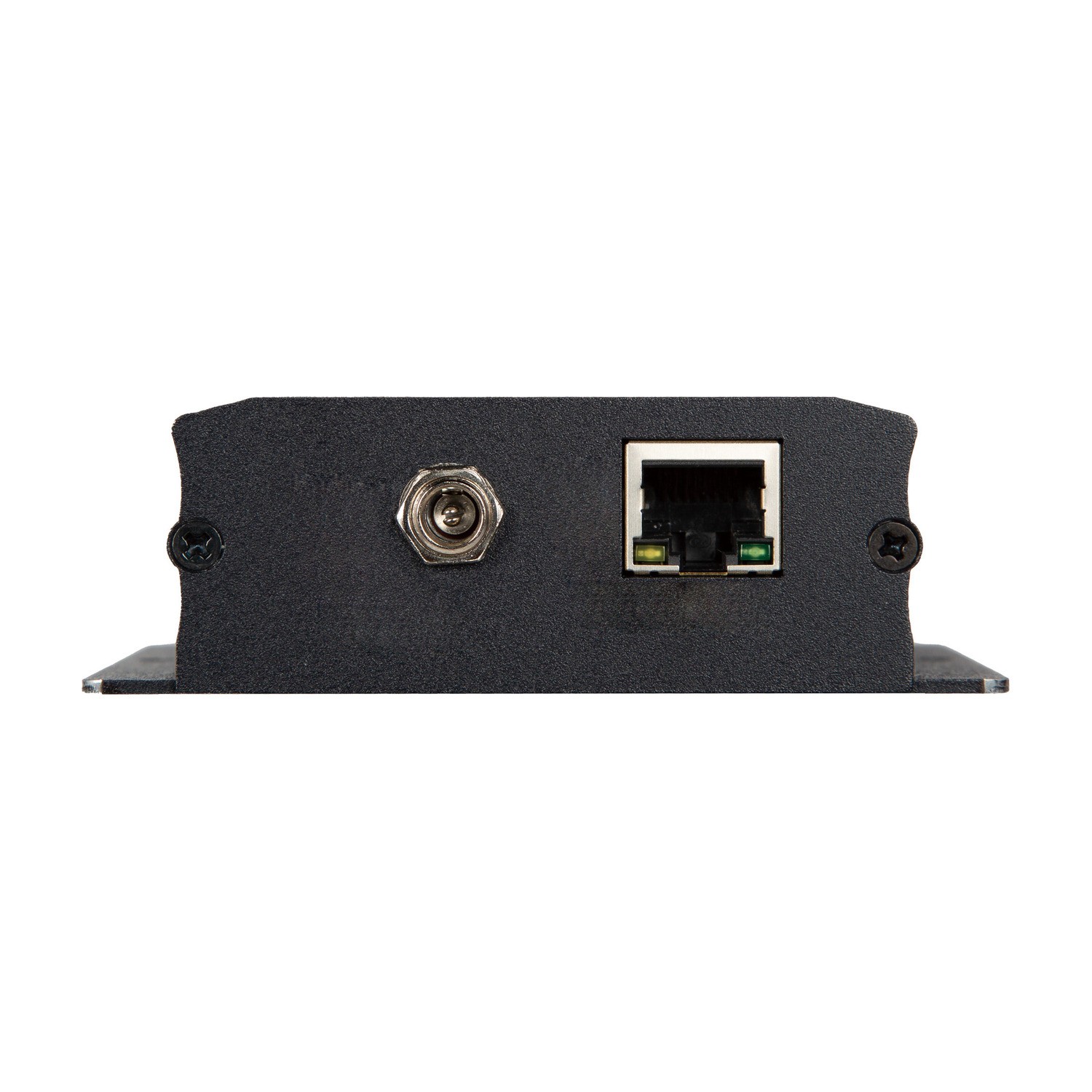

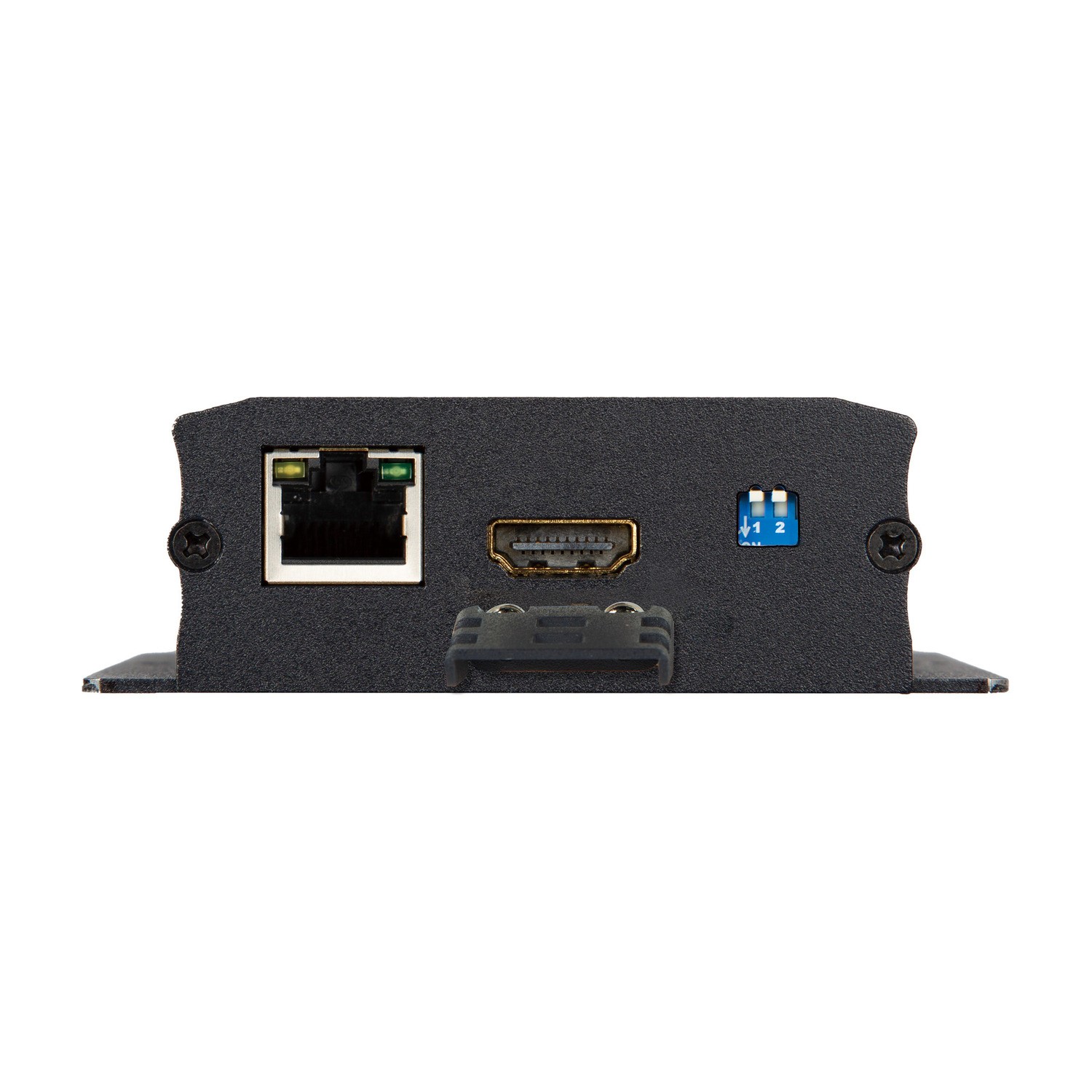

EDID pass-through and learning help match the source to the display. The RS-232/RS-422 connector carries control commands, and the 12 V / 24 W output can power equipment at the remote end.
