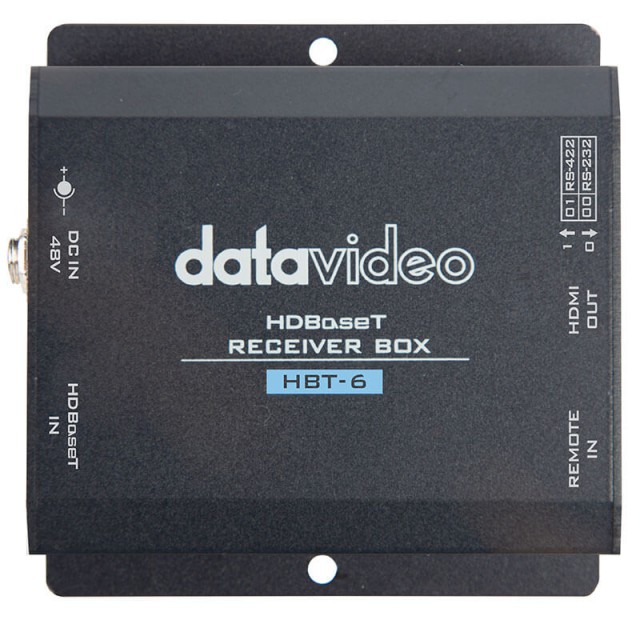

Datavideo HBT-6 HDBaseT Receiver Box
SKU: 2202-0006
The Datavideo HBT-6 is an HDBaseT receiver with HDMI output for extending HDMI signals over Cat 6 cable. It carries video and audio up to 60 m at 1080p60 or 35 m at 4K30 and supports formats up to 3840 × 2160p, HDMI Deep Color, Full 3D and HDCP 2.2/1.4. Features include audio up to 7.1 channels, RS-232/RS-422 control, EDID pass-through and learning, PoE or…
409 € with VAT
338.02 € without VAT
Availability
14-30 days
Top accessories for Datavideo HBT-6 HDBaseT Receiver Box
Datavideo HBT-5 HDMI to HDBaseT Transmitter
The Datavideo HBT-5 sends HDMI video and digital audio over Cat 6 cable for up to
333 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo HBT-6 is an HDBaseT receiver with HDMI output for extending HDMI signals over Cat 6 cable. It carries video and audio up to 60 m at 1080p60 or 35 m at 4K30 and supports formats up to 3840 × 2160p, HDMI Deep Color, Full 3D and HDCP 2.2/1.4. Features include audio up to 7.1 channels, RS-232/RS-422 control, EDID pass-through and learning, PoE or the included 48 V DC adapter for power, and a 12 V output for remote equipment.
HDBaseT receiver
Send HDMI farther over one cable

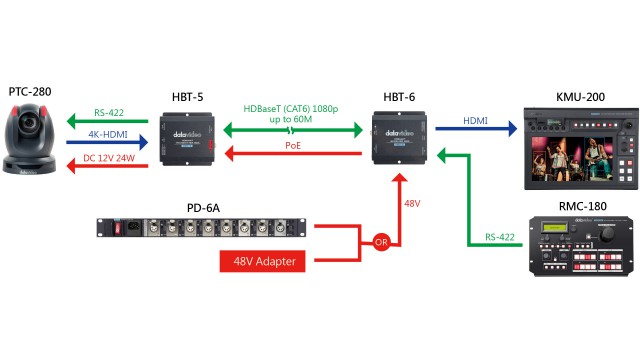

The Datavideo HBT-6 receives video and audio over HDBaseT and outputs HDMI at the display location. A Cat 6 cable can carry 1080p60 up to 60 m or 4K30 up to 35 m, helping place the display away from the source without running a long HDMI lead.
4K, Full HD and digital audio
The receiver supports HDMI Deep Color, Full 3D and HDCP 2.2/1.4. It handles supported formats up to 3840 × 2160p at 30 Hz and passes digital audio, including multichannel formats up to 7.1 channels. The specifications also list 4K2K30 4:4:4 8-bit and 4K2K60 4:2:0 8-bit processing.
Flexible power and remote control
Power the HBT-6 from its included 48 V DC adapter or by PoE from a compatible transmitter. Its 12 V output can power remote equipment, while RS-232/RS-422 control lets an operator manage a source device from the display end. EDID pass-through and learning help match the source signal to the connected display.
PACKAGE CONTENT
- 1 × Datavideo HBT-6 receiver unit
- 1 × AC power cord
- 1 × 48 V DC power adapter
- 2 × mounting screws
SPECIFICATIONS
- Type: HDBaseT receiver box
- Input: 1 × HDBaseT RJ-45
- Output: 1 × HDMI
- Supported video formats: 3840 × 2160p at 30/29.97/25/24/23.98 Hz; 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz; 1080i at 60/59.94/50 Hz; 720p at 60/59.94/50 Hz; 525i59.94 NTSC; 625i50 PAL
- Maximum distance over Cat 6: 60 m at 1080p60; 35 m at 4K30
- Video bandwidth: Single-link 340 MHz (10.2 Gbps)
- Video processing: 4K2K30 4:4:4 8-bit; 4K2K60 4:2:0 8-bit
- HDMI features: Deep Color, Full 3D, up to 4K2K30
- HDCP: 2.2 / 1.4
- Audio: Stereo or surround sound up to 7.1 channels
- Control: RS-232 / RS-422
- Power: 48 V DC input; PoE from transmitter; 30 W PoE output; 12 V output for remote equipment
- Dimensions: 88 × 76 × 30 mm
- Weight: 154 g (manufacturer specification; product record lists 0.96 kg shipping weight)
- Operating temperature: 0–40 °C
WE RECOMMEND
The Datavideo HBT-6 is a professional HDBaseT receiver that enables the transmission of HDMI signals at resolutions up to 4K, PoE power, and RS-232/422 control commands over a single Cat6 cable. For full utilization in a production chain, it is ideal to complement it with compatible monitors, intercoms for studio communication, and mounting hardware for a stable installation.
Monitors and Display Devices - Display devices compatible with the receiver’s HDMI output for preview and presentation.
- Datavideo TLM-700UHD
- Datavideo TP-650
- Datavideo TP-500
- Datavideo WR-500
- Datavideo TP-500 Glass
- Datavideo TP-300 Glass
Intercom and Communication - Systems for ensuring communication between the control room and the operator station with a receiver.
Signal Processing and Control - Devices for audio synchronization, decoding, and remote control within an HDBaseT infrastructure.
Installation and Mounting - Accessories for secure mounting of the receiver in a rack or on a wall.
Parameters
| Manufacturer: | Datavideo |
| Category: | Signal converters |
Main parameters
| Other features | HDCP support |
| Source | HDBaseT |
| Target | HDMI |
