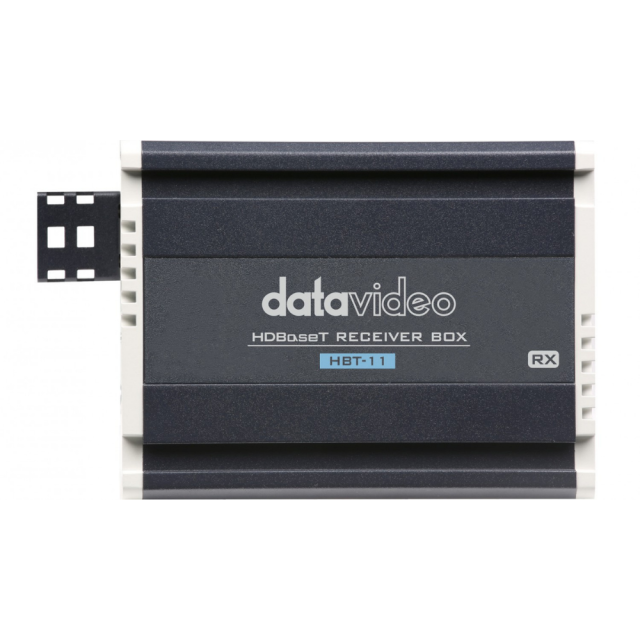

The HBT-11 receiver extends an HDBaseT link between a compatible transmitter and a display or control position. One Cat 5e/6/6a/7 cable carries video, audio, DVIP commands, RS-422/232 serial control and PoE; the link reaches up to 100 m in Full HD mode. Its HDMI output supports video formats up to 4Kp30.
The HBT-11 receiver extends an HDBaseT link between a compatible transmitter and a display or control position. One Cat 5e/6/6a/7 cable carries video, audio, DVIP commands, RS-422/232 serial control and PoE; the link reaches up to 100 m in Full HD mode. Its HDMI output supports video formats up to 4Kp30.
Supported HDMI formats: 3840 × 2160p at 30/29.97/25/24/23.98 Hz; 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz; 1080i at 60/59.94/50 Hz; 720p at 60/59.94/50 Hz.
SINGLE-CABLE HDBaseT TRANSPORT
The HBT-11 receiver extends an HDBaseT link between a compatible transmitter and a display or control position. One Cat 5e/6/6a/7 cable carries video, audio, DVIP commands, RS-422/232 serial control and PoE; the link reaches up to 100 m in Full HD mode. Its HDMI output supports video formats up to 4Kp30.
VIDEO, CONTROL AND POWER
The rear panel brings together the HDBaseT input, HDMI output, DVIP network port and 48 V power input. In a suitable system this avoids separate cable runs for video and control. The HBT-11 works in a system with the Datavideo HBT-10 transmitter; 4Kp30 transmission is available with a compatible transmitter.
RS-422 / RS-232 SERIAL CONTROL

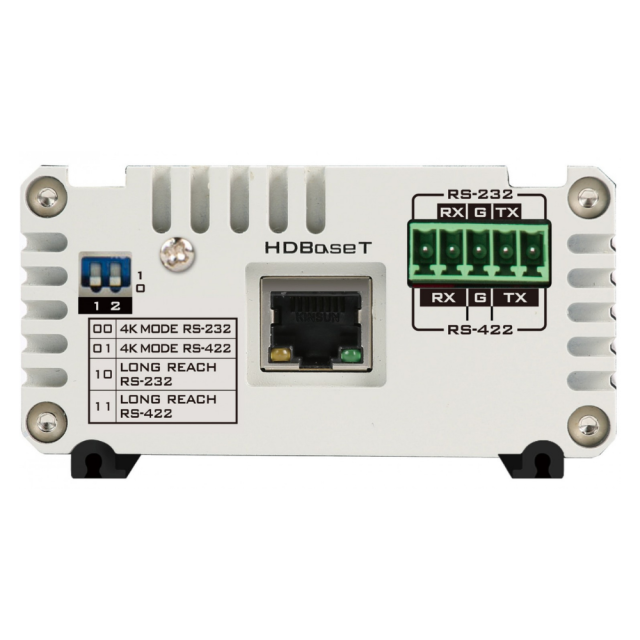

The Phoenix terminal provides serial camera control. Switches on the unit select RS-232 or RS-422, including Long Reach modes; configure them to match the protocol and wiring of the connected equipment.
HDBaseT SYSTEM CONNECTION

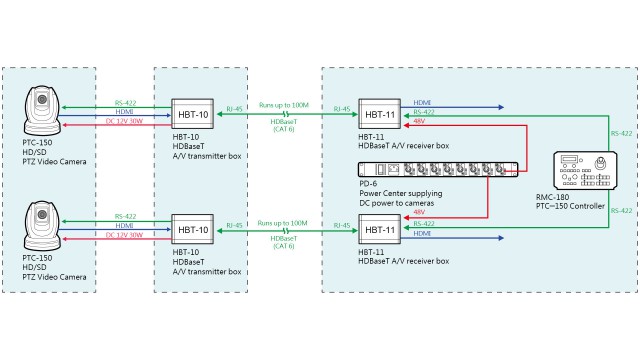

The diagram shows one possible setup: a PTC-150 camera connects to an HBT-10 transmitter and HBT-11 receiver. HDBaseT carries video and control; the HDMI output can connect to a monitor and RS-422 to an RMC-180 controller. The PD-6 supplies power to the receiver.
PACKAGE CONTENT
1× Datavideo HBT-11 receiver
1× 48 V power adaptor
1× AC power cord
1× Phoenix-to-RJ-45 adaptor
SPECIFICATIONS
Type: HDBaseT receiver
Input: HDBaseT over RJ-45
Video output: HDMI, up to 3840 × 2160p30
Control: DVIP over RJ-45; RS-422/RS-232 via Phoenix terminal
Transport: video, audio, control data and PoE over one Cat 5e/6/6a/7 cable
Distance: up to 100 m for Full HD; actual reach depends on resolution and cable
Power: 48 V DC input; PoE output up to 35 W
Dimensions: 132 × 85 × 45 mm
Weight: approx. 400 g
Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo HBT-11 is the receiver in an HDBaseT link. Pair it with the compatible Datavideo HBT-10 transmitter to carry video and control signals over HDBaseT. For rack installation, the compatible mounting kit is the Datavideo RMK-2.
