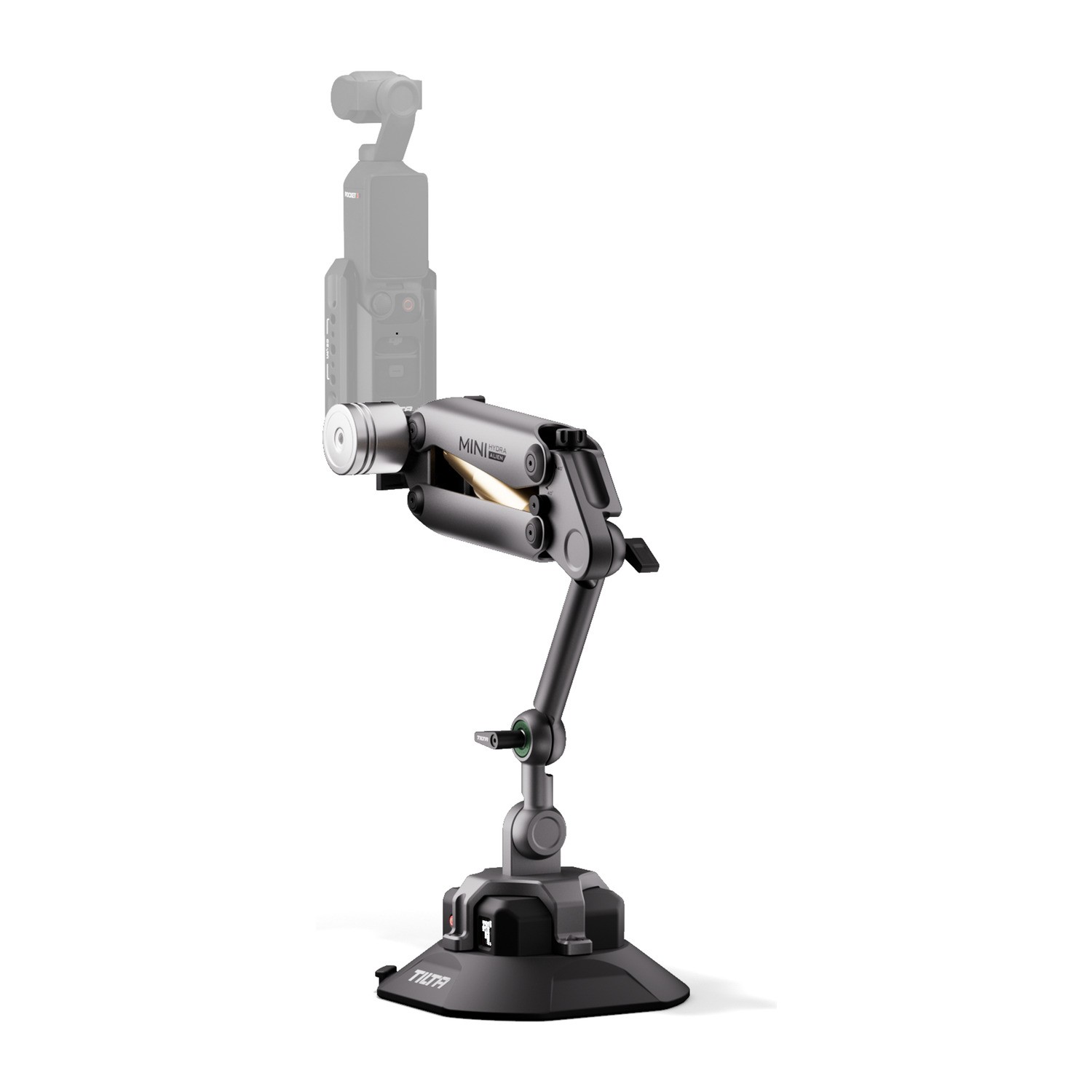

Tilta Hydra Alien Mini Electronic Suction Cup Kit - Titanium Gray

A sprung Tilta vehicle mount for action cameras, pocket gimbals and phones up to 600 g, fitted with the 4.5″ electronic suction cup. The cup watches its own vacuum and tops it up if it leaks; the 2000 mAh battery lasts over 14 hours and charges over USB-C. The hydraulically damped aluminium-alloy arm keeps the image steady up to 100 km/h. The kit includes…

More information

Promotion: -10% ends in: 10d: 18h: 29m
228.69 € 205.82 € with VAT 170.1 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

A sprung Tilta vehicle mount for action cameras, pocket gimbals and phones up to 600 g, fitted with the 4.5″ electronic suction cup. The cup watches its own vacuum and tops it up if it leaks; the 2000 mAh battery lasts over 14 hours and charges over USB-C. The hydraulically damped aluminium-alloy arm keeps the image steady up to 100 km/h. The kit includes a support arm, counterweight and a soft carrying case.

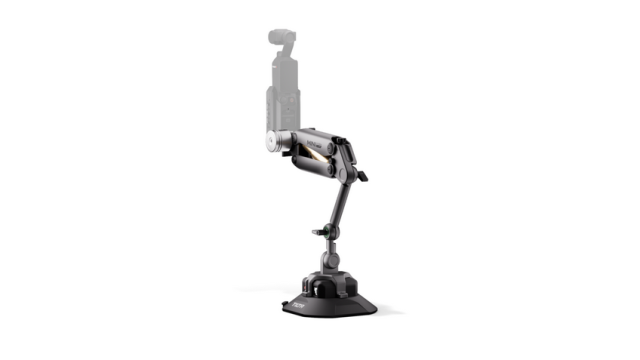

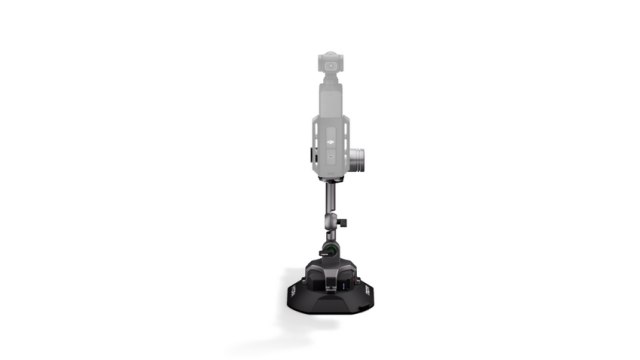

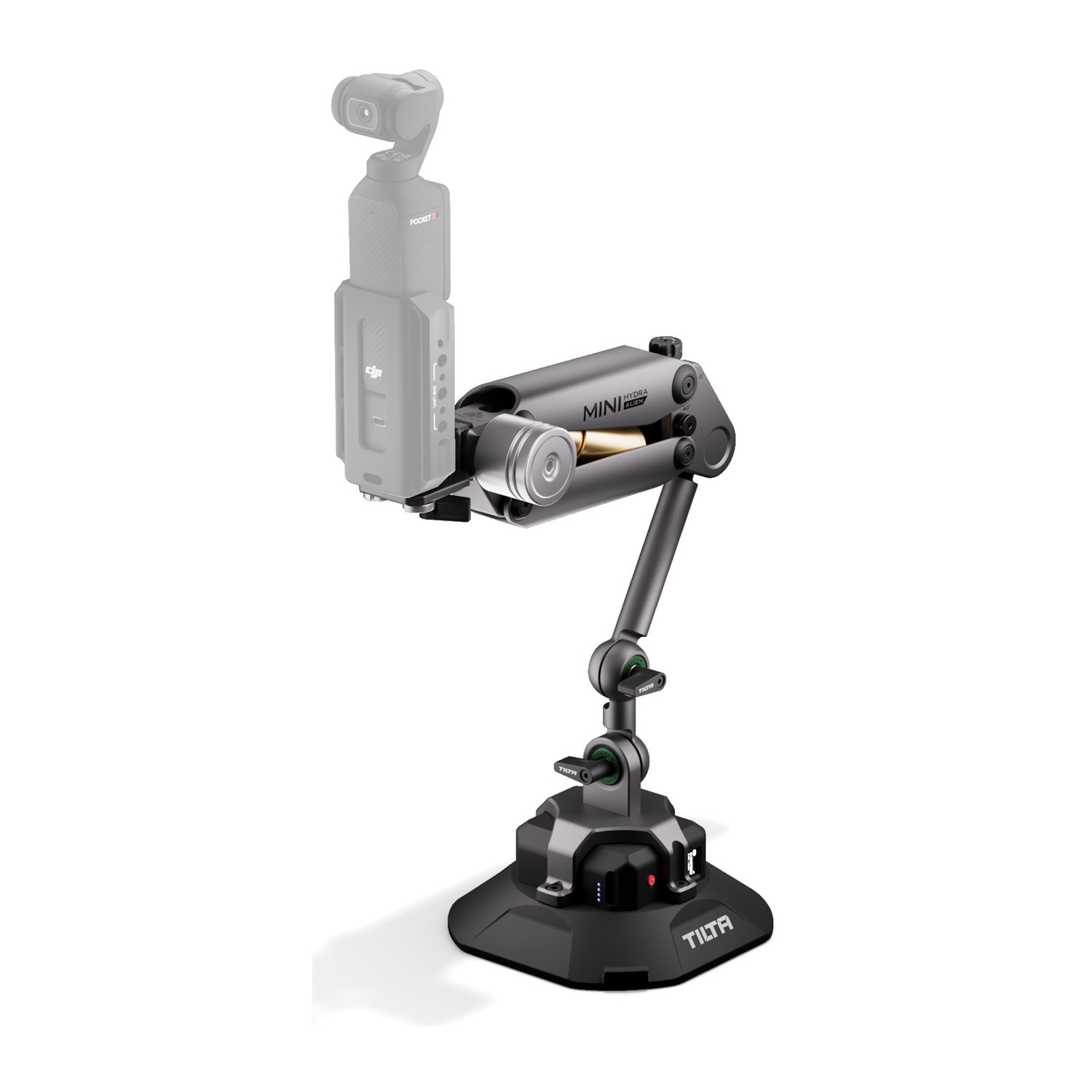

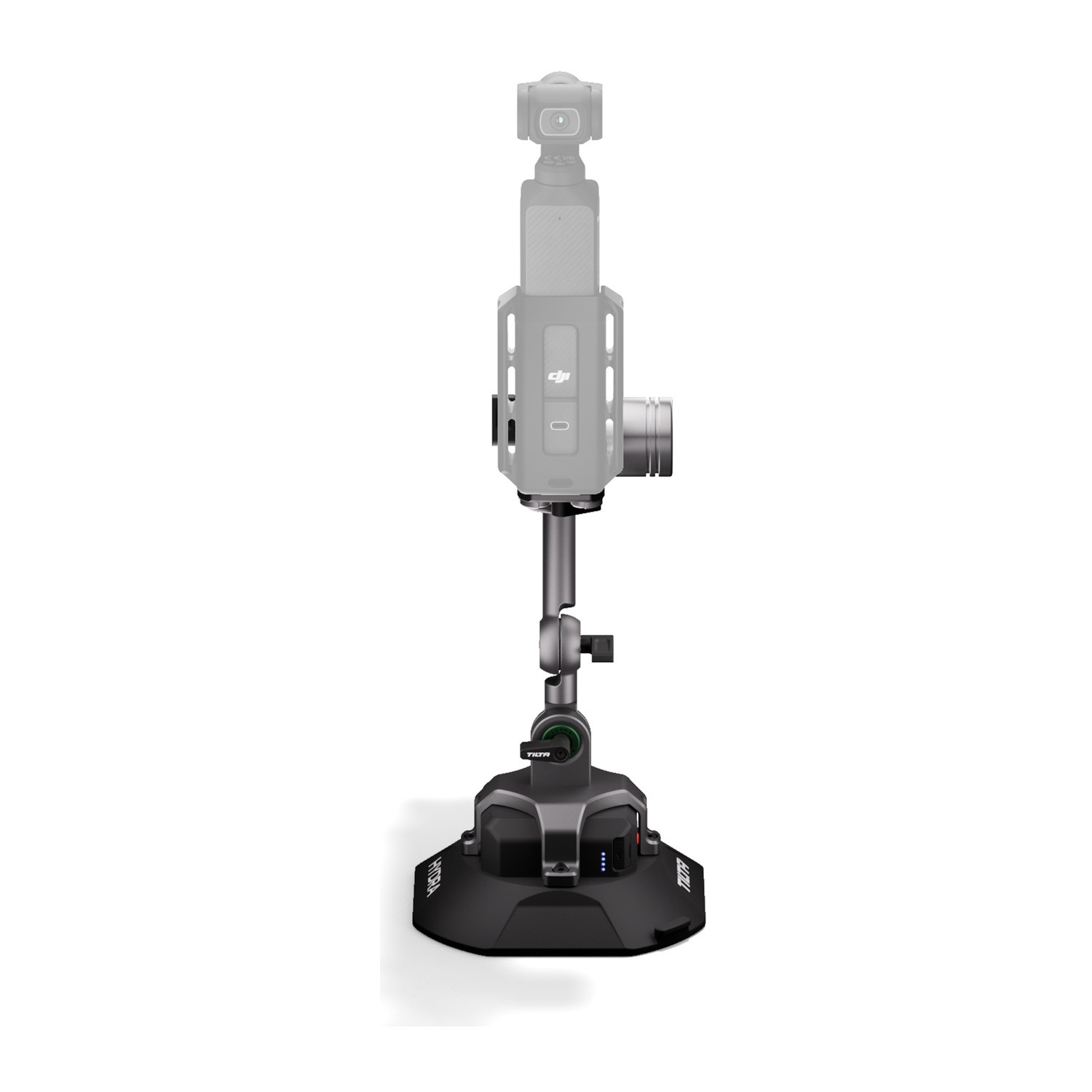

The Tilta Hydra Alien Mini Electronic Suction Cup Kit is a compact sprung vehicle mount for action cameras, pocket gimbals and phones. Against the basic kit it adds the 4.5″ electronic suction cup, which monitors its own vacuum and tops it up automatically if it leaks. The arm is machined from a single billet of aluminium alloy and carries 150 to 600 g.

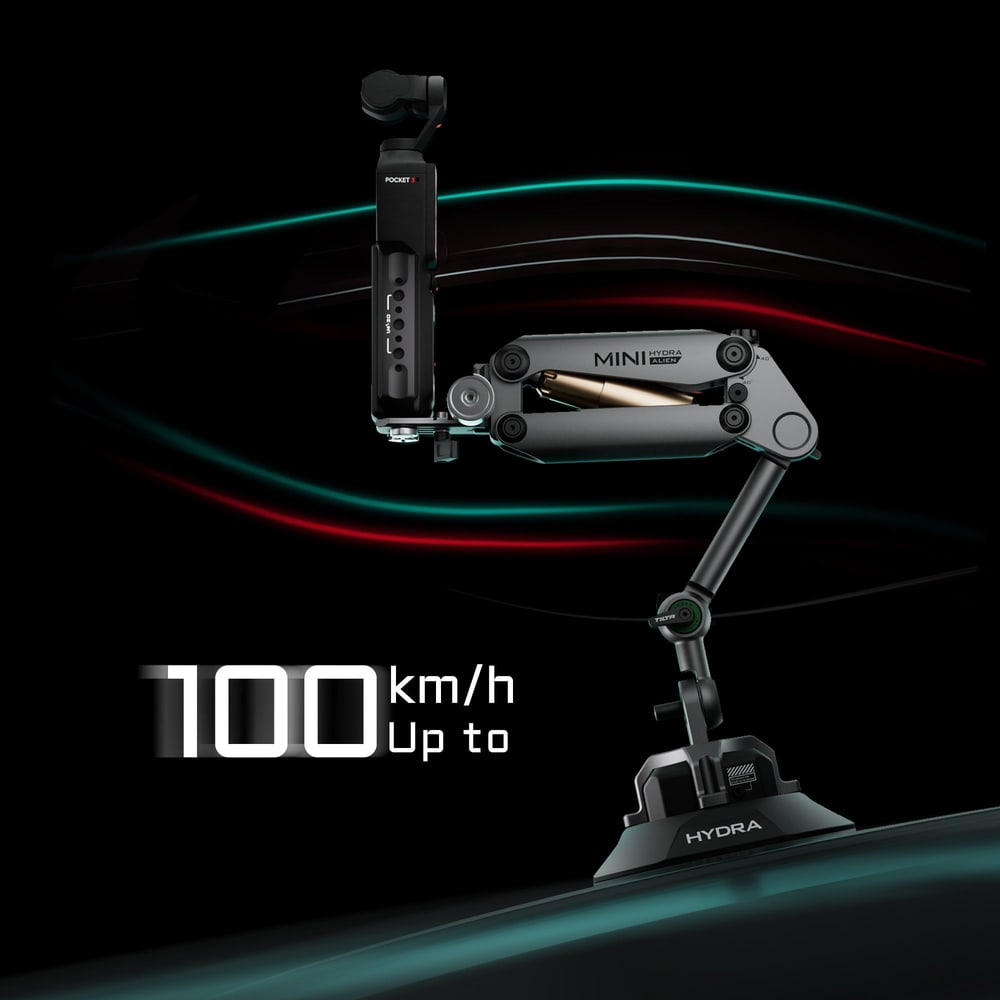

A vehicle mount that fits in a backpack

The Hydra Alien Mini descends from the full-size Hydra Arm at a fraction of its size. The arm is CNC-machined from a single billet of aluminium alloy, measures 181 × 37.4 × 70.46 mm and weighs 372 g. It carries 150 to 600 grams — DJI Action 3/4, DJI Osmo Pocket 3, Insta360 X4/X3 or a phone in the Khronos holder — and stays steady up to 100 km/h.

A vehicle mount that fits in a backpack

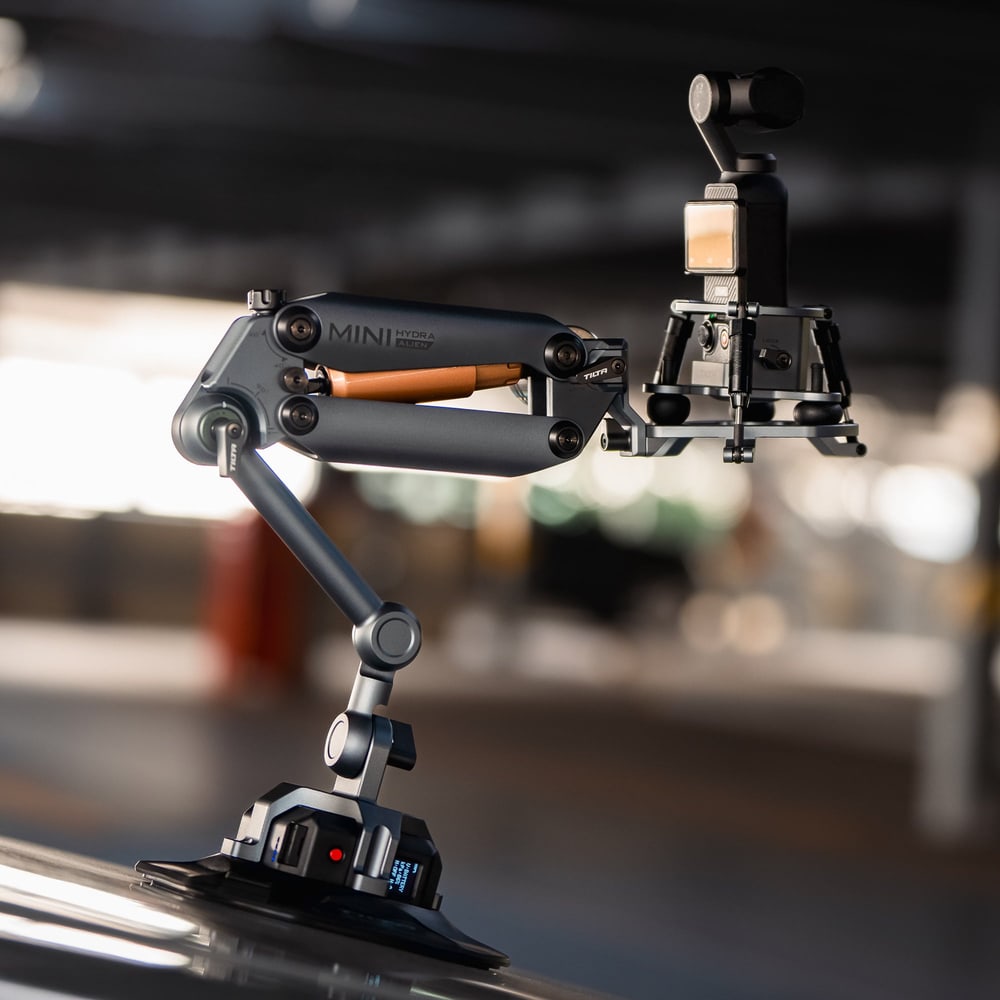

A suction cup that watches itself

The 114 mm (4.5″) electronic suction cup monitors its own vacuum and tops it up automatically if it leaks — you do not have to wonder mid-drive whether it still holds. The built-in 2000 mAh battery lasts over 14 hours, and USB-C (5 V/1 A) input means you can keep it running from a power bank on a long shoot.

A suction cup that watches itself

Hydraulic damping system

The damper is filled with US automotive-grade oil of the kind used in racing dampers. It absorbs the micro-vibrations that would otherwise blur the image and carries 150 to 600 grams. The oil can be topped up at any time, so the damping stays the same after a season on dusty roads.

Hydraulic damping system

Infinite 360° adjustment

The joint turns a full 360° and locks in any position — not in steps, but infinitely. The included support arm adjusts on two axes over 270°–90°–270°, so you can push the rig away from the bodywork or swing it along it, depending on where the vehicle offers a flat surface. The camera mounts on a 25 mm rosette.

Infinite 360° adjustment

On a car, on a motorcycle, on a bike

The mount is not just for cars. The 25 mm rosette and the mounting bracket turn it into an anchor for a motorcycle, an e-bike or a plain bicycle — anywhere an ordinary mount starts to shake. The shock absorbing arm soaks up the hits from broken roads, sand and cobbles before they reach the camera.

On a car, on a motorcycle, on a bike

Using the suction cup safely

Fit the suction cup on a flat surface and keep the weight of the arm balanced over its centre. Extending the arm well past the cup, or side-mounting it, increases the risk of it letting go — secure the rig with a ratchet strap or a safety cable in those situations. When attaching, always press the cup down firmly so that it sits visibly flatter; merely placed on the surface, it comes off far more easily.

Like any suction cup it can leave a mark on the surface, the more so in direct sun and heat. Do not use it on a wrapped vehicle, and protect paintwork with a protective film. Tilta is not liable for any damage, injury or legal consequences arising directly or indirectly from the use of this product; by using it you accept the terms of the user manual.

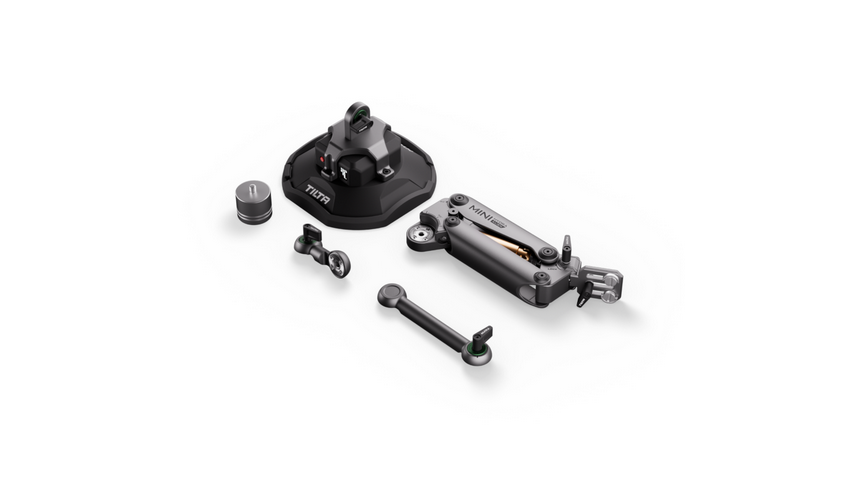

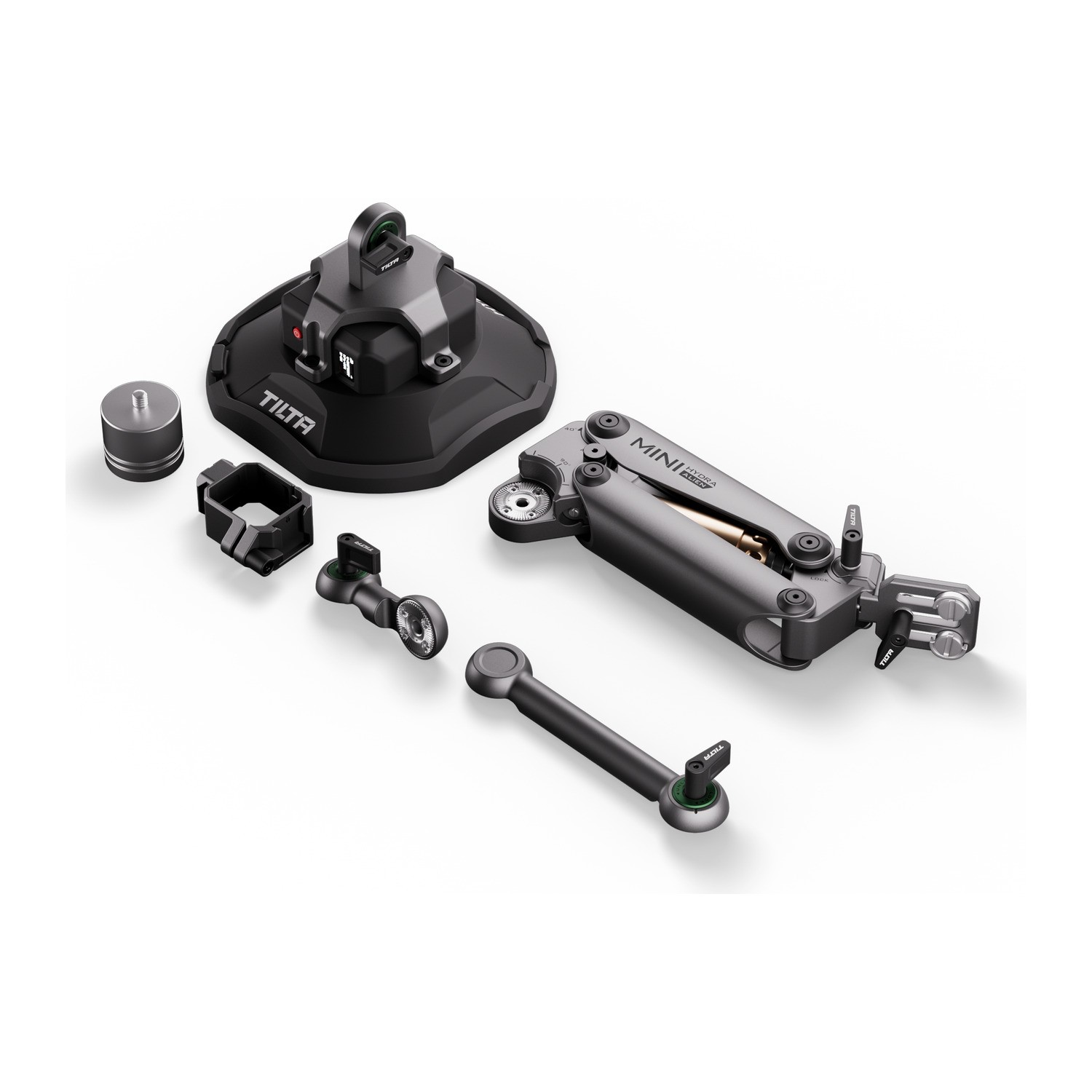

PACKAGE CONTENT

  • Electronic suction cup 114 mm (4.5″) with rosette bracket (HDA-ESC45-RMB-TG) — 1×
  • Shock absorbing arm for Hydra Alien Mini (HDA-T15-SAA-TG) — 1×
  • Counterweight 220 g (TGA-CW-220) — 1×
  • Mounting bracket for Hydra Alien Mini (HDA-T15-MB-TG) — 1×
  • Support arm for Hydra Alien Mini (HDA-T15-SA-TG) — 1×
  • DJI Osmo Pocket 3 mounting clamp — 1×
  • Soft carrying case for Hydra Alien Mini, 27 × 23 × 11 cm — 1×

SPECIFICATIONS

  • Arm dimensions: 181 × 37.4 × 70.46 mm
  • Arm weight: 372 g
  • Load capacity: 150–600 g
  • Maximum speed: 100 km/h
  • Material: aluminium alloy
  • Colour: titanium gray
  • Suction cup: electronic, 114 mm (4.5″) diameter, 2000 mAh battery, over 14 h runtime (manufacturer figure), USB-C 5 V/1 A power input
  • Camera interface: 25 mm rosette
  • Adjustment: 360° infinite, support arm 270°–90°–270°
  • Compatibility: DJI Action 3/4, DJI Osmo Pocket 3, Insta360 X4/X3 and other devices up to 600 g
Parameters

Parameters

Manufacturer: Tilta
Category: Finished kits

Main parameters

For cameraDJI Action 3 · DJI Action 4 · DJI Osmo Pocket 3 · Insta360 X3 · Insta360 X4
ColourTitanium gray
MaterialAluminium alloy
