Datavideo TLM-170LR 17,3" Full HD 7U rackmount monitor

  • Free transport
SKU: 2100-0187

The Datavideo TLM-170LR is a 17.3-inch Full HD monitor in a 7RU rackmount chassis for production galleries, outside-broadcast vehicles and video-editing suites. It accepts one 3G/HD/SD-SDI signal with a loop-through output and two HDMI sources, with embedded audio supported over both interfaces. On-screen timecode, tally indication, safe-area and aspect markers,…

More information

1 509 € with VAT 1 247.11 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
2100-0187
Add to Compare Price history

Datavideo TLM-170V 17.3" Full HD IPS LCD desktop monitor

1 909 €without VAT 1 577.69 €

Datavideo TLM-170VM 17.3" Full HD Pull-Out Monitor

2 539 €without VAT 2 098.35 €

Datavideo TLM-170VR 17.3" Full HD IPS LCD rackmount monitor

2 089 €without VAT 1 726.45 €

Top accessories for Datavideo TLM-170LR 17,3" Full HD 7U rackmount monitor

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs

Infinitek L-3C2VS 5m FLEX HD-SDI cable BNC-BNC YEL

Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 5m
19 €
To be sent 3 pcs

Datavideo DAC-9P HDMI to SDI Converter

  • End Of Life
Many new High Definition camcorders and devices provide HDMI as the only High Definition
439 €
To be sent 1 pcs

Infinitek L-3C2VS 2m FLEX HD-SDI cable BNC-BNC YEL

Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 2m
14 €
To be sent 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo TLM-170LR is a 17.3-inch Full HD monitor in a 7RU rackmount chassis for production galleries, outside-broadcast vehicles and video-editing suites. It accepts one 3G/HD/SD-SDI signal with a loop-through output and two HDMI sources, with embedded audio supported over both interfaces. On-screen timecode, tally indication, safe-area and aspect markers, underscan/overscan, blue-only display and up to 8× pixel zoom help operators check framing and signal content in a rack-based workflow.

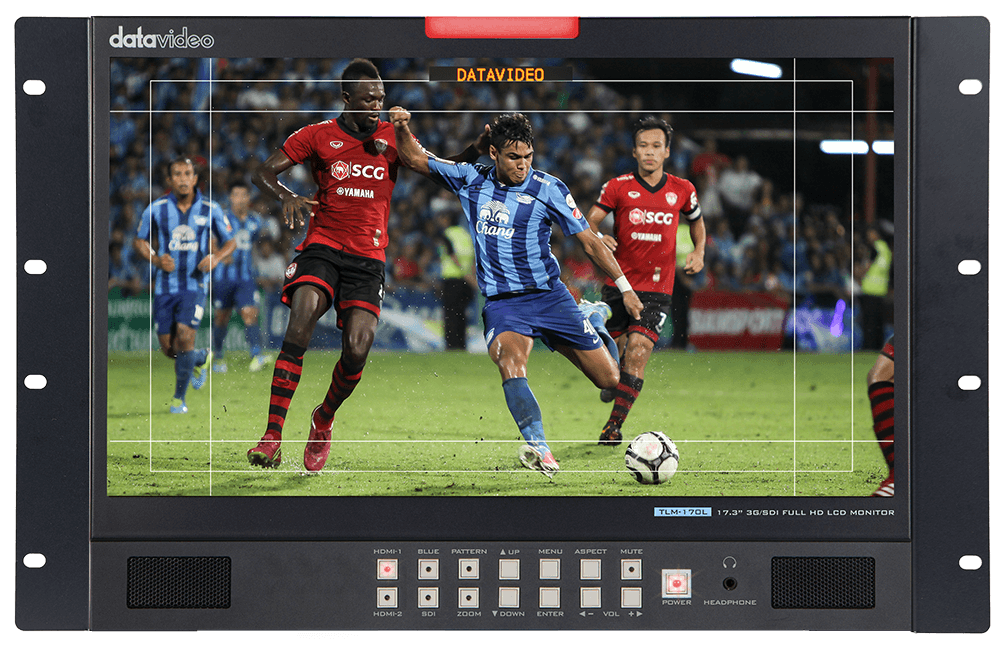

Datavideo TLM-170LR 17.3-inch Full HD 7RU rackmount monitor, front view
Datavideo · 7RU production monitor

Full HD monitoring in a 7RU rack

The 17.3-inch LED-backlit TLM-170LR brings a 1920 × 1080 picture and practical monitoring tools to a production gallery, OB vehicle or editing suite. Its rack chassis keeps the screen, tally indication and source connections together at the monitoring position.

Connect SDI or HDMI sources, check framing with safe-area and aspect markers, and use the monitor’s built-in picture tools when a closer signal check is needed.

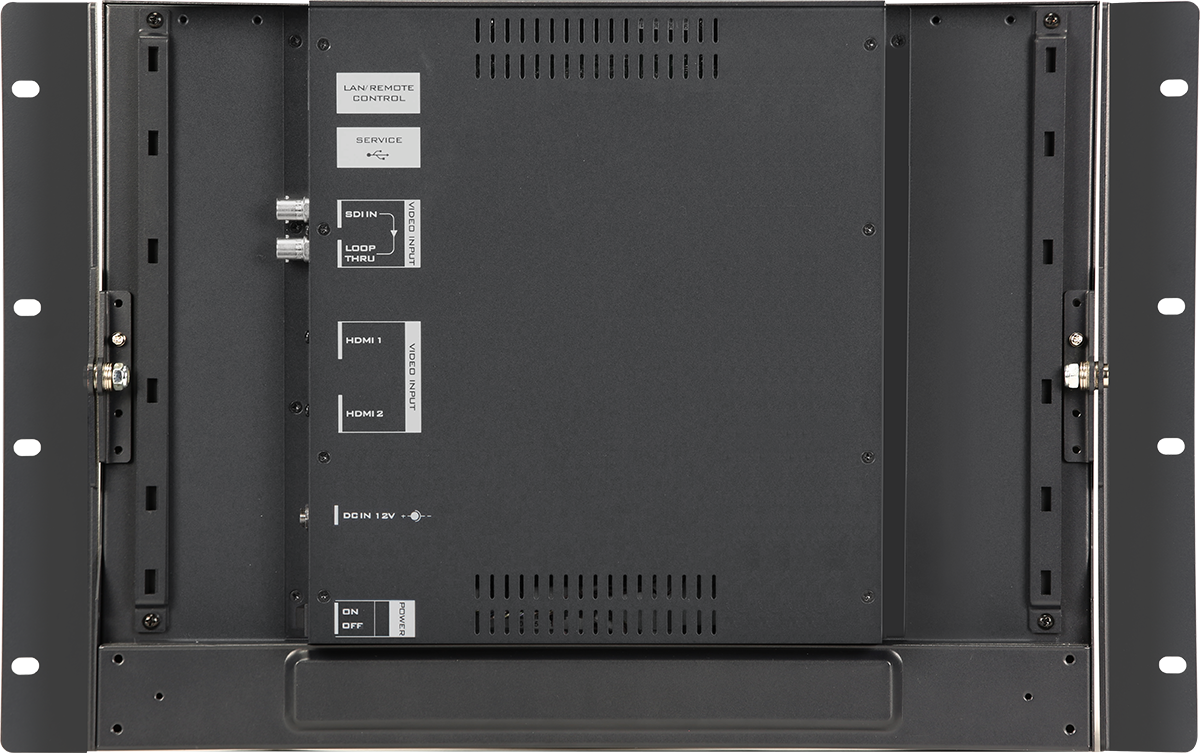

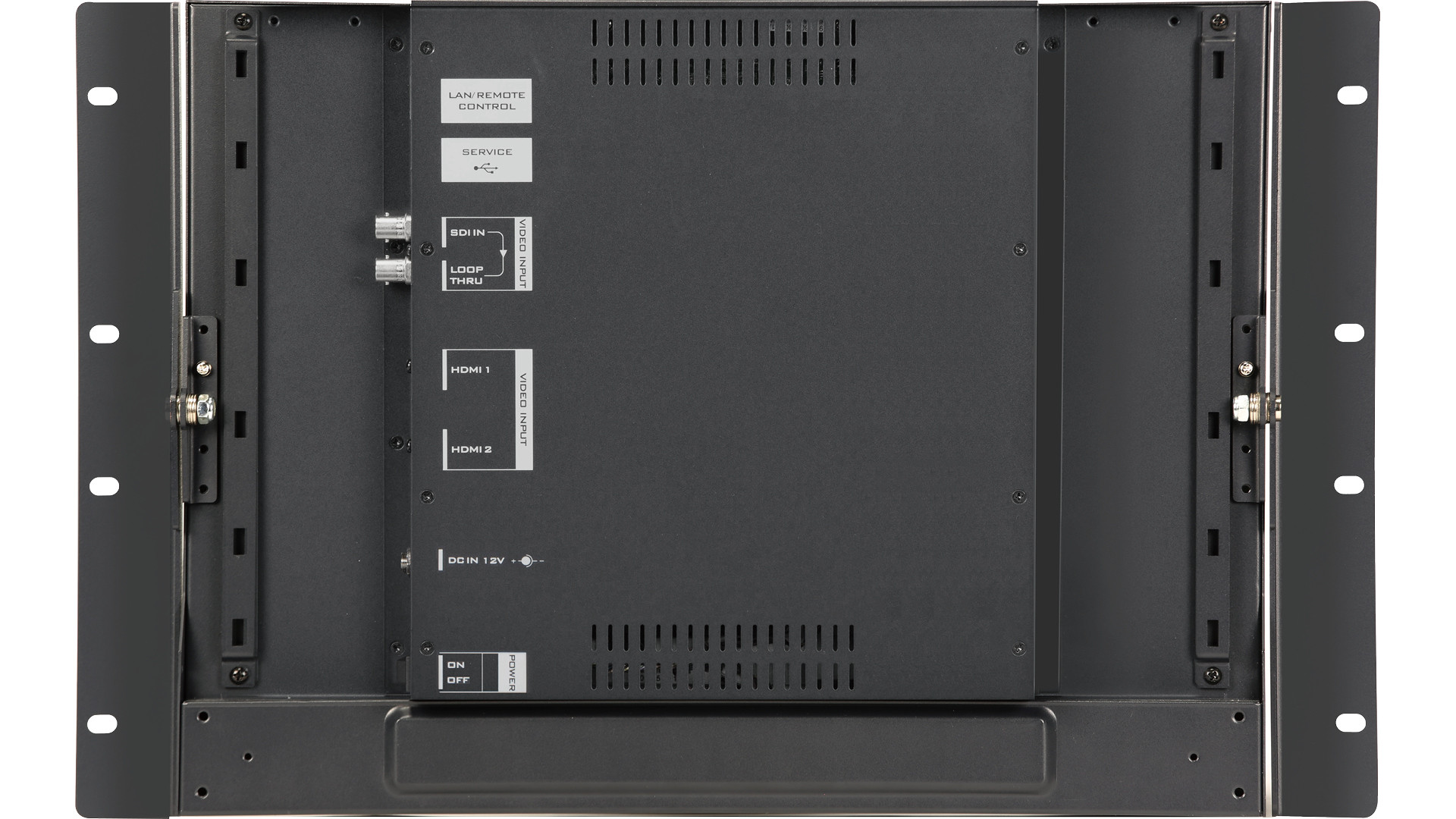

Datavideo TLM-170LR rear panel showing SDI input and loop-through, two HDMI inputs and 12 V DC power
Signal connections

Connect two HDMI sources and SDI

The rear panel provides two HDMI inputs and one 3G/HD/SD-SDI input. The SDI signal can continue through the dedicated loop-through output to another device, so the monitor can be added to a signal path without giving up the onward SDI connection.

Embedded audio is supported over SDI and HDMI. The monitor also provides a front-panel headphone jack for convenient listening at the rack.

Datavideo TLM-170LR display showing tally meter, timecode and safe-area guides
On-screen monitoring tools

Check framing, levels and timecode

Use safe-frame and aspect markers to assess composition, switch between underscan and overscan, or magnify an HD picture with pixel zoom up to 8×. Blue-only mode supports a focused picture check, and the display can show on-screen timecode.

Brightness, contrast, colour saturation and LED backlight level are independently adjustable. A selectable colour temperature, bi-colour tally light and 3.5 mm tally input support the monitor’s use at a production position.

PACKAGE CONTENT

  • 1 × Datavideo TLM-170LR monitor
  • 1 × AD power adapter, DC 12 V
  • 2 × rack-mount kits
  • 8 × Ø3.0 × 6 mm screws
  • 8 × M5 × 10 mm screws
  • 5 × cable ties

SPECIFICATIONS

  • Display: 17.3-inch LED-backlit LCD
  • Panel resolution: 1920 × 1080
  • Chassis: 7RU rack mount
  • Viewing angle: H +70°/−70°, V +60°/−60°
  • Luminance / contrast: 300 cd/m² / 400:1
  • Video inputs: 1 × 3G/HD/SD-SDI, 2 × HDMI
  • SDI loop-through: 1 × 3G/HD/SD-SDI
  • Supported formats: 1080p 23.98/24/24SF/25/29.97/30/50/59.94/60 Hz; 1080i 50/59.94/60 Hz; 720p 50/59.94/60 Hz; 576i PAL; 480i NTSC
  • Aspect ratio: 16:9, 4:3
  • Audio: Embedded audio over SDI and HDMI; front headphone jack
  • Tally: Red live / green cued LED; 3.5 mm tally input
  • Picture tools: Aspect and safe-area markers, underscan/overscan, blue-only, pixel zoom up to 8×, on-screen timecode
  • Dimensions (W × H × D): 481.8 × 305 × 41 mm
  • Weight: 3.7 kg
  • Power: DC 12 V, 16 W
  • Operating temperature: 0–40 °C

WE RECOMMEND

The Datavideo TLM-170LR is a professional 17.3" Full HD monitor in a 7U rack-mount design that offers flexible connectivity thanks to 3G-SDI and HDMI inputs. For optimal integration into studio systems, we recommend accessories for signal distribution, intercom systems, and audio processors compatible with rack standards.

Signal Converters and Distribution - Ensure compatibility between different types of video signals and their distribution over longer distances to the monitor.

Studio Communication and Audio - Enable production team coordination and precise management of audio within a rack-mounted installation.

Video control rooms and decoders - Serve as primary signal sources for the preview monitor in a professional production chain.

Mounting accessories - Facilitates the installation of additional equipment into standardized rack cabinets next to the monitor.

Parameters

Parameters

Manufacturer: Datavideo
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p
Size17.3"
Monitor inputsHDMI · SDI · 3G-SDI
Luminosity300cd/m2
Panel resolution1920x1080
Monitor power supplyDC 12V

Other parameters

TallyYes
Other featuresRack-mountable · Tally · Resilient
