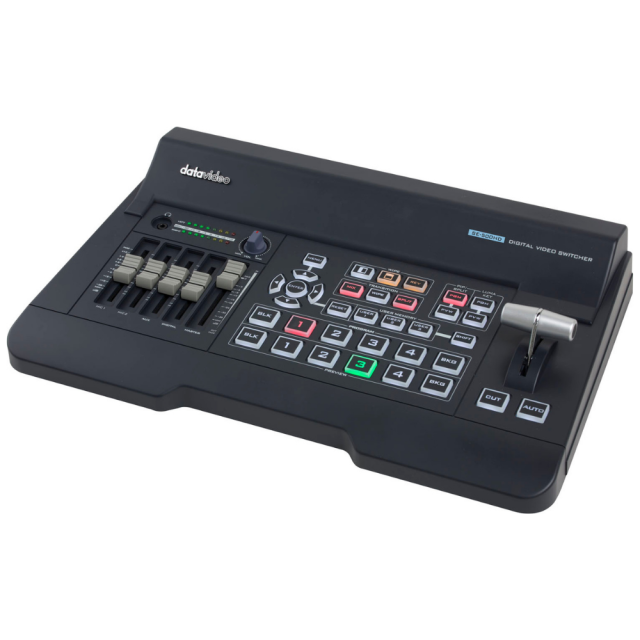

Datavideo SE-500HD 4-Channel 1080p HDMI Video Switcher
SKU: 2200-5101
The Datavideo SE-500HD is a compact, four-channel HDMI video switcher designed for presentations, teaching, podcasts, and small-scale live productions. Its four HDMI inputs accept video up to 1080p; the built-in scaler helps combine different resolutions and video standards. Separate HDMI outputs provide the program feed and a multiview. Luma key, picture-in-picture,…
1 559 € with VAT
1 288.43 € without VAT
Availability
14-30 days
Top accessories for Datavideo SE-500HD 4-Channel 1080p HDMI Video Switcher
Datavideo DAC-70
The Datavideo DAC-70 is a standalone external video scaler, allowing the conversion
729 €
To be sent 2 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo SE-500HD is a compact, four-channel HDMI video switcher designed for presentations, teaching, podcasts, and small-scale live productions. Its four HDMI inputs accept video up to 1080p; the built-in scaler helps combine different resolutions and video standards. Separate HDMI outputs provide the program feed and a multiview. Luma key, picture-in-picture, split screen, and a four-channel mixer help you manage both video and audio from a single location. You can connect a stereo RCA audio source and two microphones; audio can be output via stereo RCA or the headphone output. With dimensions of 400 × 250 × 82 mm and a weight of 1.7 kg, it’s also suitable for a portable workspace.
Four-Channel HDMI Video Production
PRESENTATIONS & LIVE VIDEO
The SE-500HD connects up to four HDMI sources and offers a separate program output and multiview. The compact chassis, integrated control panel, and four-channel mixer make it easy to set up a mobile production booth.
Mix different HDMI sources
The built-in scaler adjusts mixed resolutions and video standards up to 1080p. Luma key allows you to overlay graphic titles, while picture-in-picture and split-screen modes are ideal for presentations or interview formats.
HDMI outputs separate the program feed from the multiview preview. Connecting a laptop via HDMI does not require driver installation.
Audio and Portrait Multiview in a Single Workstation
The four-channel audio mixer accepts a stereo RCA signal and two microphone inputs. Audio can be routed to stereo RCA or headphones. Multiview can display four sources in a portrait layout for producing vertical video.
PACKAGE CONTENT
- 1× Datavideo SE-500HD
- 1× 12 V DC power adapter with power cord
SPECIFICATIONS
- Type: Four-channel HDMI video switcher
- Video standards: Full HD and SD
- Video formats: 1080p, 1080i, and 720p at 50/59.94/60 Hz; 576i at 50 Hz; 480i at 59.94 Hz
- HDMI processing: YUV 4:4:4, 10 bits; RGB 4:4:4

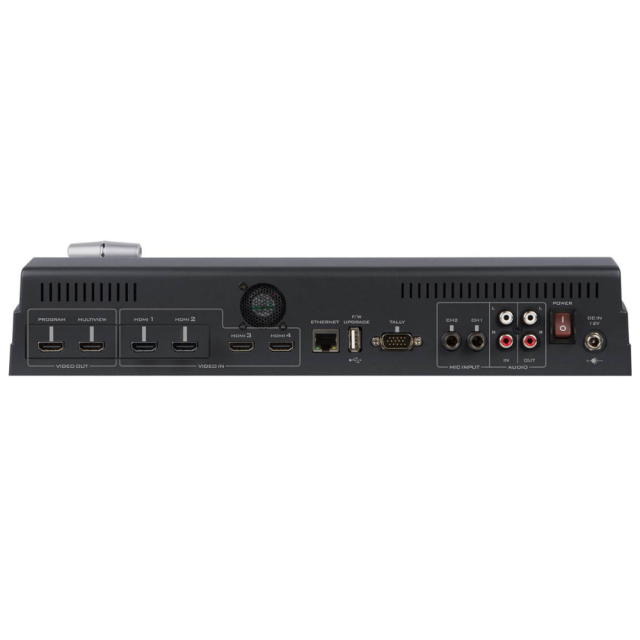

- Video Inputs: 4× HDMI
- Video outputs: 2× HDMI (1× multiview, 1× program)
- Output down-conversion: yes
- Computer graphics: up to 4 sources via HDMI
- HD/SD source mixing: yes
- Built-in scaler: for inputs with different resolutions and standards
- Multiview: HDMI; also supports portrait mode
- Analog audio inputs: 1× stereo RCA, 2× mono microphone
- Analog audio outputs: 1× stereo RCA, 1× stereo headphone output with volume control
- Embedded audio: 2 channels on input and output
- Mixing console: built-in, 4 channels
- Keying: Luma key
- Picture-in-picture: 1 window
- Effects: fade to black, cut, wipe with edge
- Synchronization: internal genlock
- Tally output: 1× 15-pin D-sub, two-color
- Firmware update: USB
- Chassis: unibody
- Dimensions: 400 × 250 × 82 mm
- Weight: 1.7 kg
- Power supply: 12 V DC, 29 W
- Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo SE-500HD is a compact four-channel HDMI production switcher ideal for smaller productions and presentations in HD resolution. For professional use, it is recommended to supplement it with an intercom for communication with camera operators, audio processors for audio synchronization, and converters for integrating various types of signals into the HDMI interface.
Intercom and Communication - Ensures the necessary connection between the production switcher and camera operators during production.
Audio management - Tools for precise processing, mixing, and synchronization of audio with video.
Converters and signal distribution - Enable the connection of SDI cameras or IP streams to the control room’s HDMI inputs.
Monitoring - External monitors for previewing output or checking individual inputs.
Reading devices - Professional teleprompters to facilitate the work of presenters in front of the camera.
Accessories and Mounting - Accessories for installing control units in standard rack cabinets.
Parameters
| Manufacturer: | Datavideo |
| Category: | Switchers |
Main parameters
| Number of inputs | 4 |
| Switcher inputs | HDMI |
| Switcher outputs | HDMI |
| Scaler on inputs | Yes |
| Resolution | HD |
| Features | Audio mixing · Multiviewer |
| Control panel | Yes |
