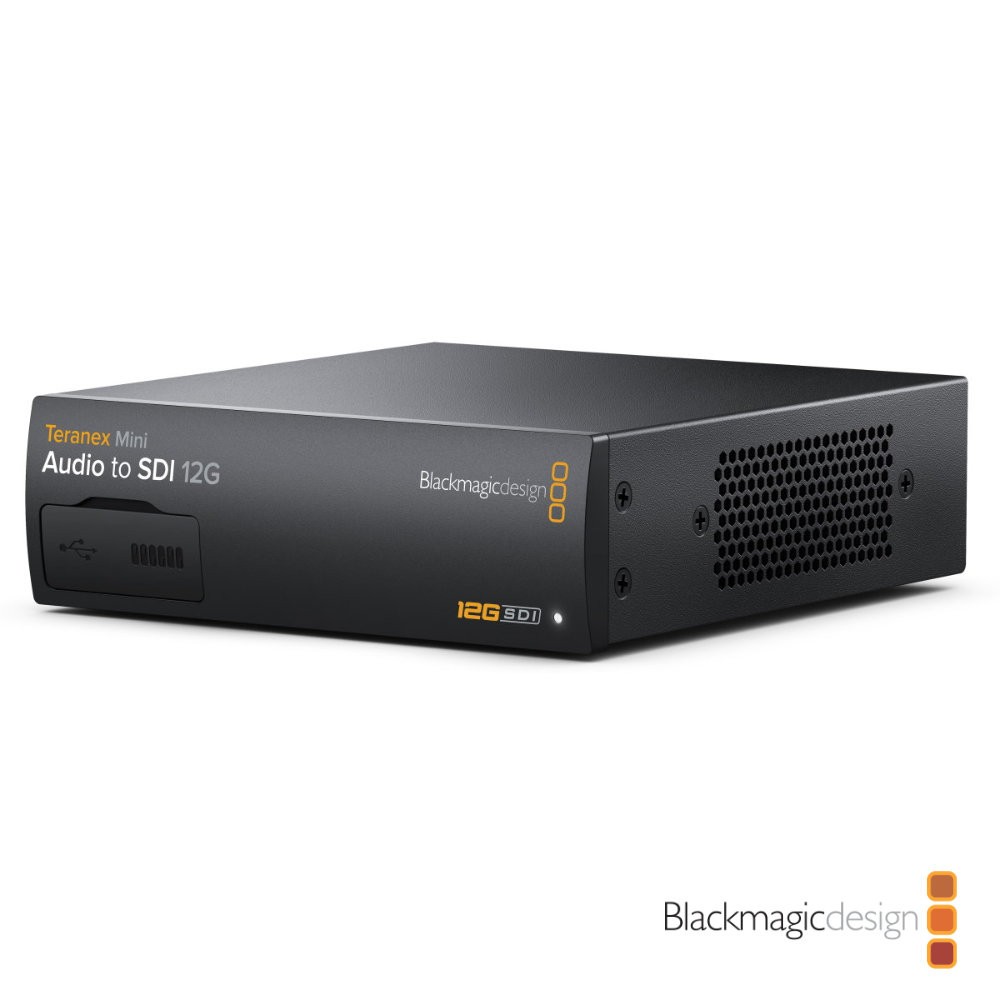

Blackmagic Design Teranex Mini Audio to SDI 12G
SKU: CONVNTRM/CB/AUSDI
Blackmagic Teranex Mini Audio to SDI 12G is a professional converter that embeds audio into 12G-SDI video. It adds two channels from balanced XLR, unbalanced RCA or optical S/PDIF, or up to four channels of AES/EBU, into any SDI signal from SD to DCI 4K. Audio from mixers, players and analog recorders thus travels together with the picture to routers and …
679 € with VAT
561.16 € without VAT
Availability
on request
Blackmagic Design Teranex Mini SDI to Analog 12G
679 €without VAT 561.16 €
Blackmagic Design Teranex Mini Analog to SDI 12G
689 €without VAT 569.42 €
Blackmagic Design Teranex Mini SDI to Audio 12G
669 €without VAT 552.89 €
Blackmagic Design Teranex Mini Optical to HDMI 12G
In stock 1 pcs649 €without VAT 536.36 €
Blackmagic Design Teranex Mini Quad SDI to 12G-SDI
679 €without VAT 561.16 €
Blackmagic Design Teranex Mini SDI Distribution 12G
639 €without VAT 528.1 €
Blackmagic Design Teranex Mini HDMI to SDI 12G
689 €without VAT 569.42 €
Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR
In stock 1 pcs1 669 €without VAT 1 379.34 €
Blackmagic Design Teranex Mini SDI to HDMI 8K HDR – used
In stock 1 pcs929 €without VAT 767.77 €Top accessories for Blackmagic Design Teranex Mini Audio to SDI 12G
Infinitek L-4.5CHWS 2m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19 €
To be sent > 5 pcs
Blackmagic Design Universal Rack Shelf (1 RU)
The Blackmagic Universal Rack Shelf (1 RU) is a universal shelf designed for users
117 €
In stock 1 pcs
PremiumCord power cord 230 V, CEE 7/7 straight plug / IEC C13, 2 m, black
A 230 V power cord for a computer, monitor or any other device with an IEC C13 connector.
4.1 €
In stock > 5 pcs
Saramonic SR-XC3000 XLR Cable 3 m
The Saramonic SR-XC3000 is a 3 m balanced microphone cable with gold-plated female
18 €
In stock 4 pcs
Blackmagic Design Teranex Mini Smart Panel
The Blackmagic Teranex Mini Smart Panel is an optional front panel with a 2.2 inch
110 €
on request
Syntex Connecting stereo XLR to 2 XLR cable
Connecting stereo XLR to 2 XLR cable primary determined for Sony ECM-680S shotgun
Call us for pricing information
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Teranex Mini Audio to SDI 12G is a professional converter that embeds audio into 12G-SDI video. It adds two channels from balanced XLR, unbalanced RCA or optical S/PDIF, or up to four channels of AES/EBU, into any SDI signal from SD to DCI 4K. Audio from mixers, players and analog recorders thus travels together with the picture to routers and recorders.
Embed audio into 12G-SDI
Combine audio from mixers, players or analog recorders with a professional SDI video path for routers, recorders and studio distribution.
12G-SDIXLR + RCATOSLINK4× AES/EBUBuilt-in power supply
Extremely low noise
The analog audio inputs feature an extremely low noise floor below −115 dBFS, so even analog background noise is virtually silent.
2 channels
Balanced XLR or unbalanced RCA.
4 channels
Professional AES/EBU.
TOSLINK
Optical S/PDIF input.
16 channels
Embedded SDI audio support.
Choose the audio input
Embed two analog channels from balanced XLR or unbalanced RCA, optical S/PDIF via TOSLINK or four professional AES/EBU channels via XLR. The right XLR can accept timecode instead.

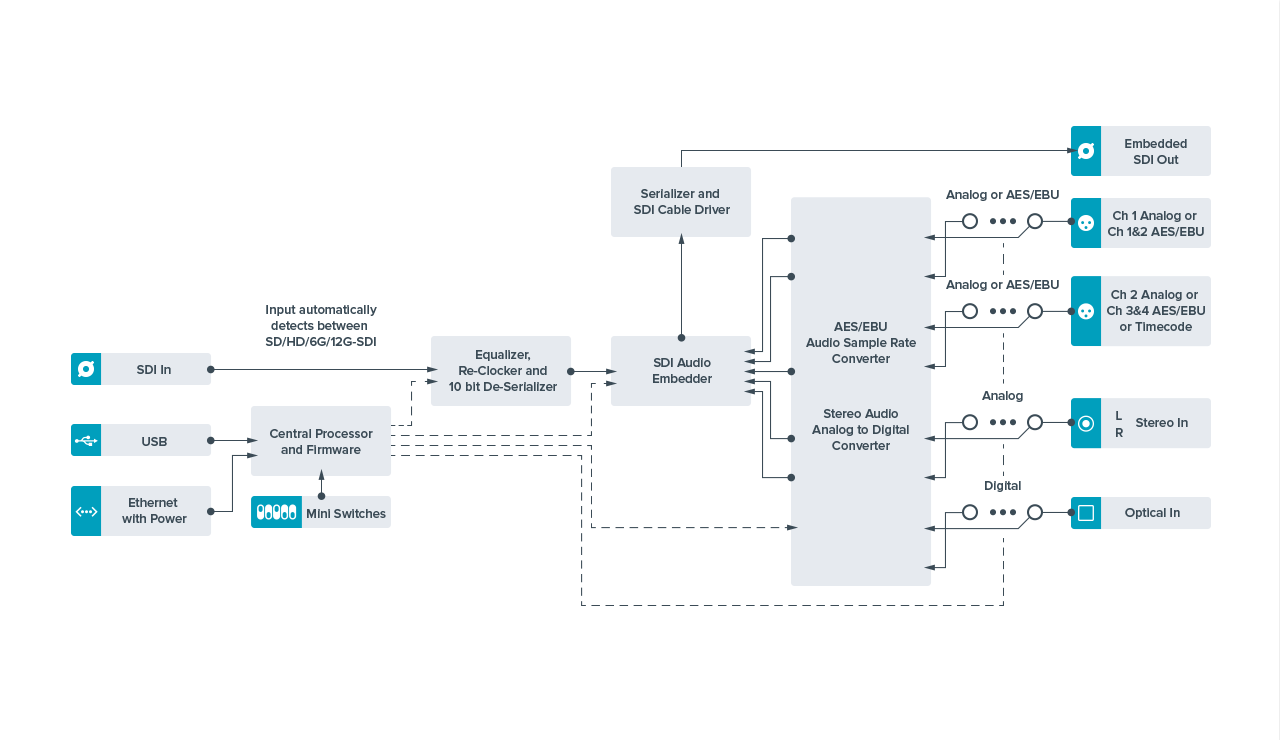

Multi-rate SDI output
The converter accepts a 12G-SDI video input and creates a reclocked 12G-SDI output with the selected audio embedded. Automatic operation covers SD, HD, 2K, Ultra HD and DCI 4K.

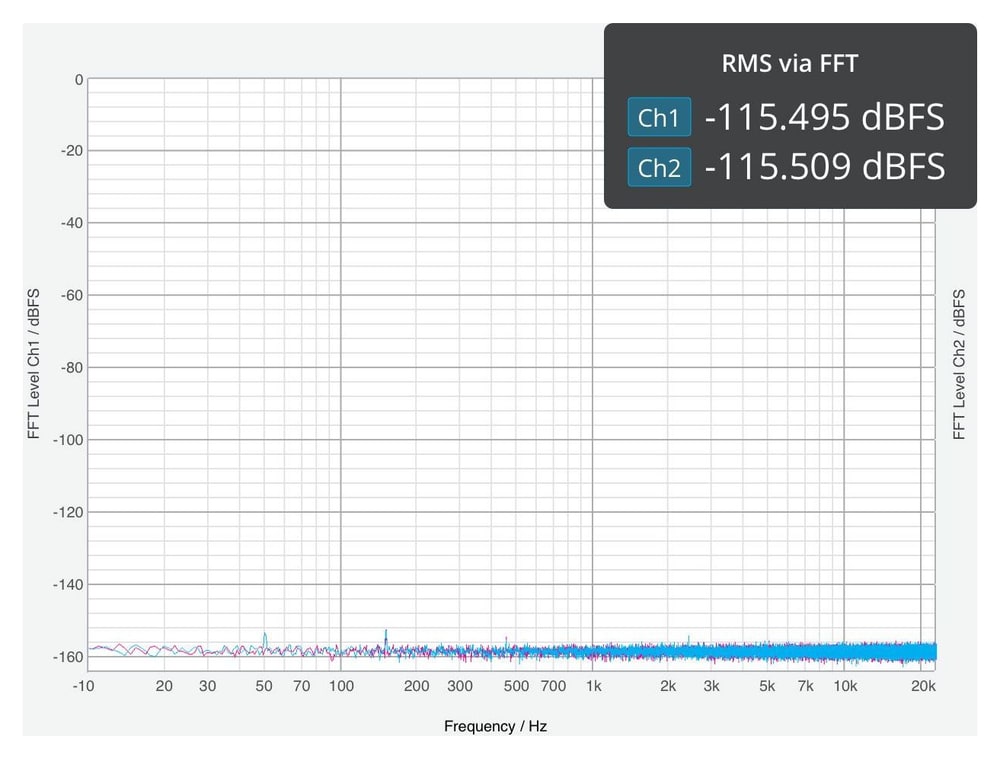

Measured noise floor
The audio floor graph of the Teranex Mini Audio to SDI 12G converter shows a value of around −115 dBFS on both channels (RMS via FFT).

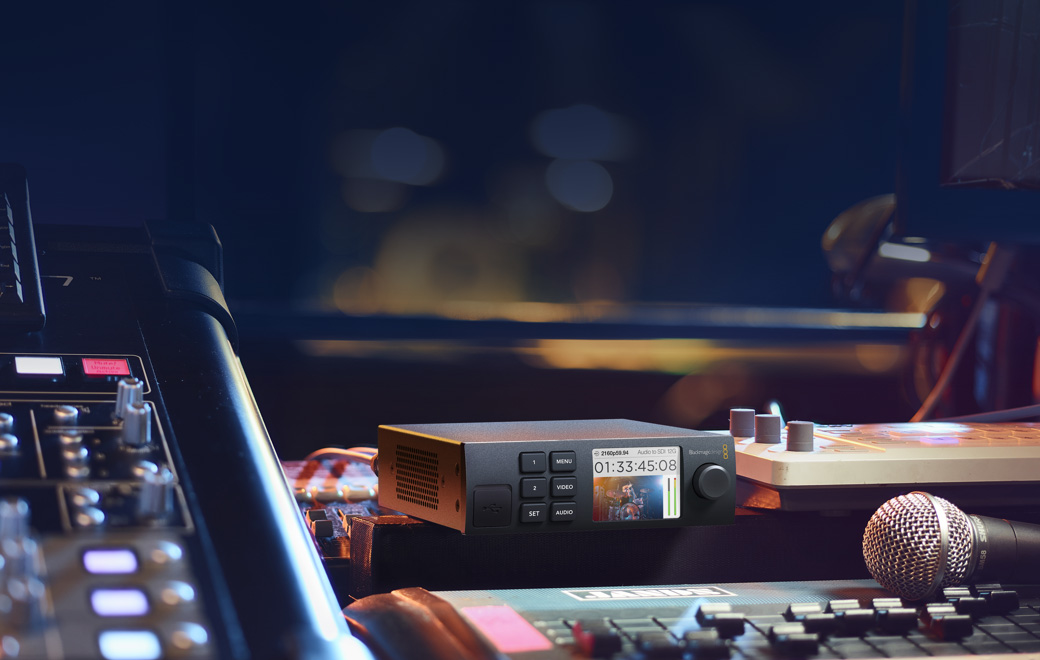

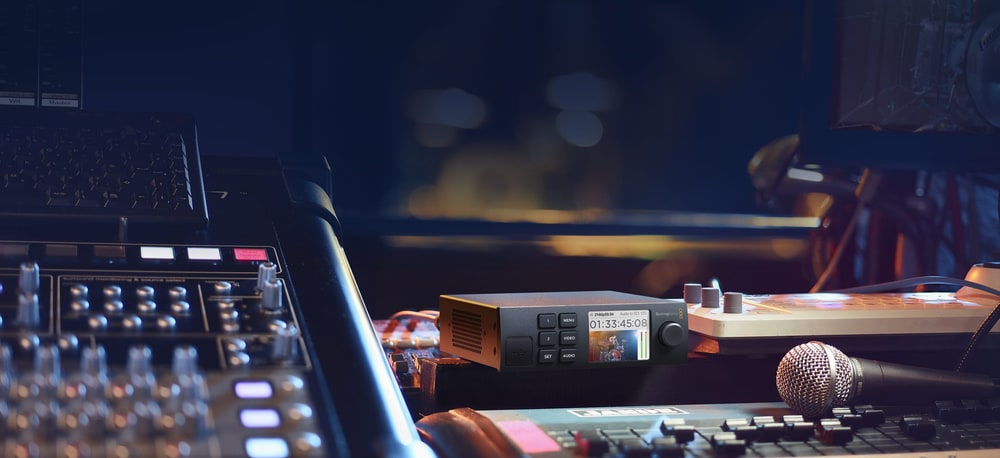

Audio from the mixer
Full size XLR connections are built right into the converter, so audio from mixers, effects processors, compressors or limiters can be embedded into SDI systems without extra adapters.

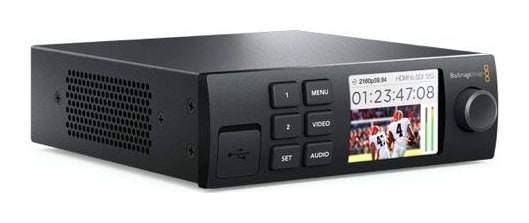

Teranex Mini Smart Panel
The optional Teranex Mini Smart Panel replaces the front cover of the converter: remove the two screws on each side, pull the cover off and screw the panel on. The color LCD then shows the video passing through, while the buttons and rotary knob open a settings menu right on the unit – ideal in the field without external monitors and in racks full of converters.

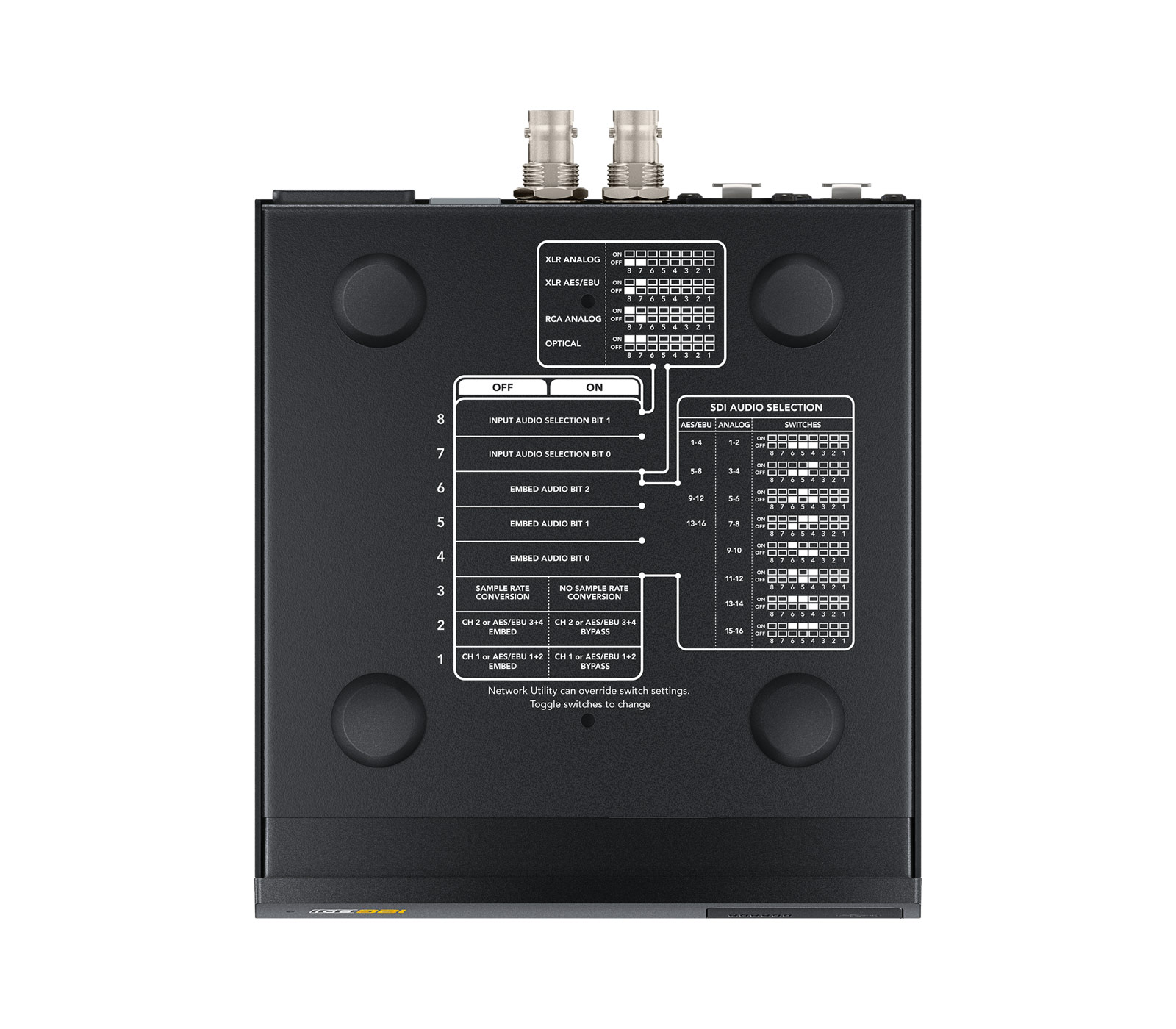

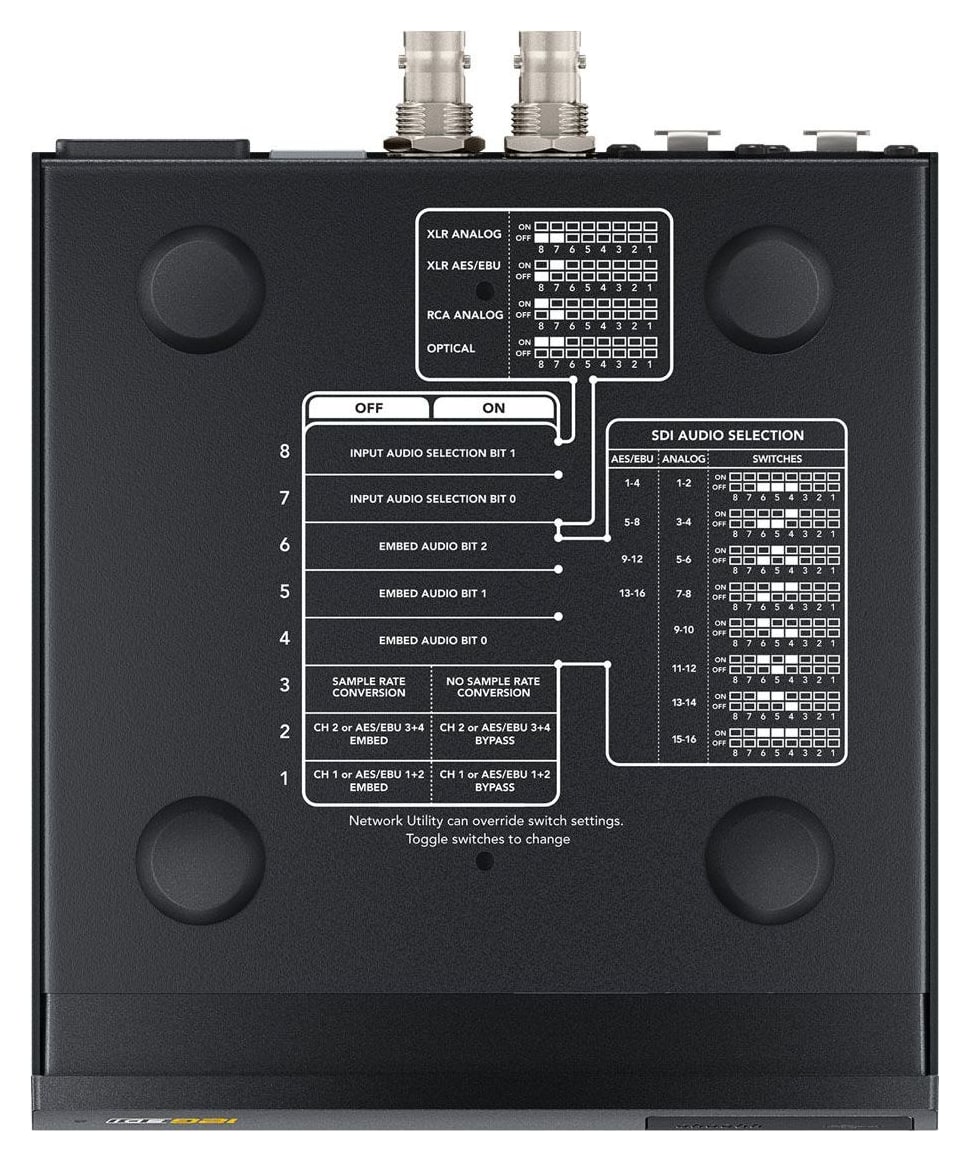

Settings via mini switches, USB and Ethernet
Core functions are selected with mini switches using the diagram printed on the underside of the converter. From a Mac or Windows computer, the converter can be set up and updated over USB or Ethernet with free software, so even larger installations with many converters can be managed remotely.

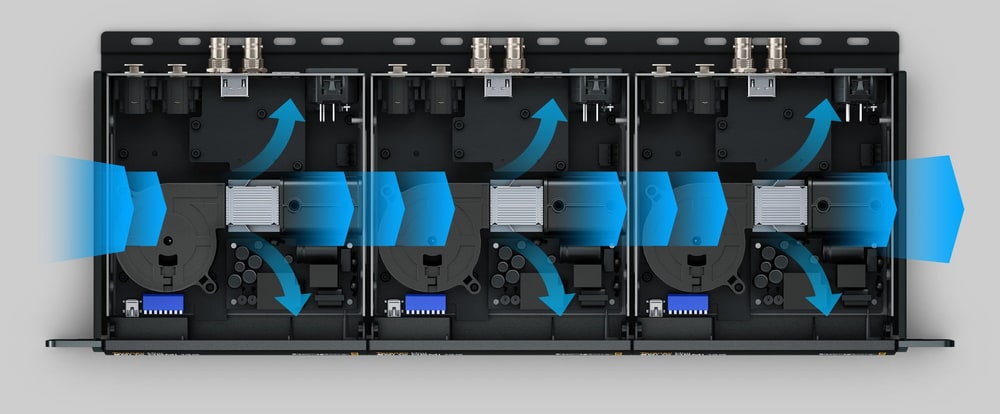

In the rack or on the desk
The compact converter can sit on a desk, hide behind equipment or be rack mounted – the optional Blackmagic Universal Rack Shelf (1U) holds Teranex Mini together with other 1/3 and 1/2 rack width Blackmagic products. Crossflow cooling with a heat pipe keeps the converters running even when mounted side by side.

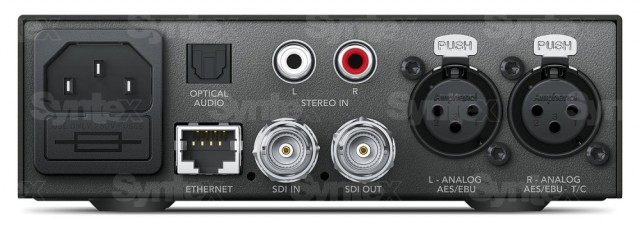

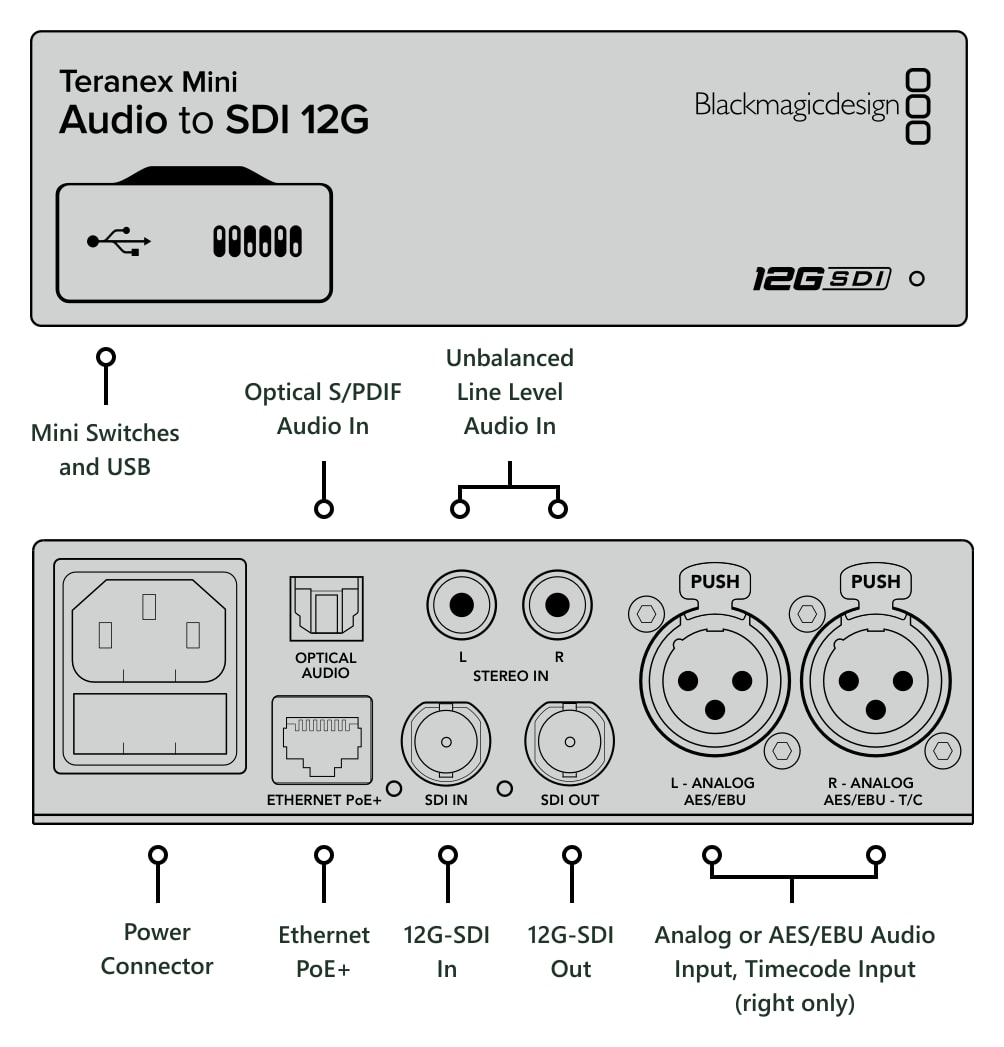

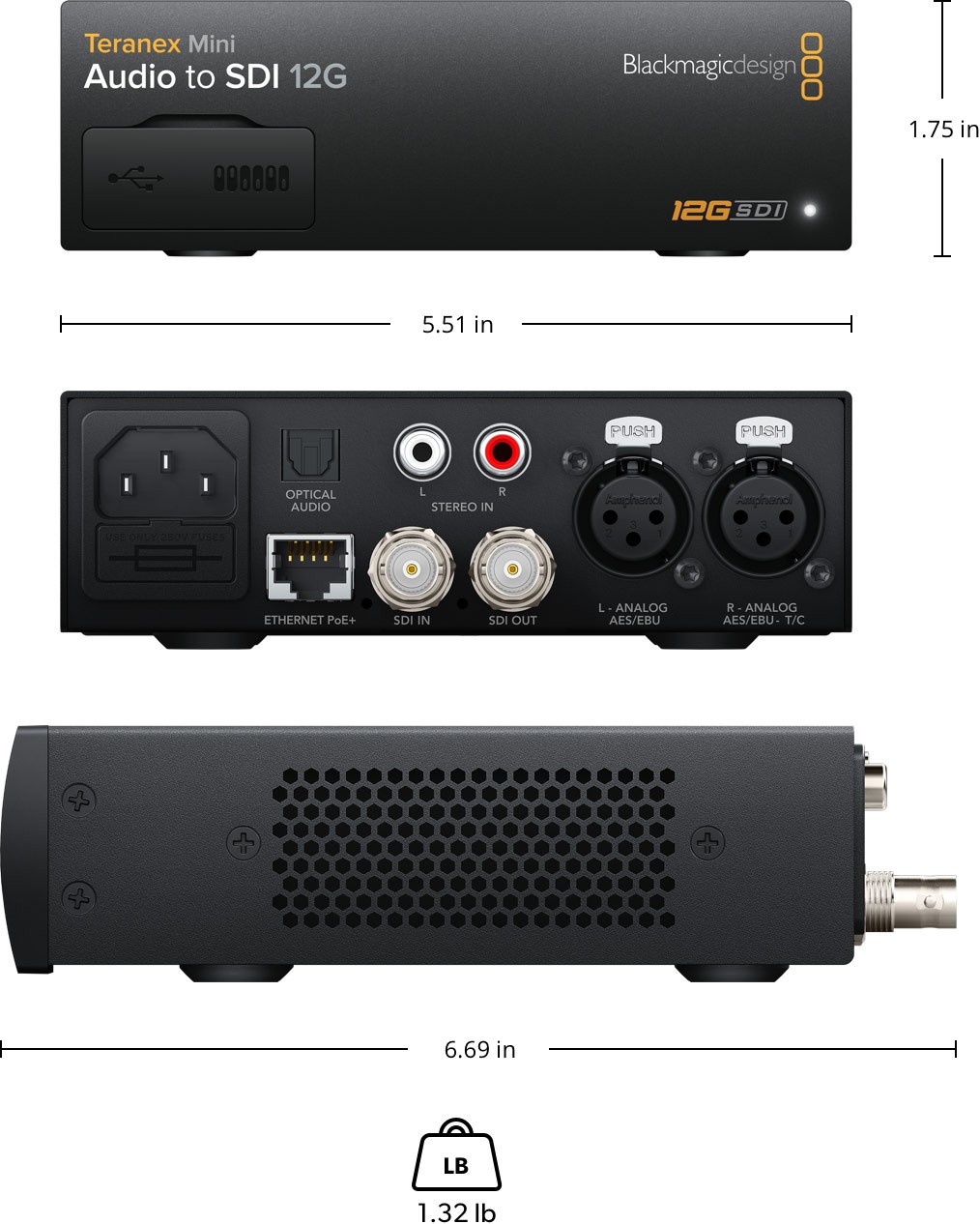

Connections
The rear has an IEC power connector, Ethernet with PoE+, a 12G-SDI input and output, an optical S/PDIF input (TOSLINK), two RCA connectors and two XLR audio connections; the front has USB and the mini switches.
More information
About the Teranex Mini range
Teranex Mini uses an innovative crossflow cooling design with an internal heat pipe. The converters can therefore work reliably side by side in a rack, on a desk or in a mobile setup without the powerful 12G-SDI circuitry adding unnecessary noise.
The multi-rate 12G-SDI interface automatically detects SD, HD and Ultra HD formats up to 2160p60 and stays compatible with older SDI equipment. A single standard BNC cable therefore covers both current and older studio installations.
The built-in universal power supply (100–240 V AC) removes the need for an external adapter; it connects with a regular IEC power cable, which is not included. Ethernet is used for remote management and can also power the converter from a PoE+ switch. The optional Teranex Mini Smart Panel adds an LCD preview, a rotary knob and direct settings control.
PACKAGE CONTENT
- 1× Blackmagic Design Teranex Mini Audio to SDI 12G
- 1× welcome wallet with QR code for software download
SPECIFICATIONS
- SDI input: 1× 12G-SDI, SD/HD/2K/4K auto switching
- SDI output: 1× 12G-SDI
- Analog audio inputs: 2 channels of balanced analog audio via XLR or 2 channels of unbalanced line level via RCA; right XLR can be configured for timecode input
- Digital audio inputs: 4 channels of 110 Ω AES/EBU, XLR; right XLR can be configured for timecode input
- Optical audio input: S/PDIF, TOSLINK
- Embedded audio: 16 channels
- SDI rates: SD, 1.5G, 3G, 6G and 12G-SDI, auto switching
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
- Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K DCI standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M, 425M level A and B, 2081-1, 2081-10, 2082-1 and 2082-10
- SDI sampling and color space: 4:2:2 and 4:4:4; YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K; REC 601, REC 709
- Audio sampling: 48 kHz, 24-bit
- Reclocking: yes
- Settings control: mini switches; USB and Ethernet via free software utility
- Optional front panel: Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons
- Software updates: from a Mac or Windows computer via USB or Ethernet
- Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
- Power supply: built-in international 100–240 V AC, IEC C14 inlet; IEC power cable required (not included)
- Power over Ethernet: 48 V DC via PoE+
- Power consumption: 16 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 60 °C (−4 to 140 °F)
- Relative humidity: 0–90% non-condensing
- Dimensions (L × W × H): 6.69 × 5.51 × 1.75 in (170 × 140 × 44 mm)
- Weight: 1.32 lb (599 g)
- Warranty: 3-year limited manufacturer warranty
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | Audio input · auto format adaptation |
| Source | SDI · Audio · 12G SDI |
| Target | SDI · 12G SDI |
