Blackmagic Design Teranex Mini Smart Panel

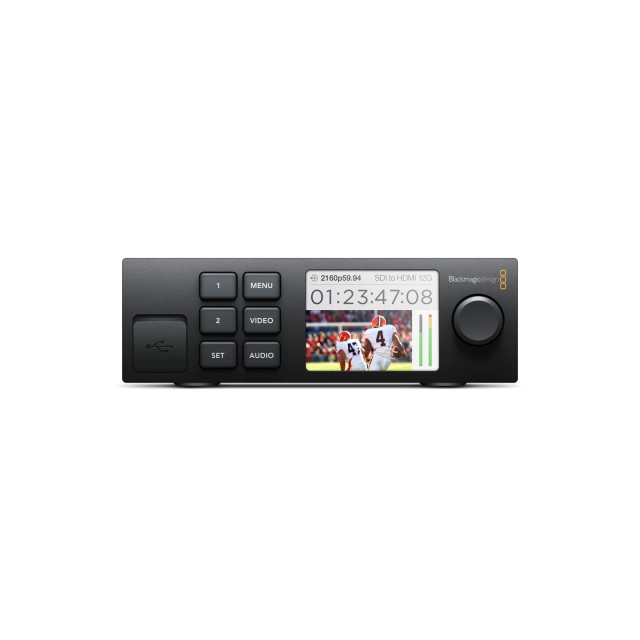

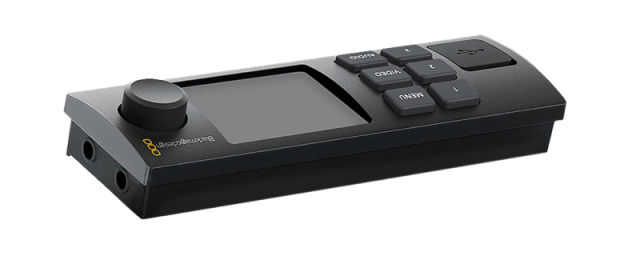

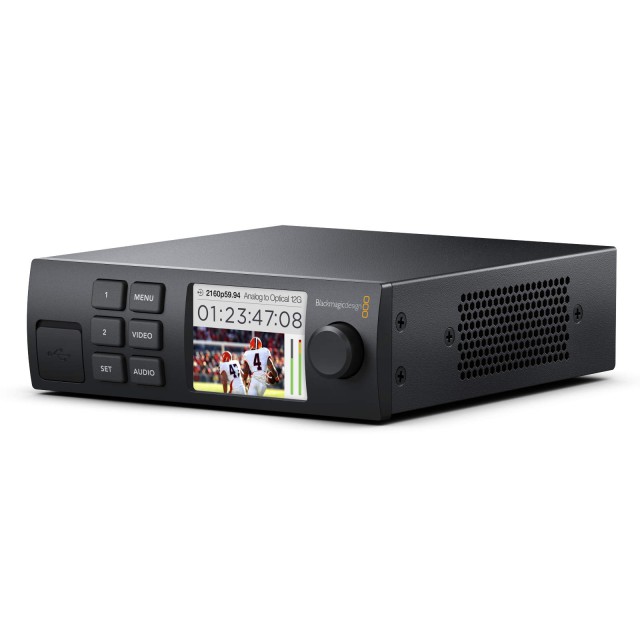

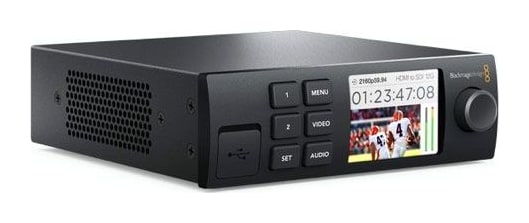

The Blackmagic Teranex Mini Smart Panel is an optional front panel with a 2.2 inch color LCD, six buttons and a rotary knob that replaces the front cover of Teranex Mini converters and shows the video passing through. It does not work on its own. With the optional Teranex Mini Smart Panel, the Blackmagic Web Presenter can also be used as a two-channel control room for live streaming in real time.

Preview and control right on the converter

The Teranex Mini Smart Panel takes the guesswork out of using a converter: the built-in LCD shows the video passing through, and the buttons and clear on-screen menu let you quickly adjust and save settings.

2.2 inch LCD6 buttonsRotary knobReplaces the front cover

For the field and full racks

The panel is ideal in the field or on set without external monitors, and in racks full of converters where you want to see what is going through each one.

Video preview

The color LCD shows the signal passing through the converter.

Quick settings

Buttons and menus without a computer.

3D LUTs

LUTs can be loaded from the panel on Teranex Mini SDI to HDMI 12G.

Web Presenter

A two-channel control room for live streaming.

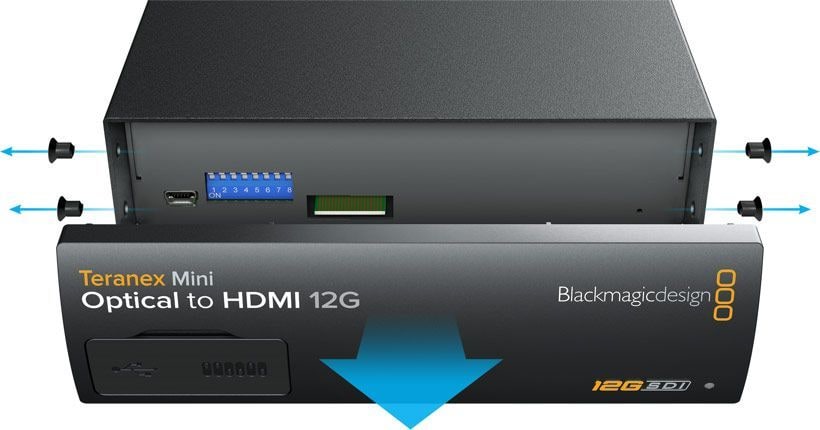

Step 1: remove the front cover

Remove the two screws on each side of the converter’s front cover and gently pull it off.

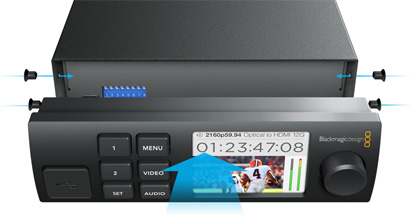

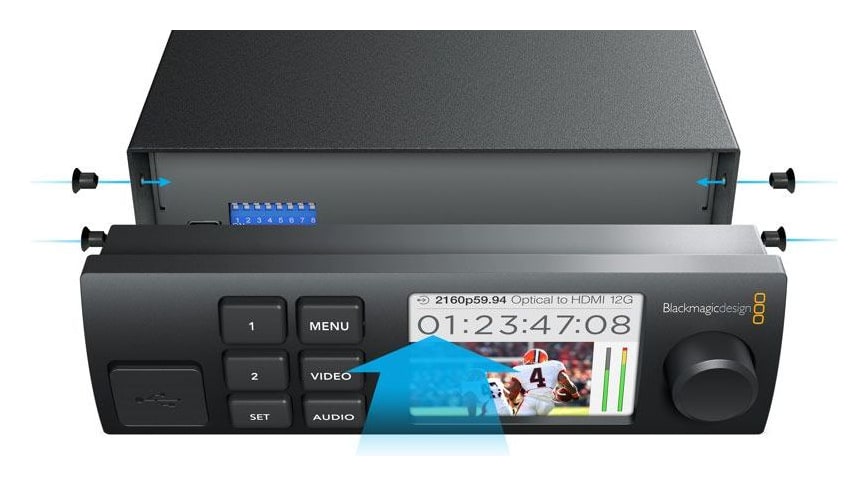

Step 2: fit the panel

Plug in the Teranex Mini Smart Panel and fasten it with the same screws. The converter then shows video on the LCD and is set up with six buttons and the rotary knob.
