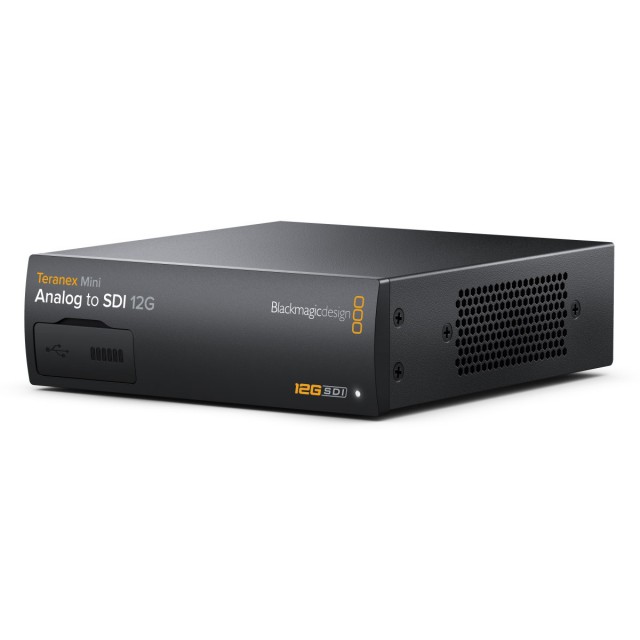

Blackmagic Design Teranex Mini Analog to SDI 12G

SKU: CONVNTRM/BB/ANSDI

Professional analog video to dual 12G‑SDI converter. It accepts Composite, Y/C or Component video, embeds analog or AES/EBU audio, and converts the signal to SD, HD or Ultra HD up to 2160p59.94.

More information

689 € with VAT 569.42 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CONVNTRM/BB/ANSDI
Add to Compare Price history

Blackmagic Design Teranex Mini SDI to Analog 12G

679 €without VAT 561.16 €

Blackmagic Design Teranex Mini SDI to Audio 12G

669 €without VAT 552.89 €

Blackmagic Design Teranex Mini Audio to SDI 12G

679 €without VAT 561.16 €

Blackmagic Design Teranex Mini Optical to HDMI 12G

In stock 3 pcs649 €without VAT 536.36 €

Blackmagic Design Teranex Mini Quad SDI to 12G-SDI

679 €without VAT 561.16 €

Blackmagic Design Teranex Mini SDI Distribution 12G

639 €without VAT 528.1 €

Blackmagic Design Teranex Mini HDMI to SDI 12G

689 €without VAT 569.42 €

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR

In stock 1 pcs1 669 €without VAT 1 379.34 €

Blackmagic Design Teranex Mini SDI to HDMI 8K HDR – used

In stock 1 pcs929 €without VAT 767.77 €

Top accessories for Blackmagic Design Teranex Mini Analog to SDI 12G

Blackmagic Design Universal Rack Shelf (1 RU)

  • LAST PIECE
For users of Blackmagic Studio Converters, HyperDeck Studio HD Plus, and any combination
117 €
In stock 1 pcs

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 2 m

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request

Blackmagic Design Teranex Mini Smart Panel

Additional front panel for selected devices with OLED display. Not functional on
110 €
on request

Syntex Connecting stereo XLR to 2 XLR cable

Connecting stereo XLR to 2 XLR cable primary determined for Sony ECM-680S shotgun
Call us for pricing information
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Professional analog video to dual 12G‑SDI converter. It accepts Composite, Y/C or Component video, embeds analog or AES/EBU audio, and converts the signal to SD, HD or Ultra HD up to 2160p59.94.

Analog sources into 12G‑SDI

Convert output from Betacam SP, VHS, set-top boxes, game consoles or HDV cameras into professional SDI infrastructure.

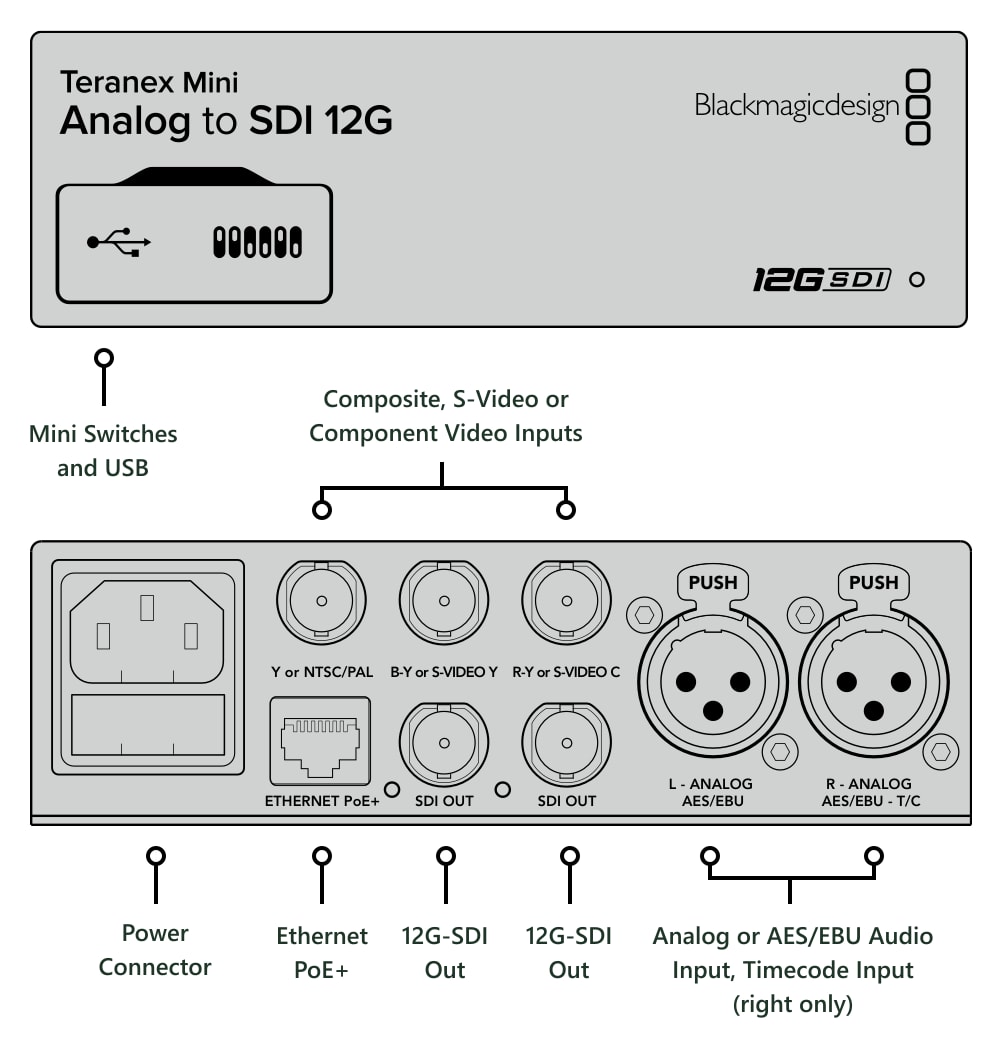

The converter supports Composite, Y/C and Component video and provides two 12G‑SDI outputs.

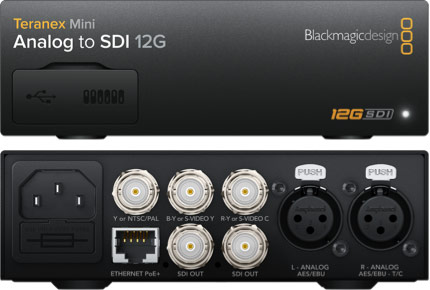

Blackmagic Design Teranex Mini Analog to SDI 12G
ANALOG IN2× 12G‑SDI2160p59.94AUDIO EMBED

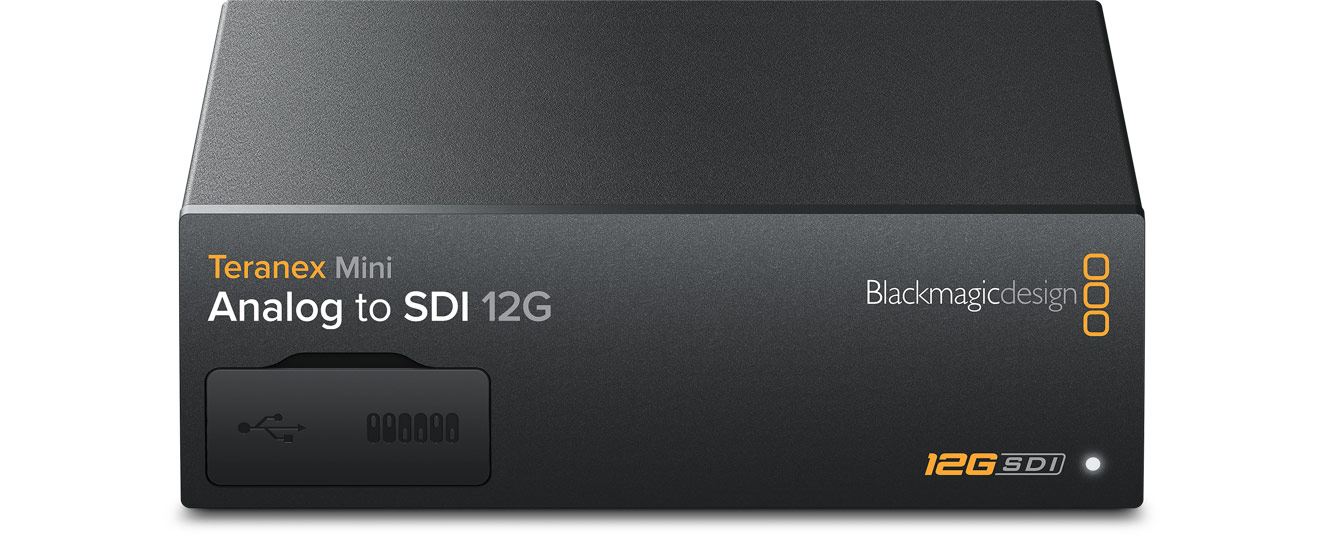

Teranex Mini Analog to SDI 12G

Composite, Y/C and Component

One converter handles common NTSC and PAL analog standards as well as component HD sources. The SDI output can be switched to HD or Ultra HD according to the input.

Two 12G‑SDI outputs simplify simultaneous connection to a recorder, router or monitor.

2× 12G‑SDITwo professional outputs
2160p59.94Ultra HD from Component HD
48 kHz / 24-bitProfessional SDI audio
PoE+Power over Ethernet

Ready for installations

The metal chassis has a built-in 100–240 V supply and can also be powered through PoE+. USB and Ethernet provide configuration and software updates.

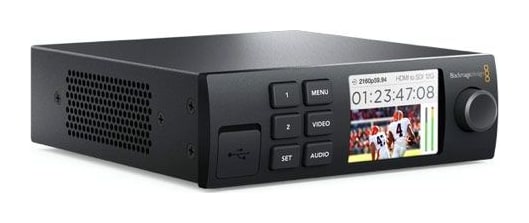

The optional Smart Panel adds an LCD, rotary control and buttons for front-panel setup.

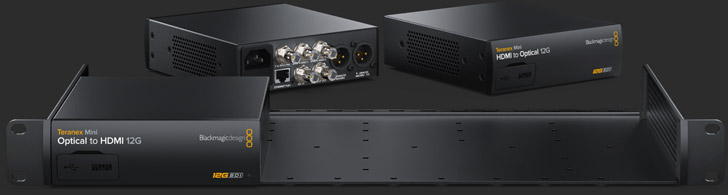

Teranex Mini rack installation

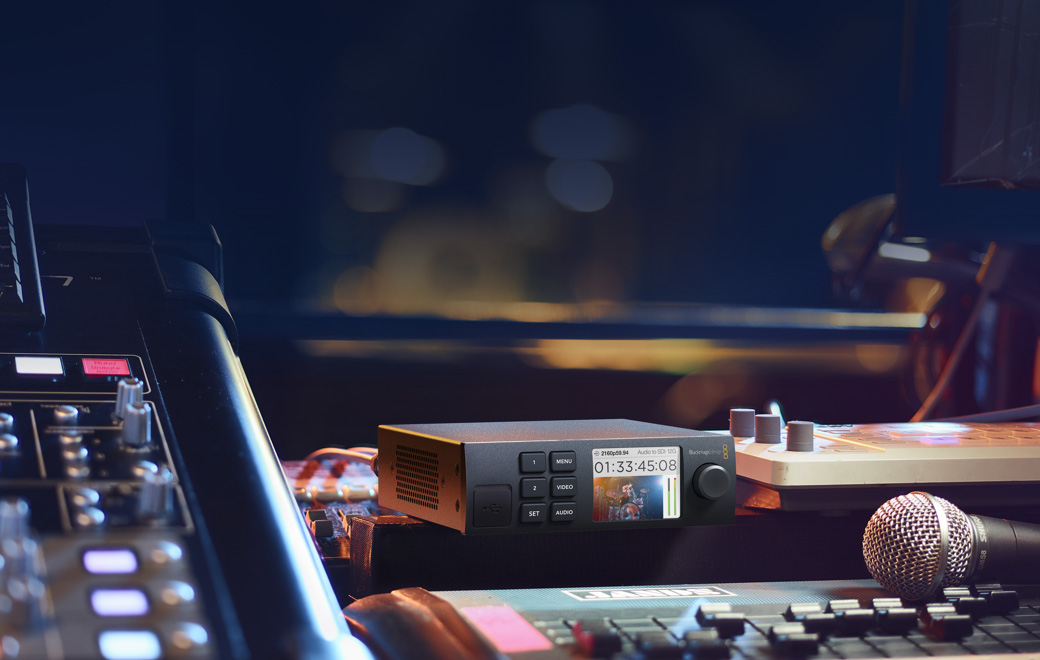

Professional Teranex Mini XLR audio

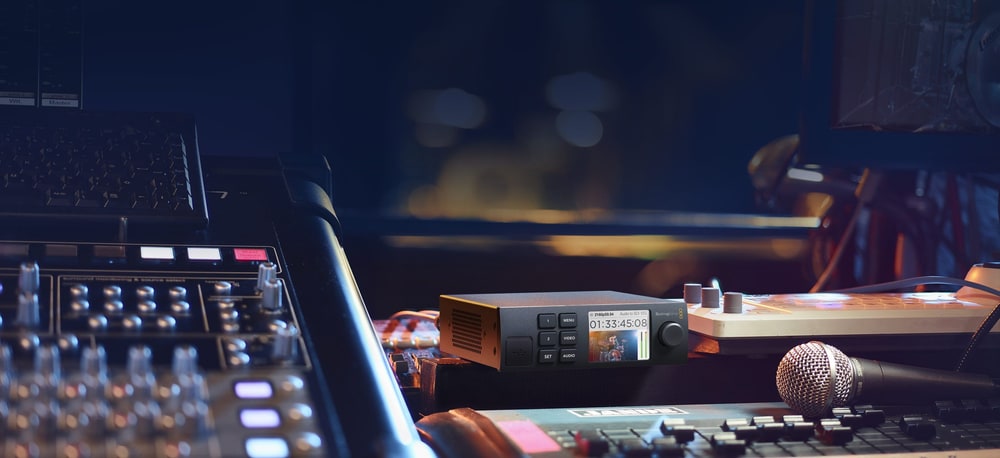

Embed audio and timecode

Two balanced analog channels or four channels of digital AES/EBU audio can be embedded into the SDI output. The right XLR can be configured as a timecode input.

SDI audio uses standard 48 kHz / 24-bit sampling.

A rugged converter for rack or standalone use

Professional analog video to dual 12G‑SDI converter. It accepts Composite, Y/C or Component video, embeds analog or AES/EBU audio, and converts the signal to SD, HD or Ultra HD up to 2160p59.94.

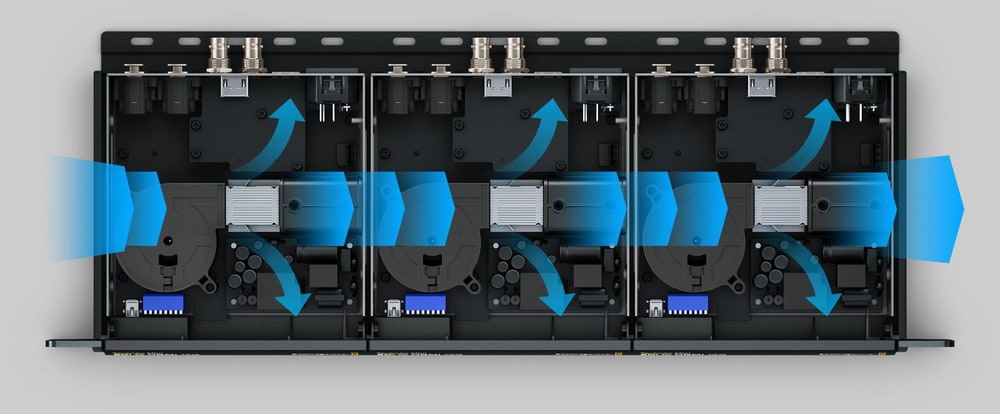

Teranex Mini uses a carefully designed crossflow cooling system with an internal heat pipe. The converters can operate reliably side by side in a rack, on a desktop or in a mobile system without the powerful 12G‑SDI electronics creating unnecessary noise.

Multi-rate 12G‑SDI automatically detects SD, HD and Ultra HD formats up to 2160p60 while remaining compatible with older SDI equipment. A single standard BNC cable therefore serves both current and legacy studio workflows.

The built-in universal AC supply removes reliance on an external adapter. Ethernet provides remote administration and can also supply backup PoE+ power; the optional Smart Panel adds an LCD preview, rotary control and direct settings. Up to three units fit the optional 1U rack shelf.

PACKAGE CONTENT

  • Teranex Mini Analog to SDI 12G
  • Welcome wallet with QR code for software download

SPECIFICATIONS

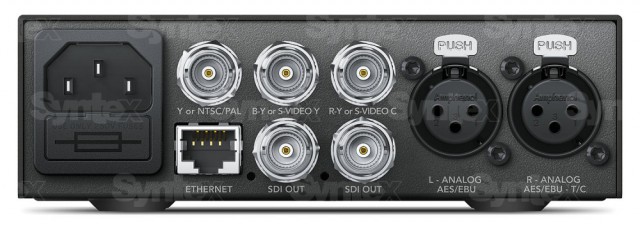

  • SDI outputs: 2× 12G‑SDI
  • Analog video inputs: Composite, Y/C or Component
  • Analog audio: 2 balanced channels via XLR
  • Digital audio: 4 channels AES/EBU 110 Ω via XLR
  • Timecode: right XLR configurable as input
  • Multi-rate: HD for Composite/Y‑C, Ultra HD for Component HD
  • SD video: 525i59.94 NTSC, 625i50 PAL
  • HD video: 720p50/59.94/60; 1080i50/59.94/60; 1080p25/29.97/50/59.94
  • Ultra HD: 2160p25/29.97/50/59.94
  • SDI standards: SMPTE 259M, 292M, 296M, 424M, 2081 and 2082
  • SDI sampling: 4:2:2 and 4:4:4
  • SDI audio: 48 kHz / 24-bit
  • SDI colour: YUV 4:2:2 and RGB 4:4:4
  • Analog colour: Rec. 601 / Rec. 709, 4:2:2
  • Reclocking: yes
  • Configuration: mini switches, USB and Ethernet
  • Optional panel: Teranex Mini Smart Panel
  • Power: 100–240 V AC, IEC C14
  • PoE: PoE+ 48 V DC
  • Power consumption: 16 W
  • Operating temperature: 0 to 40 °C
  • Warranty: 3-year limited manufacturer's warranty
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Signal converters

Main parameters

SourceAnalog
TargetSDI · 12G SDI
