Blackmagic Design Universal Rack Shelf (1 RU)

The Blackmagic Universal Rack Shelf (1 RU) is a universal shelf designed for users of Blackmagic Studio Converters, HyperDeck Studio recorders including the HyperDeck Studio HD Plus and other 1/3, 1/2 and 2/3 rack width products who want to mount them in a rack. It is a sturdy support for HyperDeck Studio Mini recorders, Teranex Mini converters, Web Presenter and the 2/3 rack width ATEM TV Studio HD.

Your own 1U rack solution

Mix and match 1/3 and 1/2 rack width Blackmagic products – Studio Converter, ATEM, HyperDeck Studio, Web Presenter, Teranex Mini and UltraStudio – on a single 1U metal shelf.

1U1/3 and 1/2 rack widthMetal shelfBlank panels included

One shelf, many combinations

The products are screwed to the shelf and the whole shelf is bolted into the rack. When you mount just one product, the included blank panels cover the empty space.

Teranex Mini

12G-SDI converters side by side in one rack.

Teranex Mini 8K HDR

8K monitoring converters in the rack.

HyperDeck Studio

Recorders in 1/3 and 1/2 rack width.

ATEM and Web Presenter

Switchers and streaming products in a compact setup.

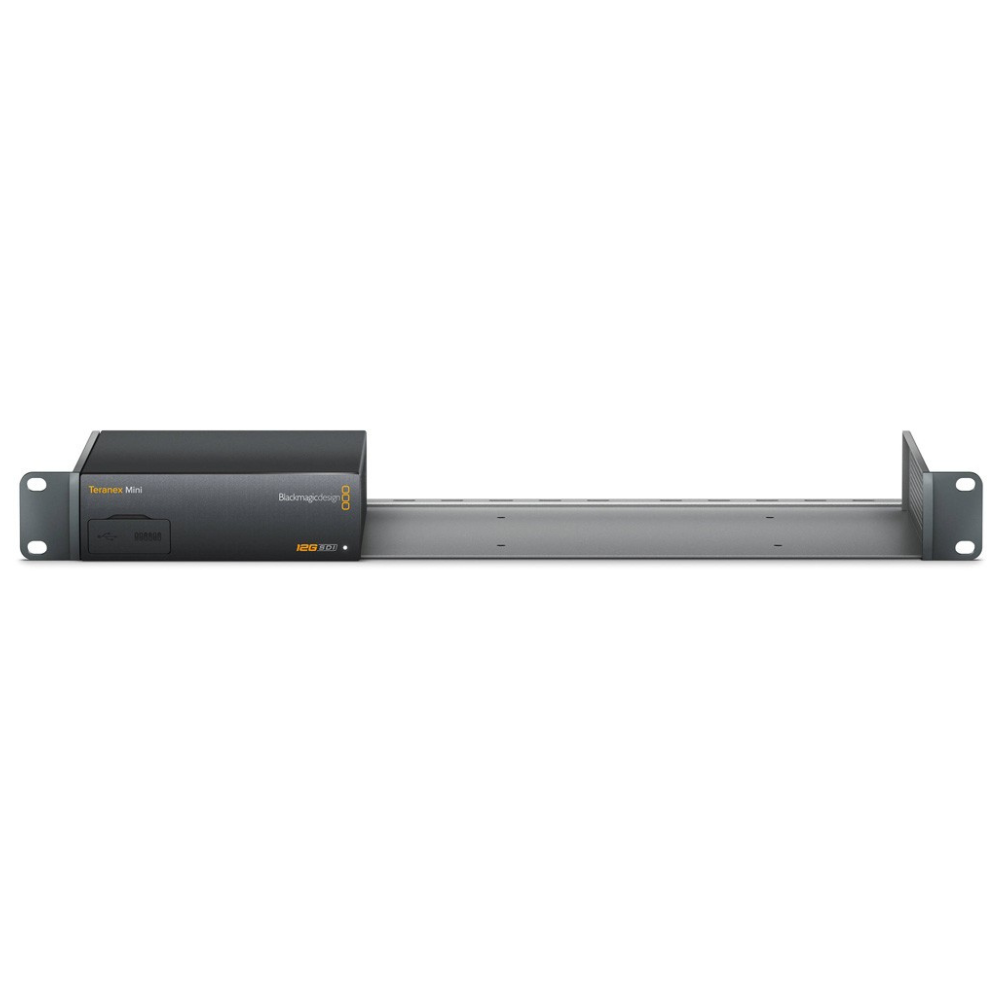

Teranex Mini in the rack

Teranex Mini converters can be rack mounted one at a time or in groups and taken out to be used on their own whenever needed. Each has its own power and Ethernet, so there is no single point of failure, and crossflow cooling keeps them running reliably even side by side.

Teranex Mini 8K HDR

The Teranex Mini 8K HDR monitoring converter is screwed to the shelf before the whole shelf is bolted into the rack. When you mount a single converter, the included blank panels cover the empty space so there is no unsightly hole in your installation.
