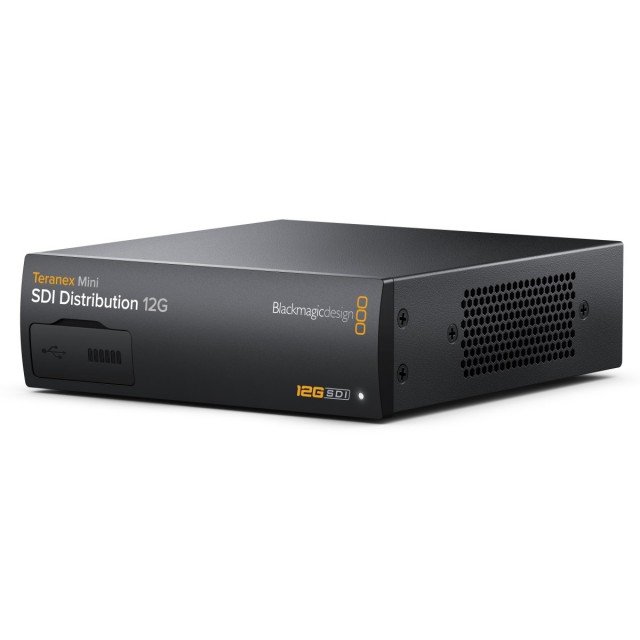

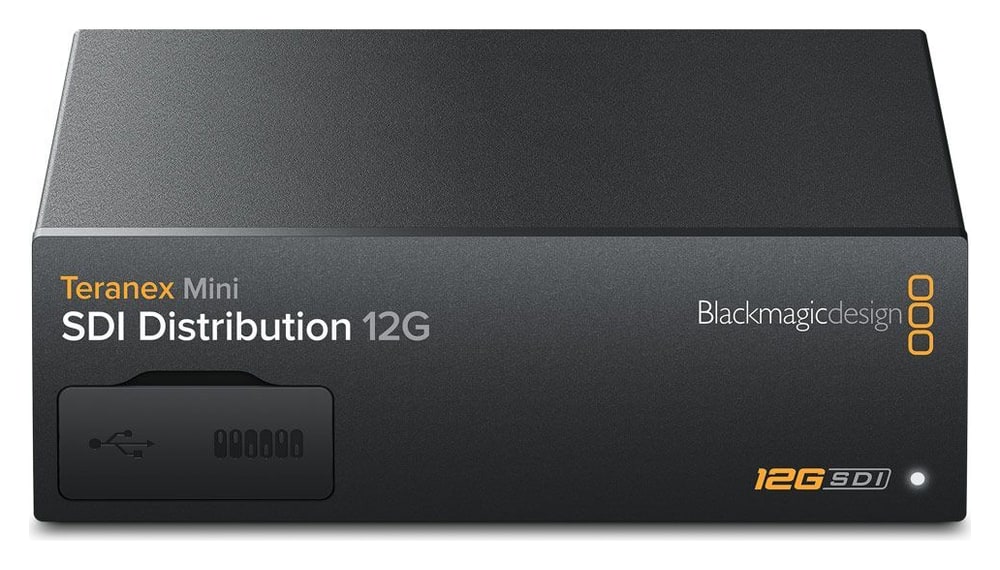

Blackmagic Design Teranex Mini SDI Distribution 12G

For studios, control rooms and OB trucks

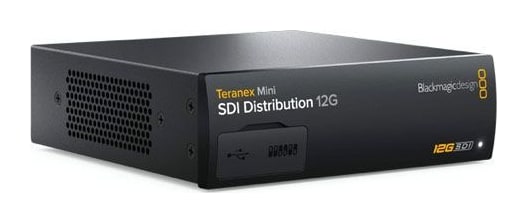

Distribute one SDI signal to monitors, switchers, encoders and recorders at the same time – in the control room, in an outside broadcast truck rack or at a live event.

In the rack or on the desk

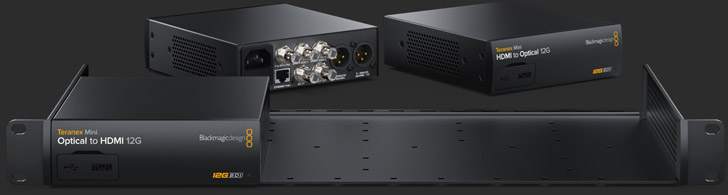

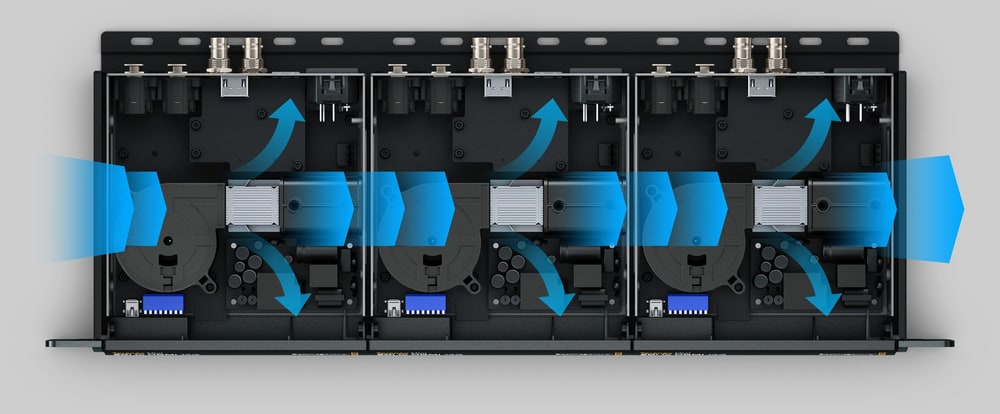

The compact converter can sit on a desk, hide behind equipment or be rack mounted – the optional Blackmagic Universal Rack Shelf (1U) holds Teranex Mini together with other 1/3 and 1/2 rack width Blackmagic products. Crossflow cooling with a heat pipe keeps the converters running even when mounted side by side.

About the Teranex Mini range

Teranex Mini uses an innovative crossflow cooling design with an internal heat pipe. The converters can therefore work reliably side by side in a rack, on a desk or in a mobile setup without the powerful 12G-SDI circuitry adding unnecessary noise.

The multi-rate 12G-SDI interface automatically detects SD, HD and Ultra HD formats up to 2160p60 and stays compatible with older SDI equipment. A single standard BNC cable therefore covers both current and older studio installations.

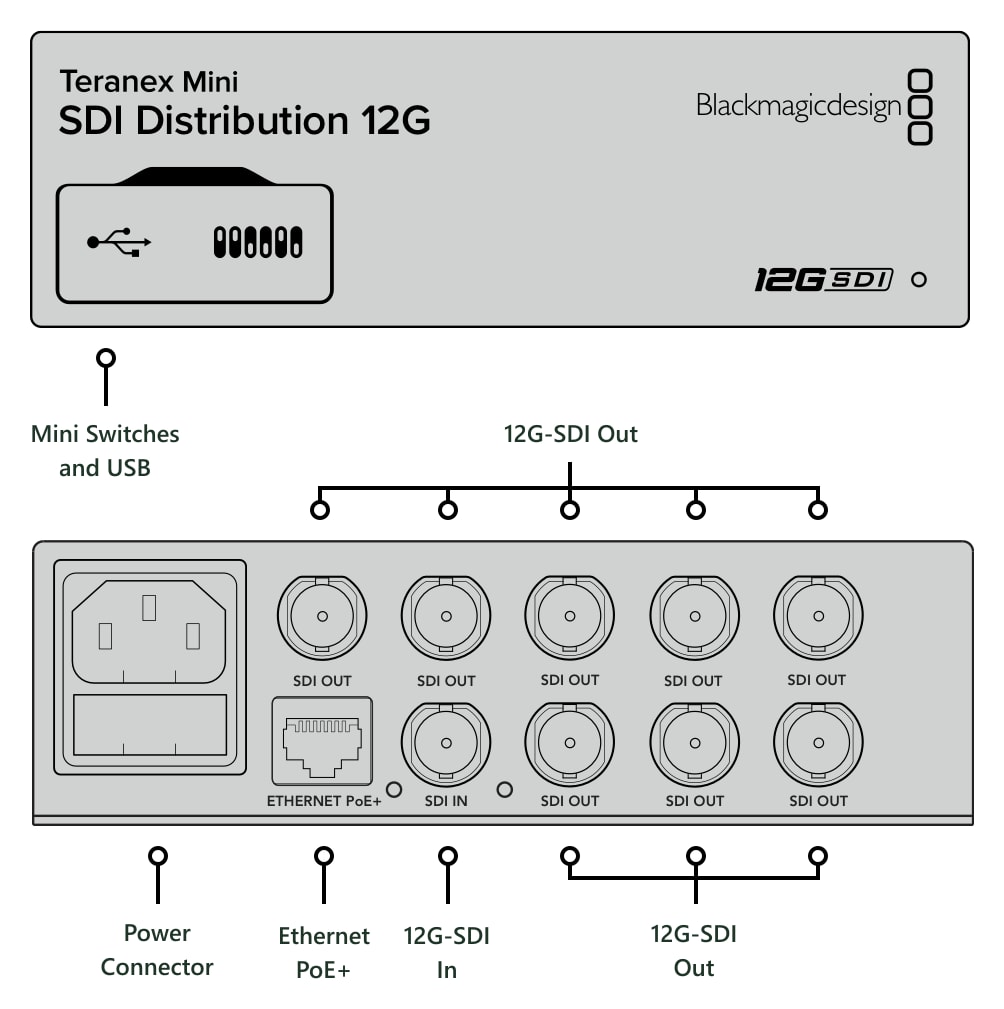

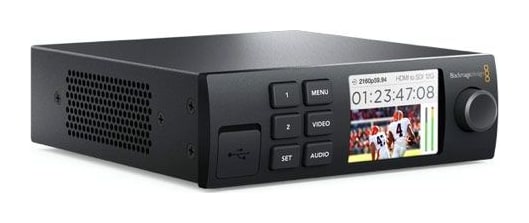

The built-in universal power supply (100–240 V AC) removes the need for an external adapter; it connects with a regular IEC power cable, which is not included. Ethernet is used for remote management and can also power the converter from a PoE+ switch. The optional Teranex Mini Smart Panel adds an LCD preview, a rotary knob and direct settings control.
