The Manfrotto MK290DUA3-3W 290 Dual aluminium kit weighs 2.59 kg and combines a three-section tripod, a 90° centre column, lever locks and a 5.5–175.5 cm height range with the MH804-3W three-way head and 200LT-PL quick-release plate. The supplied plate has a 4 kg load limit. Independent axis adjustment suits DSLR or mirrorless photography for travel,…
The Manfrotto MK290DUA3-3W 290 Dual aluminium kit weighs 2.59 kg and combines a three-section tripod, a 90° centre column, lever locks and a 5.5–175.5 cm height range with the MH804-3W three-way head and 200LT-PL quick-release plate. The supplied plate has a 4 kg load limit. Independent axis adjustment suits DSLR or mirrorless photography for travel, portraits and macro work.

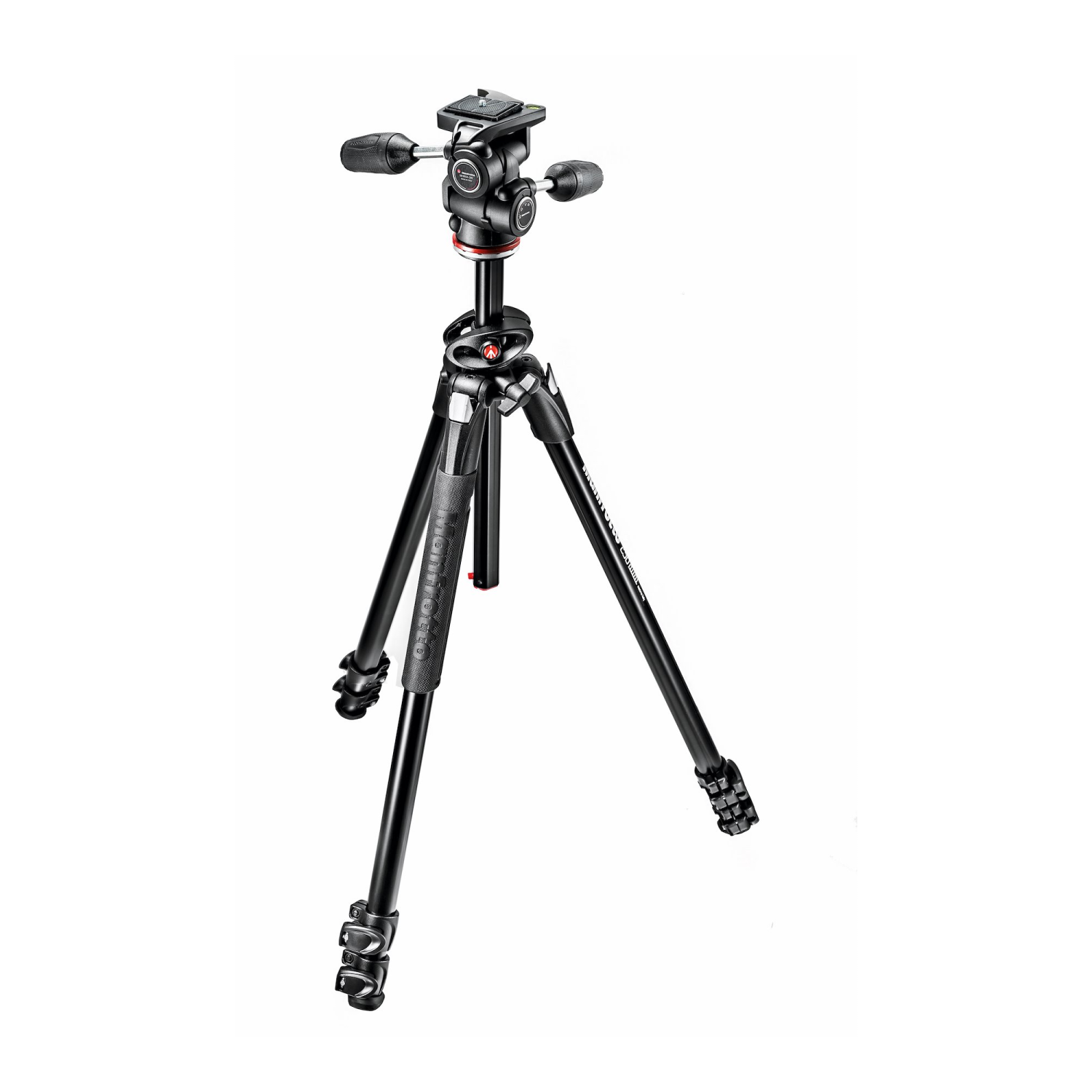

Manfrotto MK290DUA3-3W
Framing in three axes
A 2.59 kg aluminium kit with MH804-3W head and 200LT-PL plate. Adjust three axes separately and use the 90° column for low viewpoints. The supplied plate is limited to 4 kg.
90°3 axes4 kg

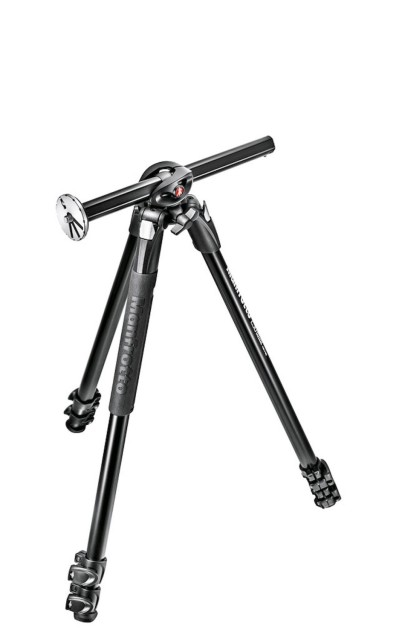

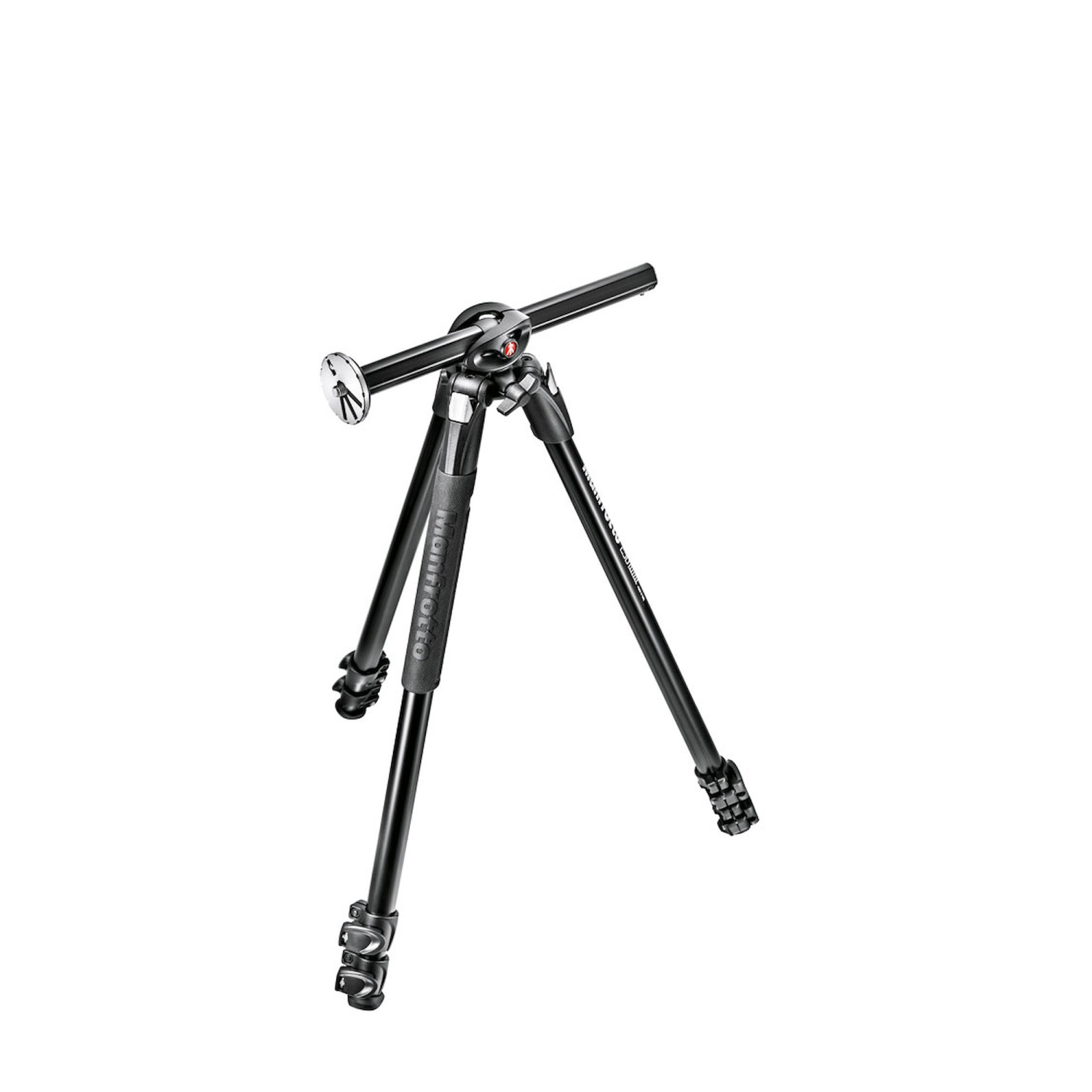

Overhead without moving the legs
The centre column moves between vertical and horizontal positions for tabletop, macro and overhead framing. Four independently selected leg angles help position the support; the head provides separate pan and tilt locks.
Manufacturer demonstration shows the included tripod legs without the head; this kit includes the MH804-3W head.
Switch the column safely
Follow the original leg-manual sequence:
4.1 — loosen E
4.2 — press R and raise column D fully
4.3 — turn D through 90°
4.4 — slide D into W and tighten E
Keep your hand clear when returning the column to vertical: the Fig. 5 pinch warning applies.
Control, carrying and safe setup

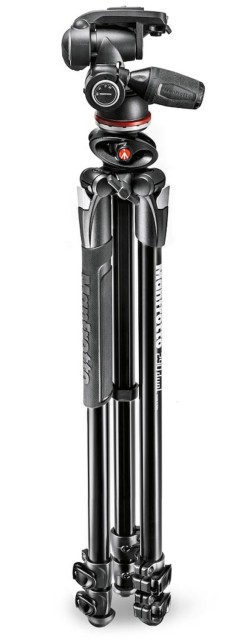

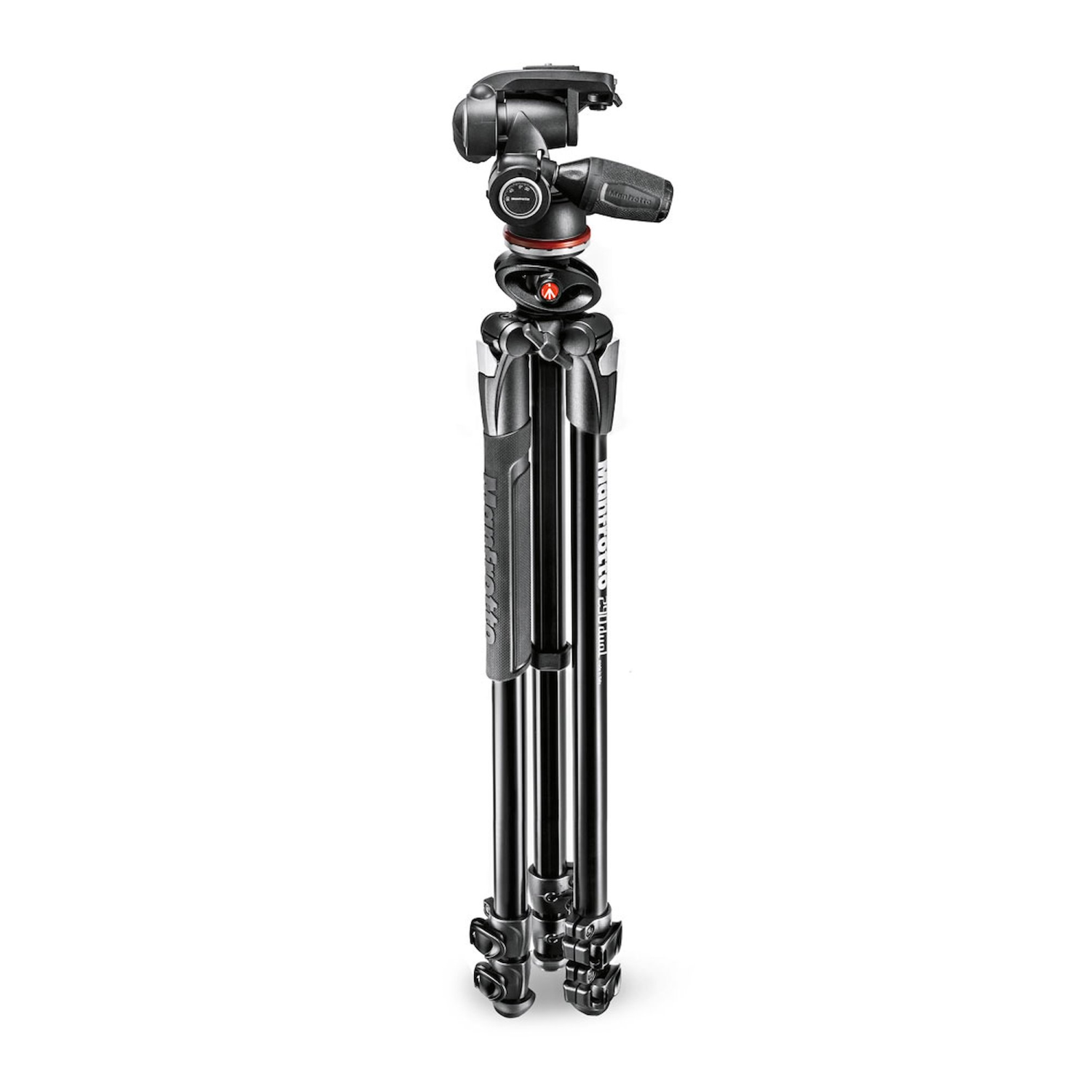

Three telescopic aluminium leg sections use tension-adjustable lever locks. Rubber leg warmers help your grip, while the four angle settings and rubber feet support positioning indoors or outdoors. The kit folds to 74 cm; a carrying bag is not included. The technical-polymer head has retractable handles for transport and the 200LT-PL quick-release plate.
When returning the column to vertical, keep your hand clear of the column and pivot to avoid pinching, following the leg manual. The optional carrying strap and counterweight are not included; the manual’s bare-leg figures do not describe the complete kit.
The current manufacturer lists a 10 kg safety payload under UNI/PdR 105:2021 for this kit. This is a separate certified figure, not permission to exceed the supplied 200LT-PL plate’s 4 kg limit. The weakest component and the actual setup determine the usable load.
For leg-lock tension adjustment, the manual specifies the supplied key N on a leg. The TORX 25 key for replacing a locking collar is not supplied.
UKAirscape’s 2016 video shows the 290 Dual with three-way head and its overhead setup. Demonstration equipment is not included; follow the manufacturer’s stability and column-handling instructions, not historical purchasing information.
PACKAGE CONTENT
290 Dual tripod with MH804-3W three-way head ×1
200LT-PL quick-release plate ×1
SPECIFICATIONS
Model: MK290DUA3-3W
Leg material: aluminium
Leg sections: 3
Maximum height: 175.5 cm
Minimum height: 5.5 cm
Closed length: 74 cm
Complete-kit weight: 2.59 kg
Supplied plate load limit: 4 kg
Head: MH804-3W
Quick-release plate: 200LT-PL
Certified kit safety payload: 10 kg — UNI/PdR 105:2021
Maximum height, column down: 151 cm
Leg angles: 25° / 46° / 66° / 88°
Tube diameters: 26 / 22.5 / 19 mm
Head material: technopolymer
Maximum working temperature: 60 °C
Minimum working temperature: −30 °C
WE RECOMMEND
Choose transport protection and spare camera plates for the exact MK290DUA3-3W kit with MH804-3W head. The manufacturer’s fitting chart explicitly lists MBAG80N and MBAG80PN for this 74 cm folded kit; check the dimensions with your own gear.
Manfrotto Padded Tripod Bag 80cm: An 80 cm padded bag for transporting the 74 cm folded kit. Retract the head handles and check the complete folded assembly’s width before packing.
Manfrotto MBAG80N Unpadded Tripod Bag 80 cm: An 80 cm unpadded transport option. Retract the head handles and check the complete folded assembly’s width; it does not provide the padded protection of MBAG80PN.
Manfrotto Unpadded Tripod Bag 75cm: A 75 cm unpadded alternative explicitly listed for this kit in the manufacturer’s fitting chart. Retract the head handles and check fit with your own equipment; choose one bag according to the protection and space you need.
Manfrotto 200LT-PL Quick Release Plate: A spare of the supplied 200LT-PL plate for the MH804-3W head. The manufacturer specifies a 4 kg limit for this plate.
Respect the lowest limit of the complete camera rig. The kit’s 10 kg UNI/PdR 105:2021 certified safety value does not raise the supplied 200LT-PL plate’s 4 kg limit. Bags and spare plates are additional purchases.
