Manfrotto 190 ALU 3 SECTION KIT 3W HEAD

190 aluminum 3-section tripod with head

More information

263 € with VAT 217.36 € without VAT
-+
Availability
on request
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

190 aluminum 3-section tripod with head

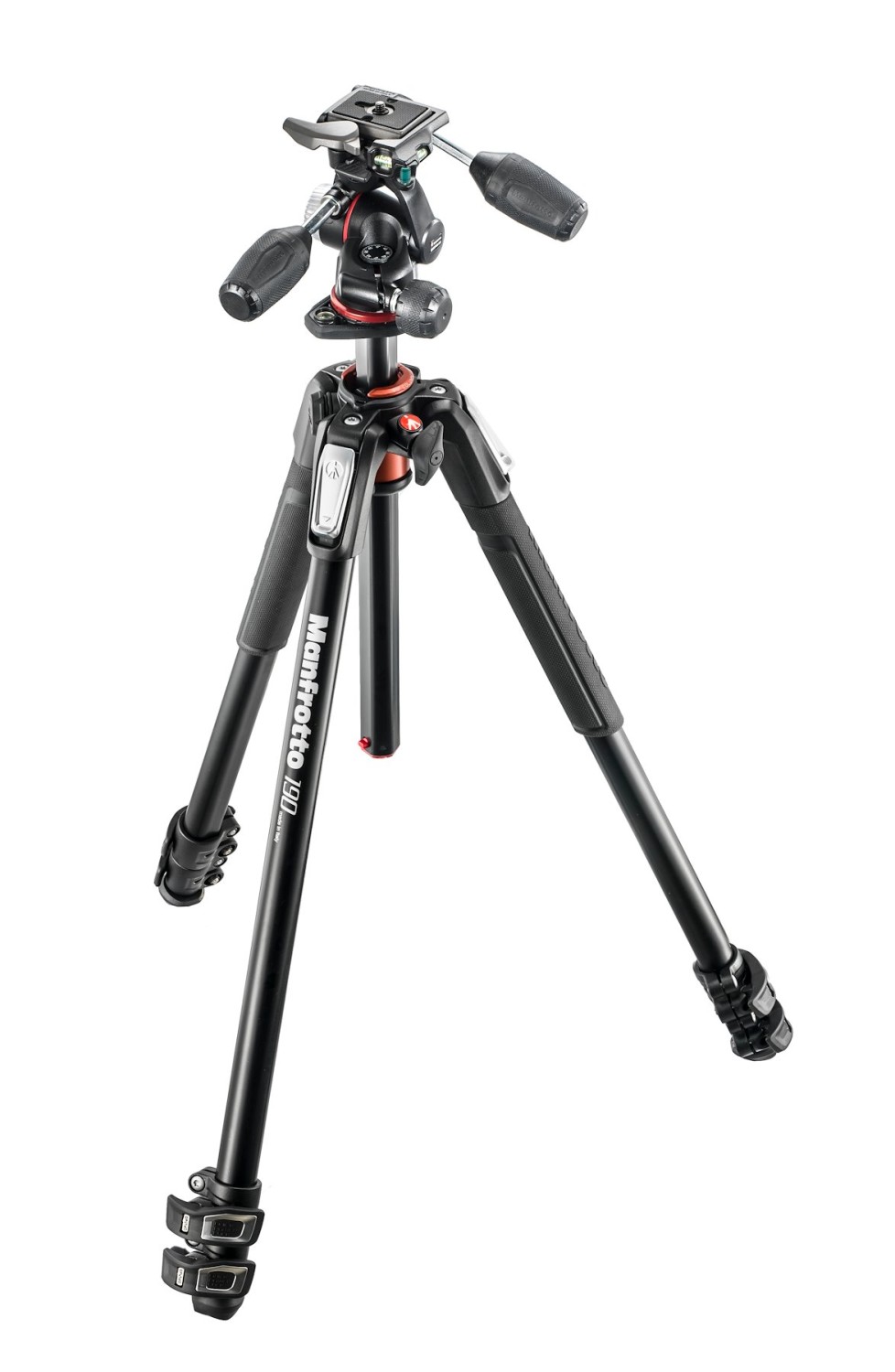

The Manfrotto MK190XPRO3-3W Aluminum Tripod with a 3-way pan/tilt head combines the MT190XPRO3 tripod legs with the MHXPRO-3W head. This tripod has a load capacity of 12 kg, reaches a maximum height of 173 cm, and folds down to 72 cm for easy transport. The Quick Power Lock system allows you to fully extend the tripod legs with one hand. Once set up, you can use the quick-release center column in standard vertical mode or, using Manfrotto’s 90° column feature, rotate it to a horizontal position as an arm, bringing the camera as low as 9 cm above the ground. Using the Easy Link connector built into the top of the tripod, you can attach an extension arm or a light or reflector mount. The MHXPRO-3W head at the top of the tripod is a compact pan/tilt head with retractable handles that can be extended as needed. Two dials control the friction for forward/backward and side-to-side tilt, allowing you to fine-tune movements based on the weight of your equipment. Three bubble levels ensure that your composition is level on all axes. The 200PL quick-release plate with a 1/4"-20 thread allows for quick attachment and detachment of the camera from the head.

PACKAGE CONTENT

  • 1 × 190 aluminum 3-section tripod with head (MK190XPRO3-3W)

SPECIFICATIONS

  • Model: MK190XPRO3-3W
  • Official product name: 190 3-section aluminum tripod with head
  • Weight: 3 kg
  • Maximum height: 173 cm
  • Length when folded: 72 cm
  • Head type: 3-way head
  • Safety load capacity according to UNI/PdR 105:2021: 12 kg
  • Maximum height (with center column folded down): 148 cm
  • Base diameter: 60 mm
  • Number of spirit levels: 3
  • Carrying bag included: No
  • Center column: quick-release
  • Top plate diameter: 60 mm
  • Color: black
  • Number of leg sections: 3
  • Head mount: 1/4″ screw mount
  • Easy Link: Yes
  • Friction control: Yes
  • Forward tilt range: -30° / +90°
  • Minimum height: 9 cm
  • Independent rotation lock: yes
  • Lock ball: No
  • Independent tilt lock: Yes
  • Side tilt: -30° / +90°
  • Leg type: Single
  • Leg angles: 25°, 46°, 66°, 88°
  • Leg locking type: Flip Lock
  • Leg tube diameter: 26, 22.5, 19 mm
  • Material: aluminum
  • Maximum operating temperature: 60 °C
  • Minimum operating temperature: -30 °C
  • Rotation friction: NONE
  • Panoramic rotation: 360°
  • Plate type: 200PL-14
  • Quick-release: Yes
  • Tilt lock: NONE

ARTICLES

WE RECOMMEND

The Manfrotto 190 ALU is a professional aluminum tripod equipped with a 3-way head and an Easy Link connector, which allows for direct attachment of arms and other accessories. For this model, accessories utilizing standard 1/4" and 3/8" threads, 200PL quick-release systems, and various types of clamps are the ideal choice for enhancing stability and functionality.

Quick-release systems and plates - Accessories designed to speed up camera setup and ensure compatibility across different systems.

Smartphone Mounts - Universal mounts that allow you to securely attach a smartphone directly to a tripod head or arm.

Arms and positioning elements - Flexible and magic arms that attach to the tripod’s Easy Link connector for mounting monitors or lights.

Clamps and mounts - Sturdy clamps for attaching the tripod to other structures or for mounting additional equipment to the tripod legs.

Adapters and Reducers - Technical adapters ensuring compatibility between different thread and spigot standards.
