Manfrotto 190 Aluminium 3-Section Tripod and XPRO

SKU: MK190XPRO3-BHQ2

Manfrotto MK190XPRO3-BHQ2 combines the three-section MT190XPRO3 aluminium legs with the MHXPRO-BHQ2 magnesium XPRO ball head and 200PL quick-release plate in a portable, versatile photographic kit. For landscapes, portraits, product photography and macro work, its 90° centre column switches between vertical and horizontal positions with the…

More information

279 € with VAT 230.58 € without VAT
Add to Compare Price history
Availability
Shipment day: 16. 11.
> 5 pcs in stock at the supplier
SKU:
MK190XPRO3-BHQ2
Add to Compare Price history

Manfrotto 190 ALU 3 SECTION KIT 3W HEAD

10 pcs in stock at the supplier263 €without VAT 217.36 €

Manfrotto 190 ALU 4 SECTION KIT 3W HEAD

16 pcs in stock at the supplier316 €without VAT 261.16 €

Manfrotto MK190XPRO4-BHQ2 – 4-Section 190 Tripod with XPRO Head

3 pcs in stock at the supplier300 €without VAT 247.93 €

Top accessories for Manfrotto 190 Aluminium 3-Section Tripod and XPRO

Manfrotto MCLAMP Universal Smartphone Clamp with 2× 1/4″ Threads

Manfrotto MCLAMP is a lightweight universal clamp for smartphones up to 8.4 cm wide,
15 €
In stock 2 pcs

Manfrotto 200PL – RC2/Q2 Quick-Release Plate

Manfrotto 200PL is the original aluminium quick-release plate for RC2/Q2 heads and
19 €
In stock 3 pcs

Manfrotto 244MINI 24 cm Variable Friction Arm with 1/4″ and 3/8″ Adapters

  • -13 %
  • LAST PIECE
Promotion: -13%
Manfrotto 244MINI is a compact 24 cm variable-friction arm for precisely positioning
110.11 €
126.6 €
In stock 1 pcs

Manfrotto 19SCK3 Suction Cup /retractable spiked foot

Manfrotto 19SCK3 is a set of three rubber suction-cup feet for tripods and monopods
56 €
on request

Manfrotto 190LC Levelling Centre Column for the new 190

The Manfrotto 190LC Levelling Centre Column allows fast and precise levelling of
183 €
on request

Manfrotto Padded Tripod Bag 80cm

The Manfrotto MB MBAG80PN is a padded bag for safely carrying a tripod with head
94 €
5 pcs in stock at the supplier

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

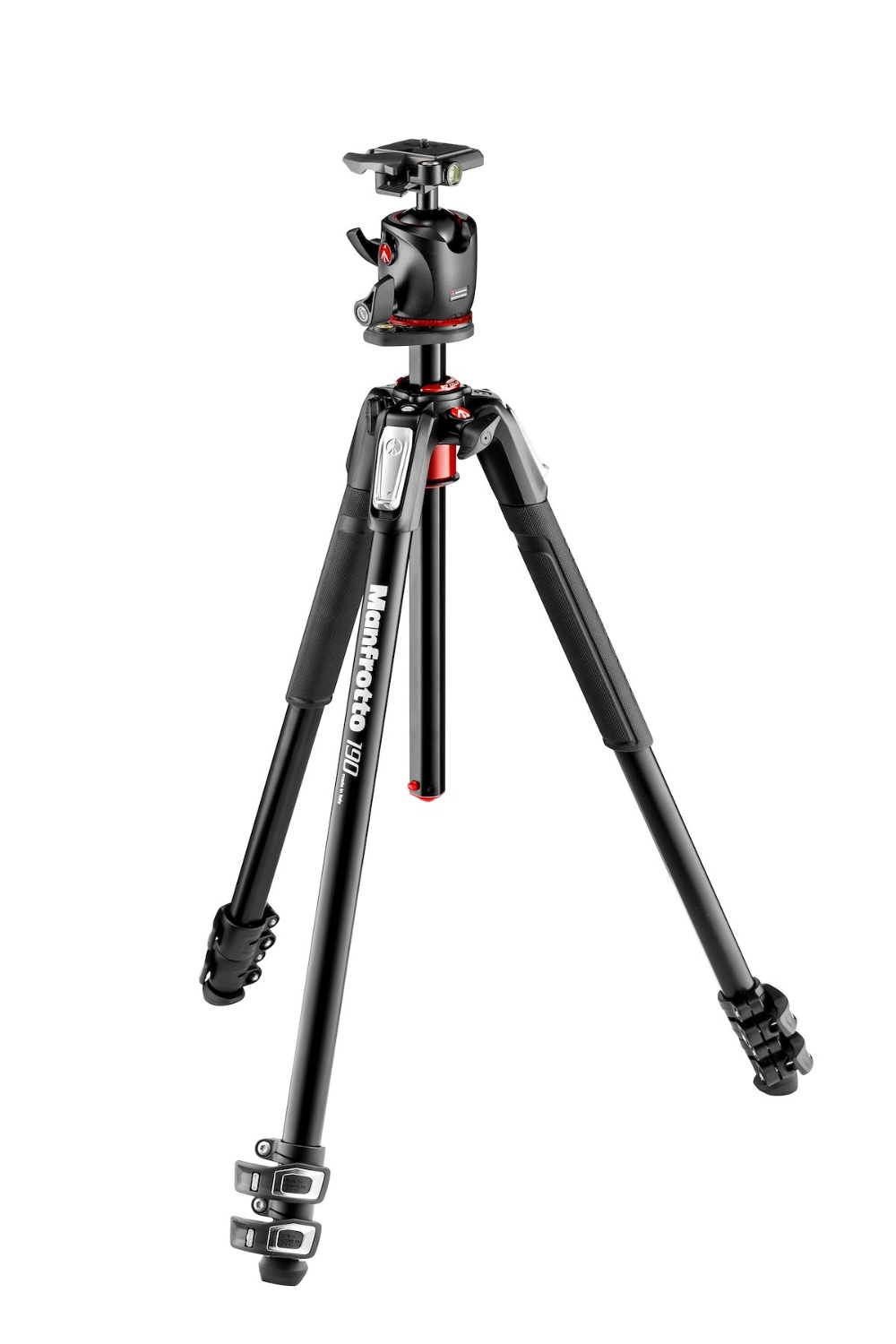

Manfrotto MK190XPRO3-BHQ2 combines the three-section MT190XPRO3 aluminium legs with the MHXPRO-BHQ2 magnesium XPRO ball head and 200PL quick-release plate in a portable, versatile photographic kit. For landscapes, portraits, product photography and macro work, its 90° centre column switches between vertical and horizontal positions with the camera attached. Quick Power Lock levers speed up setup, while separate pan and friction controls support precise framing. The complete kit reaches 171.5 cm, supports a 15 kg safety payload under UNI/PdR 105:2021, weighs 2.5 kg and closes to 70.5 cm. Independent leg angles, three bubble levels and Easy Link help adapt it to field and studio use.

MANFROTTO · MK190XPRO3-BHQ2

190 WITH XPRO BALL HEAD

The three-section MT190XPRO3 aluminium tripod, MHXPRO-BHQ2 magnesium XPRO ball head and 200PL plate form a ready-to-use photographic kit. Switch the column through 90° for overhead and macro work, and adjust head friction to suit your camera.

90° column15 kg payload
Manfrotto MK190XPRO3-BHQ2

FAST SETUP

Quick Power Lock levers let you open the leg sections single-handedly and securely lock their length.

PRECISE FRAMING

Separate ball, pan and friction controls are complemented by the RC2/Q2 quick-release plate.

ACCESSORIES CLOSE BY

Easy Link accepts a compatible arm for a light, flash or reflector. The arm is not included.

FROM VERTICAL TO OVERHEAD

The centre-column mechanism is housed in the top casting to save space during transport. You can leave the camera attached when changing between vertical and horizontal orientation, without dismantling the kit. Extend and reposition the column in seconds for macro subjects, product photography or overhead compositions.

Each leg adjusts independently to preset angles of 25°, 46°, 66° and 88°. Enlarged angle selectors make repositioning and low-level work straightforward. The manufacturer lists a 9 cm minimum for both the legs and kit; this is not a guaranteed camera height with the head attached. The complete kit reaches 171.5 cm, or 146.5 cm with its centre column down.

GREASE-FREE XPRO BALL HEAD

The included MHXPRO-BHQ2 magnesium head combines a triple locking system with friction control for controlled positioning of a loaded camera. Polymer rings provide smooth, accurate movement without conventional grease. Separate ball and panoramic controls let you fine-tune the composition.

The 200PL-14 quick-release plate speeds up attaching and removing a camera with a 1/4″ socket. Two head-mounted bubble levels help keep the horizon straight; the numbered base supports repeatable panoramic framing through 360°.

A PORTABLE SUPPORT FOR FIELD AND STUDIO

QPL levers securely block each leg section, and opening them single-handedly speeds up preparation. Independently adjustable leg angles give freedom to frame on uneven ground. Rotate the tripod's bubble level to keep it visible rather than hidden behind your camera or head. Rubber grips on two legs make handling more comfortable in cold conditions.

The top-casting Easy Link connector accepts a compatible extension or articulated arm for photographic or video accessories such as a reflector or flash, creating a practical mobile studio. This portable, versatile Italian-made kit accommodates a broad range of photographic styles: it weighs 2.5 kg and measures 70.5 cm closed for carrying between locations. A carrying bag is not included.

PACKAGE CONTENT

  • 1× MT190XPRO3 three-section aluminium tripod
  • 1× MHXPRO-BHQ2 XPRO ball head
  • 1× 200PL-14 quick-release plate

SPECIFICATIONS

  • Model: MK190XPRO3-BHQ2
  • Kit components: MT190XPRO3 + MHXPRO-BHQ2 + 200PL-14
  • Weight: 2.5 kg
  • Maximum height: 171.5 cm
  • Height with centre column down: 146.5 cm
  • Closed length: 70.5 cm
  • Safety payload UNI/PdR 105:2021: 15 kg
  • Manufacturer-listed minimum height: 9 cm; not a guaranteed camera height with the head
  • Leg / head material: aluminium / magnesium
  • Colour: black
  • Leg sections: 3
  • Leg type: single
  • Leg tube diameters: 26 / 22.5 / 19 mm
  • Leg angles: 25° / 46° / 66° / 88°
  • Leg locks: Quick Power Lock levers
  • Centre column: rapid adjustment, vertical / 90° horizontal orientation
  • Upper disc / base diameter: 60 mm
  • Manufacturer base type: 45 mm
  • Head type: XPRO ball head MHXPRO-BHQ2
  • Camera screw on the plate: 1/4″
  • Head attachment on the legs: 3/8″
  • Plate / quick release: 200PL-14 / yes (RC2/Q2)
  • Easy Link: yes
  • Friction control: yes
  • Ball locking: yes, triple locking system
  • Independent pan lock: yes
  • Manufacturer-listed independent tilt lock: yes
  • Front / lateral tilt: −90° to +40°
  • Panoramic rotation: 360°
  • Pan / tilt drag: no fluid drag
  • Bubble levels: 3: rotating tripod level + 2 on the head
  • Working temperature: −30 to +60 °C
  • Carrying bag included: no
  • Made in: Italy

ARTICLES

WE RECOMMEND

The Manfrotto MK190XPRO3-BHQ2 is a professional aluminum tripod equipped with an XPRO ball head featuring the 200PL quick-release system and an Easy Link connector for attaching accessories. To maximize its potential, we recommend accessories for mounting smartphones, extension arms, and clamps for attaching additional equipment directly to the tripod frame.

Tripod plates and quick-release systems - Accessories compatible with the 200PL system and extension bases for quick handling.

Smartphone Mounts - Universal mounts that allow you to securely attach your phone to a 1/4" tripod head thread.

Arms and Clamps - Components for using the Easy Link connector and attaching accessories to tripod legs.

Adapters and screws - Technical adapters for connecting different thread and spigot standards.

Parameters

Parameters

Manufacturer: Manfrotto
Category: Tripods

Main parameters

Closed length70.5cm
Height with centre column down146.5cm
Leg sections3
ColourBlack
Camera mounting screw1/4″
Quick-release plate200PL-14 (RC2/Q2)
Horizontal centre columnYes
Easy Link connectorYes
TypeTripod with ball head
MaterialAluminium
Weight2.5kg
Bowl sizeFlat base
Spreader typeNo spreader
Max height171.5cm
Tripod payload15kg
