The Manfrotto MK190XPRO4-BHQ2 is a versatile photography kit featuring the four-section 190XPRO4 aluminum tripod and the precision XPRO ball head. The center column can be switched to a horizontal position without removing the camera, making it ideal for macro, product photography, and low-angle shots. Quick Power Lock levers, four leg angles, Easy Link, independent…
The Manfrotto MK190XPRO4-BHQ2 is a versatile photography kit featuring the four-section 190XPRO4 aluminum tripod and the precision XPRO ball head. The center column can be switched to a horizontal position without removing the camera, making it ideal for macro, product photography, and low-angle shots. Quick Power Lock levers, four leg angles, Easy Link, independent panorama lock, and friction control help you quickly set up a stable rig with a safe load capacity of 15 kg and a working height of 8–171.5 cm.
190 XPRO Tripod Set
The Manfrotto MK190XPRO4-BHQ2 combines the compact four-section 190XPRO4 aluminum tripod with the XPRO magnesium ball head. A safe load capacity of 15 kg, quick-adjust legs, and the ability to switch the center column to a horizontal position give the photographer freedom when working in landscapes, interiors, studios, and even close to the ground.

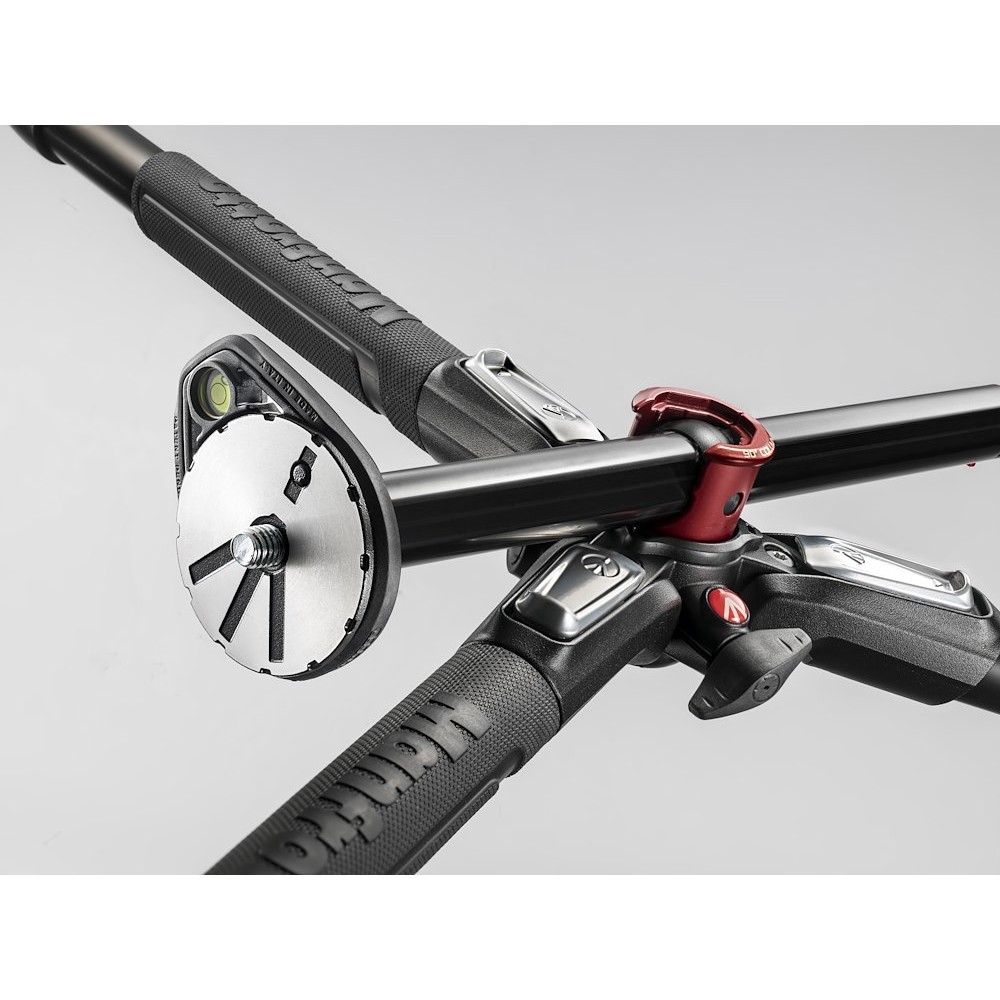

The 90° Column mechanism is housed in the upper casting. You can switch the column from the vertical to the horizontal position without removing the camera.

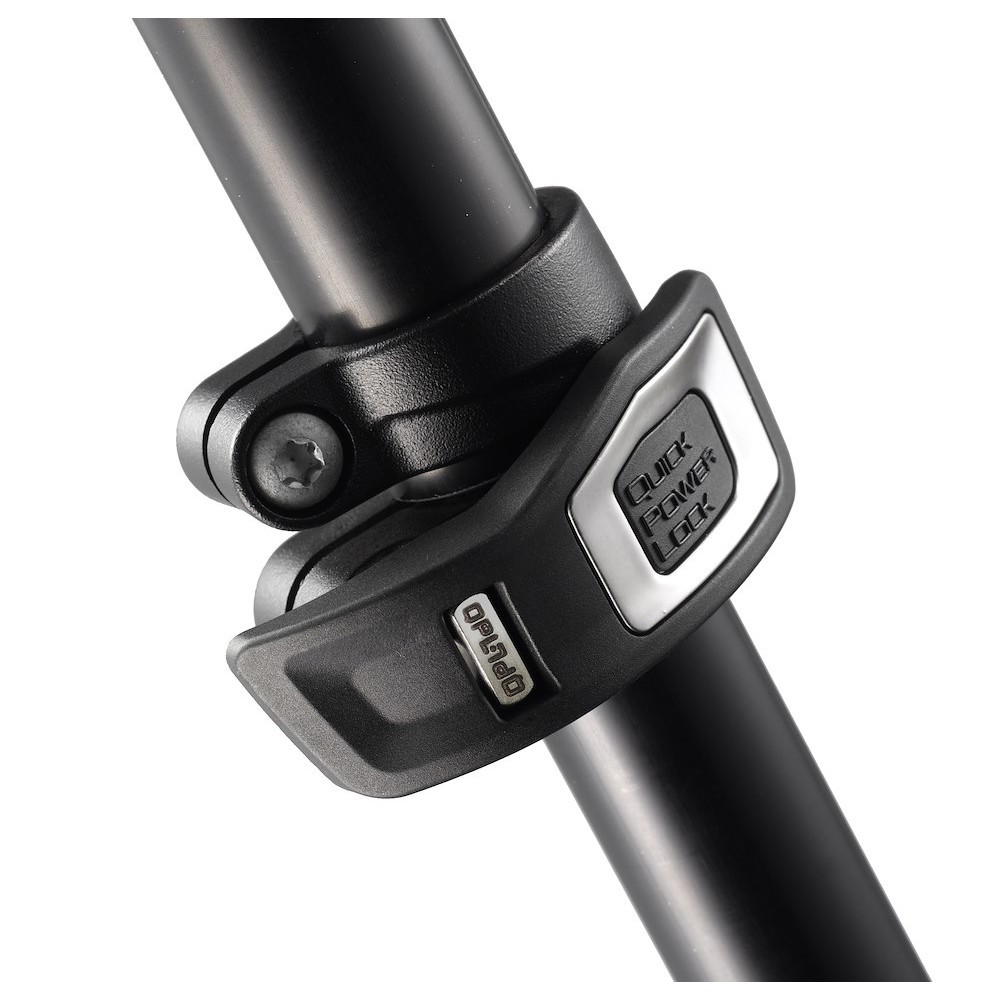

Wide levers allow you to quickly release and securely lock the four leg sections; operation is comfortable even with one hand.

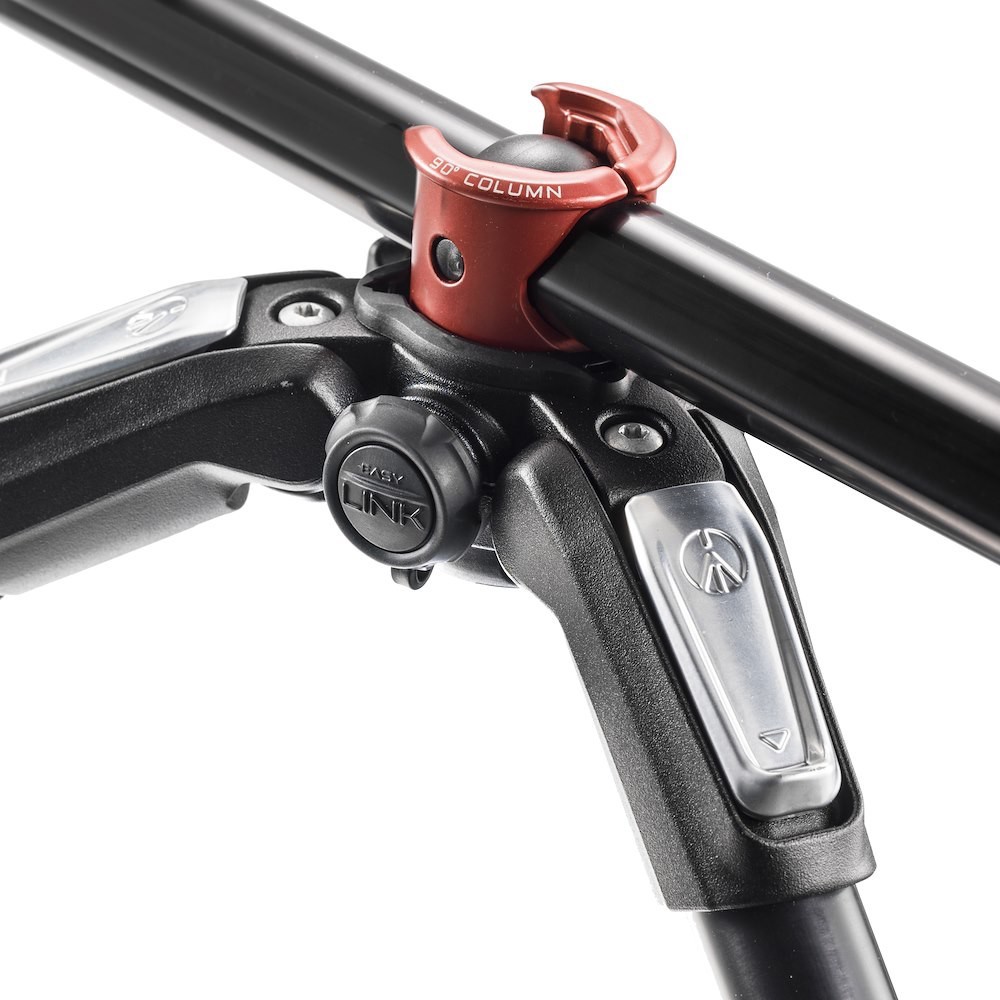

The 3/8″ Easy Link port accommodates a compatible arm for a light, reflector, monitor, or other photography accessories.

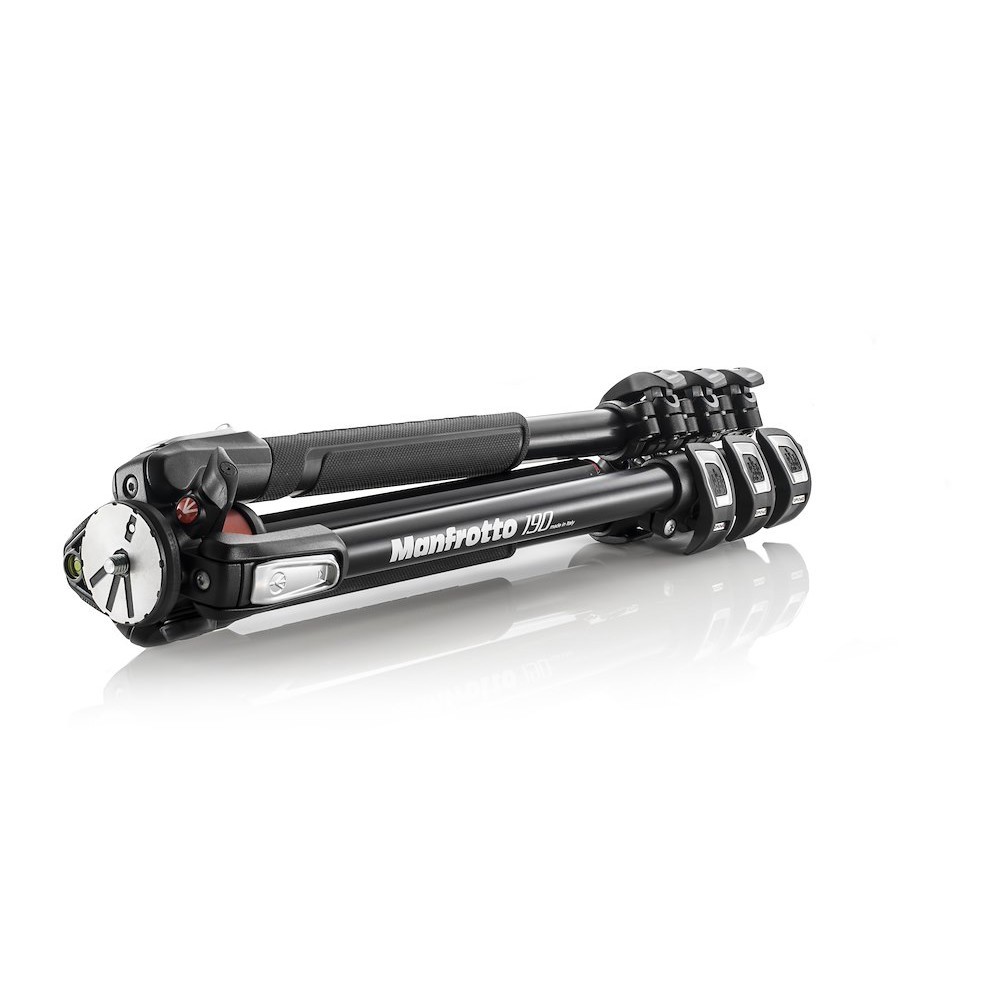

190XPRO4

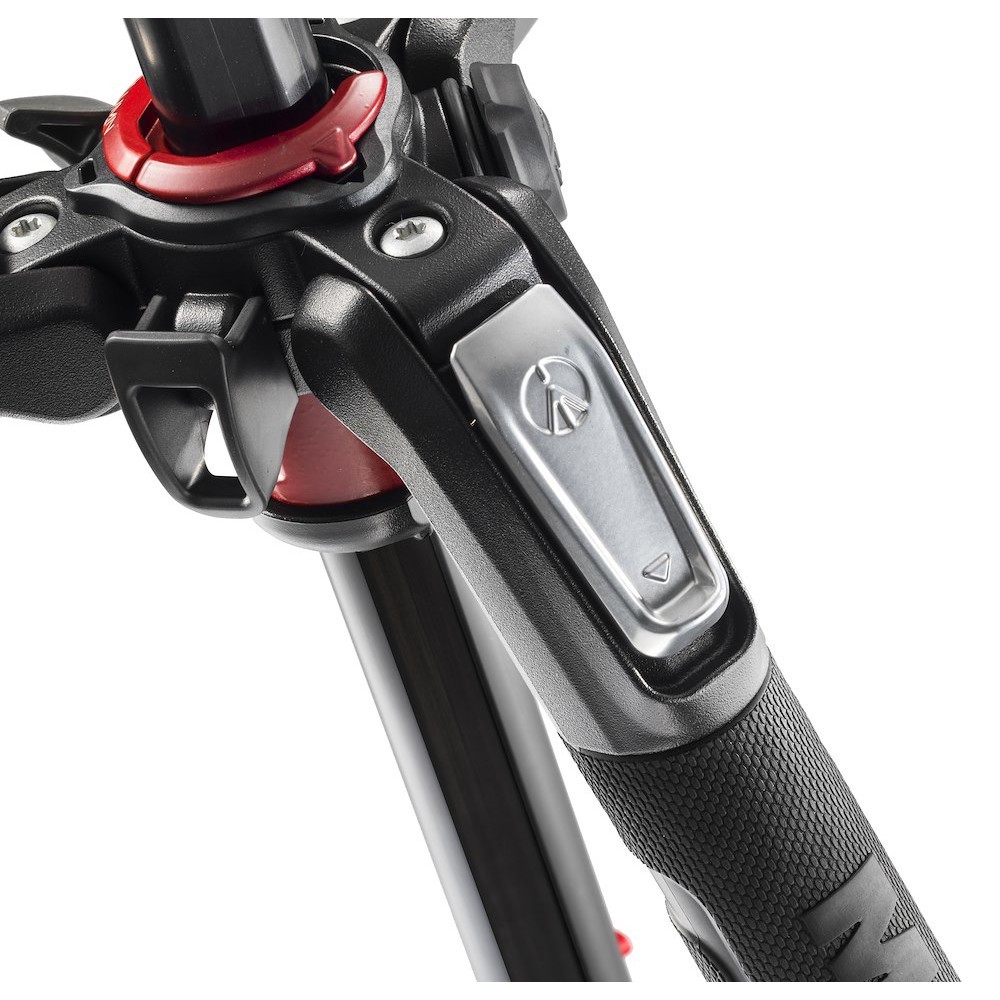

The four independently adjustable legs offer selectable angles of 25°, 46°, 66°, and 88°. Combined with the horizontal column, the camera can be raised approximately 8 cm above the ground, while the fully extended set reaches 171.5 cm.
The swivel spirit level on the tripod remains visible regardless of the column’s position. Aluminum tubes with diameters of 26, 22.5, 19, and 15.5 mm, along with lever locks, provide a sturdy, easily portable support.

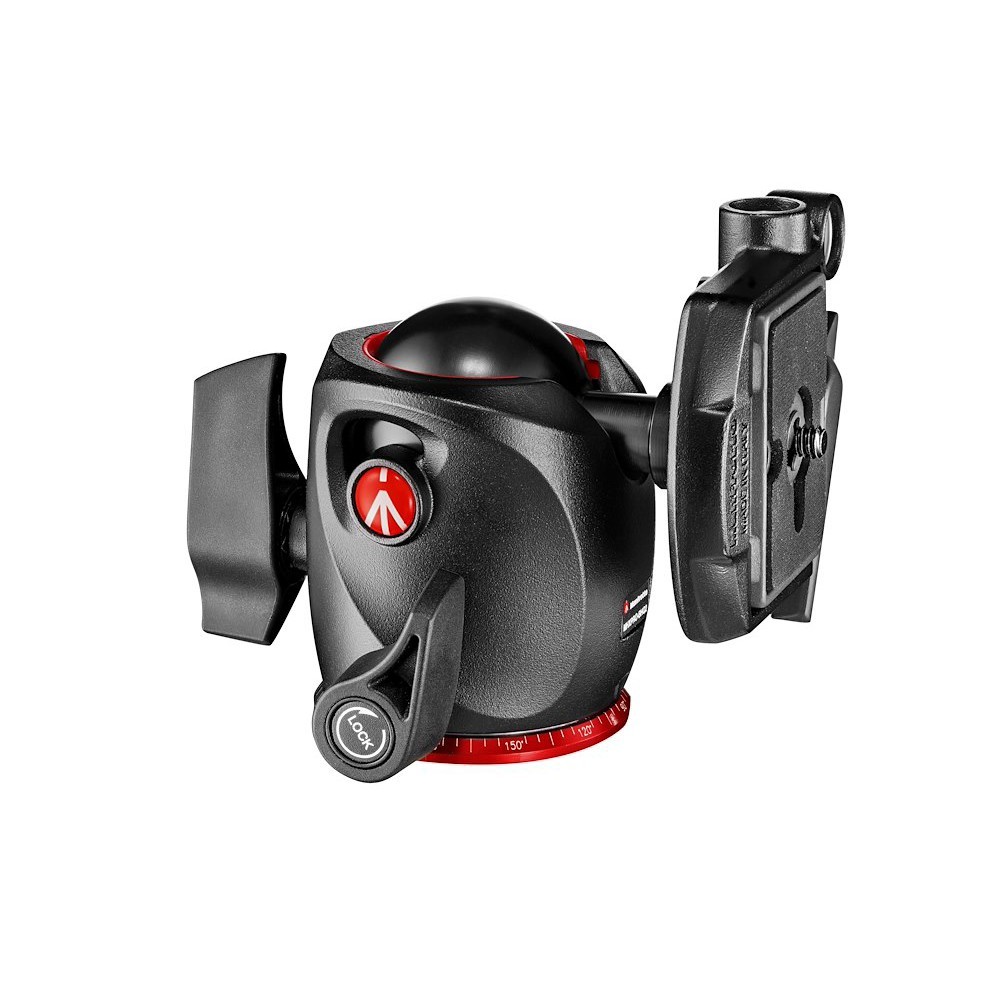

XPRO Ball Head

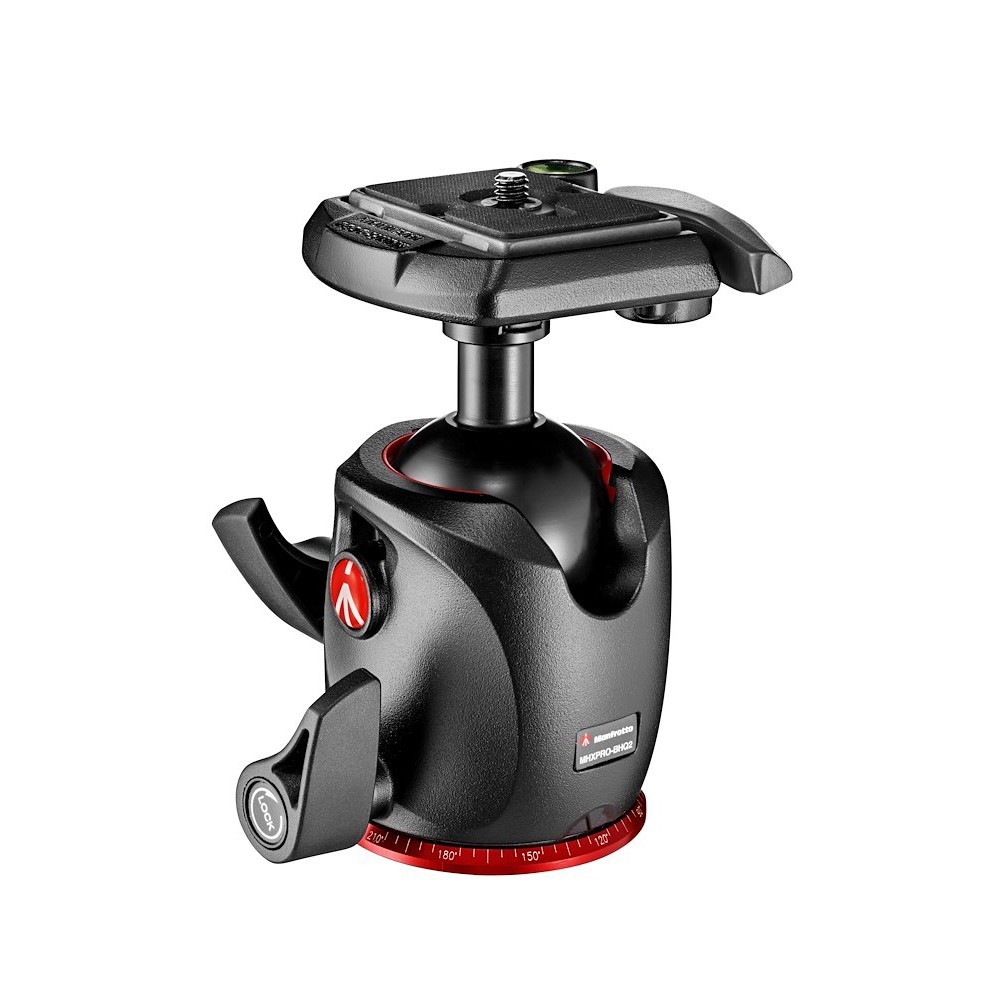

The MHXPRO-BHQ2 magnesium head uses a triple locking system to securely hold the ball. Separate friction control helps adjust the movement to the camera’s weight, and the independent panorama lock allows for precise 360° rotation.

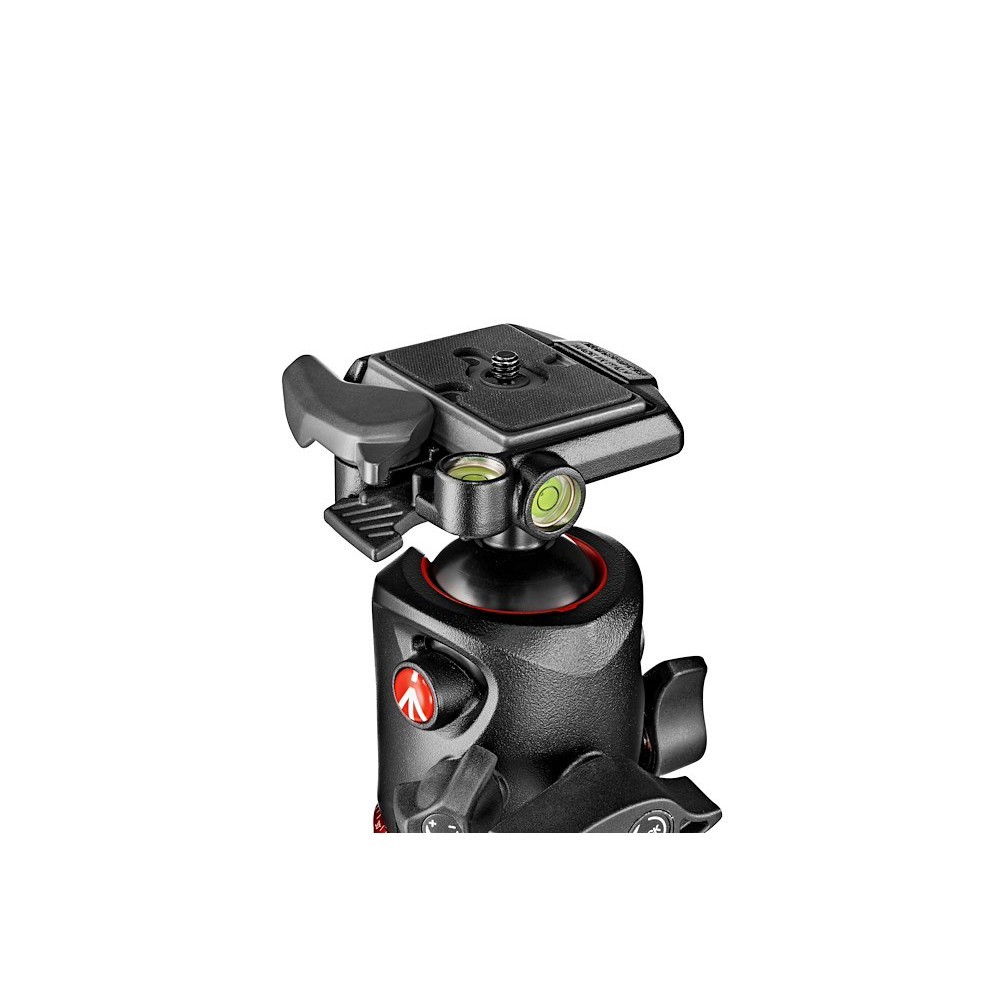

Two spirit levels on the head complement the tripod’s spirit level. The 200PL-14 quick-release plate with a 1/4″ screw allows you to mount and remove the camera without time-consuming screwing.

Technical Specifications and Package Contents
Carrying bag not included.
Two 80 cm carrying bags and two arms using the standard 3/8″ Easy Link port are suitable accessories for the Manfrotto MK190XPRO4-BHQ2 tripod.
| Manufacturer: | Manfrotto |
| Category: | Tripods |
| Material | Aluminium |
| Type | Tripod with ball head |
| Weight | 2.6kg |
| Spacer type | Without strut |
| Ball Type | Ball Head |
| Max height | 171.5cm |
| Tripod Load capacity | 15kg |
| Tirpod Payload | 15kg |
