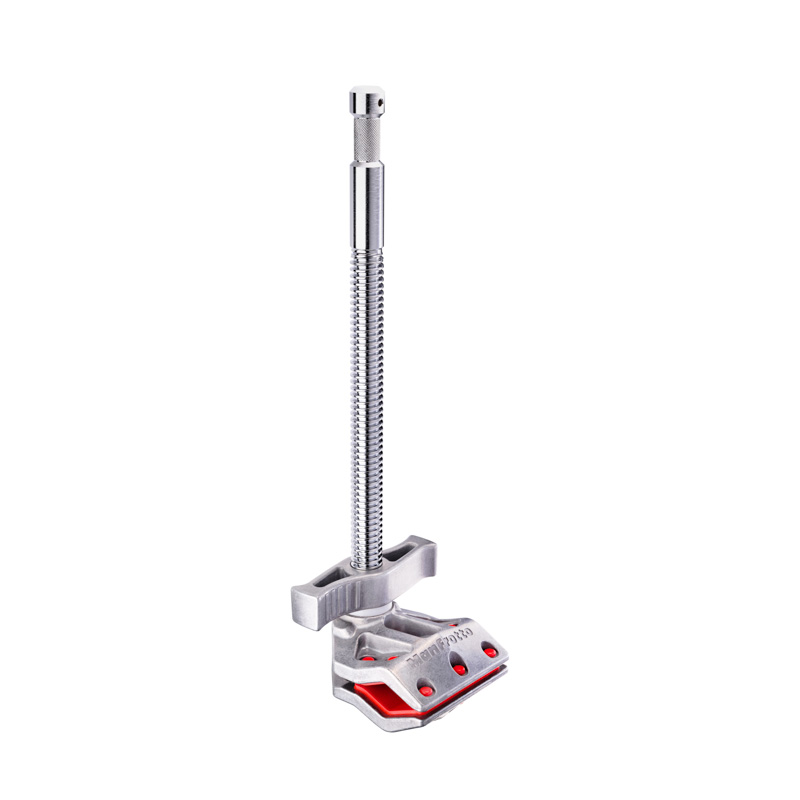

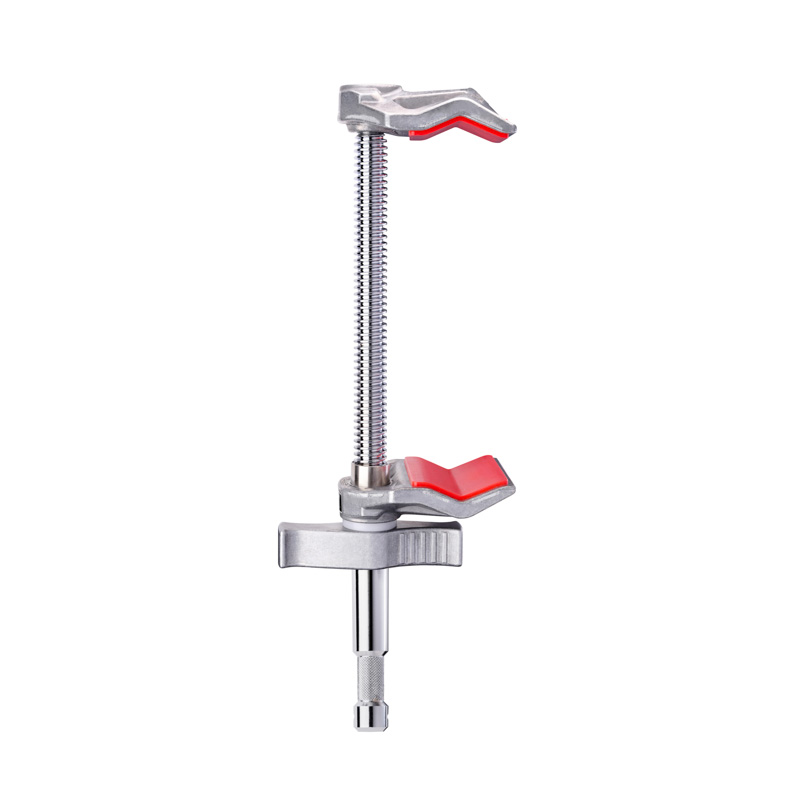

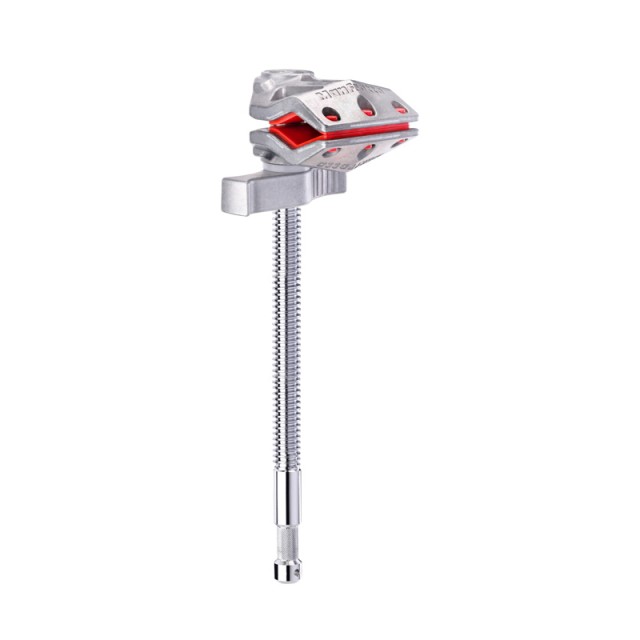

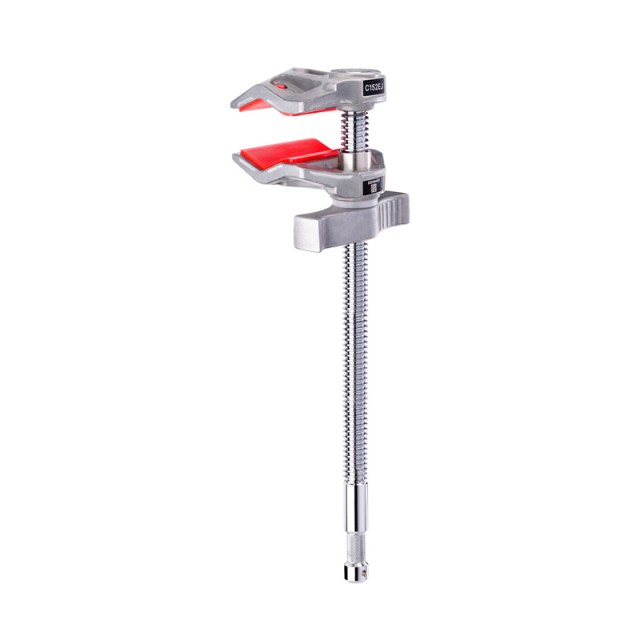

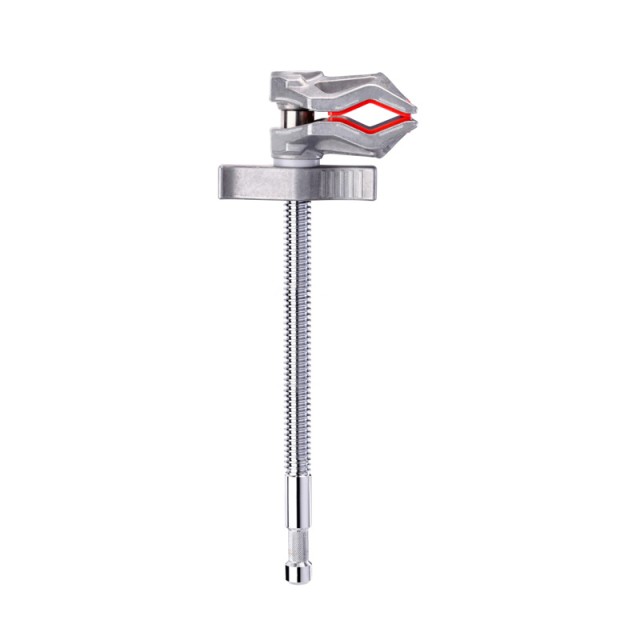

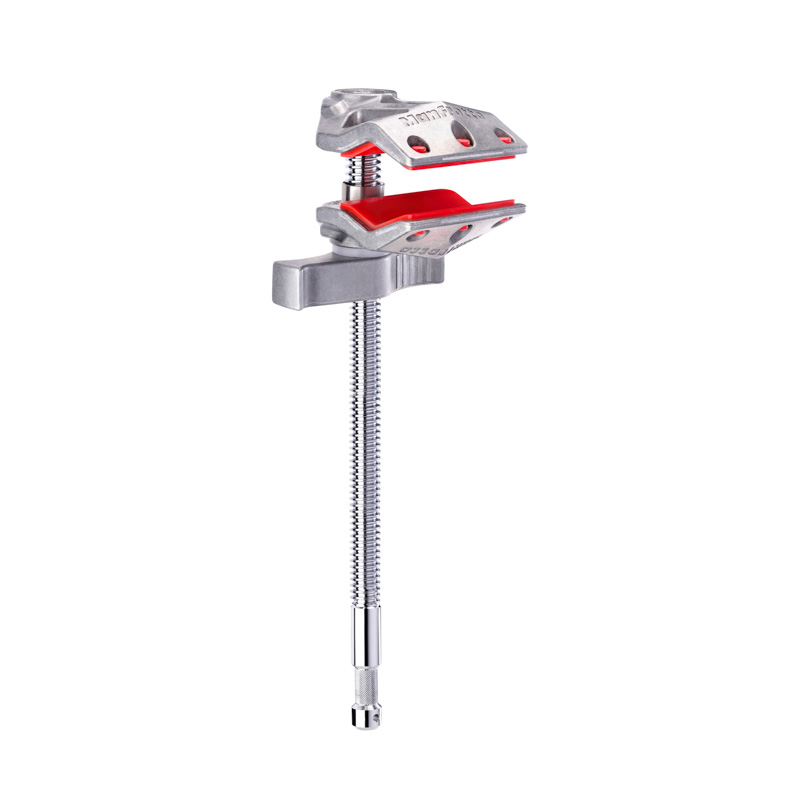

Manfrotto C152EJ 6″ End Vice Jaw Clamp with 16 mm baby pin

Manfrotto C152EJ is a heavy-duty end vice jaw clamp for mounting professional lighting and grip equipment on round tubes from 15.2 to 152.4 mm. Its fixed jaw sits at the end of a 30 cm threaded rod for easier positioning in tight spaces, moulded polyurethane M‑Grip liners protect the contact surface, and the Anti‑Jam mechanism reduces unwanted sticking. A built-in 5/8″ (16 mm) baby pin, 50 kg payload and 0.7 kg weight make it ready for studio or location work.

PROFESSIONAL GRIP CLAMP

WIDE OPENING, SOLID SUPPORT

The end jaw opens to 152.4 mm and safely supports up to 50 kg. Its 5/8″ (16 mm) baby pin accepts industry-standard studio fixtures and grip equipment.

15.2–152.4 MM RANGE

For round tubes from slim structures to six-inch support members.

50 KG PAYLOAD

Manufacturer rating for professional lighting and grip equipment.

ANTI-JAM

The mechanism reduces unwanted sticking during opening and removal.

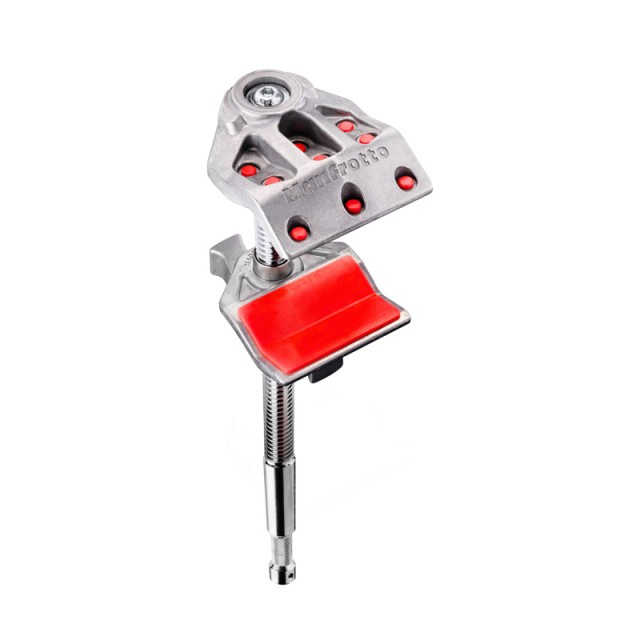

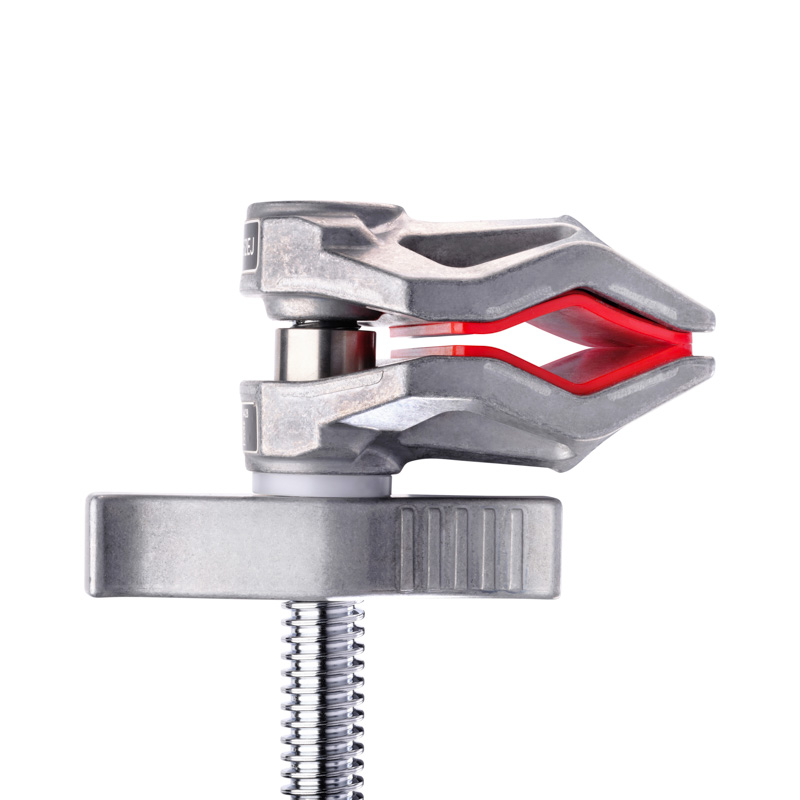

M-GRIP PROTECTS AND HOLDS

Moulded polyurethane contact pads increase grip while helping protect the clamped surface. Aluminium, chrome steel and rubber provide a robust working construction.

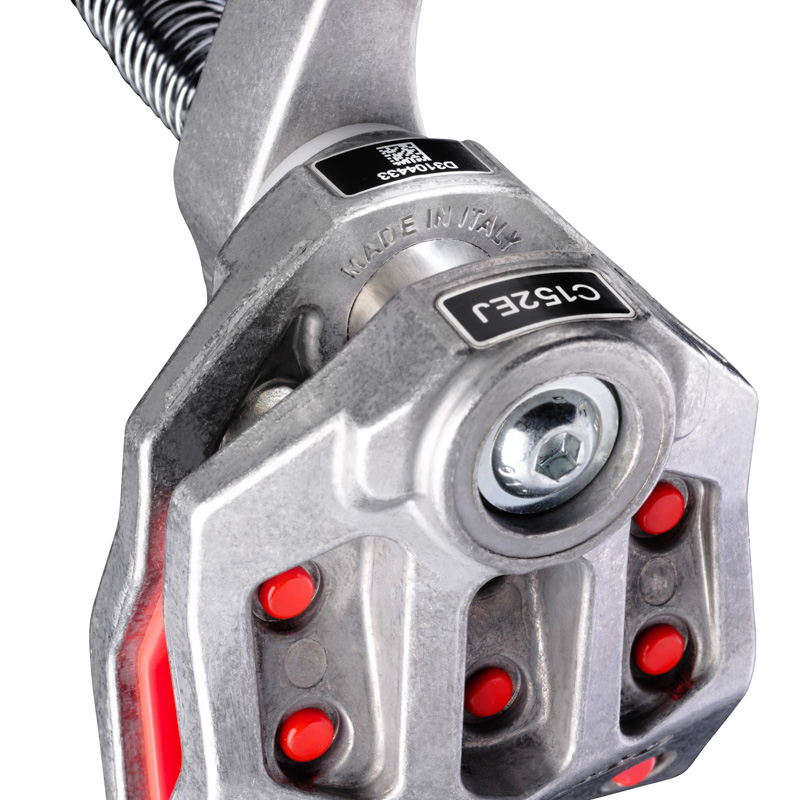

END JAW FOR TIGHT SPACES

The fixed jaw sits at the end of the threaded rod, letting the clamp reach positions where a centre-jaw body would interfere. The smooth screw enables controlled tightening.

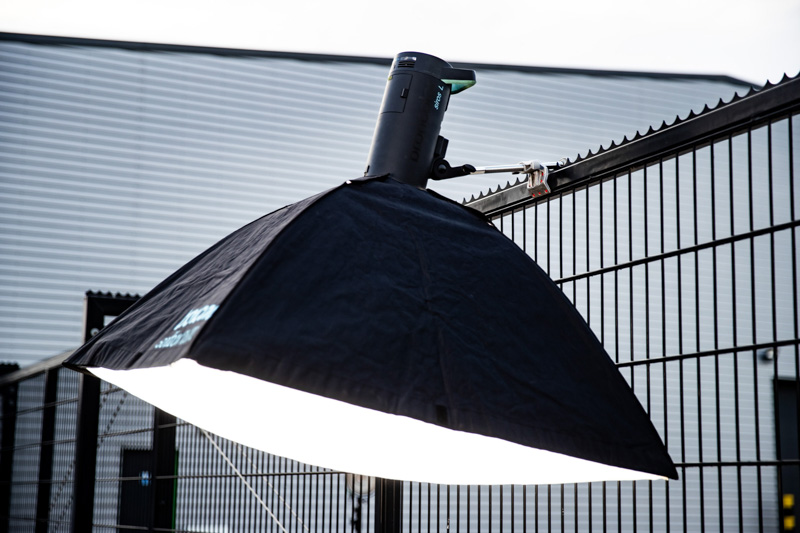

DIRECT SUPPORT FOR STANDARD LIGHTS

The 16 mm pin provides a direct interface for common studio fixtures. C152EJ is the largest end-jaw configuration in the four-model Vice Jaw Clamp family.
