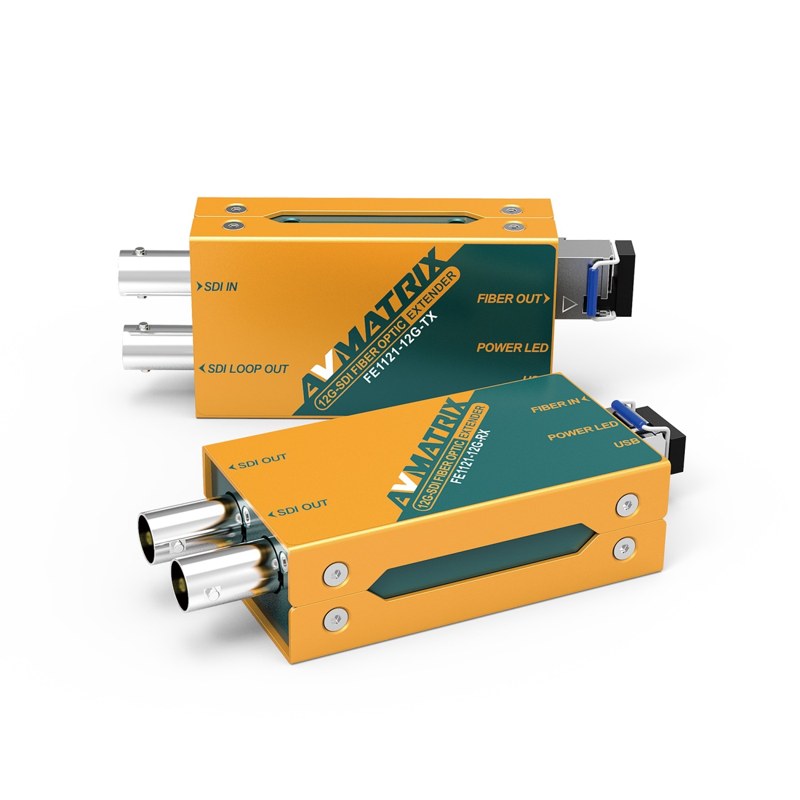

AVMATRIX FE1121-12G 12G-SDI Fiber Optic Extender

AVMATRIX FE1121-12G is a complete 12G-SDI optical extender with transmitter, receiver and SFP/LC modules. It supports SD, HD, 3G, 6G and 12G-SDI, automatically detects the format and transports UHD signals over fibre up to 10km.

AVMATRIX FE1121-12G is a complete 12G-SDI optical extender with transmitter, receiver and SFP/LC modules. It supports SD, HD, 3G, 6G and 12G-SDI, automatically detects the format and transports UHD signals over fibre up to 10km.

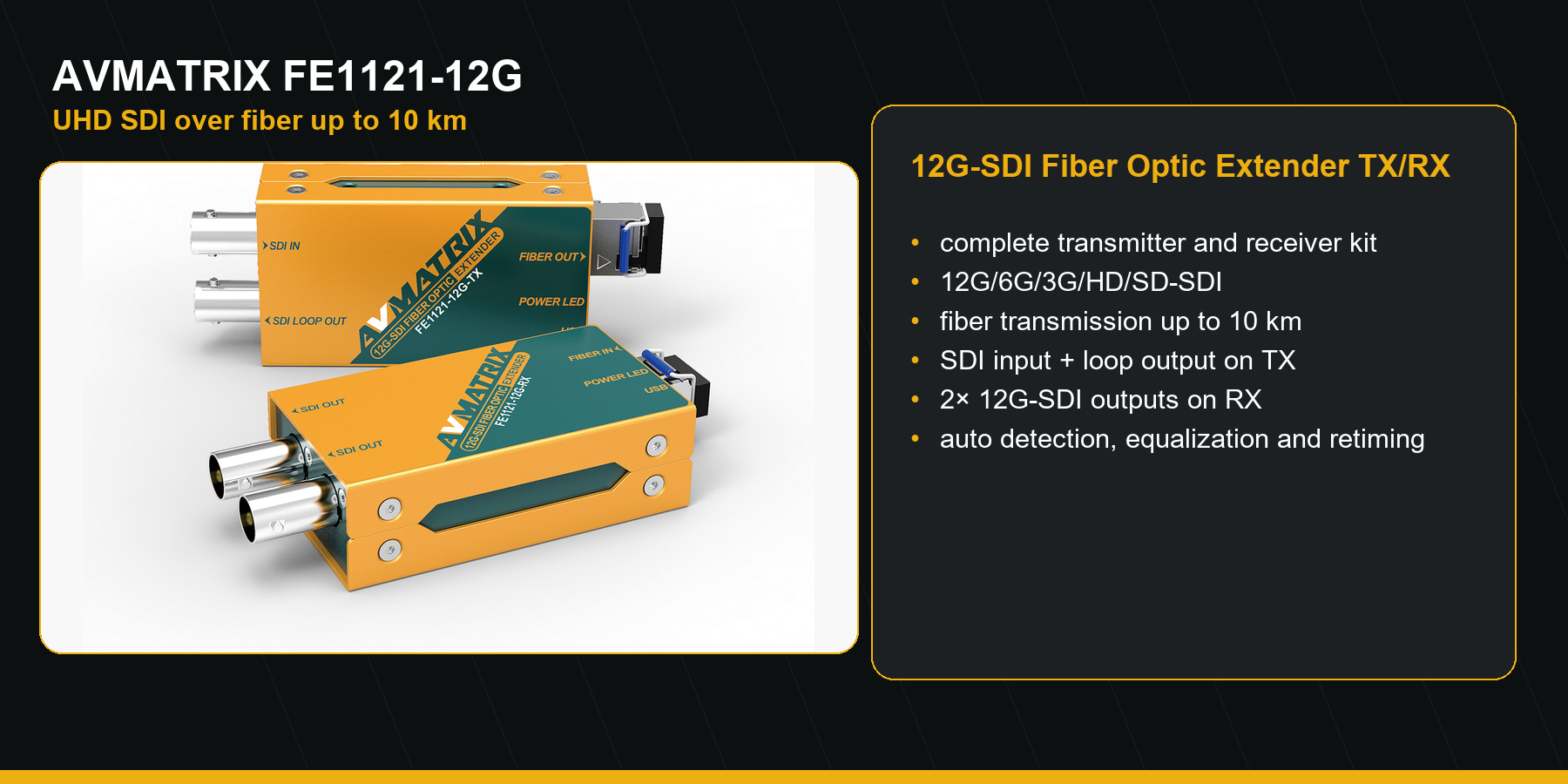

Key features

• Complete transmitter, receiver and SFP/LC module kit
• 12G/6G/3G/HD/SD-SDI
• Transmission distance up to 10km
• SDI input and loop output on the transmitter
• Dual 12G-SDI outputs on the receiver
• Automatic input standard detection
• SDI cable equalisation and reclocking
• USB power

UHD SDI over distances up to 10km

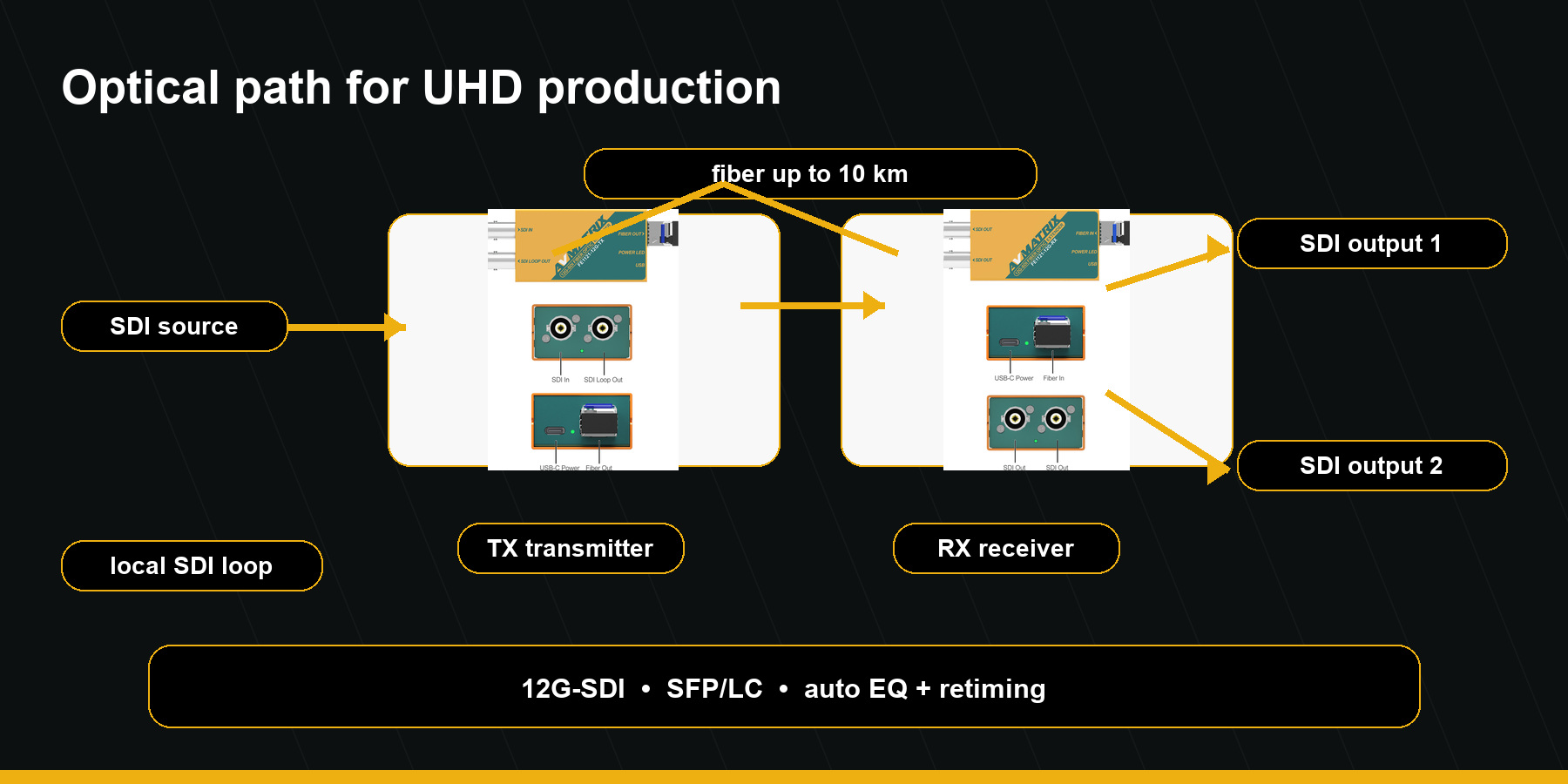

FE1121-12G converts signals up to 12G-SDI to an optical path and restores them to two SDI outputs at the remote end. Automatic equalisation and reclocking maintain a stable professional link.

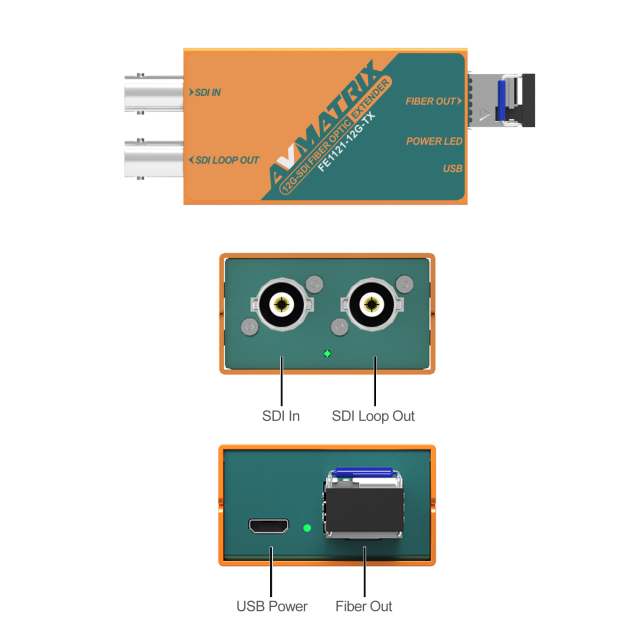

Monitoring at the source

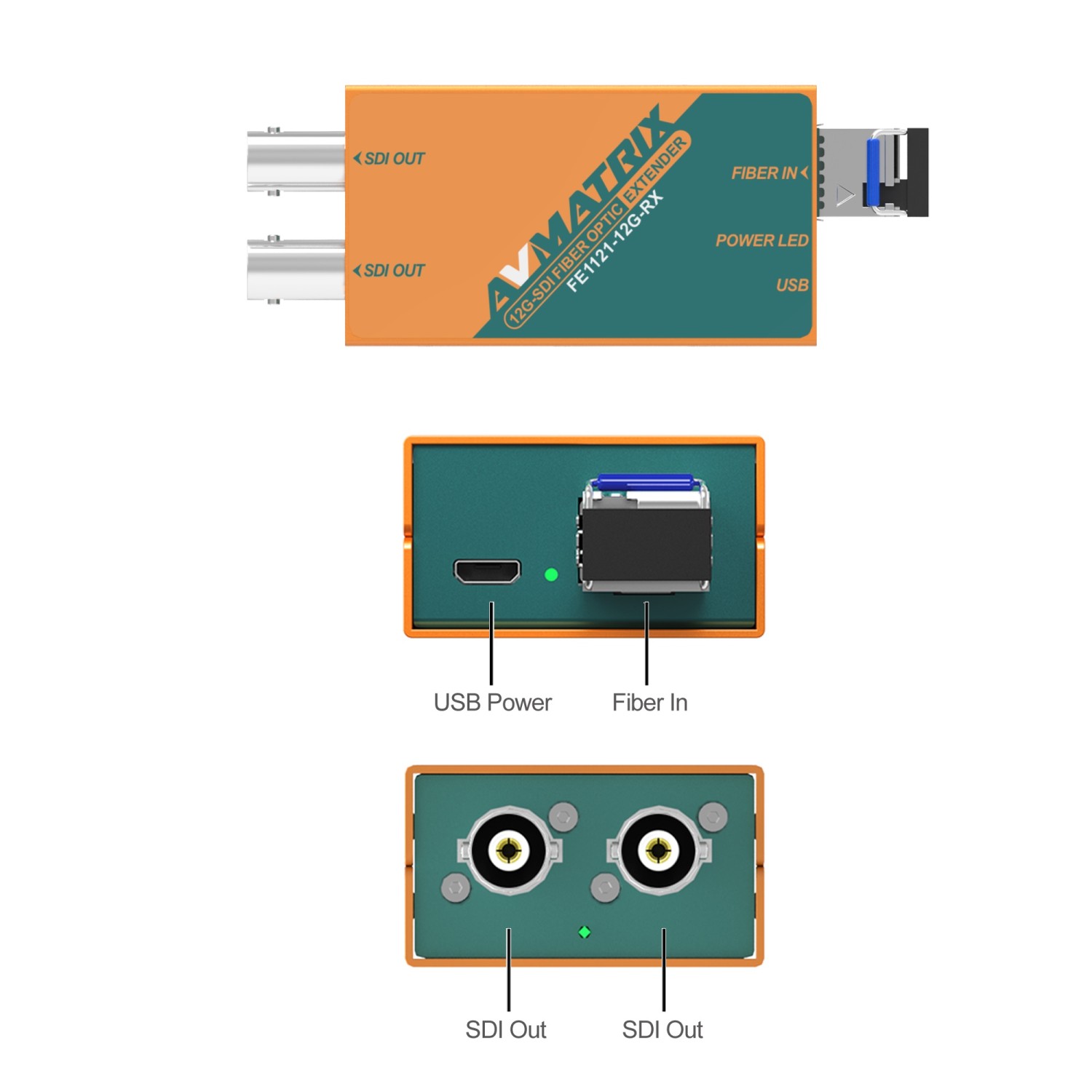

The transmitter provides an SDI loop output for a local monitor or recorder, while the receiver supplies two independent 12G-SDI destinations.
