RGBlink MSP 214 RX

The RGBlink MSP 214 RX is a high-bandwidth fiber-optic DVI video transmission solution designed for long-distance signal extension up to 10 km. Supporting DVI 1.0 and HDMI 1.3/1.4 (via adapter), it delivers stable, low-loss video transmission over single-mode or multimode fiber for professional AV and broadcast applications.

The MSP 214 RX is the receiving half of the MSP 214 fibre extender: it converts the signal from the optical fibre back into DVI for a monitor, projector or LED control system. The picture is sent into the fibre by the MSP 214 TX transmitter, sold separately; the reach is up to 10 km.

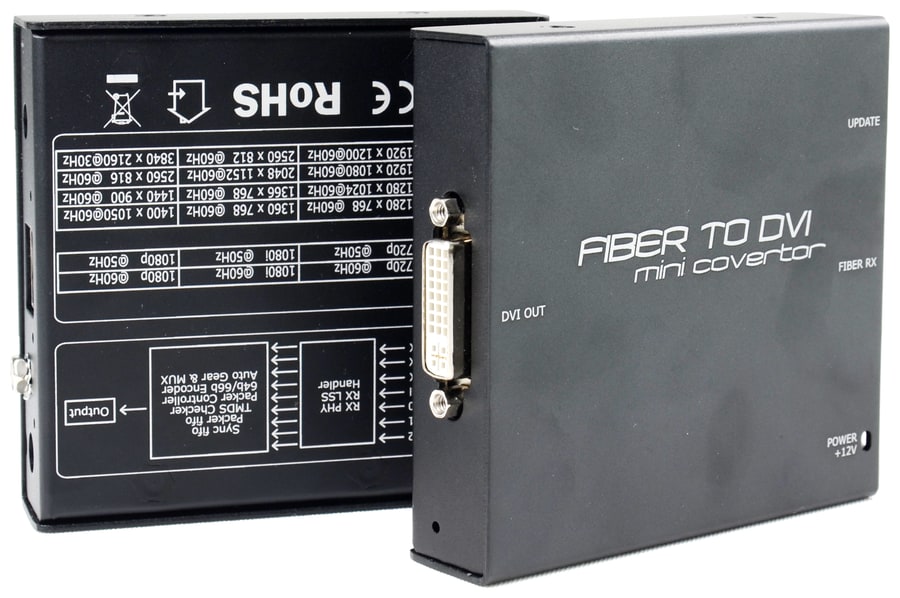

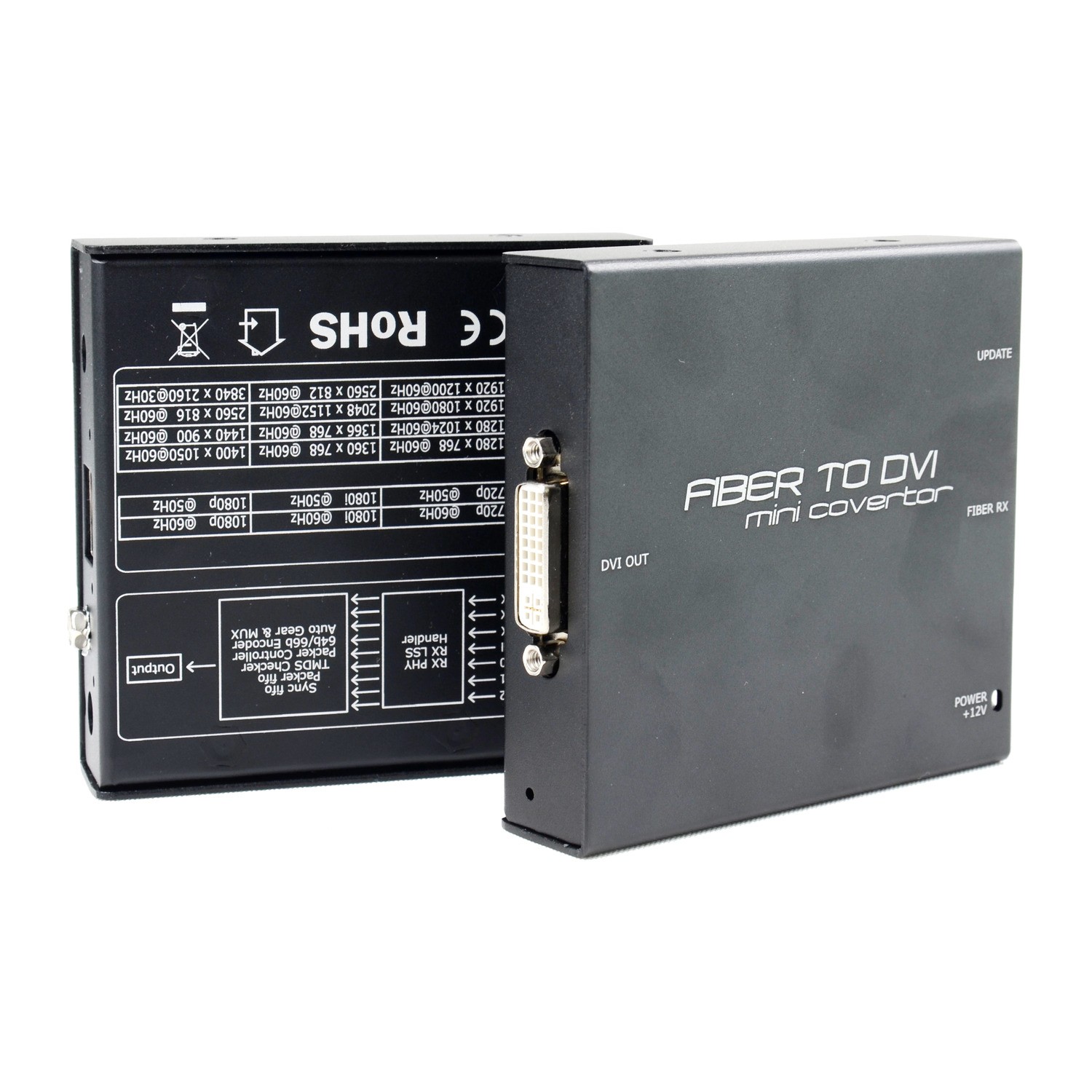

Fibre to DVI receiver

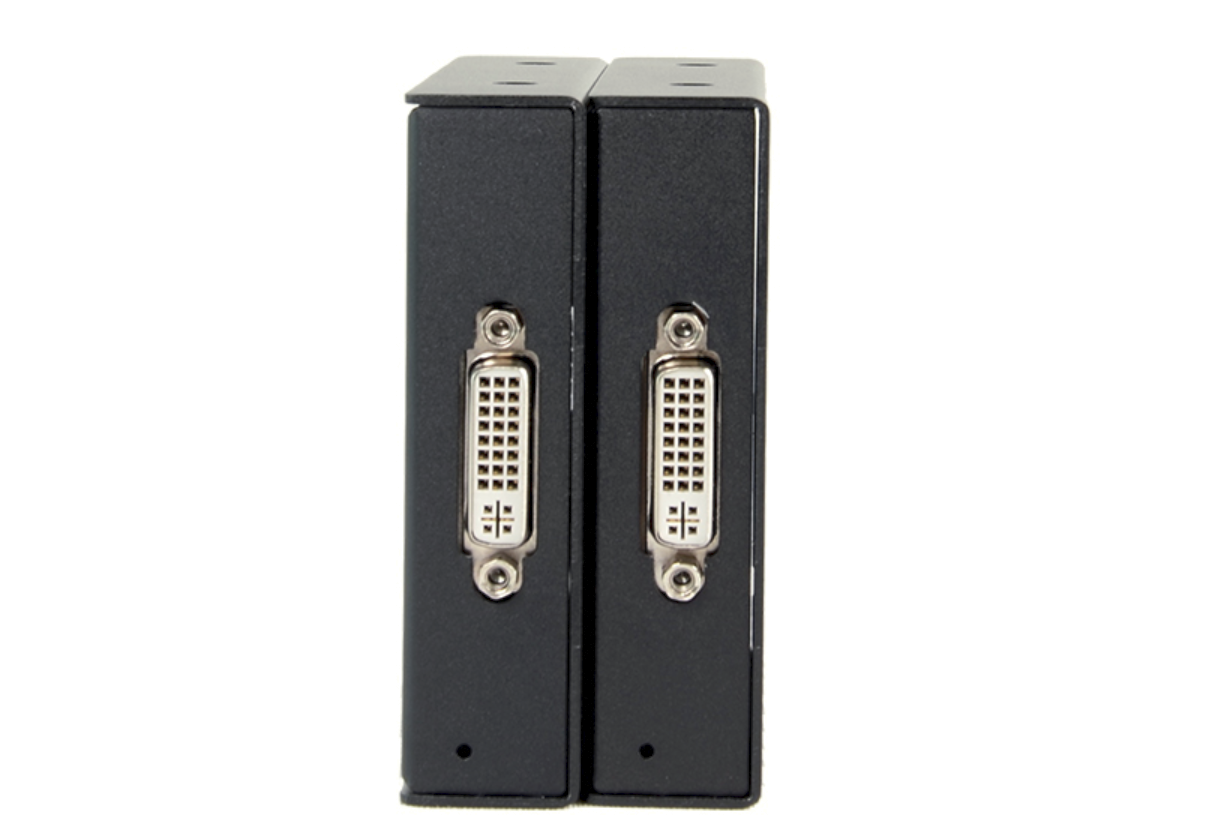

The DVI-I output feeds a monitor, projector or LED screen control system with DVI. The receiver outputs VESA resolutions up to 2560 × 816 and 1920 × 1200 at 60 Hz, 3840 × 2160 at 30 Hz and SMPTE formats up to 1080p60. An indicator shows the presence of a signal, and power comes from a 12 V adapter.

Fibre up to 10 km

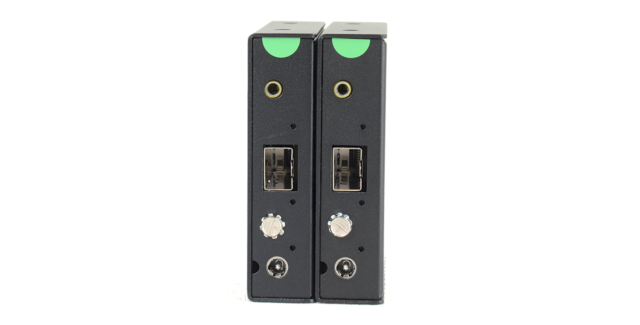

The optical interface is an SFP+ slot with an LC connector for duplex fibre. With a 1310 nm single-mode module it carries the signal at 10 Gb/s up to 10 km, with a 1270 nm multimode module up to 300 m; the modules are hot-pluggable. A UART connector is used for firmware updates, and a ground terminal protects against static.

More information

The RGBlink MSP 214 RX is part of a high-performance DVI fiber transmission system capable of extending video signals over long distances using optical fiber. With a maximum transmission bandwidth of 10 Gbps, the MSP 214 supports high-resolution video formats including WUXGA (1920×1200@60), 2048×1152@60, and ultra-wide resolutions up to 2560×816@60, as well as 4K 3840×2160@30.

Equipped with DVI-I connectors and an SFP optical interface, the MSP 214 RX supports both single-mode and multimode twin-core fiber using LC connectors. Single-mode transmission reaches up to 10 km, while multimode supports distances up to 300 m. The unit is compatible with DVI 1.0 signals and HDMI 1.3/1.4 via adapter, making it suitable for professional AV installations, control rooms, broadcast environments, digital signage, and large-venue applications.

The MSP 214 RX features hot-plug-capable SFP modules, robust environmental tolerance, and compact form factor for easy integration. Its low-loss optical transmission ensures stable image quality across long distances where traditional copper cabling is impractical.

Key Features:

• Fiber-optic DVI video transmission up to 10 km
• Supports DVI 1.0 and HDMI 1.3 / 1.4 (via adapter)
• Maximum bandwidth: 10 Gbps
• Supports resolutions up to 3840×2160 @30
• DVI-I 25+1 pin video interface
• SFP optical interface with hot-plug support
• Single-mode and multimode fiber compatibility
• Low-loss, high-stability optical transmission
• Compact and lightweight design
