PortKeys OEYE-RED EVF HDMI SDI Electronic OLED Viewfinder
SKU: PK_OEYE_RED
The PortKeys OEYE-RED OLED camera viewfinder offers native control/menu navigation of RED Digital Cinema cameras (MONSTRO 8K VV, HELIUM 8K S35, GEMINI 5K S35, DRAGON-X 6K S35) and features 3G-SDI I/O (up to 1080p60) and simultaneous 4K HDMI I/O (up to 24 fps in DCI 4K or 30 fps in UHD). It is equipped with a high quality 0.71" OLED display (200 cd/m2, 100,000:1),…
1 539 € with VAT
1 271.9 € without VAT
Availability
14-30 days
Product description
Product description

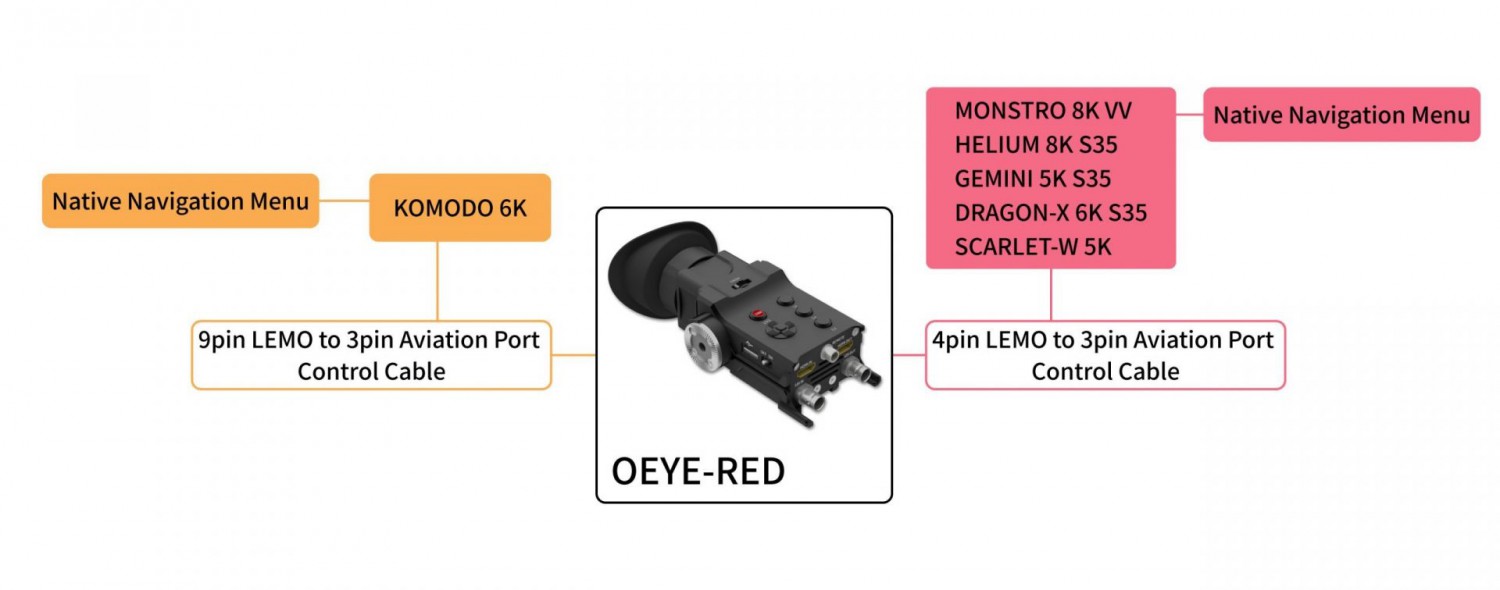

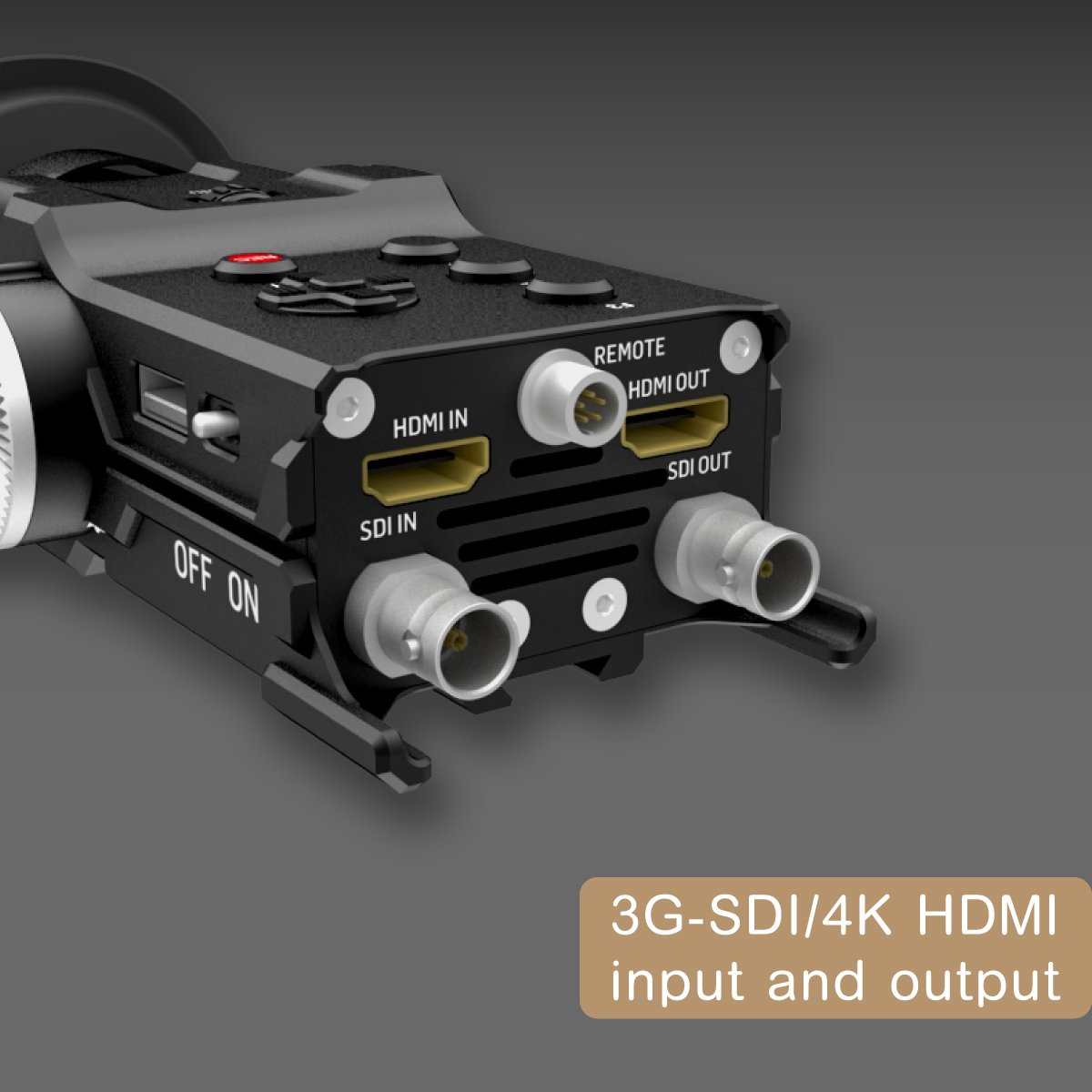

The PortKeys OEYE-RED OLED camera viewfinder offers native control/menu navigation of RED Digital Cinema cameras (MONSTRO 8K VV, HELIUM 8K S35, GEMINI 5K S35, DRAGON-X 6K S35) and features 3G-SDI I/O (up to 1080p60) and simultaneous 4K HDMI I/O (up to 24 fps in DCI 4K or 30 fps in UHD). It is equipped with a high quality 0.71" OLED display (200 cd/m2, 100,000:1), weighs about 400 g and consumes ~10 W. Of course, there is diopter correction (+8D - -3D) and rich software features including 3D LUT correction, signal measurement, false color display, focus assist, image magnification, etc.
WE RECOMMEND
The PortKeys OEYE-RED is a state-of-the-art OLED viewfinder designed for precise monitoring and control of RED Digital Cinema cameras via SDI and HDMI interfaces. To fully realize its potential in professional setups, it is essential to select the right power cables with aviation connectors, high-quality HDMI cables, and additional monitors for the crew.
Power and Data Cables - Key components for ensuring a stable power supply to the viewfinder from a D-Tap source and connection to the camera.
- Portkeys Powercable D-Tap for BM5, BM7, HH7, HS7T
- Portkeys 40cm USB-C (Type-C) Control Cable
- Portkeys 8K HDMI Cable A to Micro HDMI D 1m
- Portkeys 8K HDMI Cable A to A Combo Pack (1m + 0.3m)
- Portkeys 8K HDMI Cable A to A 1m
- Portkeys 8K HDMI Cable A to A 0.3m
- Portkeys NPF to V-mount battery adapter
External Monitors and Preview - PortKeys auxiliary monitors allow other crew members to view the image simultaneously thanks to SDI/HDMI pass-through.
- PORTKEYS PT6 6" 4K HDMI Touchscreen Monitor
- Portkeys LH7P (black)
- PortKeys MT22DS 21.5″ Dual Screen Cinema Production Monitor
- PortKeys BM7 II DS
- Portkeys HD7H
- Portkeys PL5
- Portkeys LH7P (white)
- Portkeys BM5 IV
- Portkeys BM5IV WR
- Portkeys PT5 III
Accessories - Accessories for the protection and maintenance of display elements in demanding production environments.
Parameters
| Manufacturer: | PortKeys |
| Category: | EVF (Electronic View Finder) |
Main parameters
| Monitor inputs | HDMI |
| Monitor inputs | 4K HDMI |
| Monitor inputs | 3G-SDI |
Other parameters
| Other features | HDR |
| Other features | OLED |
| Other features | Camera control |
| Other features | 3D LUT correction |
