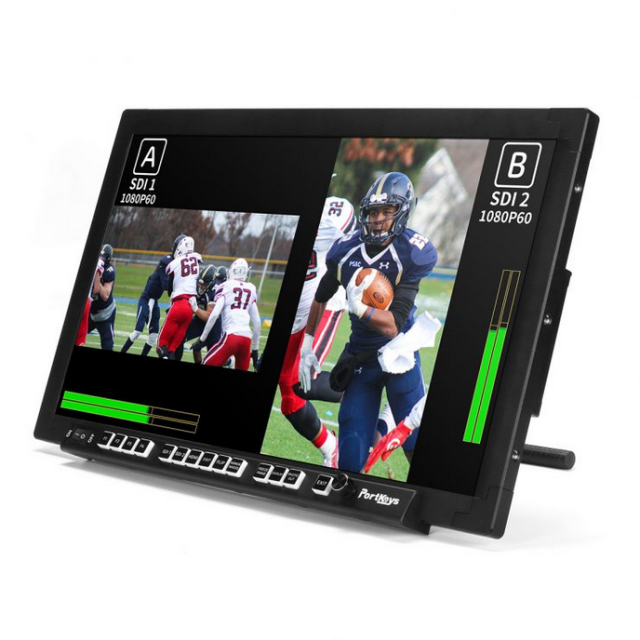

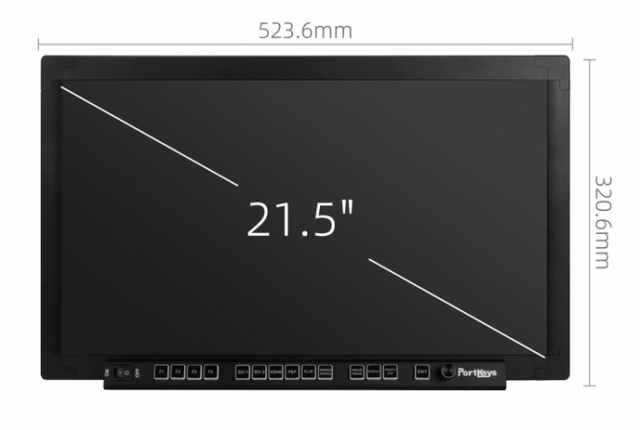

PortKeys MT22DS 21.5″ Dual Screen Cinema Production Monitor

The PortKeys MT22DS is a 21.5" Full HD production monitor designed for film crews, control rooms, and video villages. It offers a Rec.709-calibrated image with 1,200 nits of brightness, simultaneous display of two sources, HDMI and 3G-SDI connectivity, cross-conversion, and two professional XLR audio inputs with +48 V phantom power.

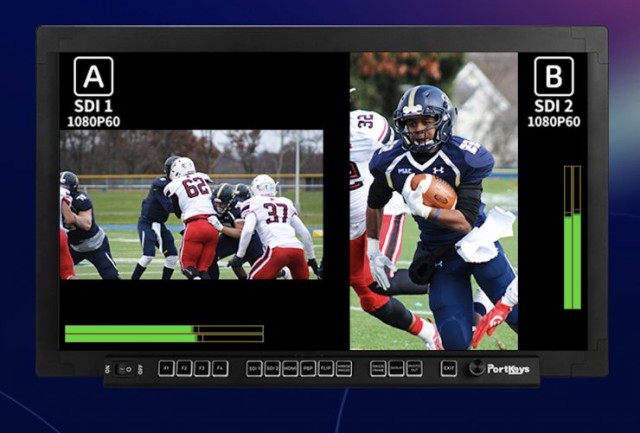

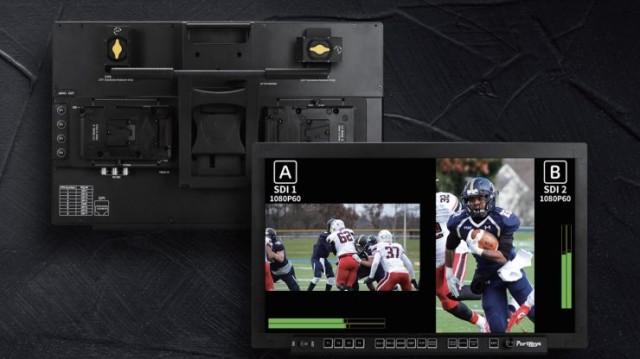

Two Images on a Single 21.5" Display

The Dual Screen feature allows you to display two sources simultaneously and adjust the size of individual windows to suit your current workflow. The monitor is ideal for monitoring multiple cameras, comparing raw and processed signals, or providing a shared view for the director and camera operator.

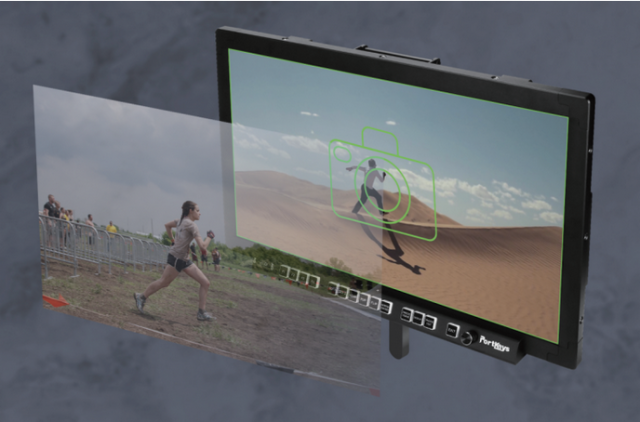

Calibrated Full HD image with 1,200 nits of brightness

The 1920 × 1080 resolution panel is factory-calibrated for Rec.709. The 1200-nit brightness ensures good visibility on set, and a wide range of analytical tools helps assess focus, exposure, and color.

HDMI, 3G-SDI, and Cross-Conversion

Two SDI inputs, one SDI output, one HDMI input, and one HDMI output are available. Cross-conversion makes it easy to connect cameras, film cameras, wireless receivers, and other monitors in a single chain.

Professional Audio Inputs

Two XLR inputs support +48 V phantom power. Audio can be monitored via on-screen meters and the headphone output, so the MT22DS can also be used for technical checks of synchronized video and audio signals.

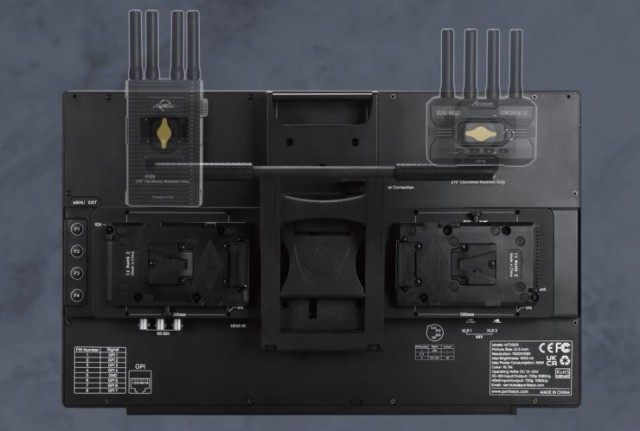

Power for Studio and Mobile Shoots

The monitor supports external DC power as well as V-Mount and Sony NP-F batteries. On select models, wireless video receivers can be connected directly to the battery plate, simplifying mobile setups by eliminating excess cabling.

Durable aluminum construction

The sturdy metal body is built for everyday use on set. The monitor can be mounted using an optional VESA mount and features a USB-A port for updates, data import, and working with JPEG reference images.
