Lilliput PVM220S 21.5" 3G-SDI/HDMI Broadcast Monitor
SKU: PVM220S
The Lilliput PVM220S is a 21.5″ Full HD multiview monitor for short videos, live streaming and multi-camera shooting. It accepts two 3G-SDI, two HDMI and a USB-C input, shows quad split, triple portrait or preview and program, and sends the selected signal on via its PGM output. The stand rotates through 90°, so the monitor switches to portrait for social…
749 € with VAT
619.01 € without VAT
Availability
Shipment day: 03. 11.
Shipment day: 03. 11.
To be sent 1 pcs
Bratislava 1 pcs
Bratislava 1 pcs
Top accessories for Lilliput PVM220S 21.5" 3G-SDI/HDMI Broadcast Monitor
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Lilliput Swivel Bracket for PVM220S Series Monitor
Lilliput swivel desktop stand for PVM220S series monitors with VESA 75 and 100 mm
102 €
In stock 1 pcs
Lilliput Battery Plate for PVM220S Series Monitor (V-Mount)
The Lilliput V-Mount battery plate for PVM220S series monitors lets you power the
62 €
14-30 days
Lilliput PVM220S Case + Sunshade
A rigid carrying case with a sunshade for the Lilliput PVM220S, PVM220S-H and PVM220S-E
269 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput PVM220S is a 21.5″ Full HD multiview monitor for short videos, live streaming and multi-camera shooting. It accepts two 3G-SDI, two HDMI and a USB-C input, shows quad split, triple portrait or preview and program, and sends the selected signal on via its PGM output. The stand rotates through 90°, so the monitor switches to portrait for social media in seconds.

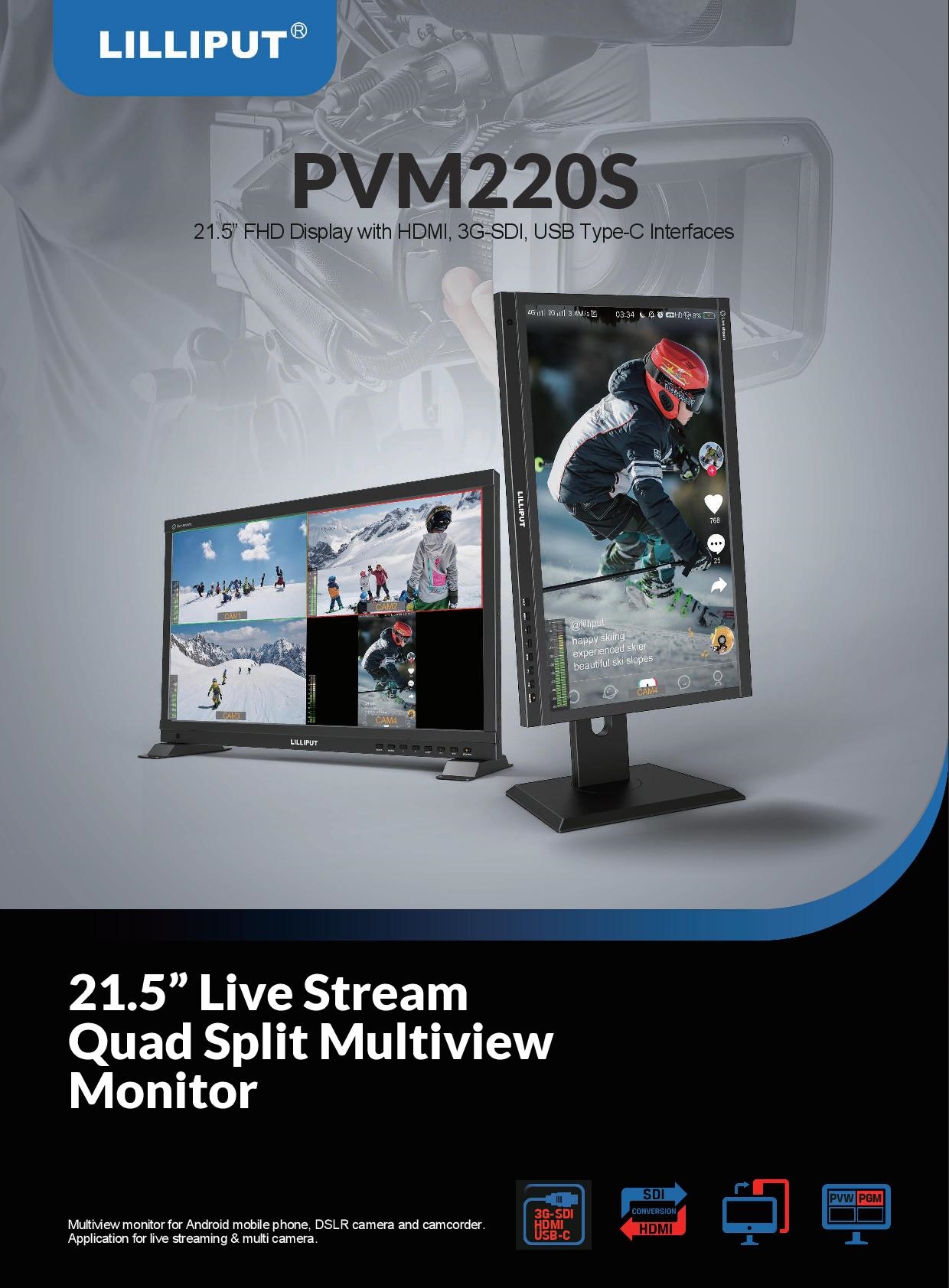

Multiview monitor for short videos and live streaming

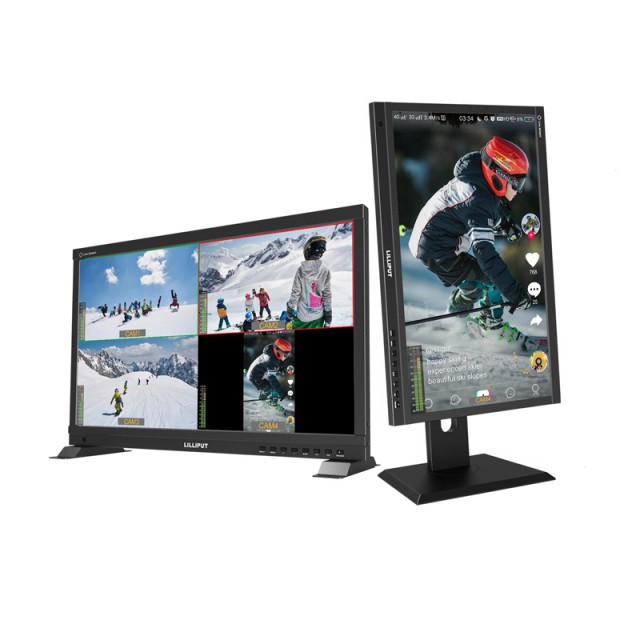

A 21.5" Full HD display that shows up to four sources at once and turns to portrait – for social media content and live production.
21.5" Full HD500 cd/m²2× SDI + 2× HDMIUSB-C inputPGM output

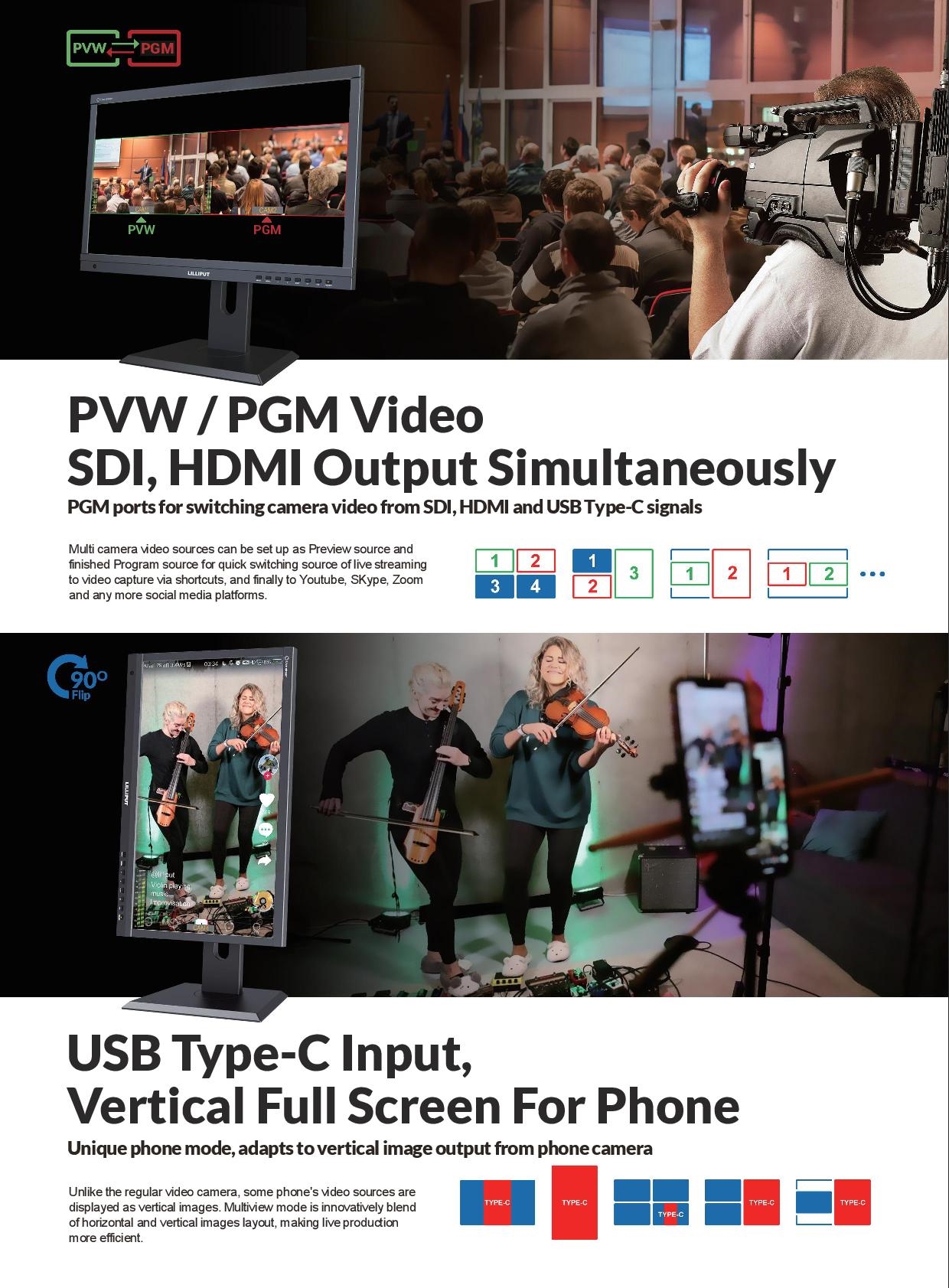

Preview and program switching

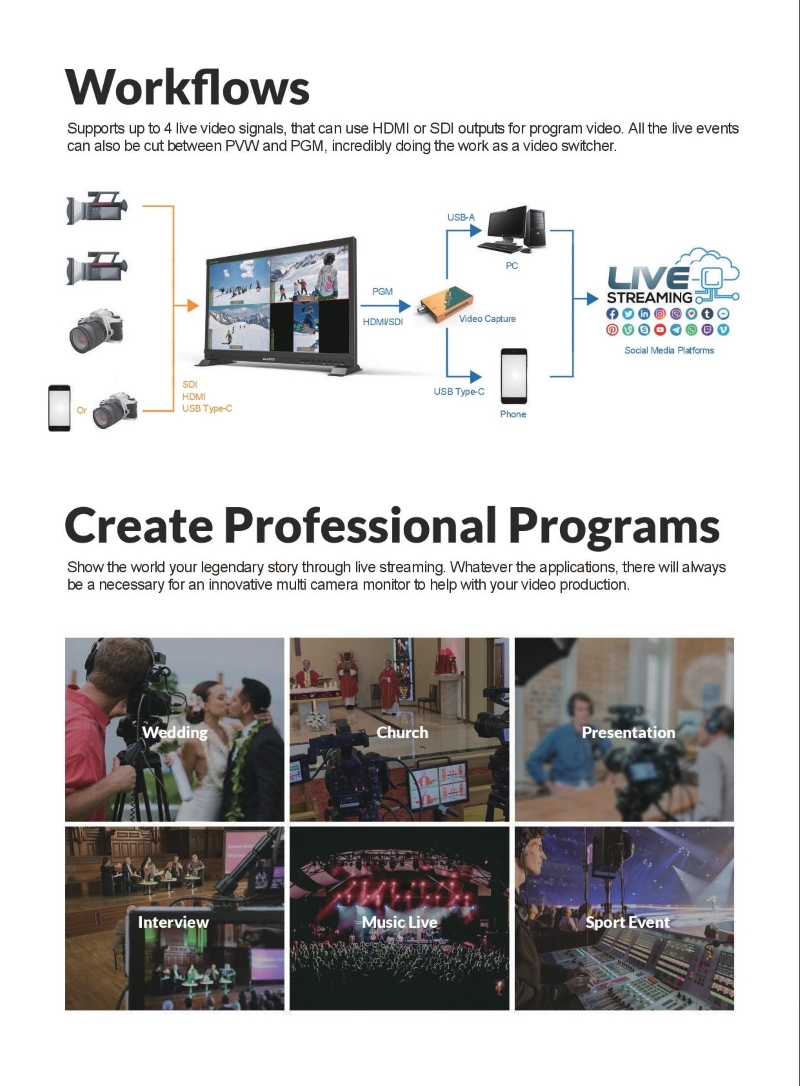

Set multi-camera sources as preview (PVW) and program (PGM) and switch them quickly via shortcuts. The selected signal leaves through the PGM interface (HDMI or SDI) to capture and on to YouTube, Skype and other platforms.
Triple portrait
Three video signals side by side in portrait for creative short videos.

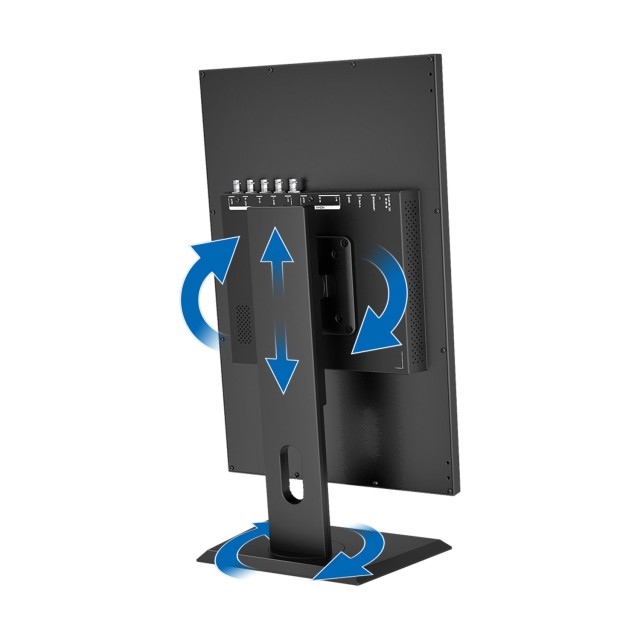

Rotating stand

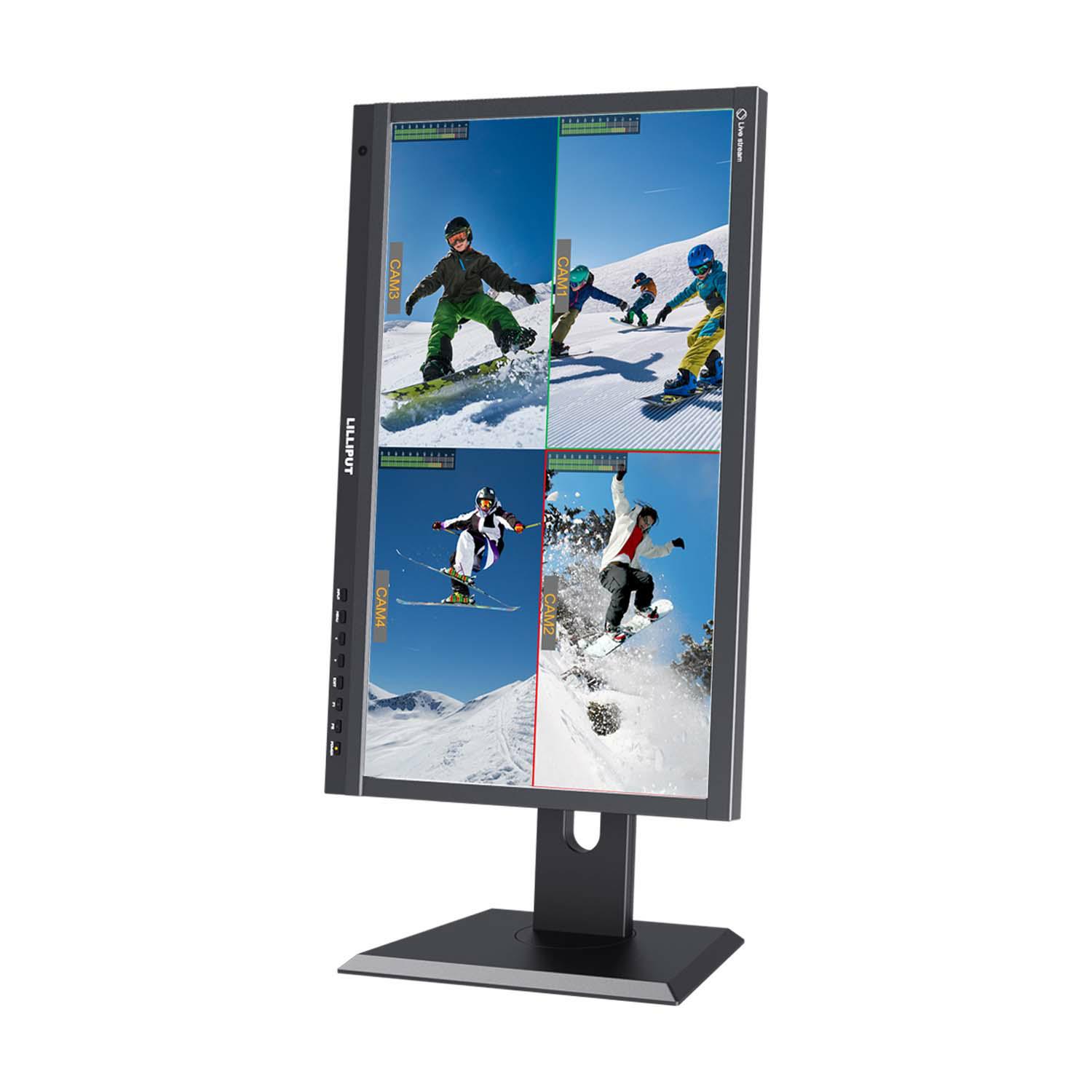

90° flip – switch the monitor between landscape and portrait as needed.

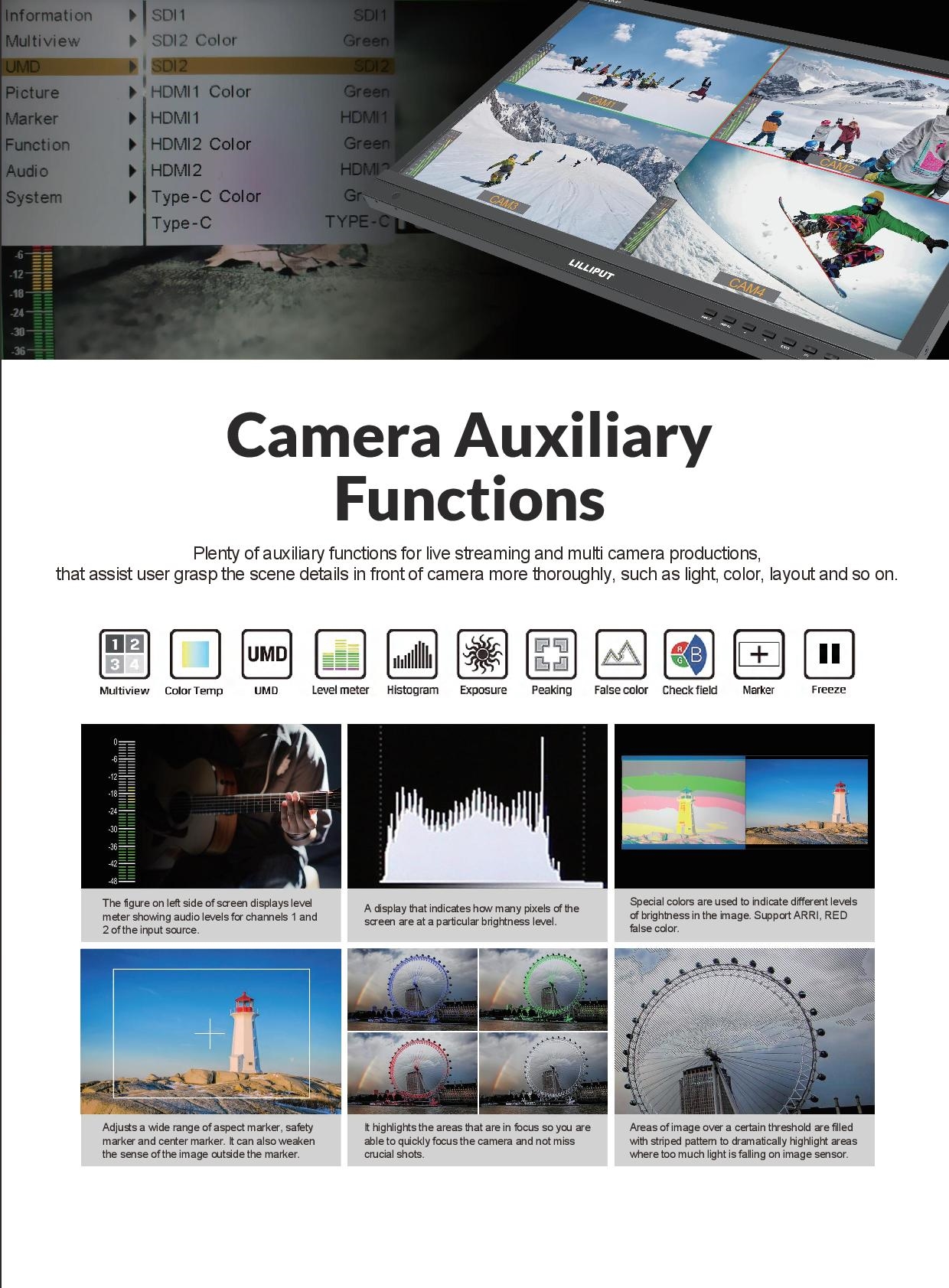

Camera assist
UMD, histogram, exposure, peaking, false color, check field and markers.
Optional plates
VESA 75/100 mm for stands and V-Lock or Anton Bauer battery plates.
More information
About the monitor
The PVM220S is a monitor for Android phones, DSLR cameras and camcorders, designed for short video making, live streaming and multi-camera production. It provides 3G-SDI, HDMI and USB-C inputs and 3G-SDI and HDMI outputs, 500 cd/m² brightness, 1,500:1 contrast and 2-channel on-screen audio monitoring.

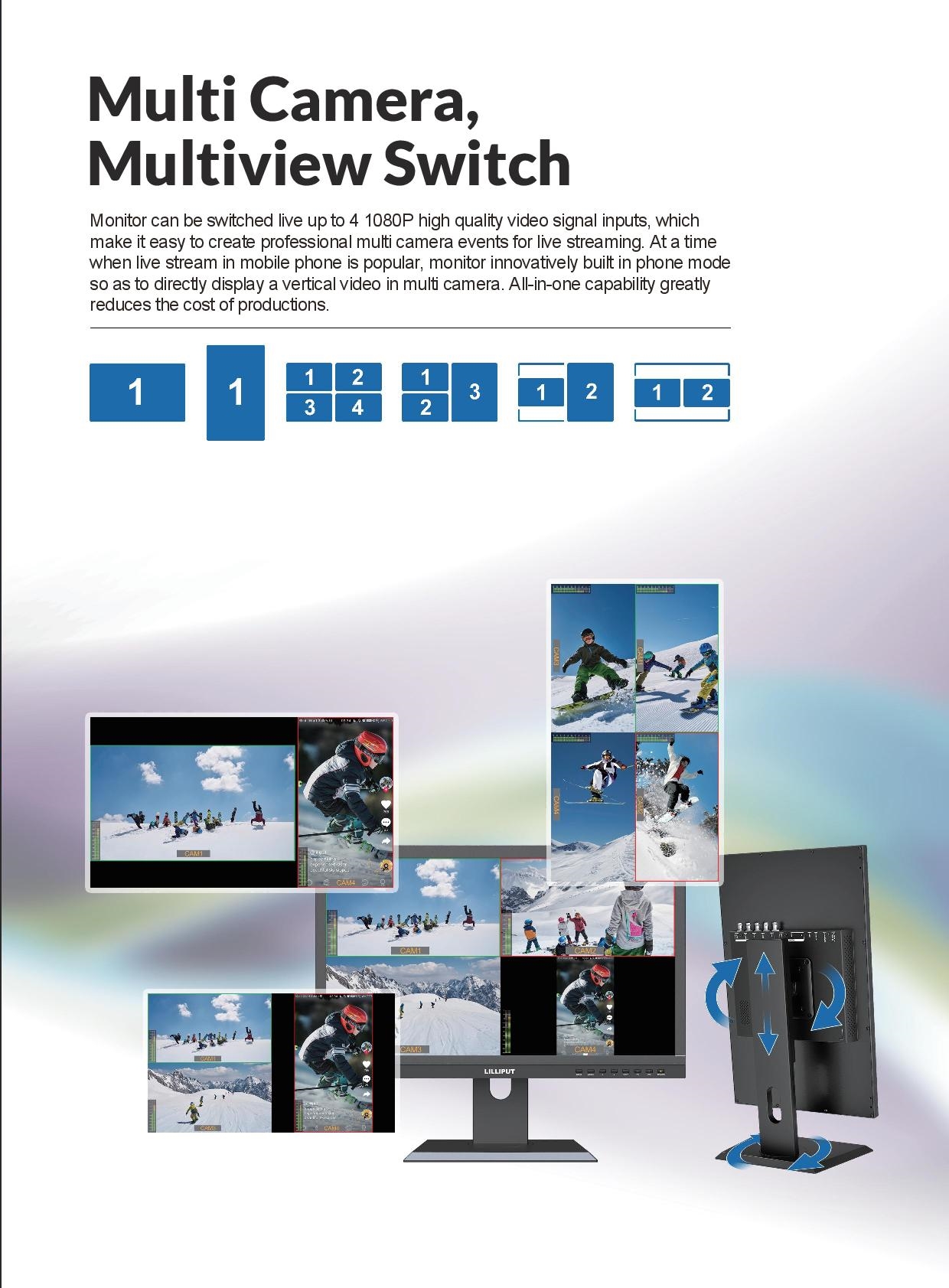

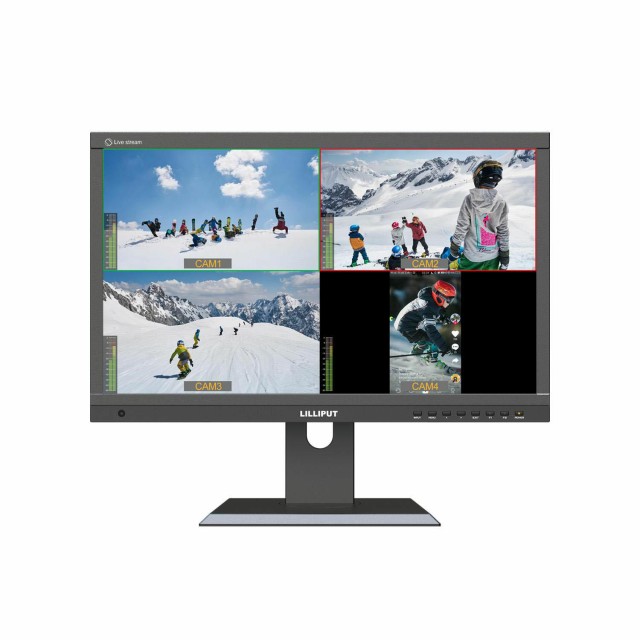

Quad split, dual view, picture by picture and both landscape and portrait modes make it a versatile preview monitor for the studio and live production. An optional swivel bracket, carrying case with sunshade, rack mount bracket and battery plate are available.
PACKAGE CONTENT
- 1× monitor Lilliput PVM220S
- 1× 15 V DC power adapter
- 1× base brackets
- 1× USB-C cable
- 1× e-user manual card

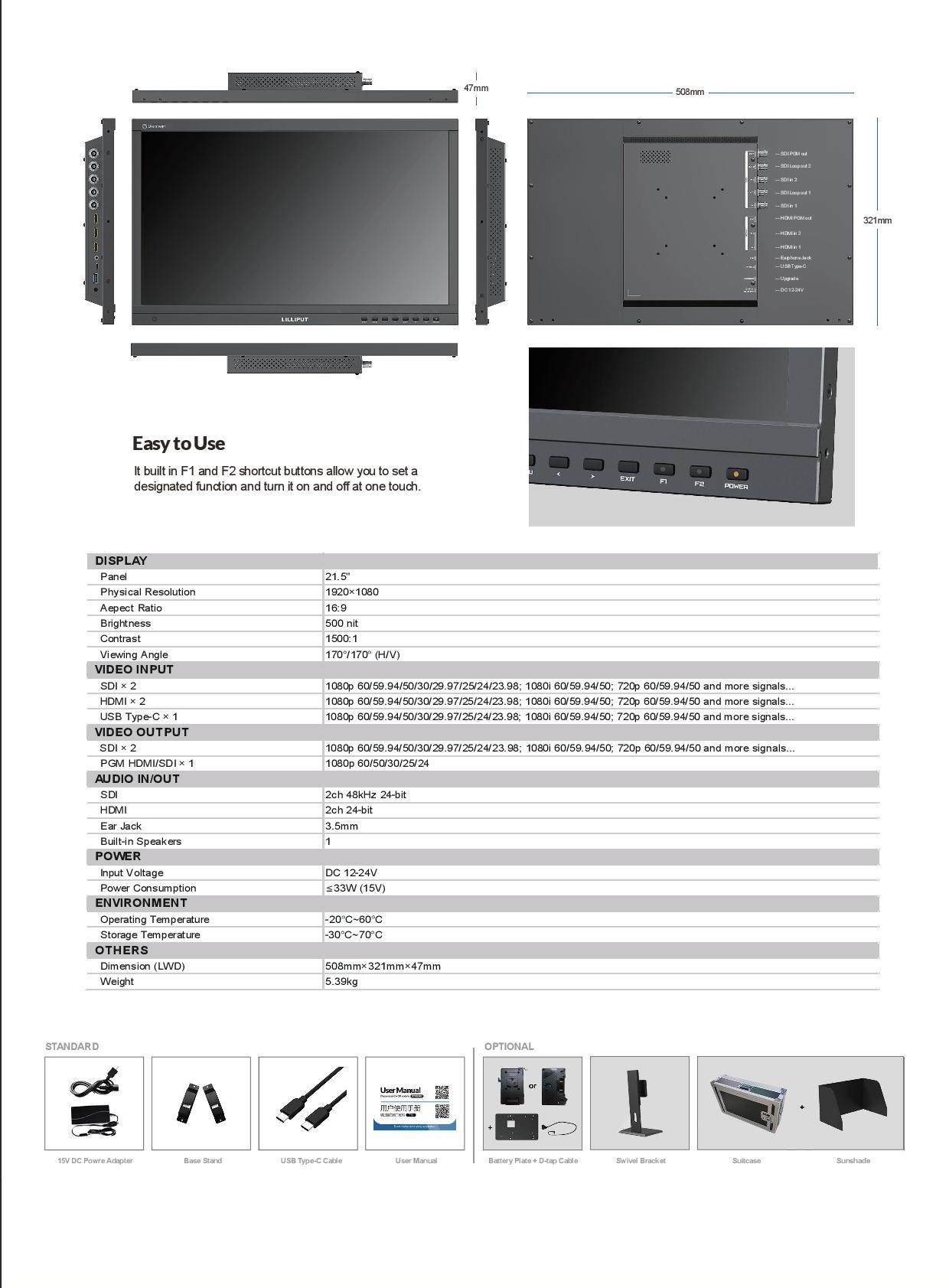

SPECIFICATIONS
- Brand: Lilliput
- Model: PVM220S
- Display: 21.5"
- Resolution: 1920 × 1080 (Full HD), 16:9
- Brightness: 500 cd/m²
- Contrast: 1,500:1
- Viewing angle (H/V): 170° / 170°
- Video inputs: 2× 3G-SDI, 2× HDMI, 1× USB-C (all up to 1080p 60 Hz)
- Video outputs: 2× SDI (loop), 1× PGM HDMI/SDI (1080p 24–60 Hz)
- SDI formats: 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98–60
- Audio: SDI 2 ch 48 kHz/24-bit, HDMI 2 ch, 1 speaker, 3.5 mm headphones
- Functions: quad split, dual view, PBP, triple portrait, 90° flip (portrait), PVW/PGM switching, UMD, color temperature, level meter, histogram, exposure, peaking, false color, check field, markers, freeze
- Power: 15 V DC adapter, optional battery plate (V-Lock / Anton Bauer)
- Power consumption: < 33 W
- Operating temperature: -20 to 60 °C
- Storage temperature: -30 to 70 °C
- Dimensions (L × W × D): 508 × 321 × 47 mm
- Weight: 5.39 kg

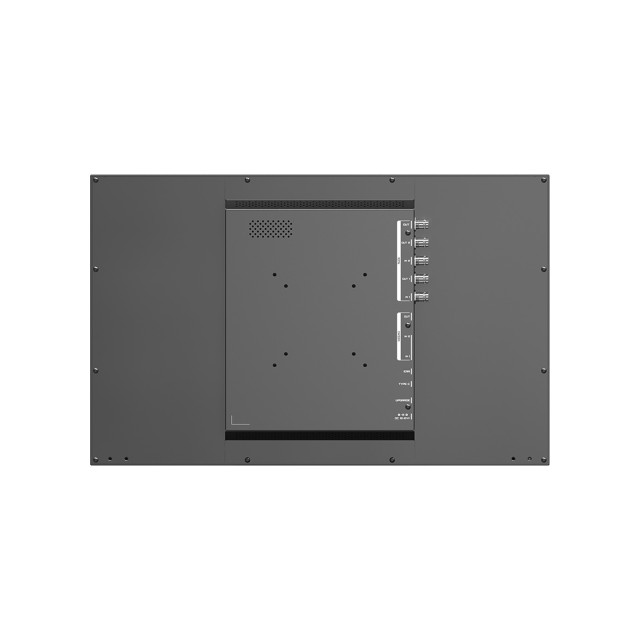

- Mounting: VESA 75/100 mm
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 21.5" |
| Monitor inputs | HDMI · SDI · 3G-SDI · USB-C |
| Luminosity | 500cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | V-Mount · Gold Mount · 15V DC |
Other parameters
| Other features | Quad split · Multiview |
