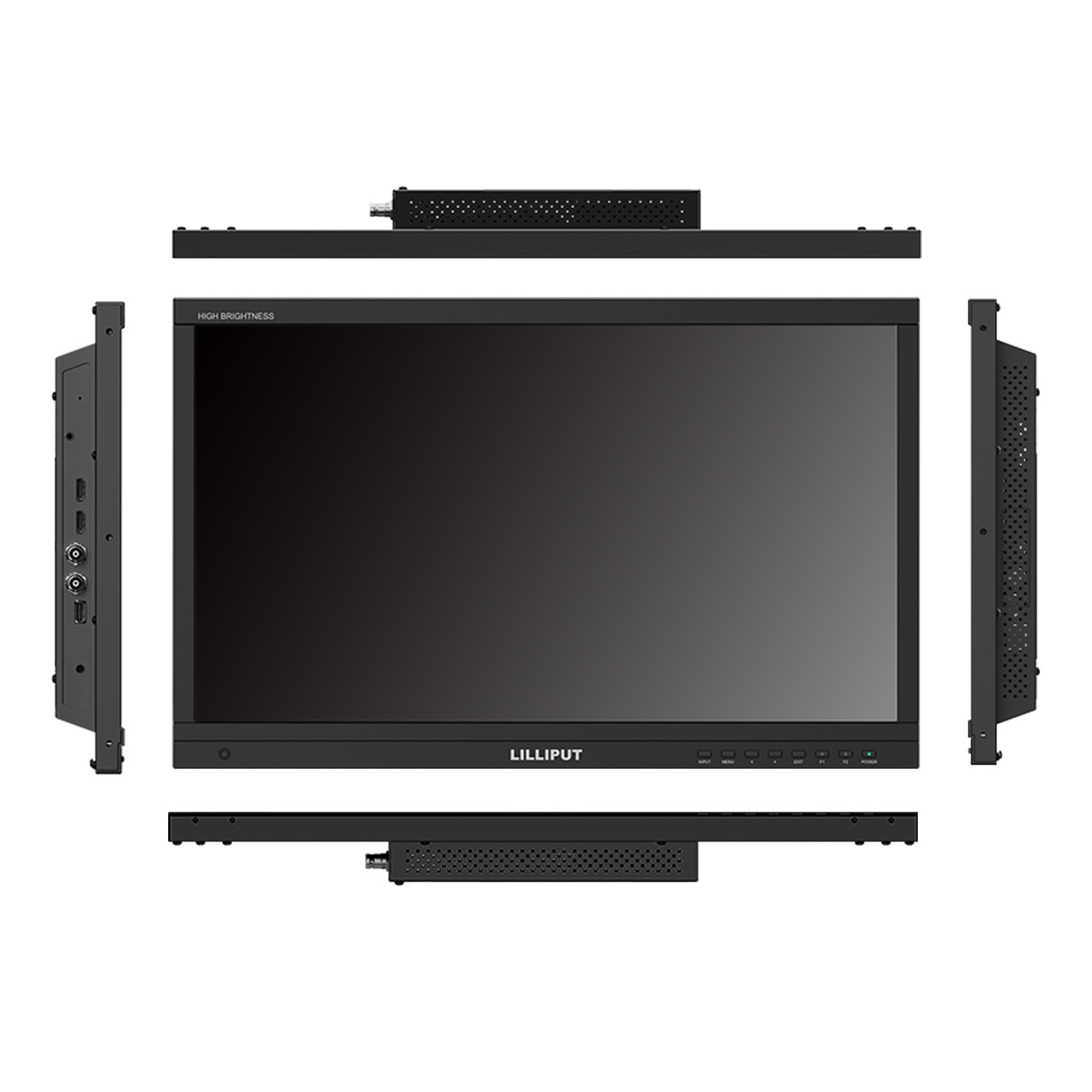

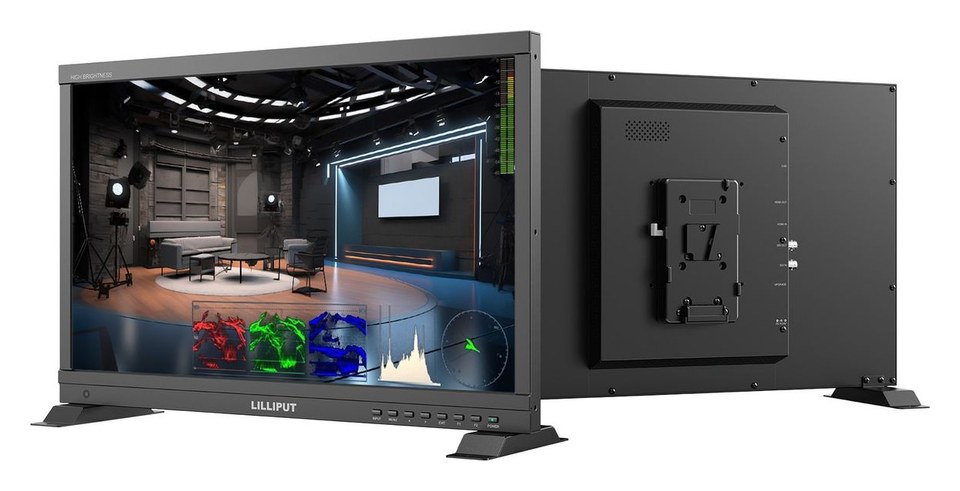

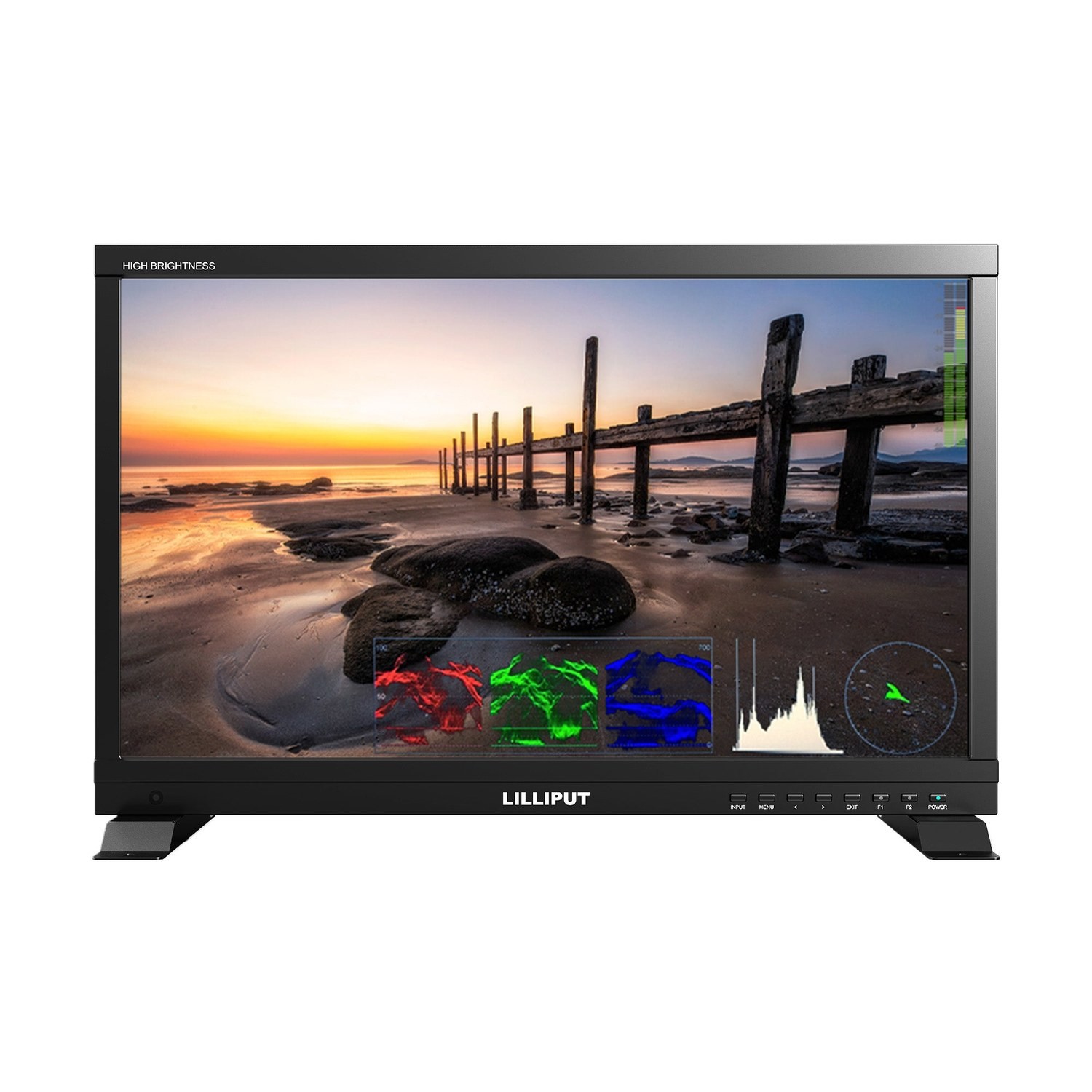

Lilliput PVM220S-H
SKU: PVM220S-H
The Lilliput PVM220S-H is a 21.5″ Full HD broadcast monitor with 1,000 cd/m² brightness for photographers, videographers and cinematographers. It takes 3G-SDI and HDMI 2.0 with loop outputs, supports HDR (ST2084, HLG), 3D LUTs and camera logs, and offers accurate waveform and vectorscope tools for judging color and exposure. It stays readable in daylight…
719 € with VAT
594.21 € without VAT
Availability
on request
Top accessories for Lilliput PVM220S-H
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput PVM220S-H is a 21.5″ Full HD broadcast monitor with 1,000 cd/m² brightness for photographers, videographers and cinematographers. It takes 3G-SDI and HDMI 2.0 with loop outputs, supports HDR (ST2084, HLG), 3D LUTs and camera logs, and offers accurate waveform and vectorscope tools for judging color and exposure. It stays readable in daylight and offers excellent value.
A bright monitor for broadcast and post
A 21.5" Full HD display with 1,000 cd/m², HDR and 3D LUT – readable in the studio, on set and in daylight.
21.5" Full HD1,000 cd/m²3G-SDI + HDMI 2.0HDR & 3D LUTWaveform
1,000 nits for outdoor work
The high brightness keeps the image clearly visible even in direct sunlight, and combined with HDR both bright and dark details stand out more clearly than on a standard monitor.
HDR
ST2084 300/1000/10000 and HLG supported.
3D LUT
Built-in 3D LUTs: 17 default and 6 user logs, loaded via USB.

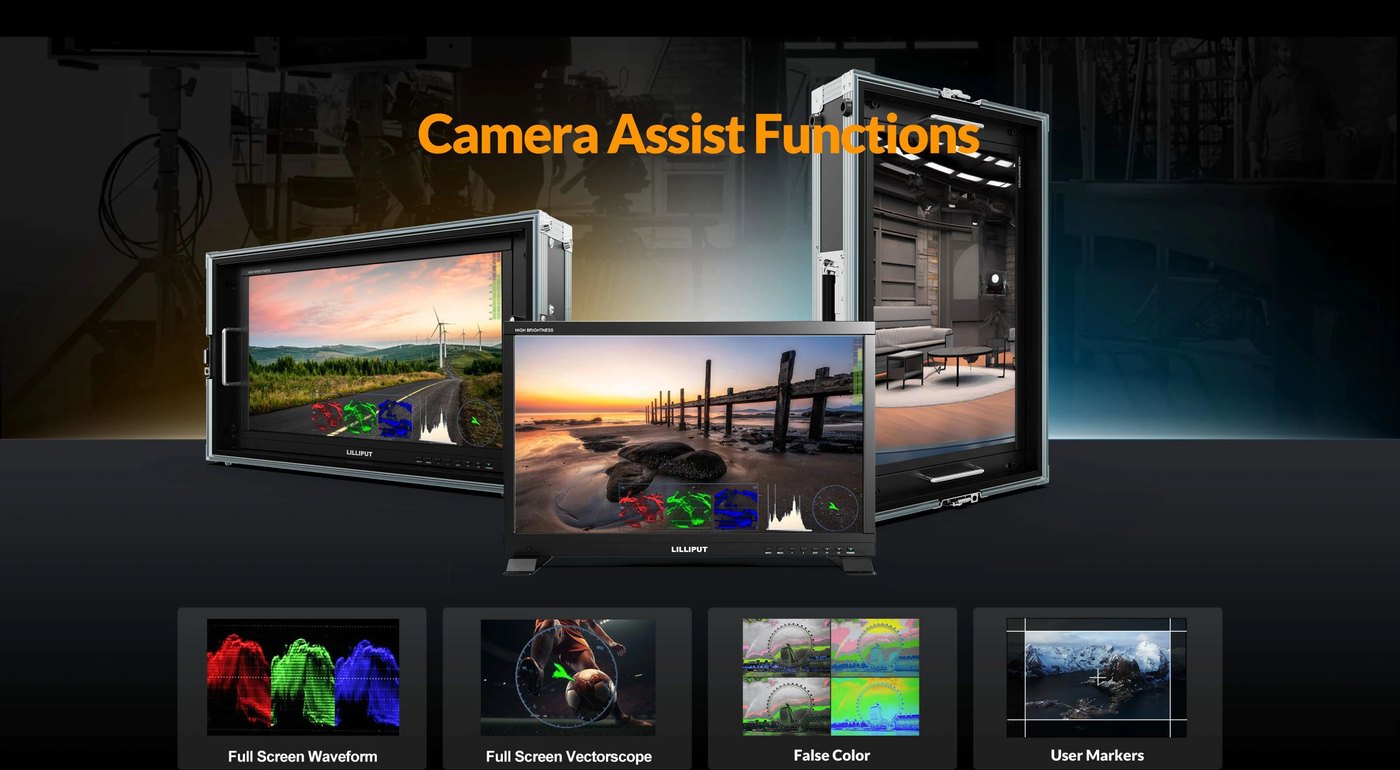

Scopes
Full-screen waveform and vectorscope, false color and user markers.
Loop outputs
SDI and HDMI 2.0 pass the signal on to further devices.
More information
About the monitor
The PVM220S-H is a professional high-brightness broadcast monitor designed for photographers, videographers and cinematographers. Its 3G-SDI and HDMI 2.0 inputs ensure compatibility with a wide range of devices, and accurate waveform and vectorscope functions support precise color grading and picture analysis.

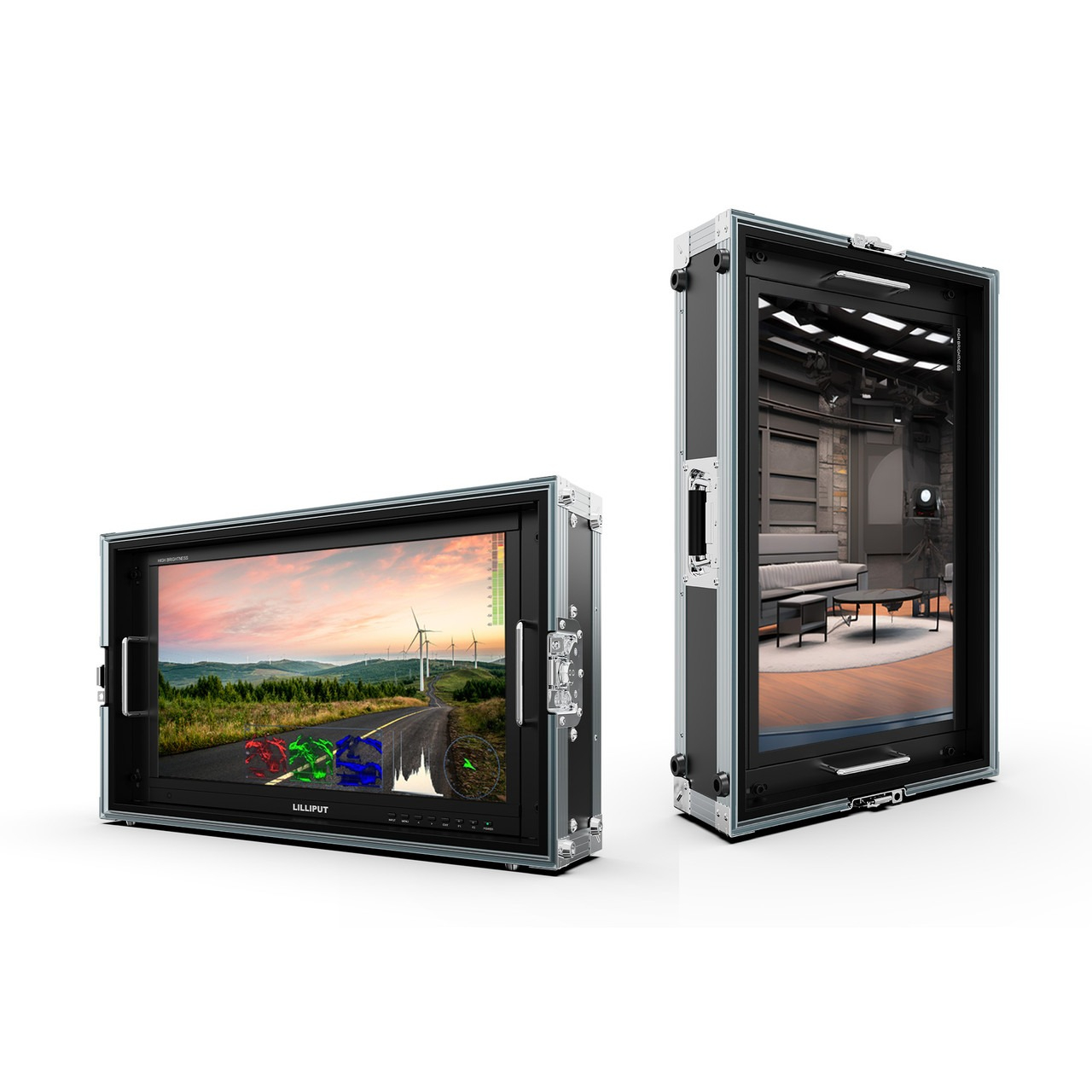

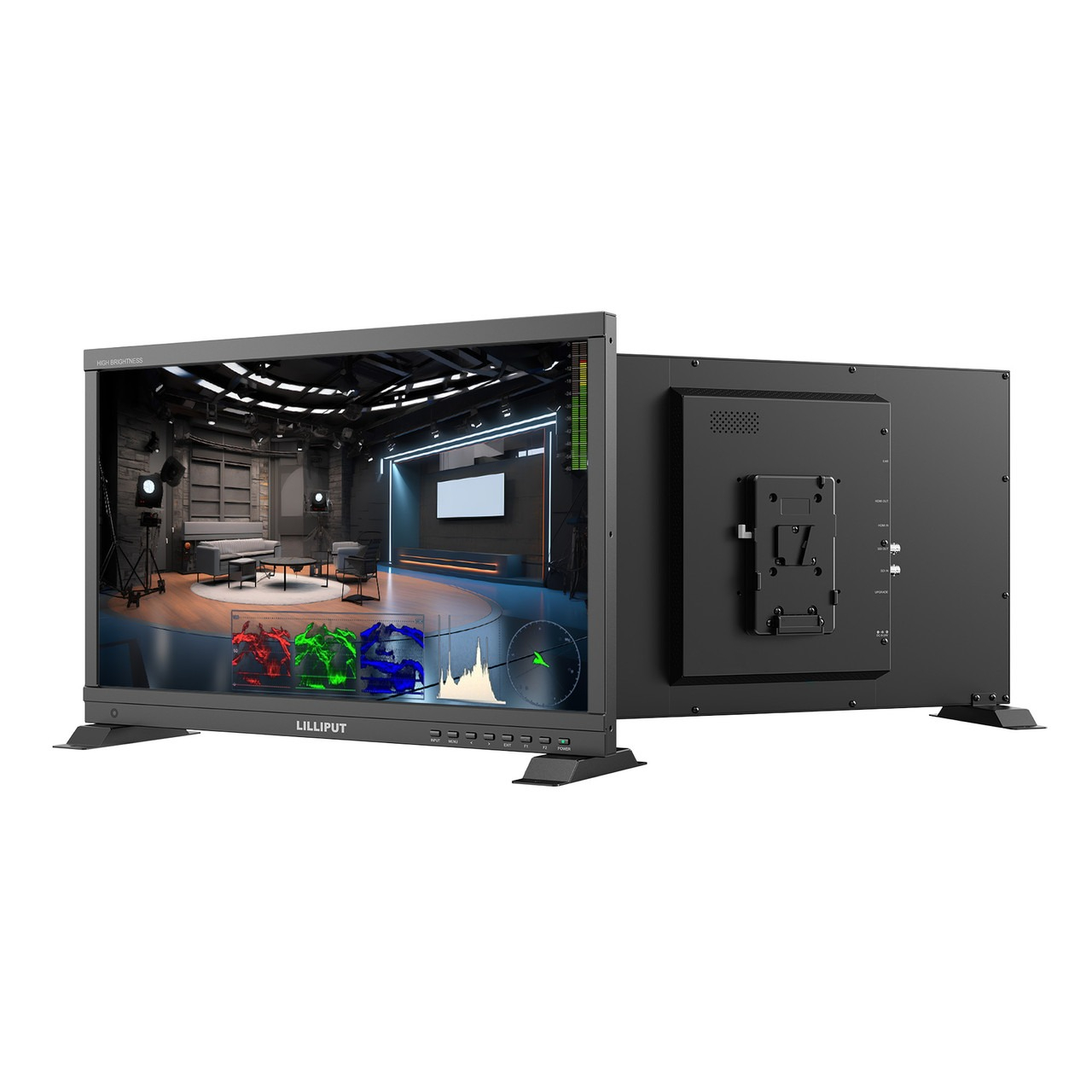

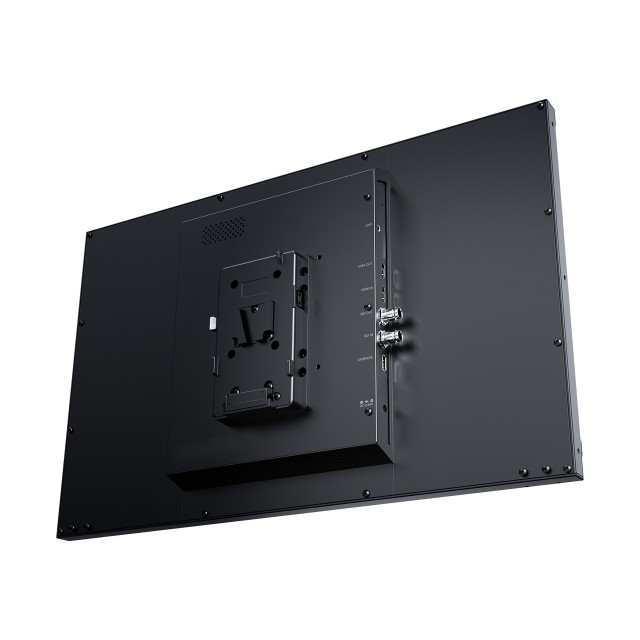

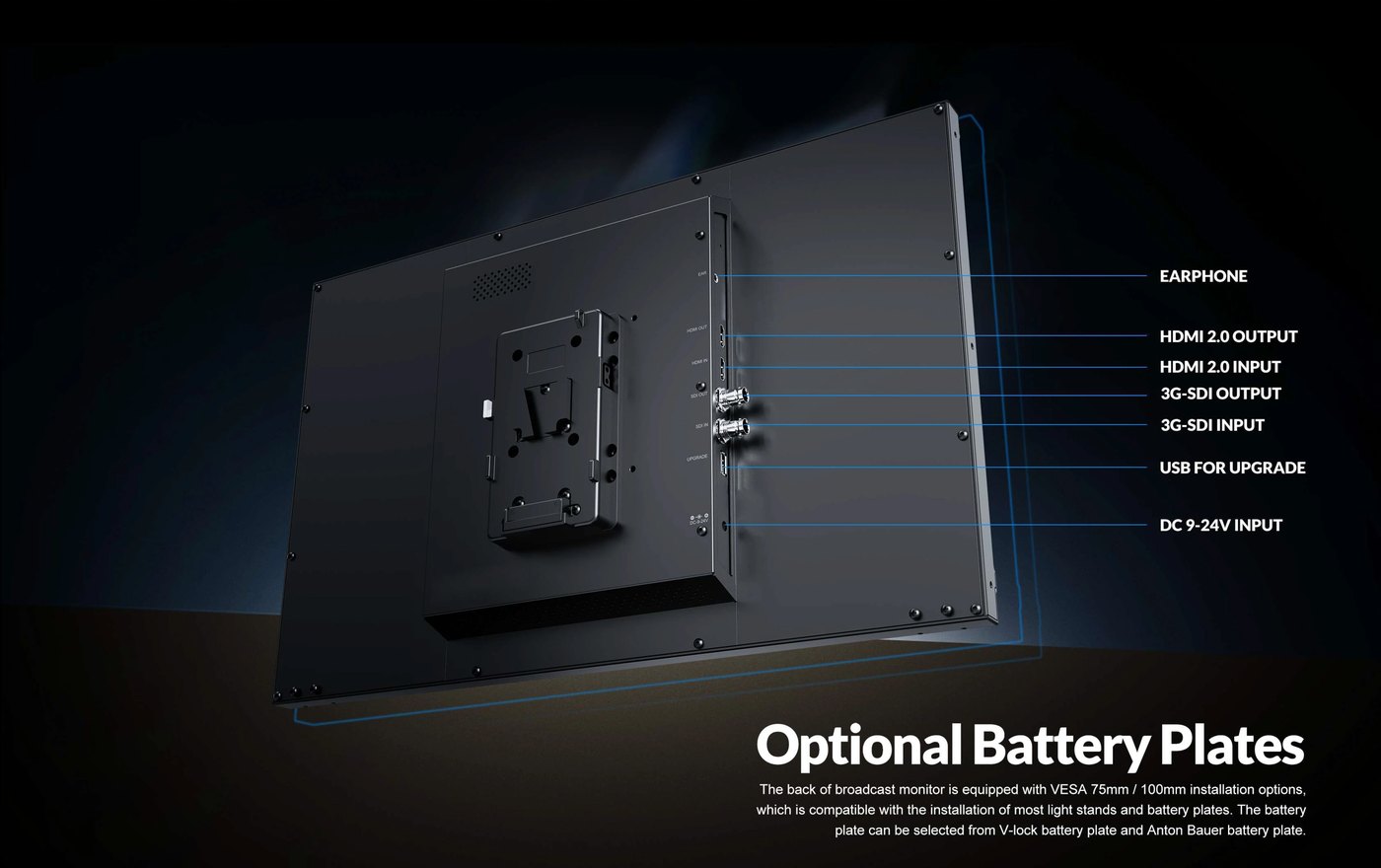

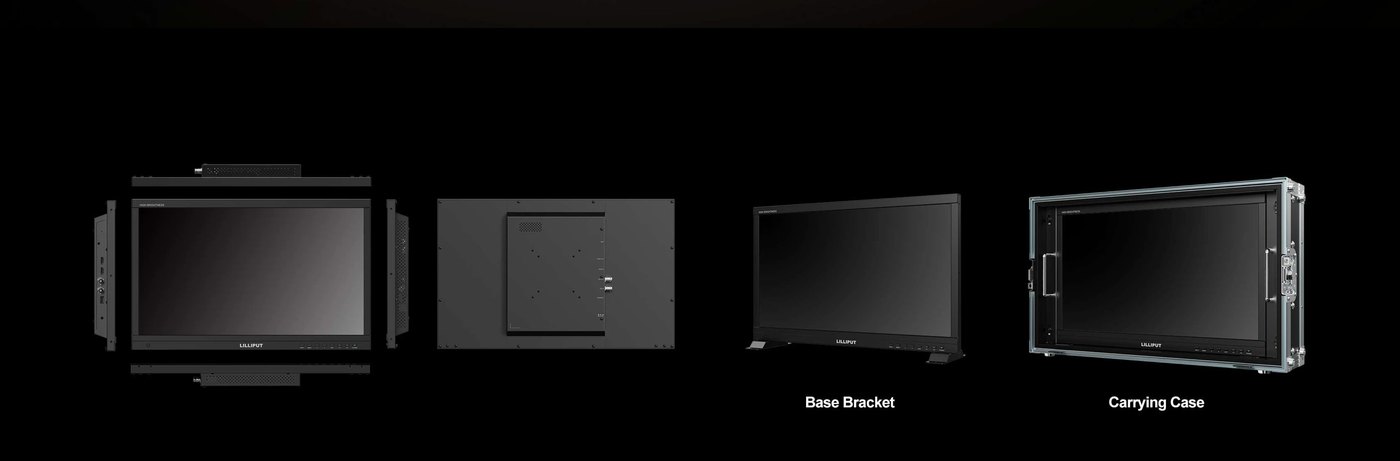

It runs from a DC 9–24 V input, accepts an optional V-Lock or Anton Bauer battery plate, and VESA 75/100 mm mounting makes installation easy. An optional carrying case with sunshade and a rack mount bracket are available.

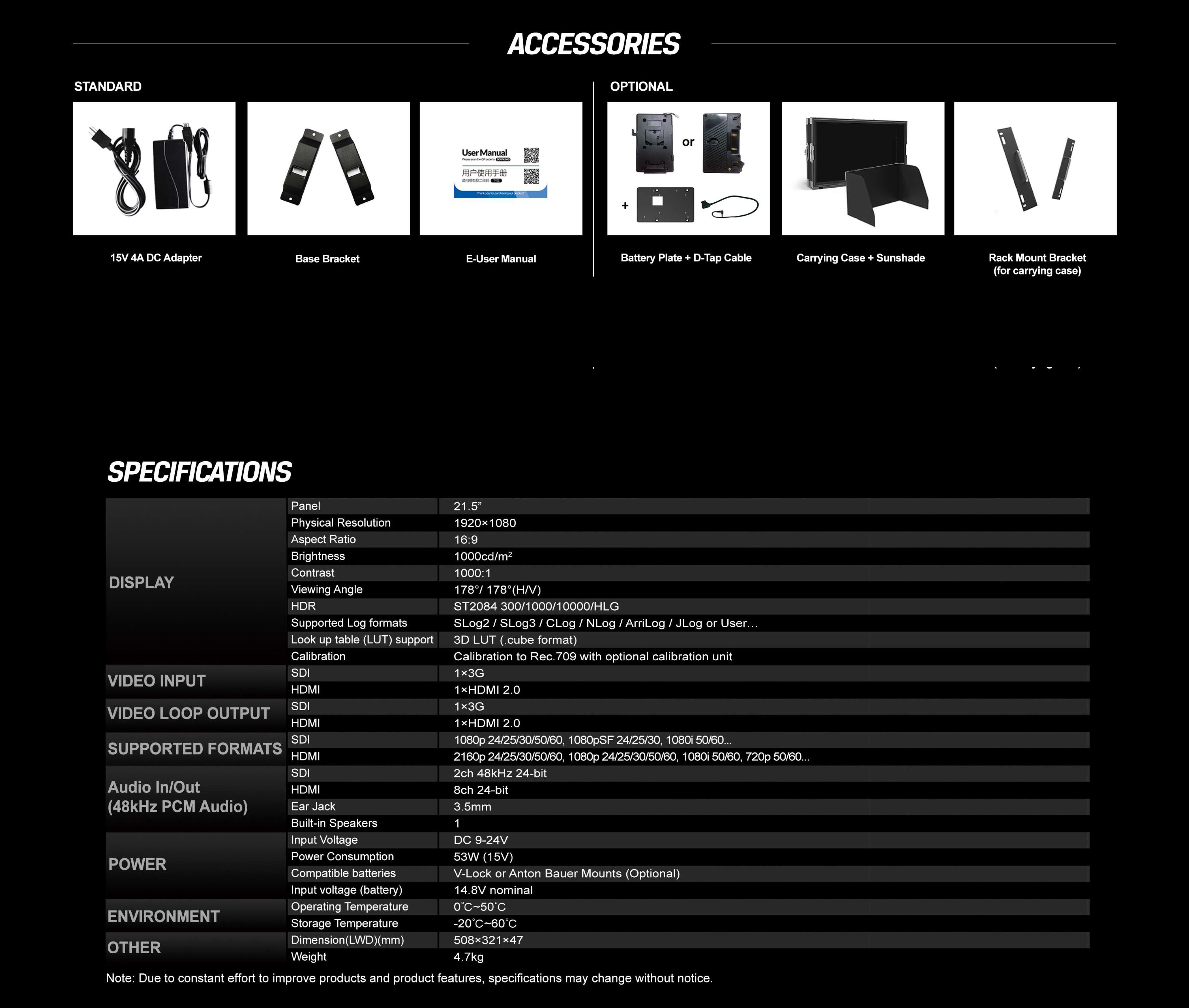

PACKAGE CONTENT
- 1× monitor Lilliput PVM220S-H
- 1× 15 V / 4 A DC power adapter
- 1× base brackets
- 1× e-user manual card
SPECIFICATIONS
- Brand: Lilliput
- Model: PVM220S-H
- Display: 21.5"
- Resolution: 1920 × 1080 (Full HD), 16:9
- Brightness: 1,000 cd/m²
- Contrast: 1,000:1
- Viewing angle (H/V): 178° / 178°
- HDR: ST2084 300 / 1000 / 10000, HLG
- Supported log formats: S-Log2, S-Log3, C-Log, N-Log, ArriLog, J-Log and user
- LUT: 3D LUT (.cube format), loaded via USB
- Calibration: Rec.709 with optional calibration probe
- Video inputs: 1× 3G-SDI, 1× HDMI 2.0
- Video outputs: 1× 3G-SDI, 1× HDMI 2.0 (loop)
- SDI formats: 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: SDI 2 ch 48 kHz/24-bit, HDMI 8 ch 24-bit, 1 speaker, 3.5 mm headphones
- Other interfaces: USB (firmware)
- Functions: HDR, 3D LUT, full-screen waveform and vectorscope, false color, peaking, exposure, check field, user markers, gamma
- Power: DC 9–24 V
- Power consumption: ≤ 53 W (15 V)
- Batteries: V-Lock or Anton Bauer (optional plate), 14.8 V nominal
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 508 × 321 × 47 mm
- Weight: 4.7 kg
- Mounting: VESA 75/100 mm
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 21.5" |
| Monitor inputs | HDMI · SDI · 4K HDMI · 3G-SDI · HDMI 2.0 |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | V-Mount · Gold Mount · 9-24 VDC |
Other parameters
| Other features | HDR · 3D LUT correction · Vectorscope |
| High Brightness | Yes |
