Lilliput PVM220S-E

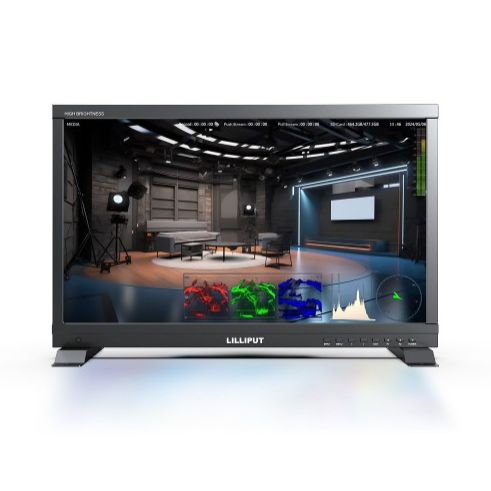

The Lilliput PVM220S-E is a 21.5" professional live stream recording monitor with 1000 cd/m² brightness, 1920x1080 resolution, 3G-SDI and HDMI 2.0 I/O, direct 1080p recording to SD card (up to 512GB), advanced monitoring tools including waveform, vectorscope, 3D LUT, HDR (HLG), and false color, powered via 9-24V DC or integrated V-Mount plate, making it ideal for broadcast-quality on-set monitoring and recording.

The PVM220S-E 21.5" Live Stream Recording Monitor from Lilliput is a professional monitor designed for live streaming and recording. Boasting 1000 cd/m² brightness and 1000:1 contrast, it offers a range of input options, including 3G-SDI and HDMI 2.0, ensuring compatibility with various devices for broadcast-quality monitoring. This monitor can record up to 1080p HDMI or SDI video signals directly to an SD card with a maximum capacity of 512GB. It is rich in advanced features like precise waveform and vector functions, 3D LUT and HDR support, and full-screen waveform and vectorscope functions, making it ideal for accurate color grading and picture analysis. The PVM220S-E can be powered with the included 15 VDC, 4A power adapter, and it comes with an integrated V-mount battery plate. With 178° viewing angles, loop-through SDI/HDMI outputs, 3.5mm audio I/O, built-in mono speaker, and VESA 75/100mm mounting, it delivers reliable performance in professional video environments.

Key Features

• 21.5" 1000-nit Full HD (1920x1080) display
• 3G-SDI and HDMI 2.0 input/output with loop-through
• Direct recording to SD card (up to 1080p, 512GB max)
• Waveform, vectorscope, false color, focus peaking, 3D LUT, HDR (HLG)

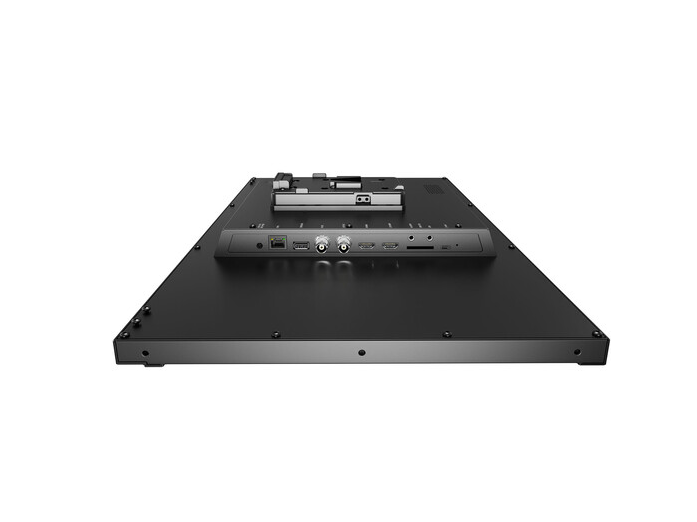

• Integrated V-Mount battery plate
• USB-A for LUT/firmware, RJ45 LAN, ambient light sensor
• VESA 75x75 / 100x100 mm mounting
