Lumantek 10 Channel Video Switcher

  • Free transport
SKU: ez-Pro VS10

Again, LUMANTEK gives you another switcher good for live events but with more ports than before. More screens to monitor in a single switcher with a larger touch screen to control.

More information

3 309 € with VAT 2 734.71 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
ez-Pro VS10
Add to Compare Price history
Product description ARTICLES

Product description

Again, LUMANTEK gives you another switcher good for live events but with more ports than before. More screens to monitor in a single switcher with a larger touch screen to control.





Customizable video switcher for your preference.

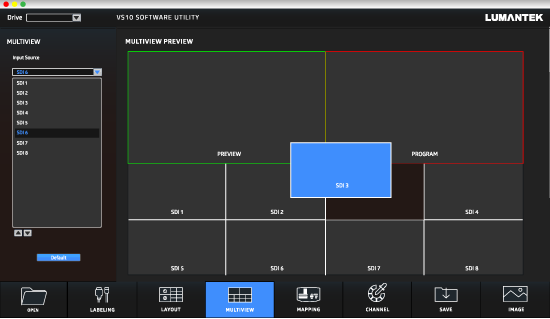

You can choose from many layouts to show the multiview screen.
You can move them as you want and name as you want.
Configure your own layout through our utility (Win OS or Mac OS), save it on a USB disk,
and plug it into VS10 to load your layout.

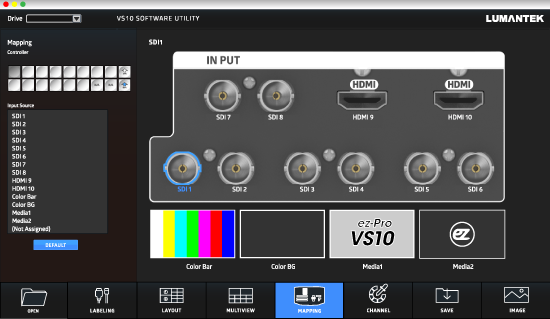

➊ Button Mapping



➋ Multiview Layout







Assign video sources to console buttons of your preference.









Choose different multiview layouts and assign sources as you want!

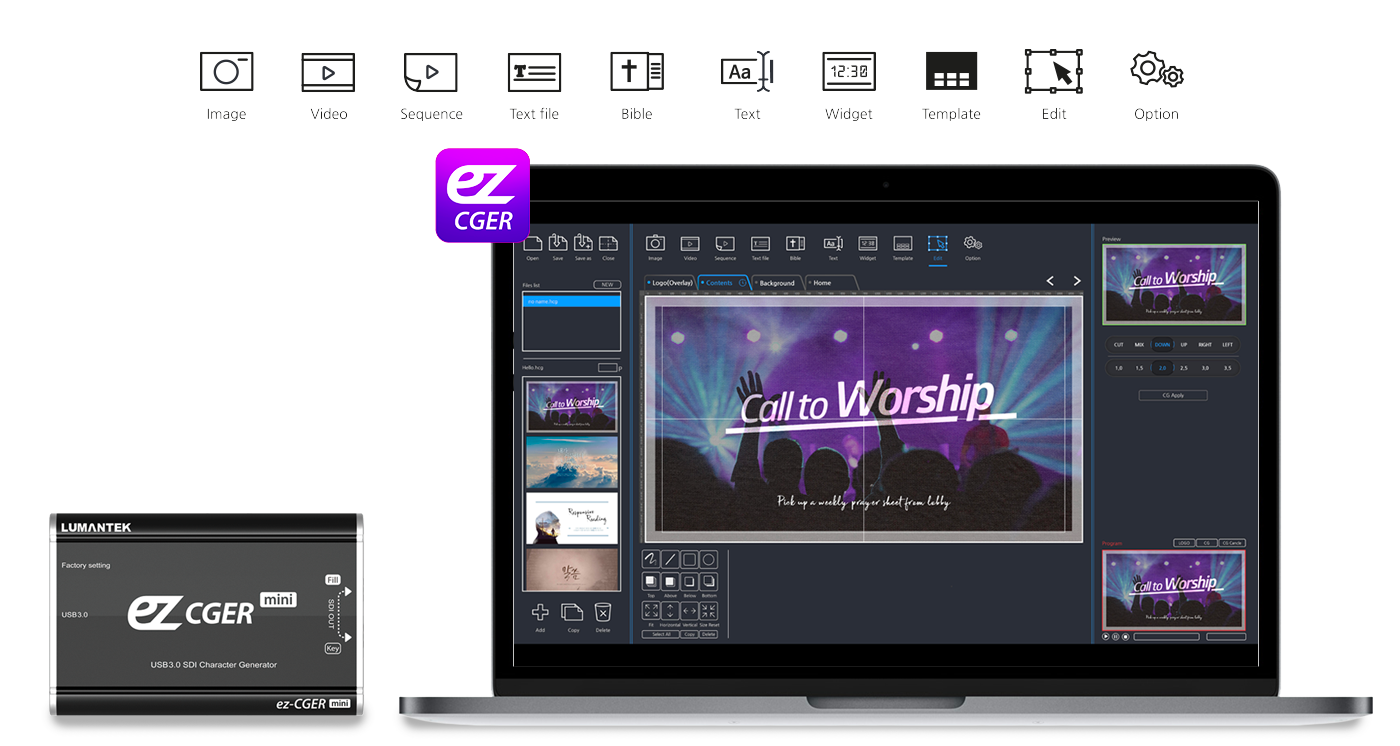

Perfect harmony with ez-CGER mini
for live titling and graphics!



All ez-Pro VS10 SDI inputs can take in Fill & Key signals.
Connect LUMANTEK’s “ez-CGER mini” with ez-Pro VS10 and broadcast your video with Live Titling and Graphics!

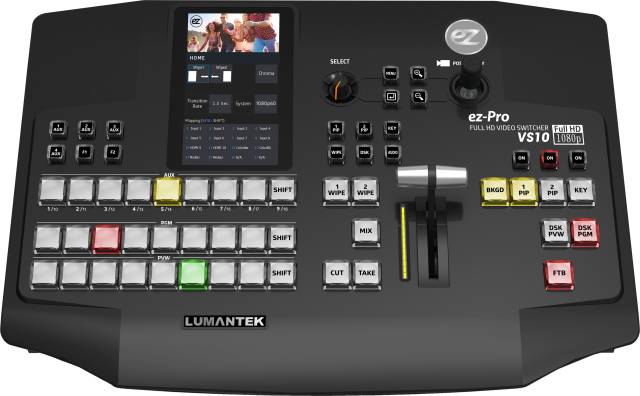

Intuitive LCD Touchscreen and PTZ control through Joy-stick control

All key menu or functions can be adjusted with touchscreen smoothly and extremely easily operated with rotary switch or Joy stick.

All 10 inputs built in Scaler

ez-Pro VS10 comes with internal scalers in all input ports. Adjust freely using our touch screen menu.



Twice the Basic Features

ez-Pro VS10 has 2 Picture in Picture (PIP) capabilities, 2 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.

Quiet Fan for your comfort

LUMANTEK carefully calibrated the fan noise to provide more comfort to its users while enabling the switcher to operate at its maximum performance.



Any ports are Fill & Key

VS10 allows to set any SDI & HDMI input ports as Fill or Key.

Transfer with USB disk

It is easy to transfer your settings to VS10. Use the VS10 Utility software to save settings into your USB disk. Then plug the USB into VS10 to transfer settings, media, and new firmware.



PROGRAM/ MULTIVIEW display at LCD screen

LCD screen is able to display Program and Multiview when you touch the screen.

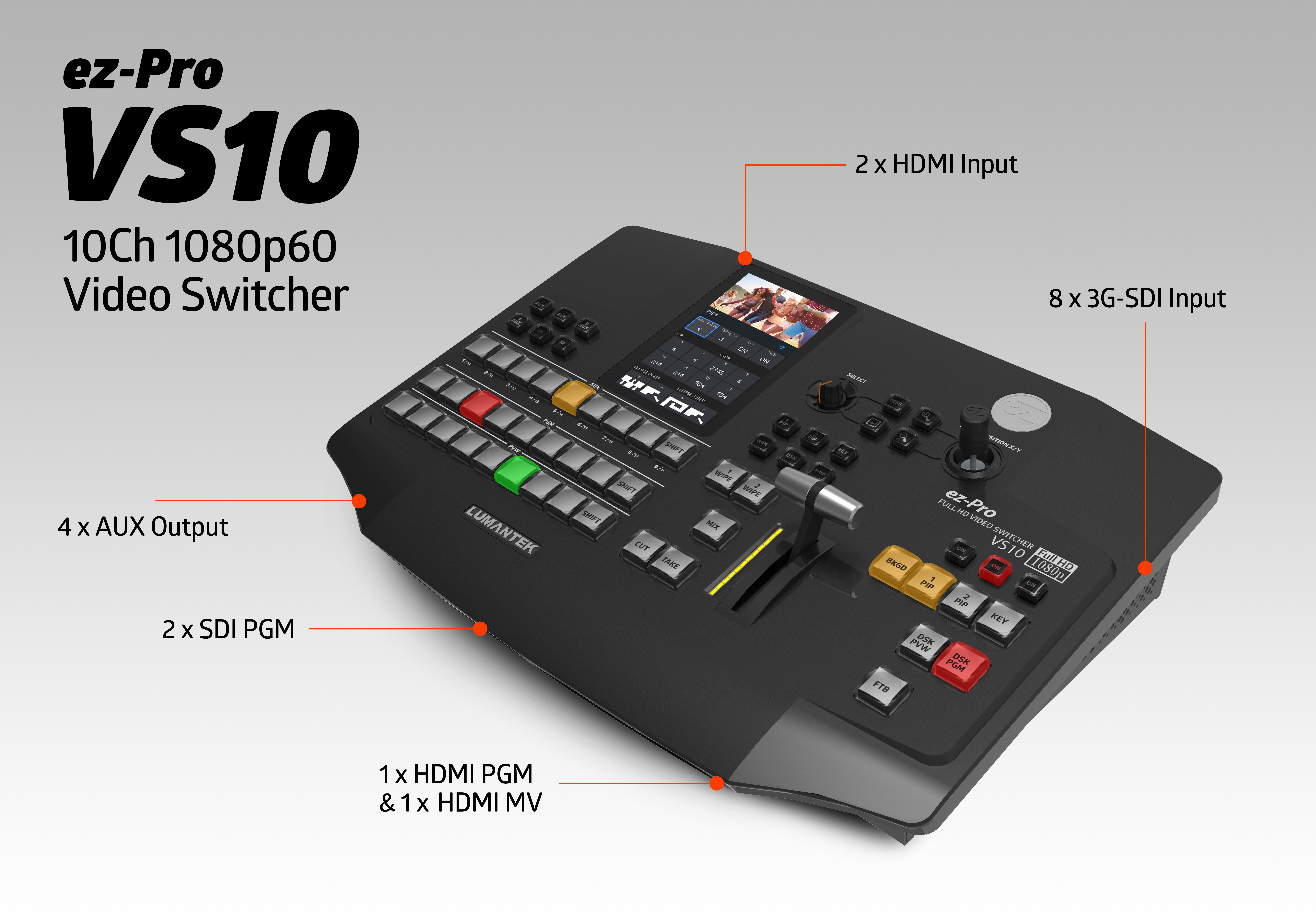

ez-Pro VS10

Input Ports

Video:
8 x SDI
2 x HDMI

Audio:
1 pair x XLR

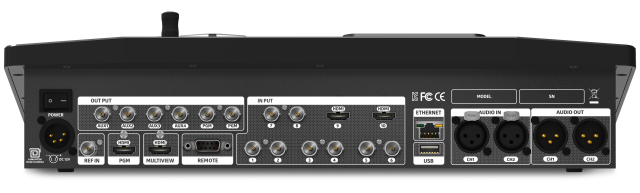

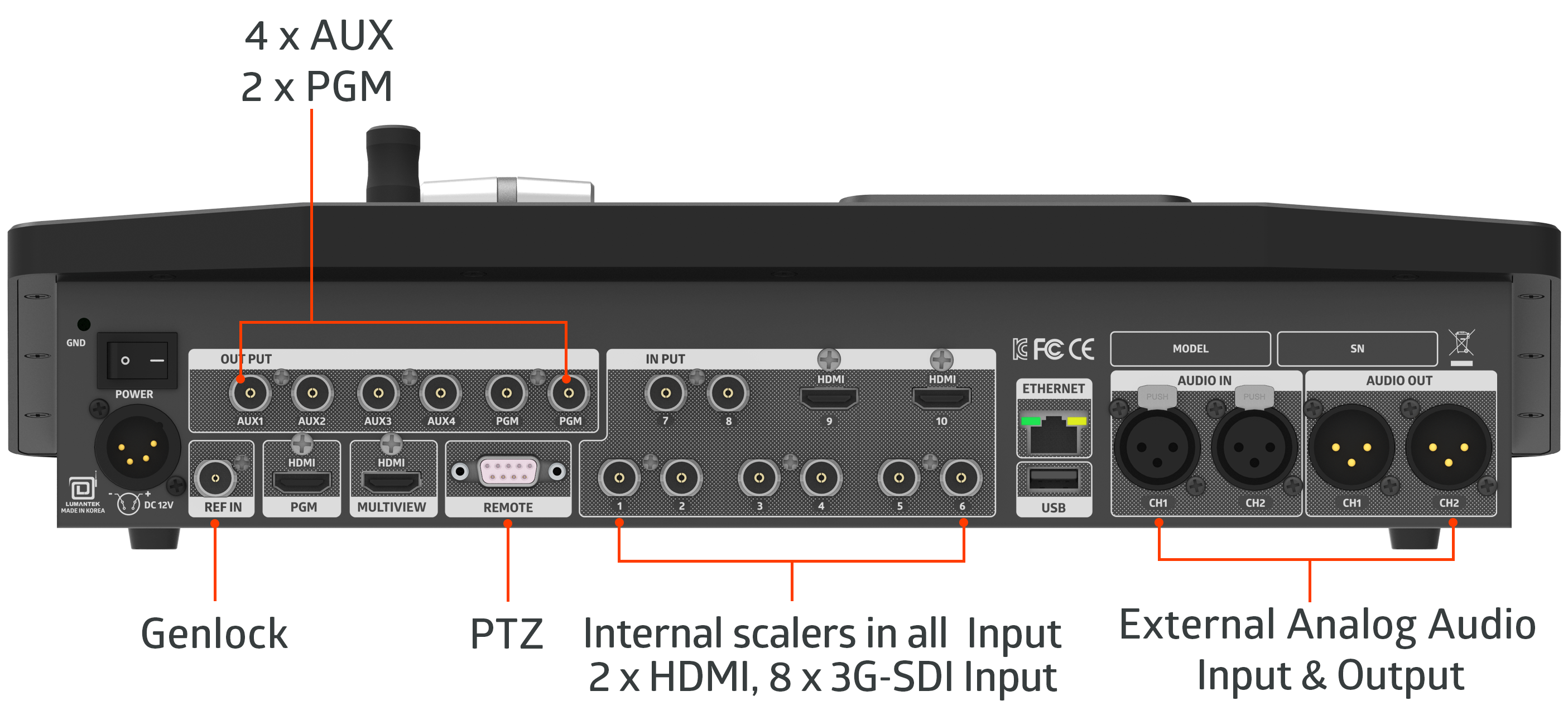

ez-Pro VS10

Output Ports

Video:
4 x SDI (AUX 1~4)
2 x SDI (Program)
1 x HDMI (Program)
1 x HDMI (Multiview)

Audio:
1 pair x XLR

Extended channels

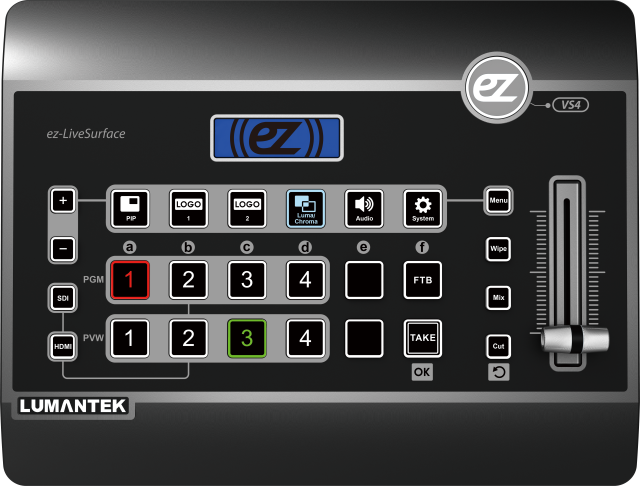

After the development of ez-Pro VS4, user feedback has been gathered from around the world. Good things and bad things were thought to apply to our next product. ez-Pro VS10 is the result of such ideas.

ARTICLES

WE RECOMMEND

The Lumantek ez-Pro VS10 is a professional 10-channel production switcher designed for complex live productions that require precise management of SDI and HDMI signals. For an optimal workflow, it is essential to supplement the system with compatible converters for various types of sources, distribution amplifiers, and tools for streaming or real-time graphics insertion.

Signal Conversion - These converters enable the integration of various HDMI and SDI sources into the 10-channel input of the production switcher.

Distribution and Routing - Equipment for efficient routing and splitting of the output signal from the control room to multiple monitors or broadcast feeds.

Streaming and Graphics - Accessories for encoding the final image for internet broadcasting and inserting professional graphics.

Accessories - Mechanical accessories for organizing and mounting Lumantek components in rack cabinets.

Parameters

Parameters

Manufacturer: Lumantek
Category: Switchers
