Lumantek Distribution Amplifier with LCD Monitoring(12xSDI . 2xHDMI Outputs)

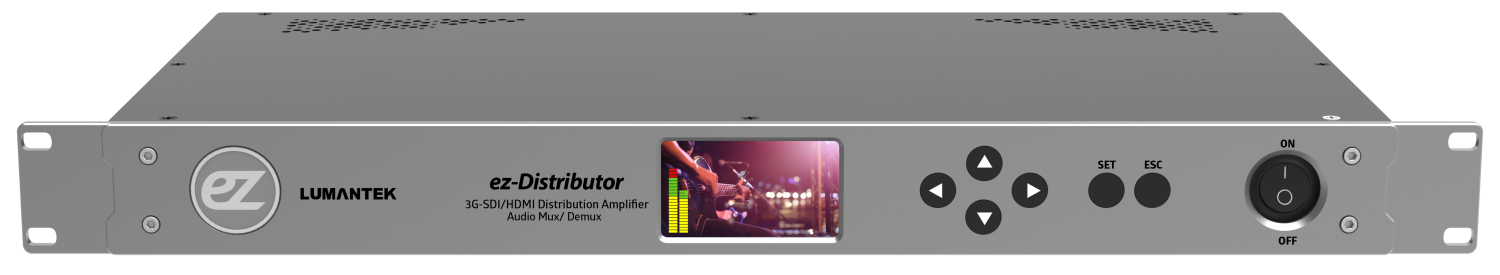

LUMANTEK's ez-Distributor is a 14 channels distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor.

More information

889 € with VAT 734.71 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Product description ARTICLES

Product description

LUMANTEK's ez-Distributor is a 14 channels distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor.



Multiple SDI and HDMI ports

You have plenty of distribution ports with ez-Distributor. From 1 x 3G-SDI or 1 x HDMI, you can produce 12 x 3G-SDI and 2 x HDMI signals!

Audio Embed & De-embed

If you wish to add an external audio to the video which is being distributed, don't worry. ez-Distributor, has a pair of XLR port for you to input a different audio. You can also take the sound out of the video.



LCD Monitoring and Audio Level

It is easy to check what is being played on the LCD screen. You can also check the audio bar on the screen to find out if the sound is played.

Input Setting option

Through the LCD screen, you can easy to select SDI or HDMI input.

ez-Distributor

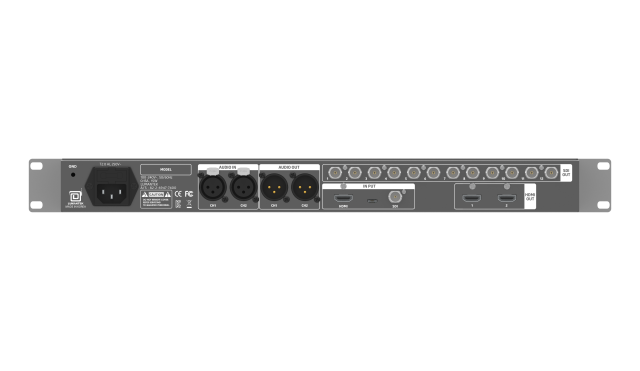

Input Ports

Video:
1 x 3G-SDI
1 x HDMI 1.3

Audio:
1 pair x XLR External Audio
ez-Distributor

Output Ports

Video:
12 x 3G-SDI
2 x HDMI 1.3

Audio:
1 pair x XLR De-embedded Audio

ARTICLES

Parameters

Parameters

Manufacturer: Lumantek
Category: Routers
