Lumantek Mpeg2/H.264 HD Encoder - TS Over IP

  • Free transport
SKU: ez-Caster EN3A

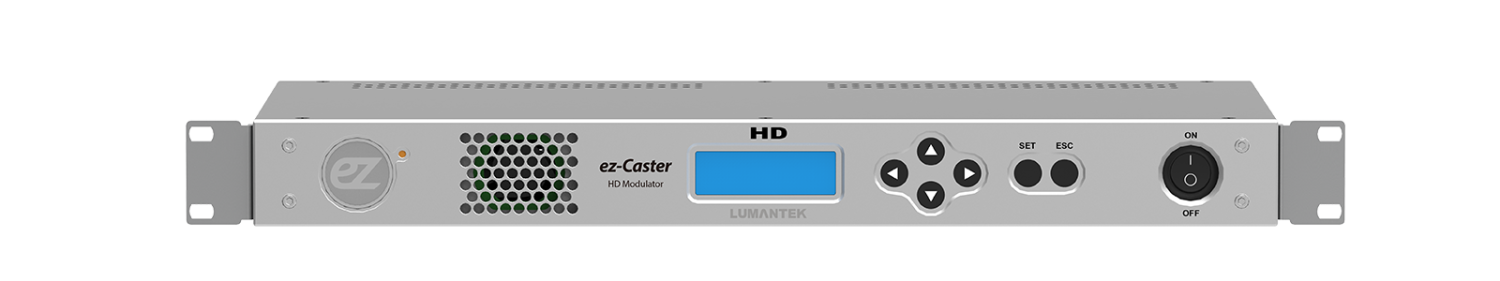

ez-Caster EN3 is a 1RU size encoder with plenty of input interfaces including Component, Composite, SDI, and HDMI. It can encode in Full HD resolution of Both of MPEG-2 and H.264 format. It can output the signal in ASI, TS Over IP, and ATSC RF out. ez-Caster EN3 also has "TS over IP" output available.

More information

3 859 € with VAT 3 189.26 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
ez-Caster EN3A
Add to Compare Price history
Product description ARTICLES

Product description

ez-Caster EN3 is a 1RU size encoder with plenty of input interfaces including Component, Composite, SDI, and HDMI. It can encode in Full HD resolution of Both of MPEG-2 and H.264 format. It can output the signal in ASI, TS Over IP, and ATSC RF out. ez-Caster EN3 also has "TS over IP" output available.



Brodcasting Quality of MPEG 2 and H.264 HD encoding

Not comseumer grade HD encoding core, and offering both of MPEG 2 and H.264 encoing on professinal brodcasting grade.

Multiple Interfaces

ez-Caster EN3 can receive many types of interfaces. Component, Composite, HDMI and SDI. Such diversity offers flexibility to the user.



150ms Ultra Latency

Fast encoding is available with ez-Caster EN3. You are also going to be able to keep the video quality loss to the minimum.

TS over IP out

In easy installtion, not only support ATSC RF Out, and also support UDP streaming out.

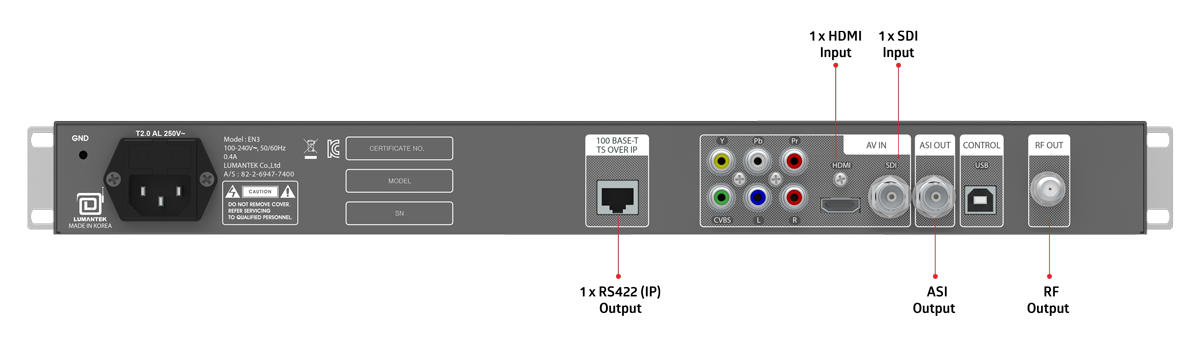

ez-Caster [EN3]

Input Ports

Video:
1 set x Component
1 set x Composite
1 x HDMI
1 x SDI
ez-Caster [EN3]

Output Ports

Video:
1 x ASI
1 x RF
1 x RS422 (IP)

Encodulator

LUMANTEK's ez-Caster EN3 is a mix of encoder and modulator. Depending on your use, you can use the ASI signal to keep it as a stream or modulate the video to send it as an RF. You can also send the signal as IP for online videos.

ARTICLES

WE RECOMMEND

The Lumantek ez-Caster EN3A is a professional HD encoder for streaming and distributing video over IP, supporting MPEG-2 and H.264 standards. For effective integration into the broadcast workflow, it is essential to complement it with compatible rack mounts, signal converters for various input types, and a video control room for content management.

Mounting Accessories - Accessories for the secure installation of the device in standardized rack cabinets.

Converters and Signal Distribution - Devices for converting and distributing SDI and HDMI signals prior to input into the encoder.

Video Production and Routing - Systems for switching and routing multiple video sources intended for encoding.

Graphics and Titling - Tools for inserting graphics and titles into a video stream in real time.

Parameters

Parameters

Manufacturer: Lumantek
Category: Encoders

Main parameters

Formát/KodekH.264 / AVC · MPEG-2
Maximální rozlišení videa1080p60
PřipojeníEthernet (RJ-45)
ProvedeníKompaktní / Stolní
Síťové protokolyRTMP / RTMPS · RTSP / RTP · MPEG-TS
Typ napájeníDC adaptér (12V)
Video vstup enkodéruHDMI · 3G-SDI
Záznamová médiaBez záznamu
