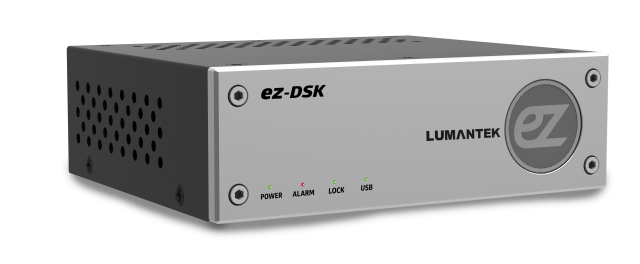

Lumantek LIVE CG Software + H/W CG inserter (DSK overlay type)

ez-DSK allows easy application of subtitles, images, sequences, videos, and widgets over your video program.
Connect the ez-DSK to your PC (Windows OS) through USB 3.0 and send all your graphics created with our dedicated CG software "ez-CGER."

More information

2 164.68 € with VAT 1 788.99 € without VAT
-+
Personal pickup: 26. 02. from 09:00
Shipment day: 26. 02.
In stock 1 pcs
Praha 1 pcs
Product description

Product description

ez-DSK allows easy application of subtitles, images, sequences, videos, and widgets over your video program.
Connect the ez-DSK to your PC (Windows OS) through USB 3.0 and send all your graphics created with our dedicated CG software "ez-CGER."

Fail Safe

Feel safe with ez-DSK's Fail Safe. Even when powered off, your broadcasting will continue (1 SDI output port), so do not worry about it malfunctioning during your live show.

Zero Delay

The ez-DSK overlays the CG over your video stream by internally processing the Key & Fill. It gives you Zero Delay to your broadcasting. On top of that, there is no need to spend an extra port of your switcher.

Distributor and Converter

There are 4 SDI output ports, 1 HDMI output port, and 1 SDI loop out port. You can add multiple monitors to the ez-DSK without the need of a distributor. (Or a SDI to HDMI converter for that matter).

Complimentary CG software

All Lumantek CG products come with their dedicated CG software, the "ez-CGER." This software has an easy user interface to learn. You will be a pro in no time.

Input Ports

Video:
1 x SDI

Computer Graphics:
1 x USB 3.0

Output Ports

Video:
1 x SDI (Loop Out)
4 x SDI (1 port has 'Fail Safe' mechanism)
1 x HDMI

Apply details to your CG

It is not easy to insert CG to your video unless of course you are a professional in the field using often expensive and sophisticated applications. ez-DSK and ez-CGER (the software) will make you able to apply details into your video easily. The user interface of the ez-CGER has the most commonly used program interfaces, and you will be able to learn its functions quite quickly. Unique function of ez-DSK is that you do not need Fill & Key as conventional CG devices. All you need is a PC with USB 3.0, and you video in SDI format.

*System requirements must be met.

Data Input

SDI Input

  (BNC 75 Ohms) x 1

  1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/
  1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50

CG Input

  (USB3.0) x 1

  1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/
  1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50



System

Requirement

  OS : Windows7, Windows8, Windows10

  CPU: Intel i7 4th Generation or above (Desktop)

  Intel i7-7700HQ or above (Laptop)

  RAM: 8GB

  VGA: GeForce GTX 1050

  USB 3.0 Host Controller



Data Output

SDI Output

  (BNC 75 Ohms) x 4

  1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/
  1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50

SDI Loop Output

  (BNC 75 Ohms) x 1
  Same as input resolution
  Overlay feature is not supported

HDMI Output

  (BNC 75 Ohms) x 1

  1080p30/ 1080p29/1080p25/ 1080p24/ 1080p23/
  1080i60/ 1080i59/ 1080i50/ 720p60/ 720p59/ 720p50

Parameters

Parameters

Manufacturer: Lumantek
Category: Accessories
