Lumantek HDMI/SDI Cross-Converter with Audio Mux / De-Mux + Scaler

SKU: ez-MD+

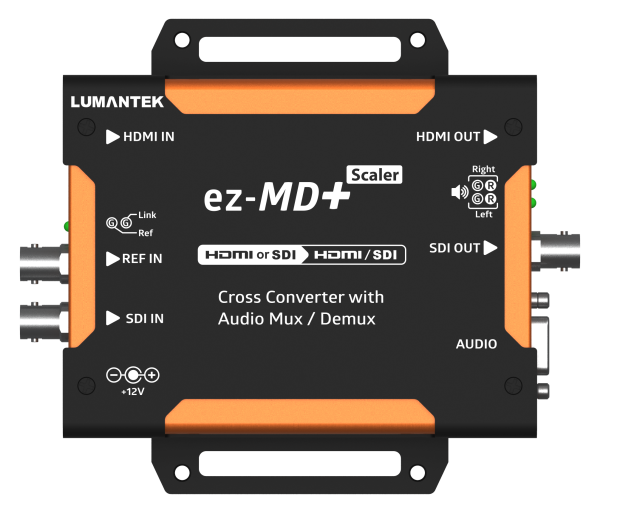

LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.

More information

439 € with VAT 362.81 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 2 pcs
Praha 2 pcs
SKU:
ez-MD+
Add to Compare Price history

Lumantek Mini Converter, HDMI to 3G/HD/SD-SDI with external audio embed

In stock 5 pcs209 €without VAT 172.73 €

Lumantek HDMI to 3G/HD/SD-SDI Converter with LCD Display + Scaler

219 €without VAT 180.99 €
Product description ARTICLES

Product description

LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.



HDMI and SDI Cross-Converting

LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.

Up / Down Scaling and Screen Ratio Control

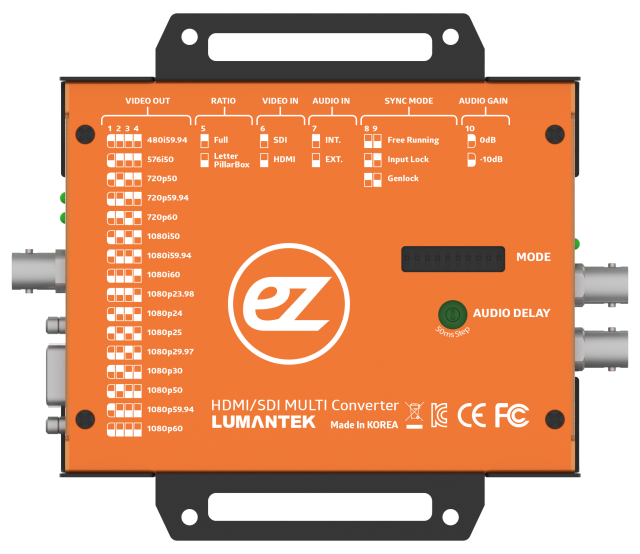

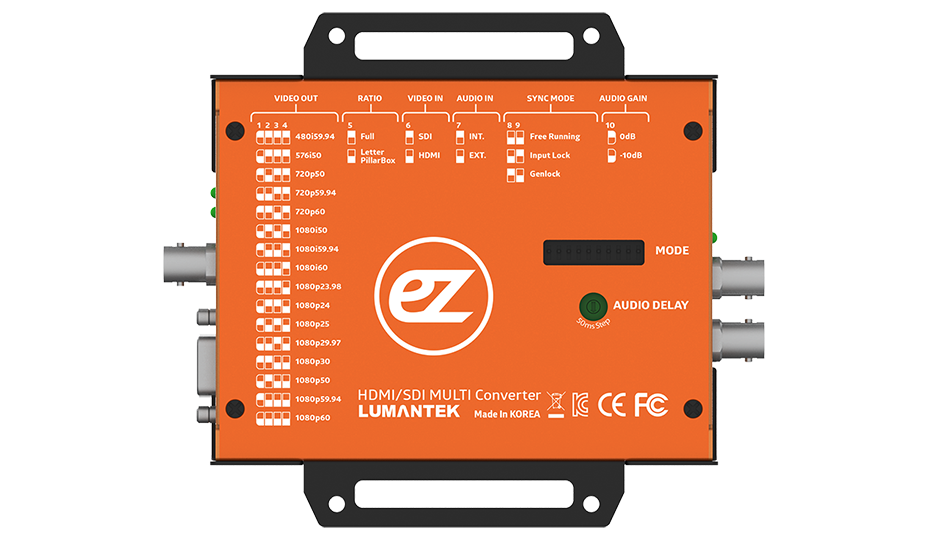

ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'

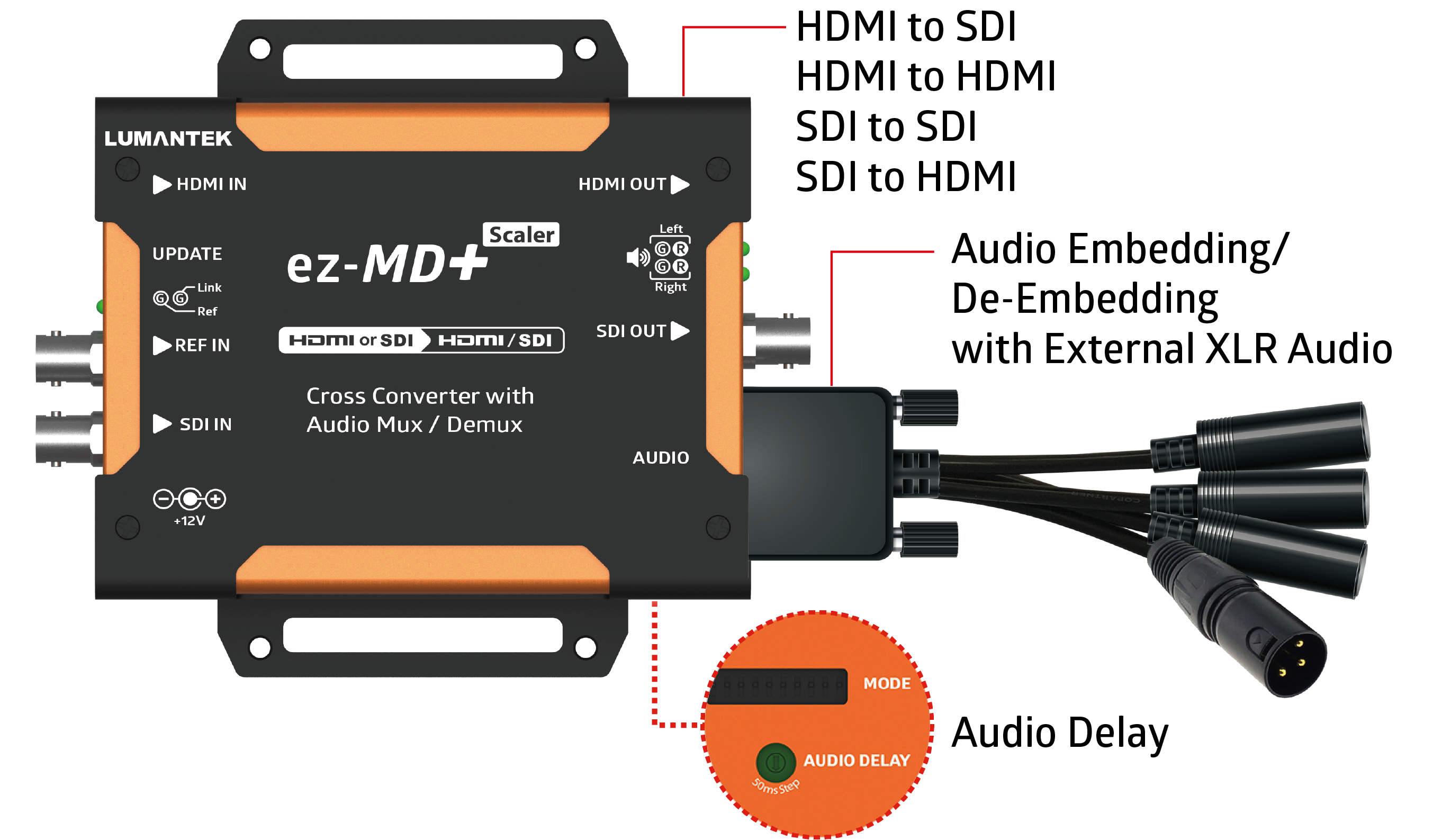

Audio embedding/De-embedding with external XLR Audio

9 pin serial port to XLR * 4 is complimentary.

Audio Delay control

Use the rotary switch to control the audio delay of the video source (50ms Step).



Frame Synchronization

There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.

Global Power Adaptor

All ez-Converters come with AC/DC power adaptor.
With three different types of replaceable plugs, make your work easy wherever you are.

HDMI/SDI Cross Converter

Input

SDI Video Input x 1
HDMI Video Input x 1
Audio Input x 1
HDMI/SDI Cross Converter

Output

SDI Video Output x 1
HDMI Video Output x 1
Audio Output x 1

HDMI/SDI Cross Converter



ARTICLES

WE RECOMMEND

The Lumantek ez-MD+ is a compact HDMI-to-SDI cross-converter featuring an integrated scaler, Genlock synchronization, and advanced audio processing via XLR. For professional use in OB vans or studios, compatibility with rack systems, distribution components, and Lumantek control systems is essential to ensure signal path stability.

Mounting Accessories - Accessories for the secure installation of converters in standard rack cabinets.

Video control rooms - Equipment for signal processing and switching that fully integrates with the converter’s outputs.

Signal distribution and routing - Components for routing and amplifying SDI and HDMI signals within the production chain.

Encoders and Signal Processing - Devices for encoding signals for IP streaming or inserting graphics into a video stream.

Parameters

Parameters

Manufacturer: Lumantek
Category: Signal converters
