Infinitek XLR kábel 100m na bubne Schill

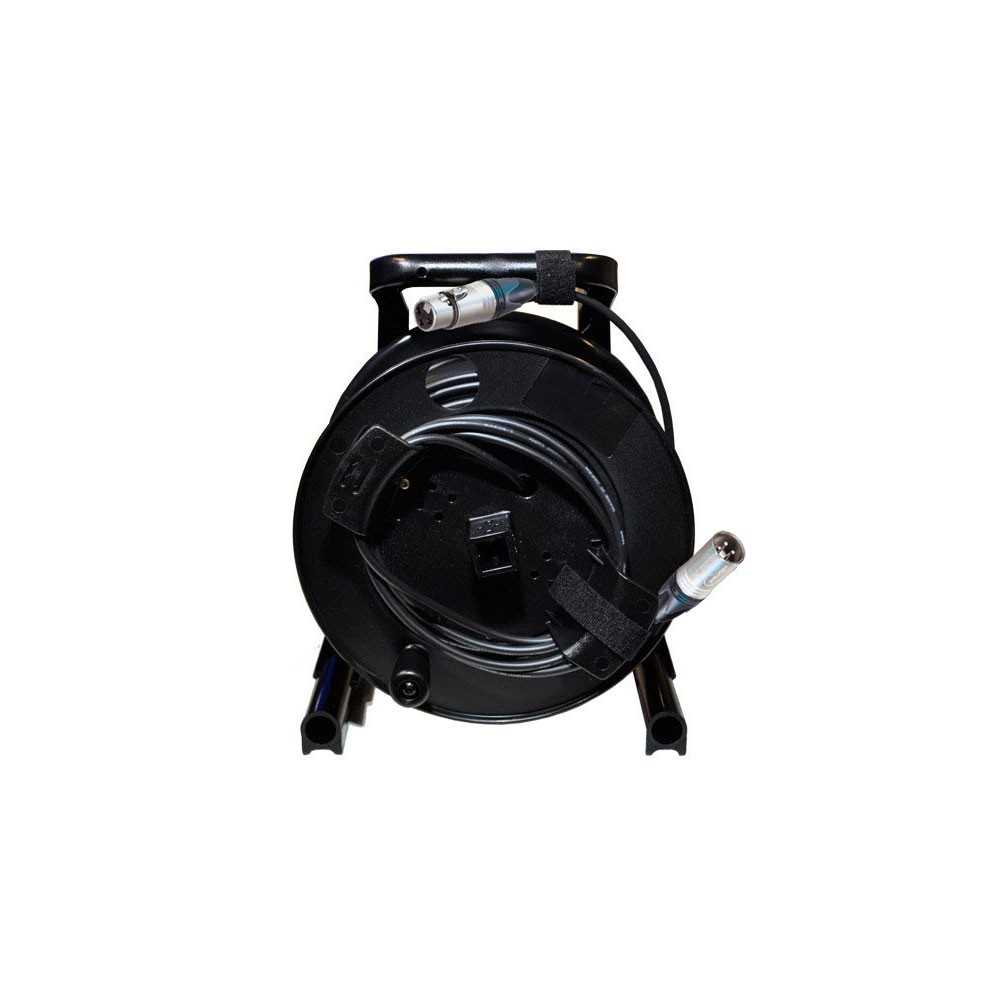

Canare L-2T2S professional symmetrical 2-wire 6.00 mm microphone cable with Neutrik NC3-XX XLR connectors wound on a Schill GT 310.RM cable reel.

Canare L-2T2S

is a high-quality 2-conductor flexible microphone cable for a wide range of applications. The high density of the braided copper shielding and two inner conductors with a diameter of AWG 23 (0.57 mm) composed of 60 thin strands of copper wire allow for maximum flexibility and reduce handling noise. The special PVC compound of the outer jacket resists cracking even in extremely cold environments.

Application:

• Microphones
• Stages, concerts
• Studios
• Fixed installations
• Audio rack cabling
• Amplifiers
• Audio patch cables

Features

• Copper braided shielding
• Flexible even in extremely cold weather
• Minimized handling noise
• Suppressed EMI (electromagnetic interference) and RFI (radio frequency interference)

Specifications:

• Standard lengths in (m): 100/200
• Cable weight in kg/100m: 4.6
• Sheath diameter (total diameter) in mm:6.0

• AWG: 23
• Outer insulation material and thickness in (mm):PVC (1.00)
• Break point in (°C): -49
• Number and color of conductors:2 / 1 x blue, 1 x white
• Number and diameter of cores in one conductor in mm: 60/0.08
• Shielding factor:>94%
• Conductor resistance in Ω/100m: <6.4
• Shielding resistance in Ω/100m: <3.1
• Capacitance between blue and white conductors in pF/m:70
• Capacitance between conductors and shielding in pF/m:106
• Impedance in Ω: 88

Schill GT 310.RM

Application:

• universal - for various types of cables
• plastic holder for cable attachment
• capacity in (m) according to cable diameter: 5 mm - 259 m, 6 mm - 172 m, 7 mm - 128 m

Specifications

• handle for easy winding
• integrated brake
• width x depth x height in mm: 310 x 230 x 367
• weight in kg: 1.80
