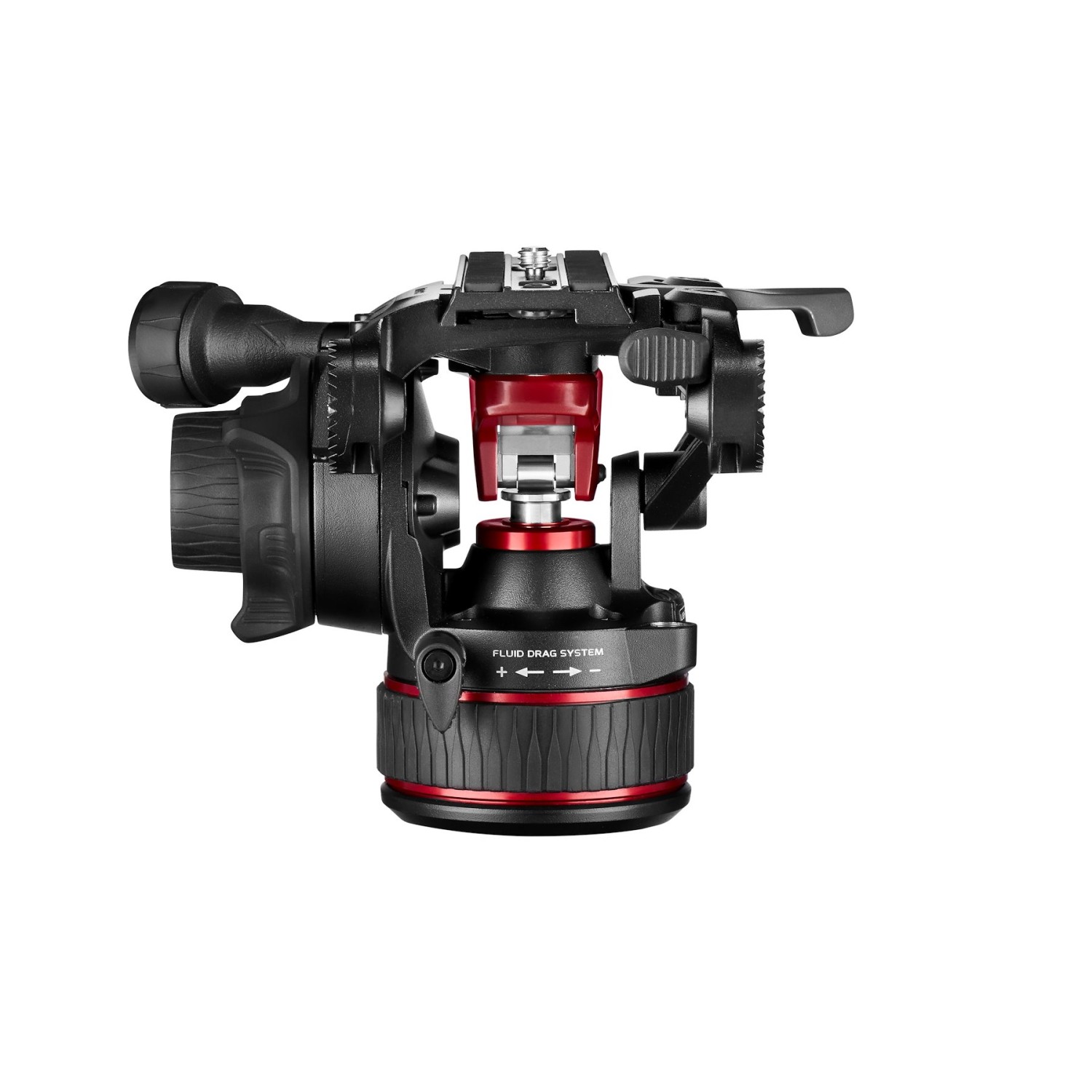

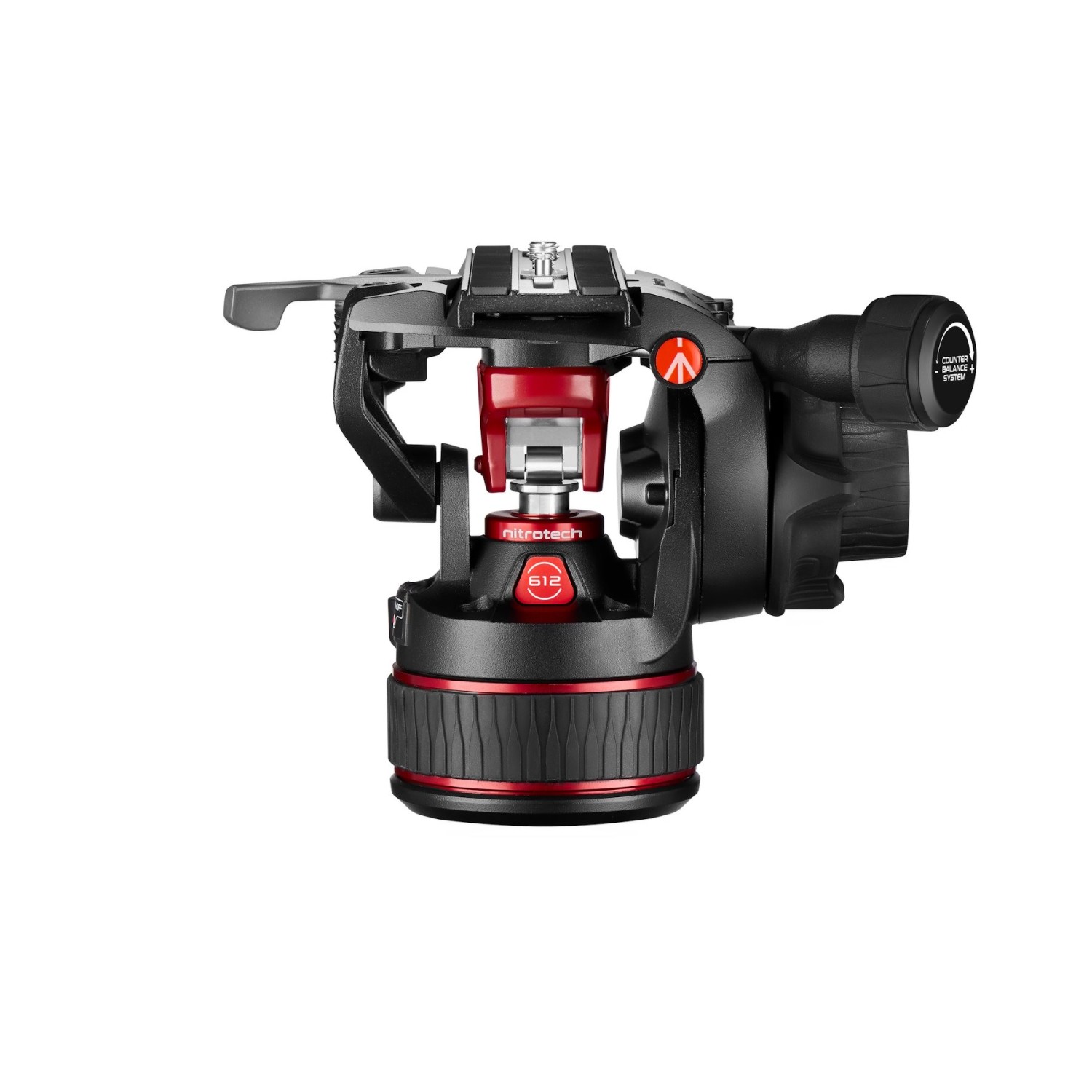

Manfrotto MVH612AH – Nitrotech 612 fluid video head

Manfrotto Nitrotech 612 Fluid Video Head With CBS — A professional fluid video head with a smooth counterbalance system for precise control of setups weighing 4 to 12 kg with a center of gravity of 55 mm. The Nitrotech 612 combines a continuously adjustable counterbalance system with fluid damping for both pan and tilt. The side plate lock…

More information

649 € with VAT 536.36 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Manfrotto Nitrotech 612 Fluid Video Head With CBS — A professional fluid video head with a smooth counterbalance system for precise control of setups weighing 4 to 12 kg with a center of gravity of 55 mm. The Nitrotech 612 combines a continuously adjustable counterbalance system with fluid damping for both pan and tilt. The side plate lock speeds up camera mounting, and the flat 75mm base with a 3/8″ thread allows for use on tripods, sliders, cranes, and other supports.

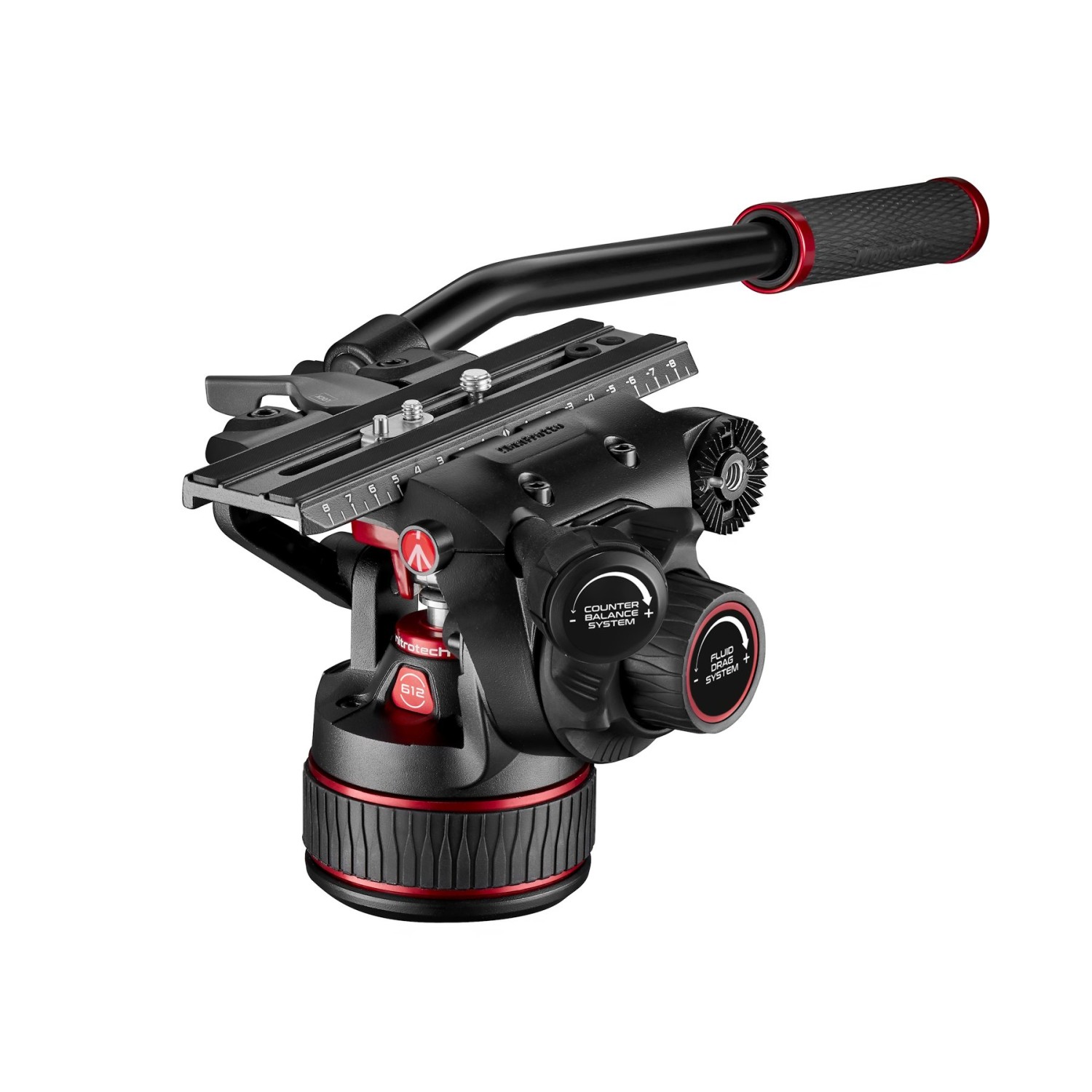

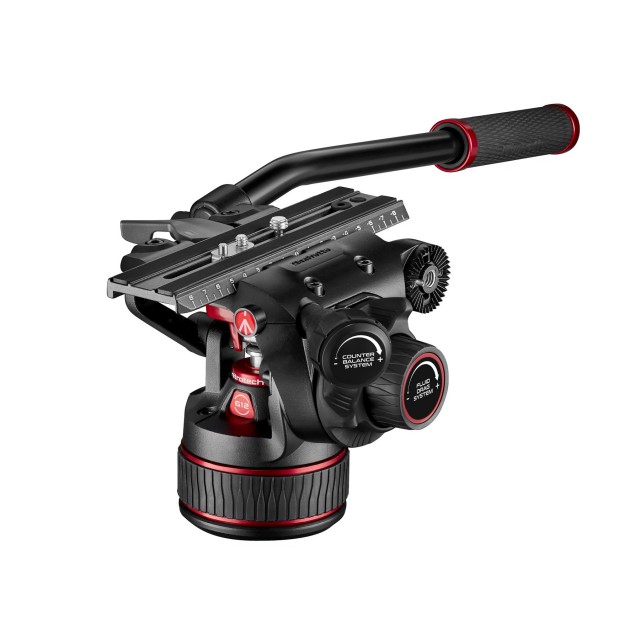

Manfrotto Nitrotech 612 Fluid Video Head With CBS

Smooth control of heavier camera setups

A professional fluid video head with a continuously adjustable counterbalance system for precise control of setups weighing 4 to 12 kg with a center of gravity of 55 mm.

The Nitrotech 612 combines a continuously adjustable counterbalance system with fluid damping for both pan and tilt. The side plate lock speeds up camera mounting, and the flat 75mm base with a 3/8″ thread allows for use on tripods, sliders, cranes, and other supports.

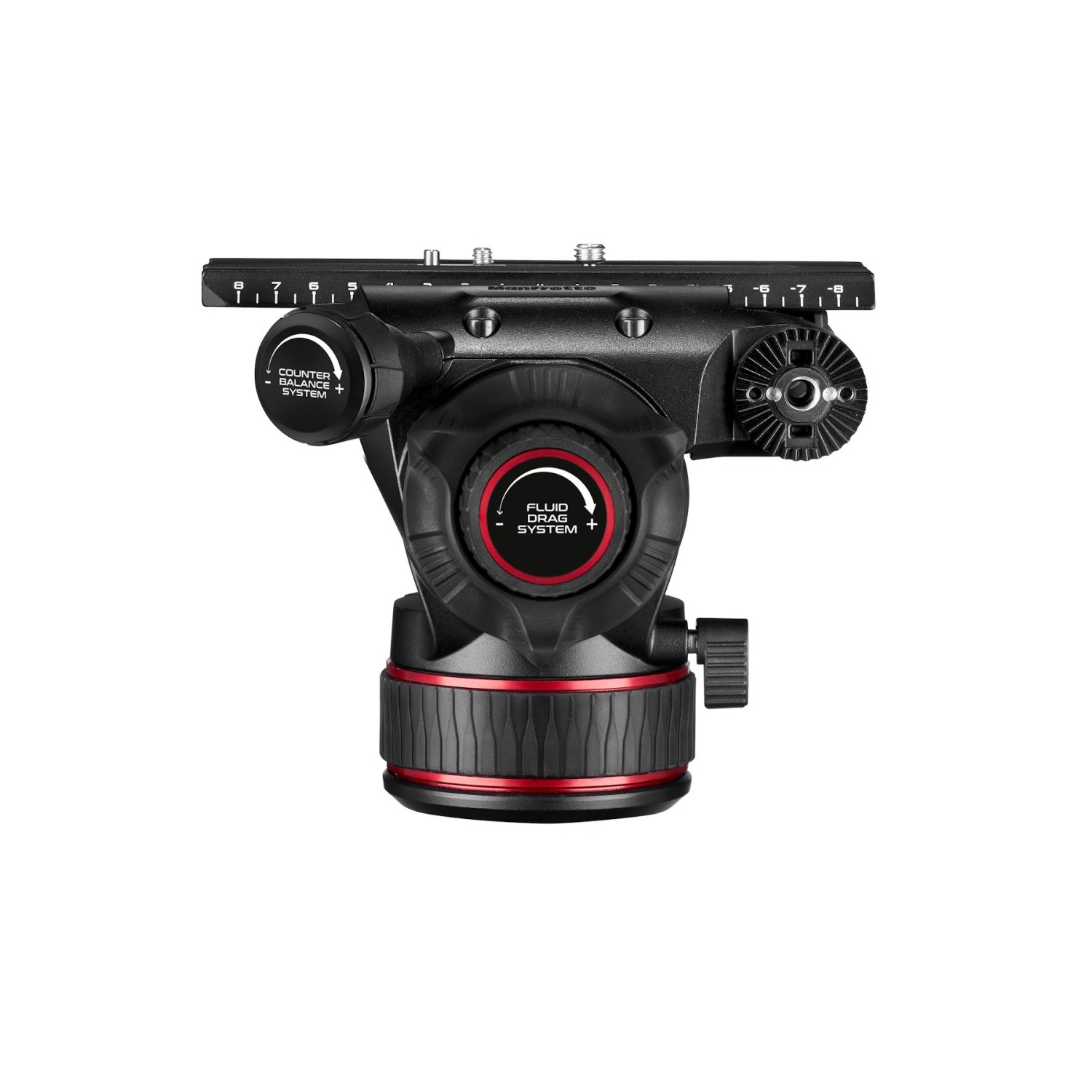

Continuous balancing from 4–12 kg

The counterweight can be fine-tuned in increments to match your specific setup. Even when changing the tilt, the camera remains under control, and the operator doesn’t have to struggle with sudden tilting.

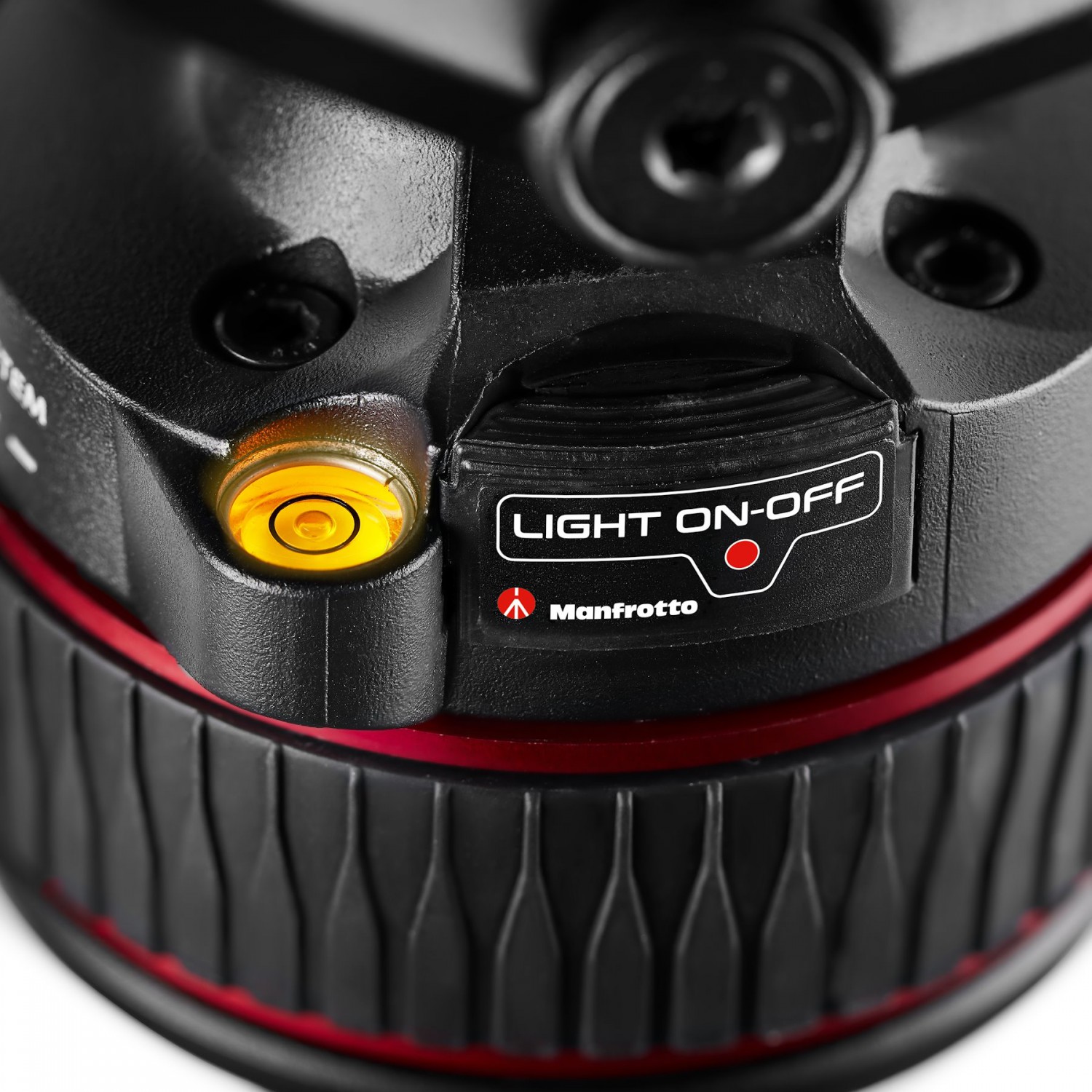

Manfrotto Nitrotech 612 Fluid Video Head With CBS – detail

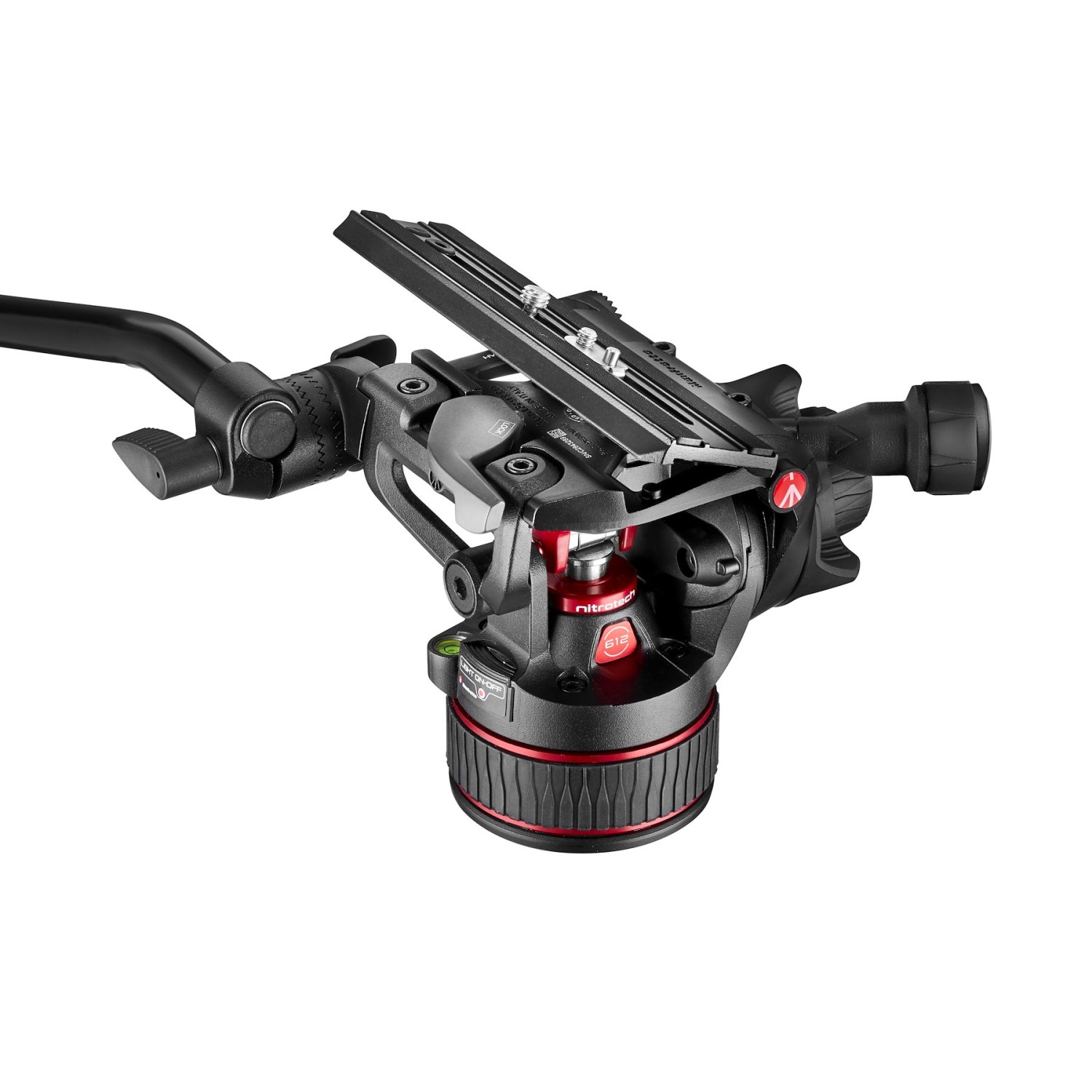

Easy Link and quick side mounting

The 3/8″ Easy Link with anti-rotation protection accepts accessories featuring Manfrotto’s anti-rotation system as well as ARRI positioning pins. The sliding plate slides in from the side, so there’s no need to thread the setup from the back.

Manfrotto Nitrotech 612 Fluid Video Head With CBS – použití

PACKAGE CONTENT

  • Nitrotech 612 MVH612AH Video Head
  • 504PLONGRL Sliding Camera Plate
  • Panoramic Arm

SPECIFICATIONS

  • Model: MVH612AH
  • Weight: 2.27 kg
  • Safe Load Capacity: 18 kg
  • Counterweight range: 4–12 kg with a center of gravity of 55 mm
  • Base: flat, 75 mm diameter, 3/8″ thread
  • Tilt: −70° to +90°
  • Panoramic rotation: 360°
  • Pan and tilt resistance: continuously adjustable
  • Plate: 504PLONGRL
  • Easy Link: 3/8″ with anti-rotation protection
  • Material: aluminum
  • Working height: 15 cm

WE RECOMMEND

To expand the capabilities of the video head, we recommend the compatible Manfrotto MVAPANBARM and MVAPANBARL panoramic arms and the longer 504PLONGRL sliding plate. These accessories are designed for this head interface.

Parameters

Parameters

Manufacturer: Manfrotto
Category: Heads

Main parameters

Payload18
Weight2.3kg
Ball TypeFlat
Max height15cm
TypeFluid
