Manfrotto 504X MVH504XAH – fluid video head with flat base

+16
  • LAST PIECE
SKU: MVH504XAH

The Manfrotto 504X MVH504XAH is a professional fluid video head with a flat 75 mm base for camera rigs up to 12 kg. Continuously adjustable pan and tilt drag, four counterbalance settings of 0/2.2/4.4/6.5 kg, the side-loading 504PLONGR-1 plate and two Easy Link ports make accurate balancing and accessory mounting faster.

More information

449 € with VAT 371.07 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
SKU:
MVH504XAH
Add to Compare Price history

Top accessories for Manfrotto 504X MVH504XAH – fluid video head with flat base

Manfrotto MVAPANBARL Telescopic PVC-Free Pan Bar

  • LAST PIECE
Manfrotto MVAPANBARL is a telescopic pan bar for precise control of compatible video
62 €
In stock 1 pcs

Manfrotto 504PLONGR-1 Video Camera Plate with Metric Ruler

Manfrotto 504PLONGR-1 is a 140 mm sliding video camera plate with a metric ruler
47 €
To be sent 4 pcs

Manfrotto MVAPANBARM Fixed PVC-Free Pan Bar

  • LAST PIECE
Manfrotto MVAPANBARM is a fixed-length, non-telescopic pan bar for selected professional
35 €
In stock 1 pcs
Product description

Product description

The Manfrotto 504X MVH504XAH is a professional fluid video head with a flat 75 mm base for camera rigs up to 12 kg. Continuously adjustable pan and tilt drag, four counterbalance settings of 0/2.2/4.4/6.5 kg, the side-loading 504PLONGR-1 plate and two Easy Link ports make accurate balancing and accessory mounting faster.

PROFESSIONAL CAMERA MOVEMENT

Smooth shots with precise counterbalance

The compact aluminium 504X combines a 12 kg safety payload with continuously adjustable fluid pan and tilt drag. Its flat 75 mm base suits tripods, sliders, jibs and other supports with a 3/8″ mount.

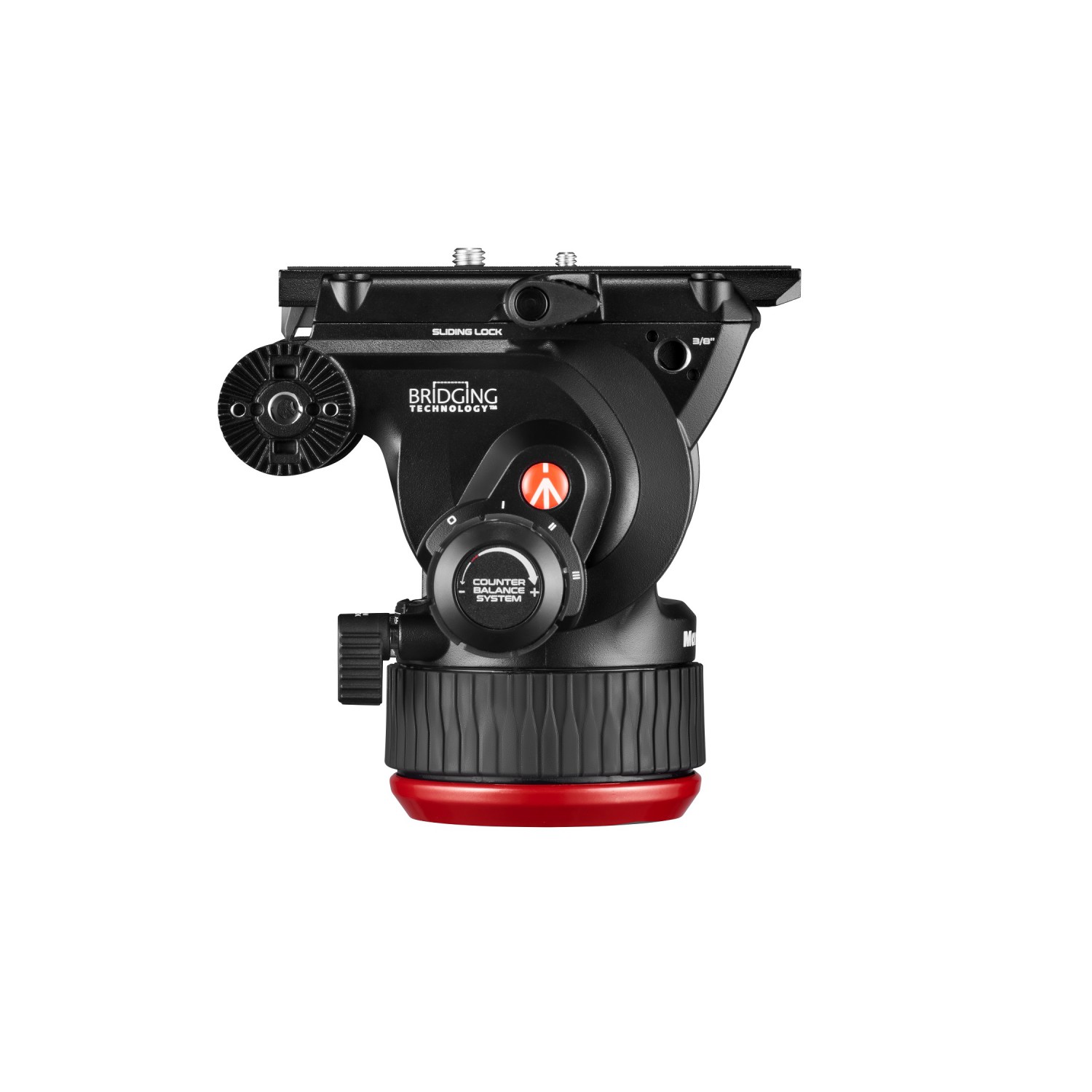

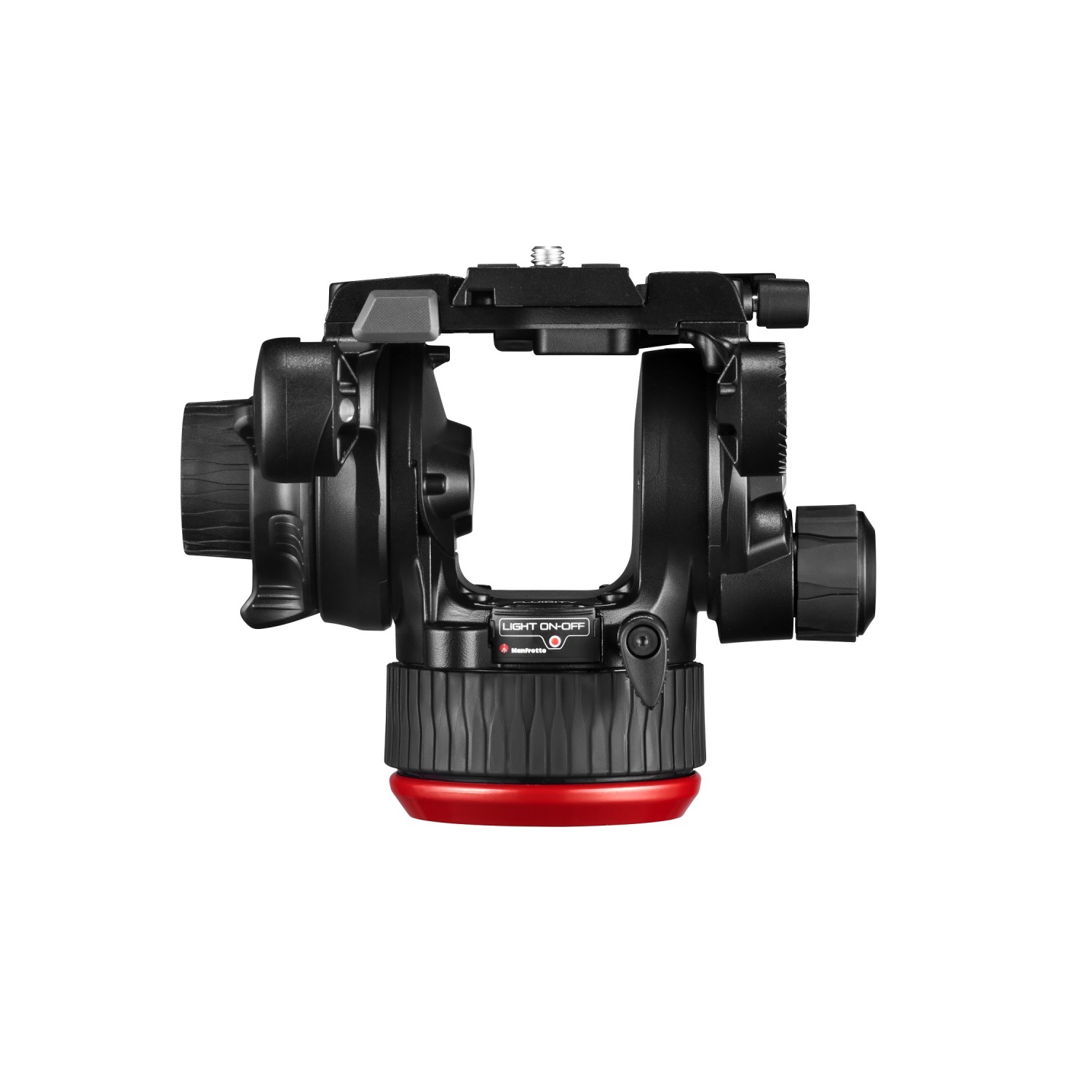

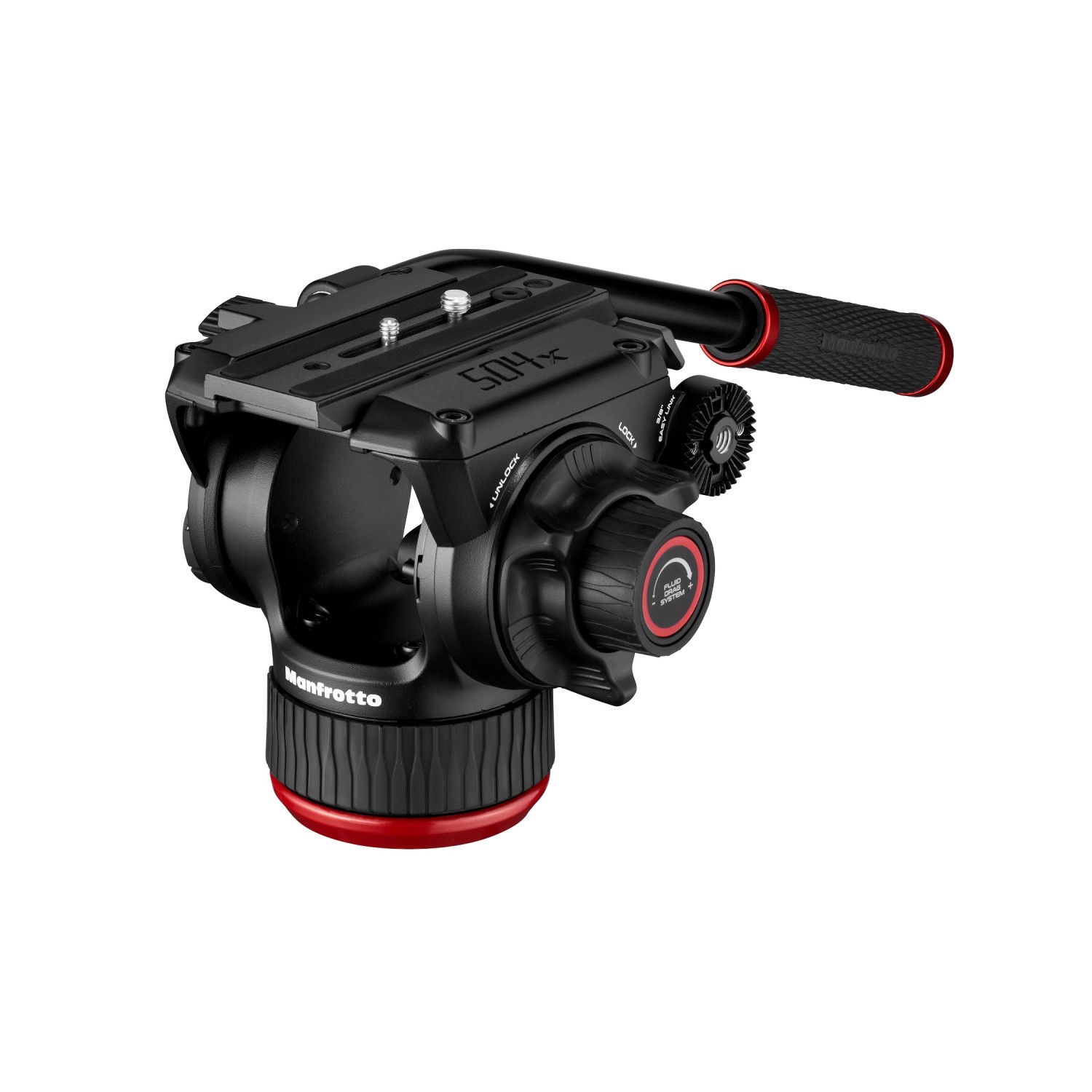

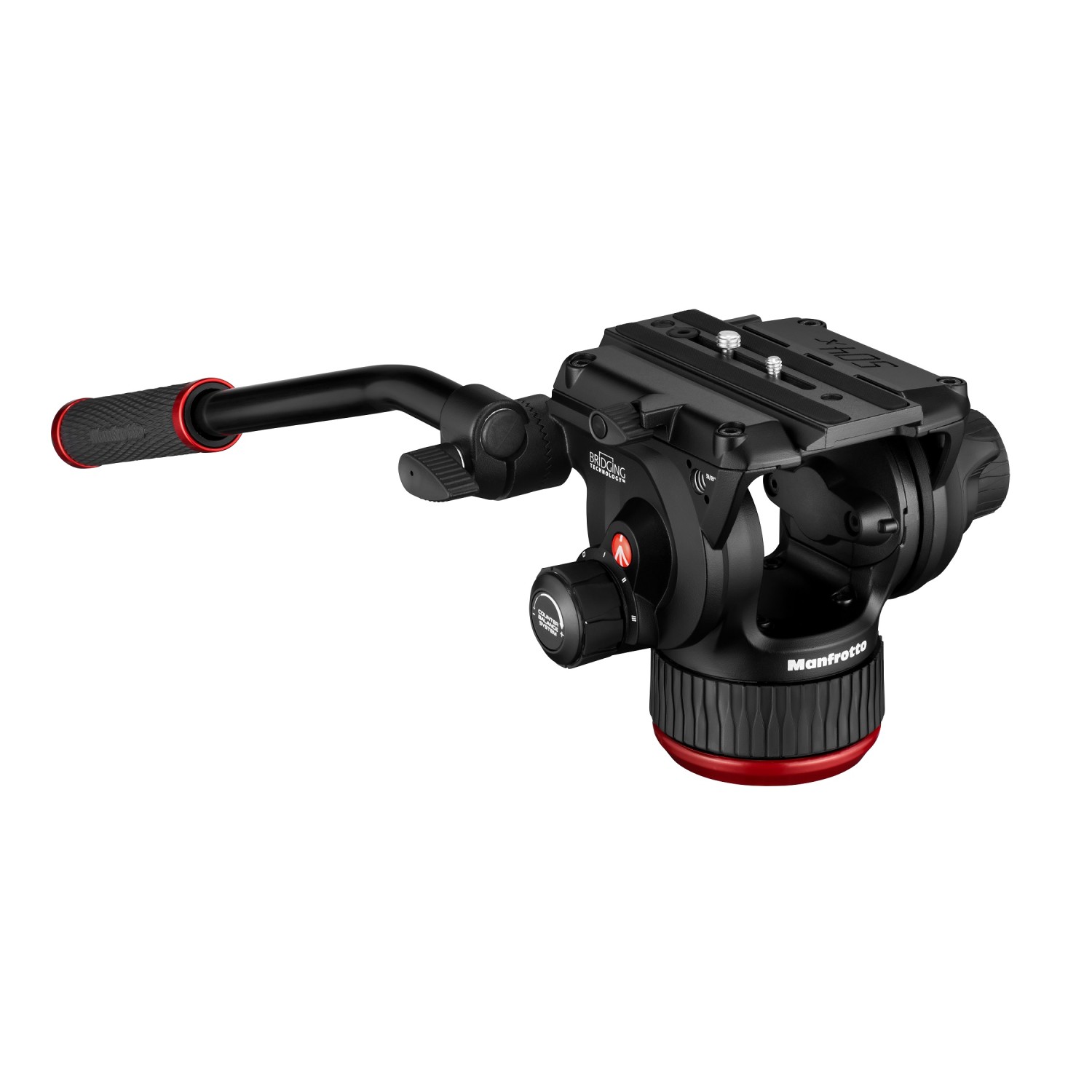

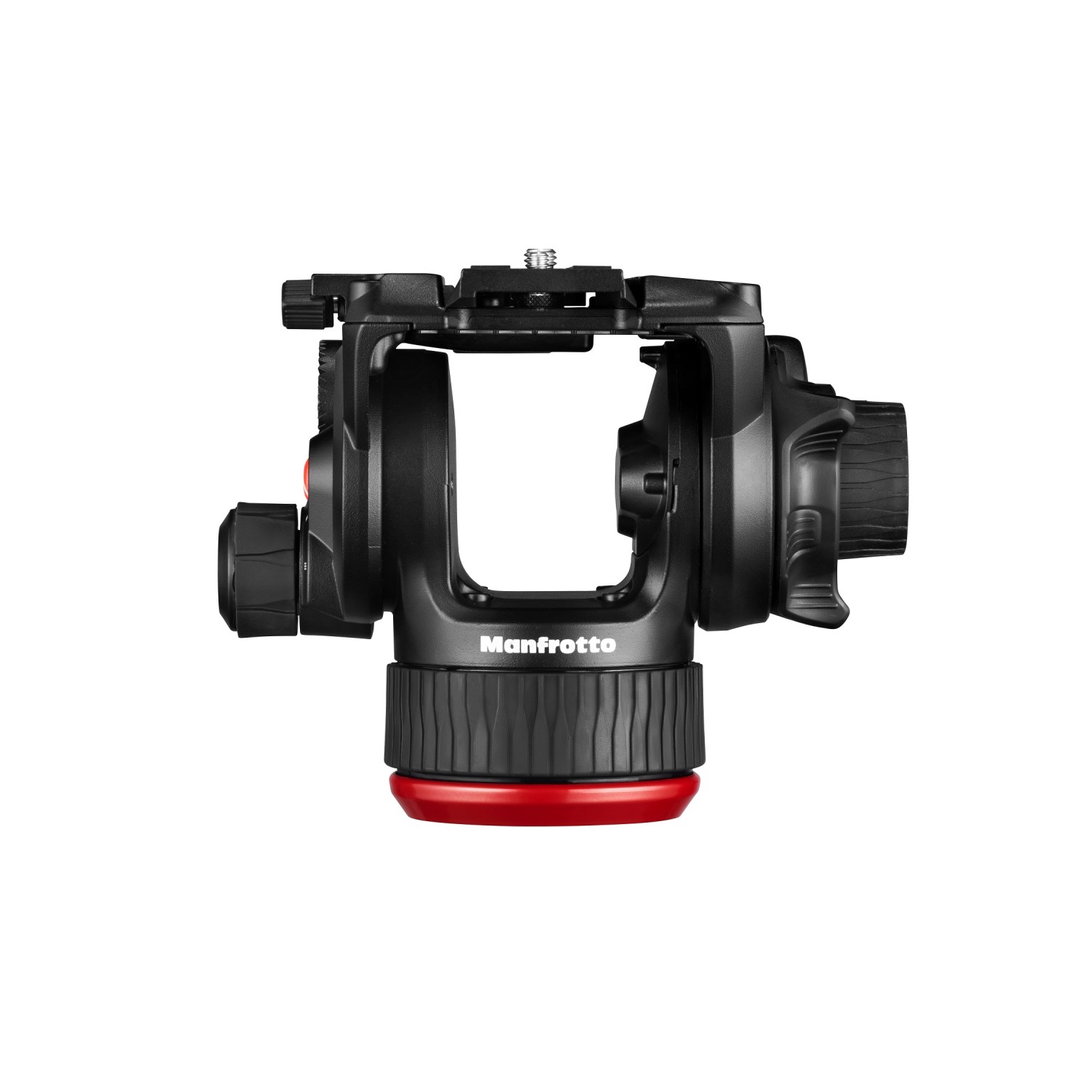

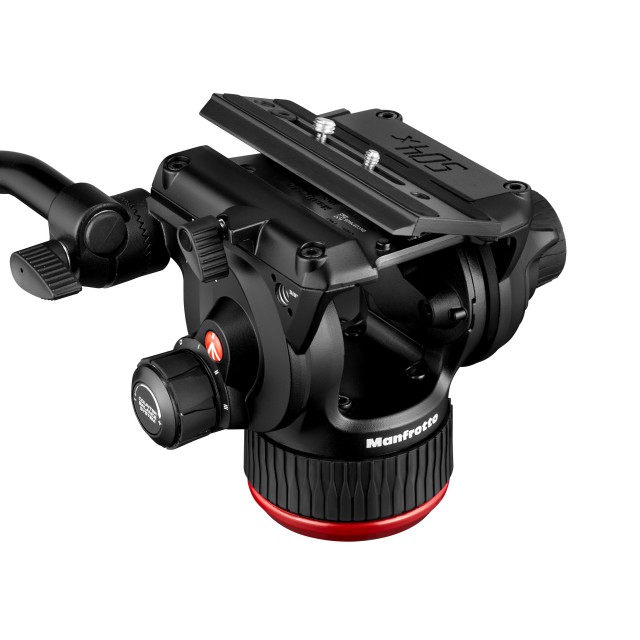

Manfrotto 504X MVH504XAH fluid video head

KEY FEATURES

  • Four counterbalance positions: 0 / 2.2 / 4.4 / 6.5 kg at 55 mm C.O.G.
  • Continuously adjustable pan and tilt drag from zero to maximum
  • Side lock and long 504PLONGR-1 quick-release plate

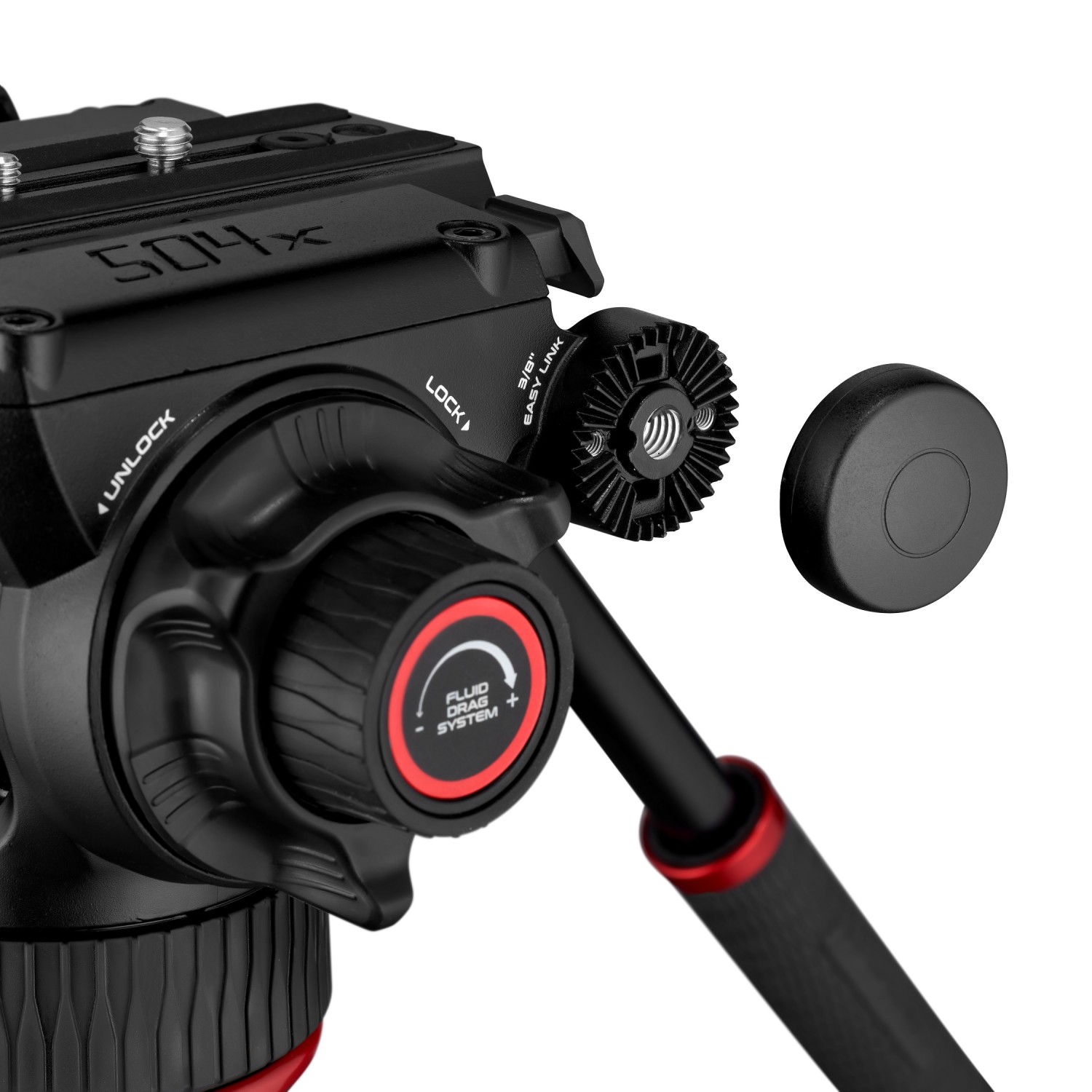

  • Two 3/8″ Easy Link ports for a monitor, recorder or other accessories

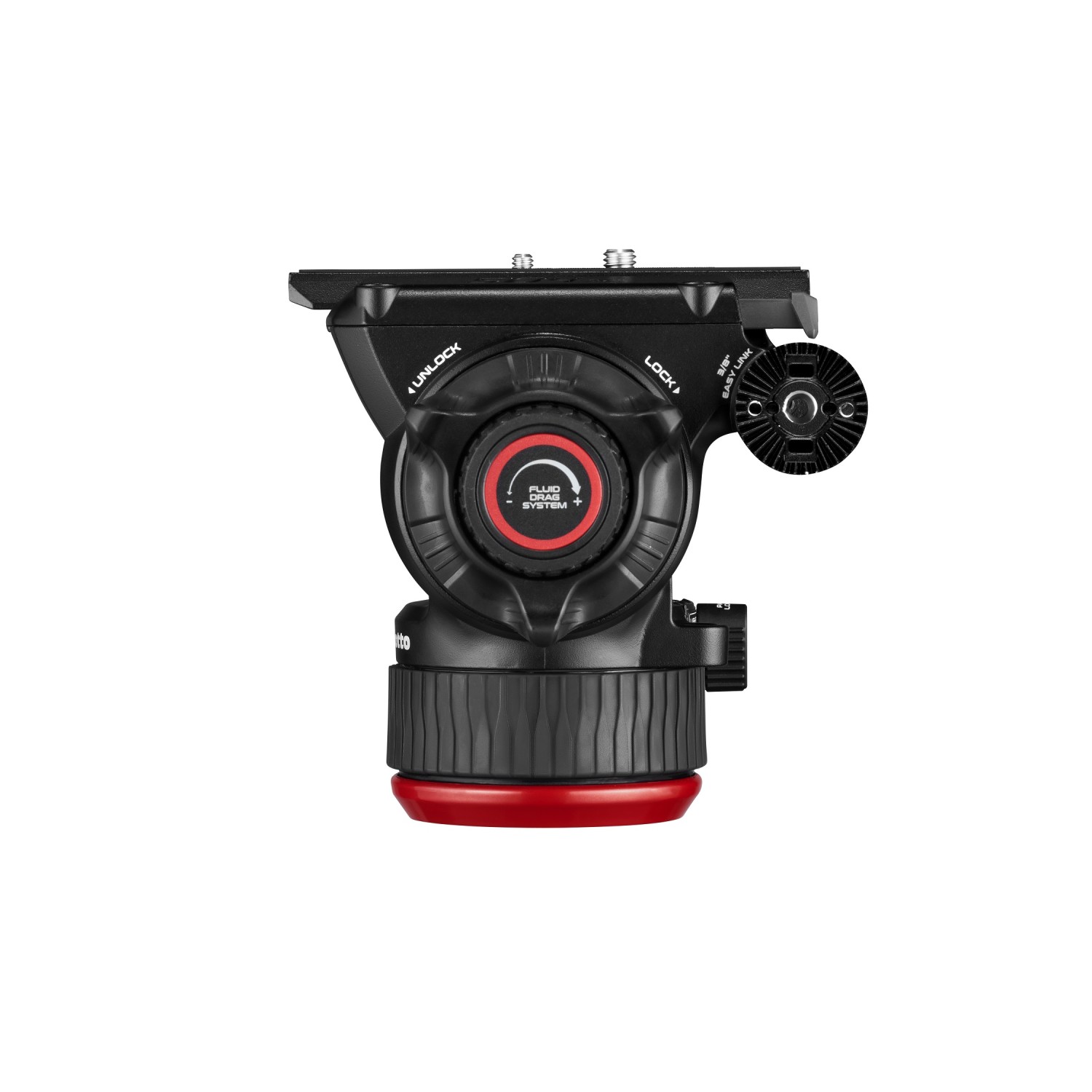

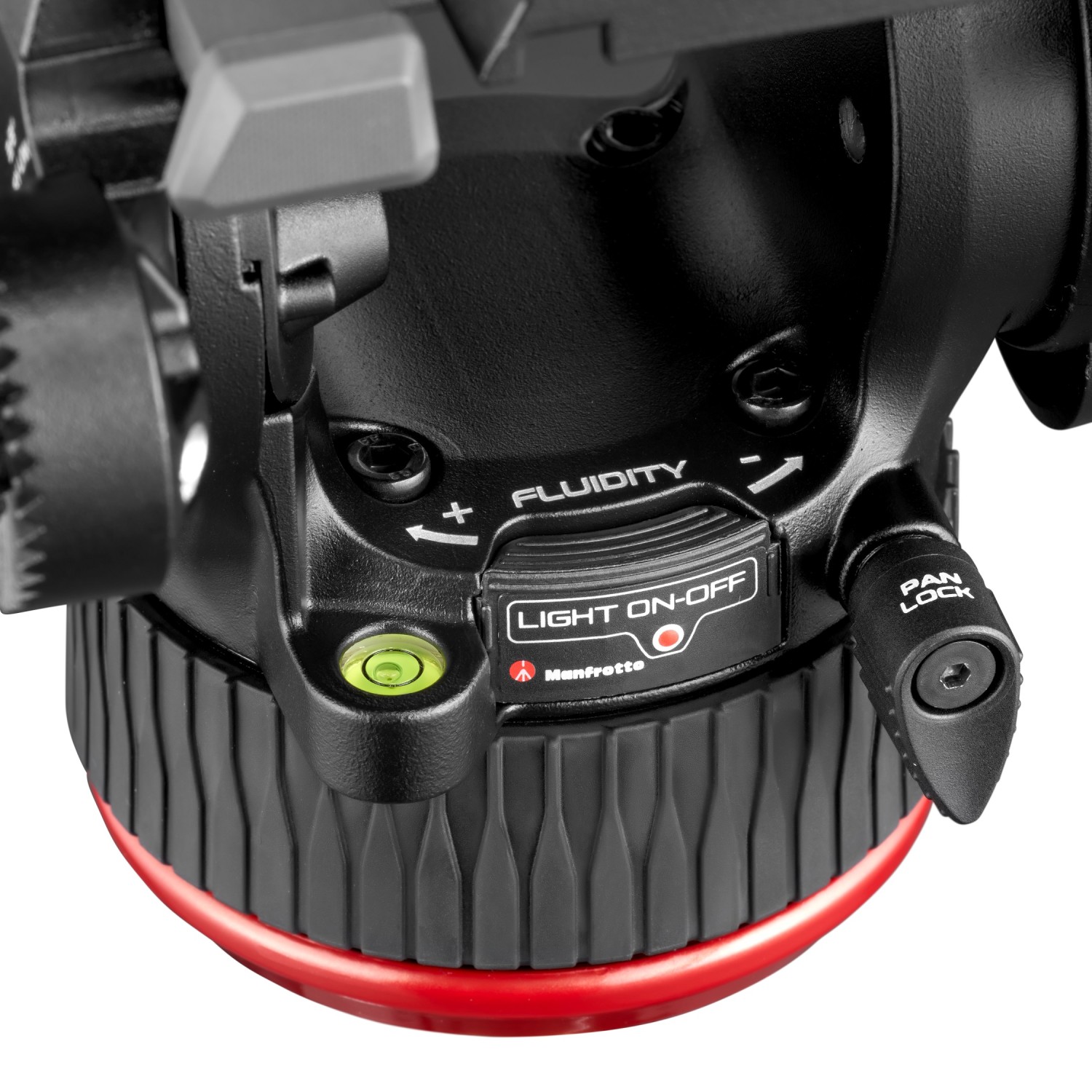

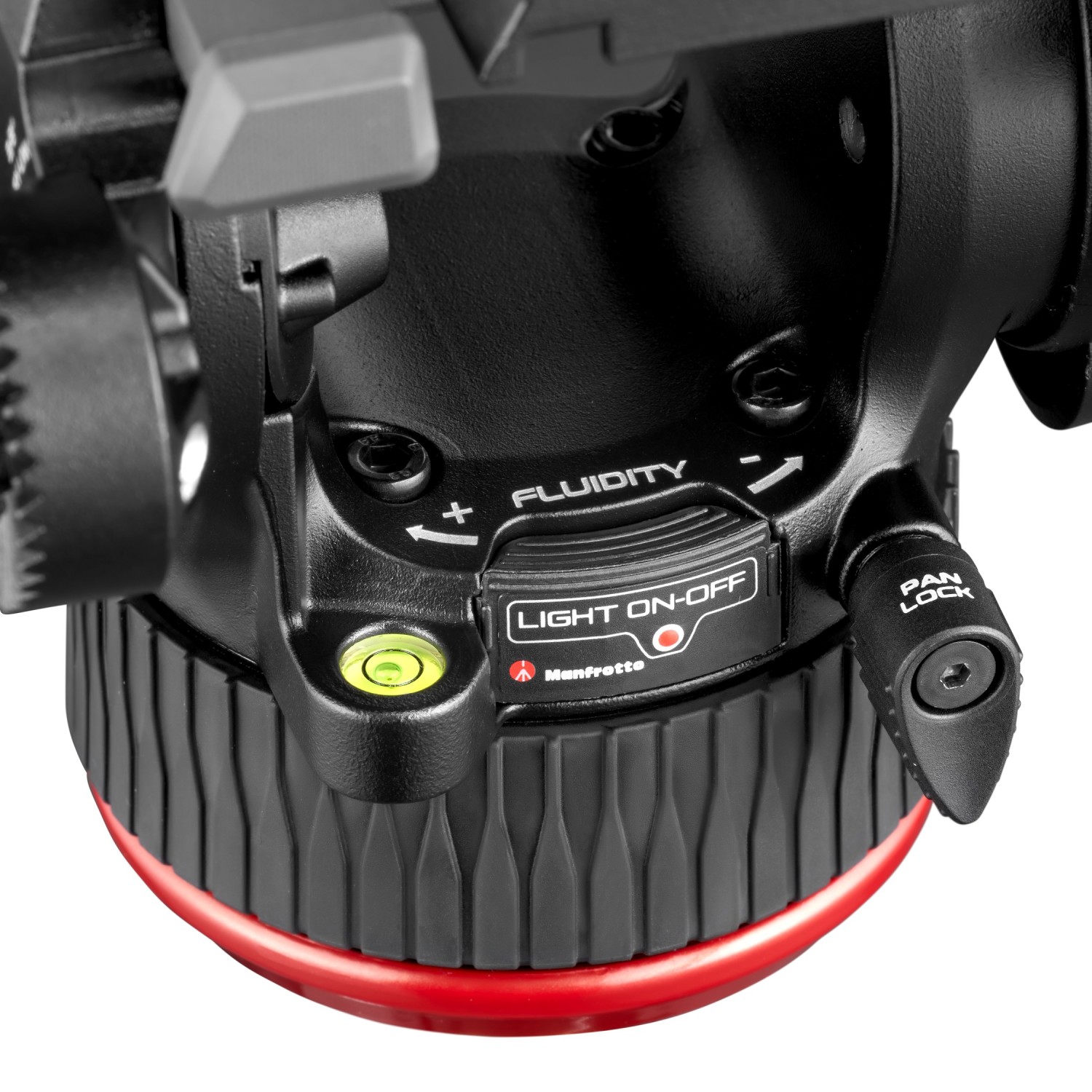

Manfrotto 504X controls and illuminated spirit level

MOVEMENT CONTROL

Independent fluid drag adjustment matches the head to the rig weight and desired shot pace. A −70° to +90° tilt range and full 360° pan cover studio, documentary, event and filmmaking work.

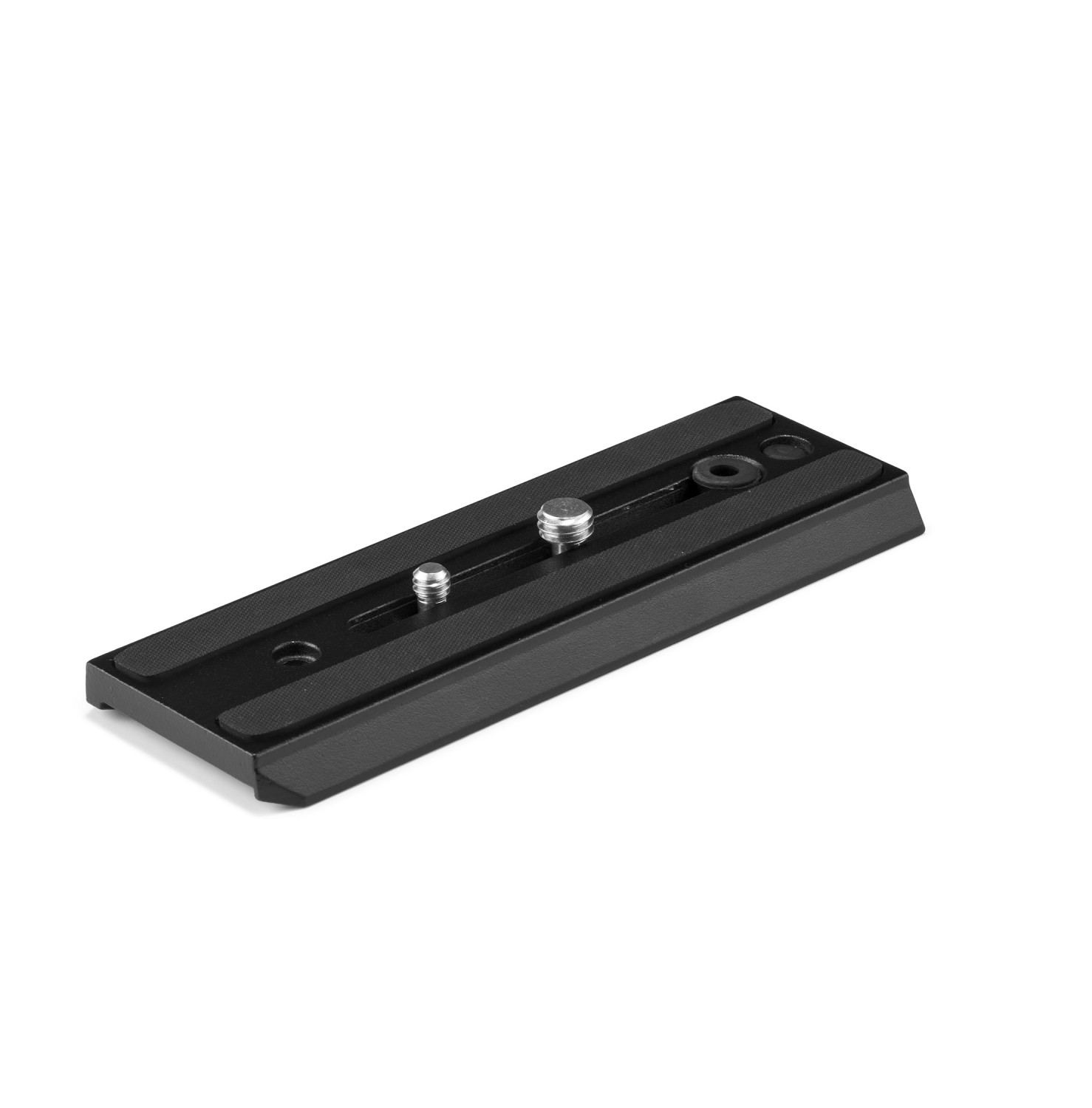

Manfrotto 504PLONGR-1 sliding plate

FAST, SECURE MOUNTING

The plate loads from the side, so the camera does not need to slide in from the rear beneath attached accessories. A backlit bubble level helps align the head in low light.

WHO THE 504X IS FOR

  • Video cameras, cinema builds and DSLR/mirrorless rigs up to 12 kg
  • Studio, event, documentary and independent film production
  • Tripods, sliders and jibs with a flat 3/8″ mount

PACKAGE CONTENTS

  • Manfrotto 504X MVH504XAH fluid video head
  • 504PLONGR-1 quick-release plate
  • Pan bar

TECHNICAL SPECIFICATIONS

Safety payload UNI/PdR 105:202112 kg
Weight2 kg
Counterbalance0 / 2.2 / 4.4 / 6.5 kg at 55 mm C.O.G.
Baseflat, 75 mm diameter, 3/8″ bottom thread
Tilt range−70° to +90°
Pan360°
Fluid dragcontinuously adjustable for PAN and TILT
Plate504PLONGR-1, side lock
Top attachment1/4″ and 3/8″ screws
Easy Link2× 3/8″
Spirit level1× backlit
Working height14.9 cm
Material / colouraluminium / black
Operating temperature−30 to +60 °C

WE RECOMMEND

The 504X head can be equipped with the optional MVAPANBARM panoramic arm or the MVAPANBARL telescopic arm, along with the original 504PLONGR-1 sliding plate.
