Kinefinity MAVO mark2 LF body

+2
  • Free transport
SKU: A010-003-01

The Kinefinity MAVO mark2 LF (A010-003-01) is a ultra-compact 1.37 kg full-frame 6K cinema camera with 6K86 ProRes 4444XQ, dual native ISO 800/5120, 14+ stops, single KineMAG Nano slot, KineMOUNT (no mount included), active PL/E/EF/LPL options, Wi-Fi app control—perfect for gimbal, drone and solo documentary.

More information

7 259 € with VAT 5 999.17 € without VAT
Add to Compare Price history
Availability
on request
SKU:
A010-003-01
Add to Compare Price history

Kinefinity MAVO mark2 LF (KineMOUNT)

7 509 €without VAT 6 205.79 €

Kinefinity MAVO mark2 LF (PL Mount)

8 109 €without VAT 6 701.65 €

Kinefinity MAVO mark2 S35 (PL Mount)

5 689 €without VAT 4 701.65 €

Top accessories for Kinefinity MAVO mark2 LF body

Kinefinity EAGLE HDMI e-Viewfinder Pro KIT

  • Free transport
The EAGLE HDMI e-Viewfinder Pro KIT is a comprehensive, universal solution that includes
1 999 €
In stock 1 pcs

Kinefinity EAGLE HDMI e-Viewfinder Core KIT

  • Free transport
The Kinefinity K911-002-01 EAGLE HDMI e-Viewfinder Core KIT is a professional, zero-latency
1 639 €
on request

Kinefinity MAVO Edge 6K (Black)

  • Free transport
The Kinefinity MAVO Edge 6K Cyber Edition (A010-002-03) is a full-frame 6K cinema
12 099 €
on request

Kinefinity KineMAG USB-C 10Gbps Cable

The Kinefinity Short 10 Gb/s USB-C Data Cable (A633-001-01) enables ultra-fast 10
48 €
on request

Kinefinity USB-C Cable (C2C, 25cm)

The Kinefinity USB-C to USB-C Cable (K611-005-01) is a 9.8" (25 cm) straight black
3.5 €
on request

Kinefinity HDMI e-Viewfinder Cord (D-Tap, 50cm)

The Kinefinity K611-004-01 is a 19.7" (50 cm) black D-Tap to USB-C + HDMI combo cable
60 €
on request

Kinefinity EAGLE HDMI e-Viewfinder

  • Free transport
The Kinefinity EAGLE HDMI e-Viewfinder Black (K110-002-01) is a 290 g zero-latency
1 459 €
on request

Kinefinity HDMI e-Viewfinder Cord (Type-C, 50cm)

The Kinefinity K611-003-02 is a 19.7" (50 cm) black sheathed combo cable for the
16 €
on request

Kinefinity HDMI e-Viewfinder Cord (Type-C, 25cm)

The Kinefinity USB-C and HDMI Combo Viewfinder Cable (K611-003-01) is a 25 cm (9.8")
12 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Kinefinity MAVO mark2 LF (A010-003-01) is a ultra-compact 1.37 kg full-frame 6K cinema camera with 6K86 ProRes 4444XQ, dual native ISO 800/5120, 14+ stops, single KineMAG Nano slot, KineMOUNT (no mount included), active PL/E/EF/LPL options, Wi-Fi app control—perfect for gimbal, drone and solo documentary.

The Kinefinity MAVO mark2 6K LF (A010-003-01) is a revolutionary large-format cinema camera that shrinks flagship performance into a 1.37 kg aluminum brick smaller than an ARRI Alexa Mini. Built around the same 24 MP full-frame 3:2 CMOS sensor as the MAVO Edge 6K, it delivers 6K86 Open Gate, 6K Wide 96 fps, oversampled 4K 120 fps, and anamorphic 4:3/6:5 modes—all in ProRes 4444XQ direct to a single KineMAG Nano SSD. Dual native ISO 800/5120 plus advanced image processing yields 14+ stops with richer highlights and cleaner shadows than ever. Record KineLOG3 or upload custom 3D LUTs. The native KineMOUNT accepts active PL (Cooke /i), active EF, active E, and LPL adapters (sold separately) with full iris/focus/zoom/metadata and lens stabilization support. A hybrid V-mount/BP-U plate, 23 W draw, 2× XLR, 3G-SDI, dual proprietary outputs, Wi-Fi app control, and hot-swappable lens mounts make it broadcast-ready.

Key Features:

  • Full-frame 6K 3:2 CMOS (6016×3984), 14+ stops
  • 6K86 Open Gate, 6K96 Wide, 4K120, anamorphic 4:3 & 6:5
  • ProRes 4444XQ/4444/HQ/LT/Proxy internal (single KineMAG Nano)
  • Dual native ISO 800 & 5120

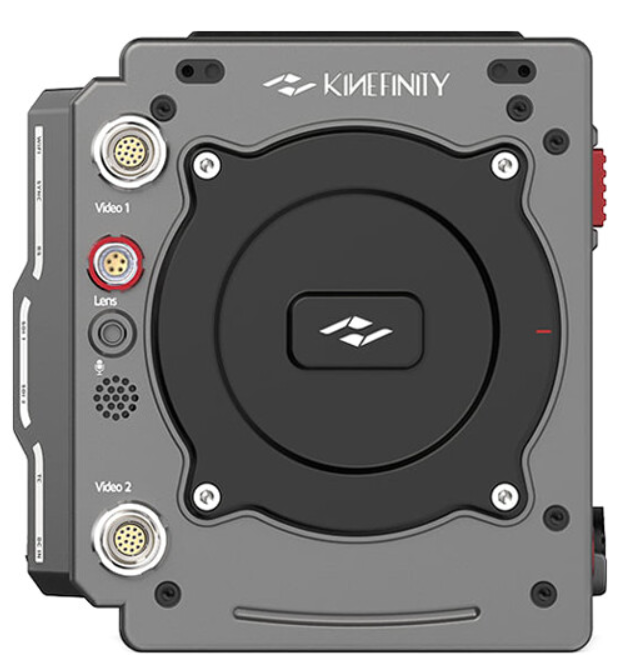

  • KineMOUNT + active PL/EF/E/LPL adapters (separate)
  • Cooke /i, lens metadata, EIS support
  • Wi-Fi 5 live view + full remote control app
  • Ultra-compact 124×107×106 mm, 1.37 kg

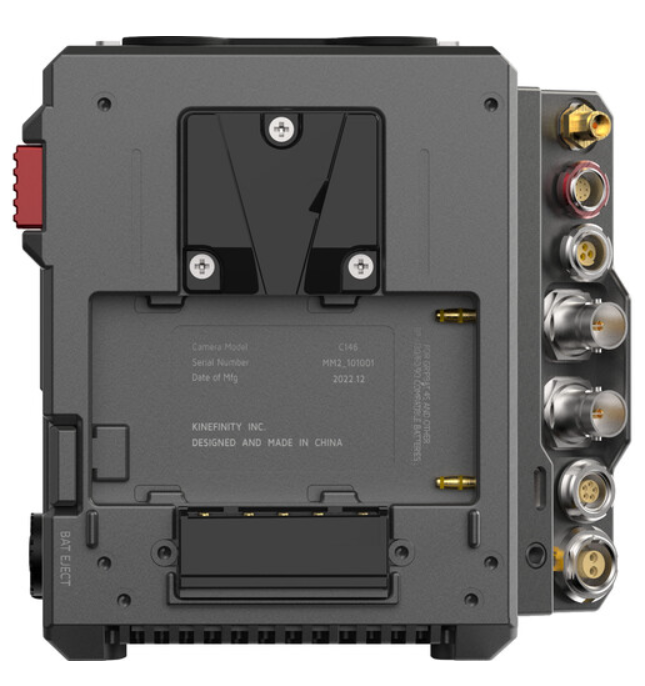

  • Hybrid V-mount/BP-U battery plate

PACKAGE CONTENT

  • Kinefinity MAVO Mark2 6K LF Digital Cinema Camera (No Lens Mount)

SPECIFICATIONS

  • Model: A010-003-01 (body only, no lens mount)
  • Sensor: Full-frame 36×24 mm CMOS, 24 MP
  • Recording: ProRes 4444XQ to KineMAG Nano
  • Max Rates:
    • 6K Open Gate 86 fps
    • 6K Wide 96 fps
    • 4K 120 fps
    • 2K 290 fps (S16)
  • ISO: Dual native 800 & 5120
  • Video Outputs: 1× 3G-SDI, 2× proprietary (KineMON/EVF)
  • Audio: 2× XLR (+48 V), 3.5 mm mic/headphone
  • Power: 11–19 V, 23 W average; V-mount/BP-U hybrid
  • Dimensions: 124 × 107 × 106 mm
  • Weight: 1.37 kg (body only)

WE RECOMMEND

The Kinefinity MAVO mark2 LF is a high-performance full-frame camera with a KineMOUNT mount and hybrid power system that requires specific adapters and accessories to maximize its potential. For this model, we have selected compatible mounting adapters, power solutions, and rigging components that ensure reliable operation in a professional environment.

Lens Adapters - Due to the native KineMOUNT mount, these adapters are essential for using standard film and photographic lenses.

Power and Cables - Accessories for power supply and connection to other systems, fully compatible with the camera's voltage range.

Viewfinders and Monitoring - High-quality SDI viewfinders for precise focusing and composition, utilizing the camera’s 3G SDI output.

Rigs and mechanical accessories - Components for building camera rigs and mounting on tripods or gimbals.

Parameters

Parameters

Manufacturer: Kinefinity
Category: Compact cameras

Main parameters

Camera Sensor sizeFull-frame 36×24 mm CMOS
Resolution24 MP
Type of bayonetKineMOUNT
Output3G SDI

Other parameters

FPS6K Open Gate 86 fps 6K Wide 96 fps 4K 120 fps 2K 290 fps (S16)
Battery type11–19 V, 23 W average; V-mount/BP-U hybrid
Native ISO8005120
