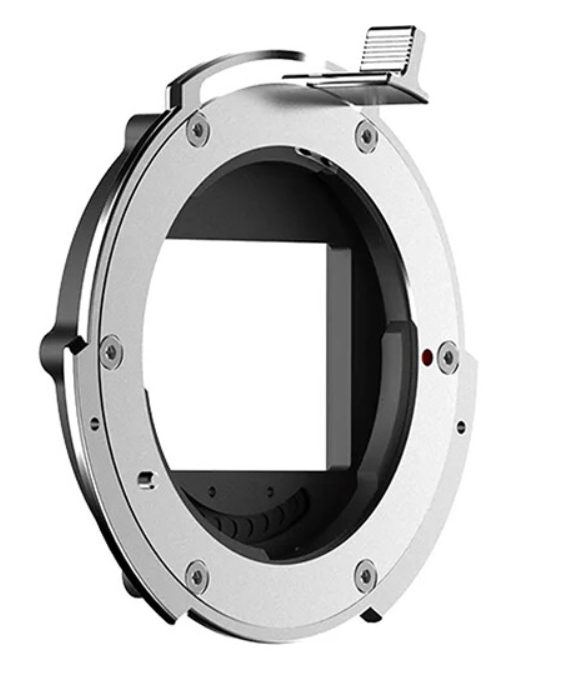

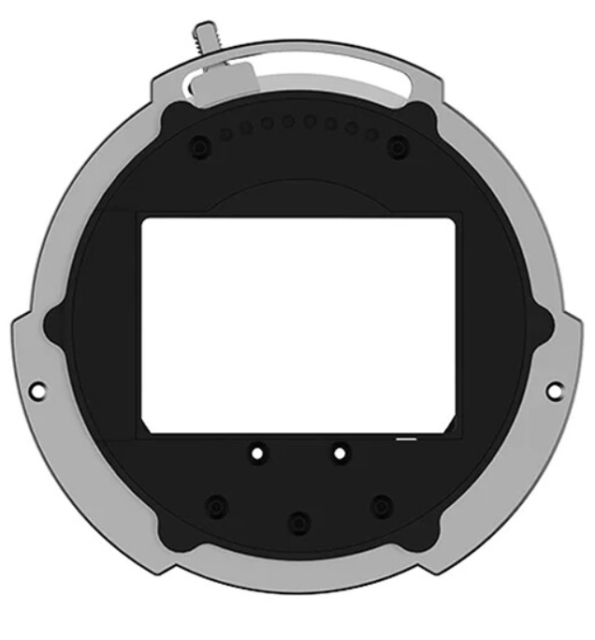

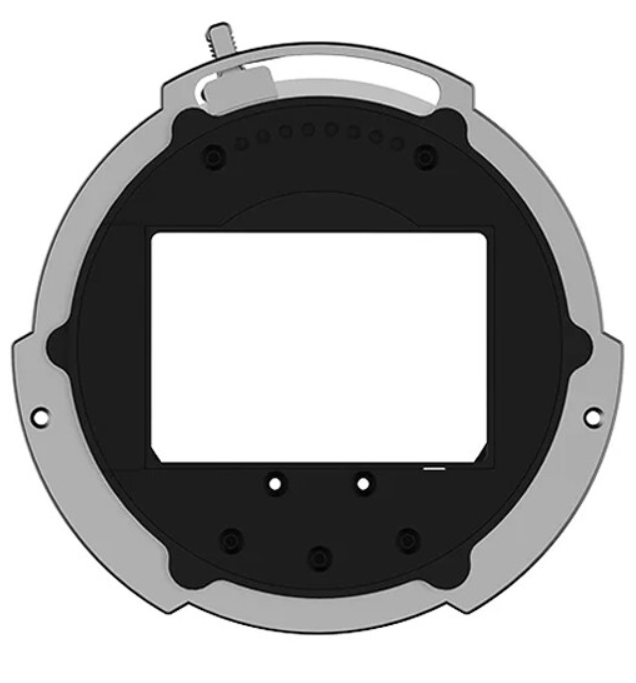

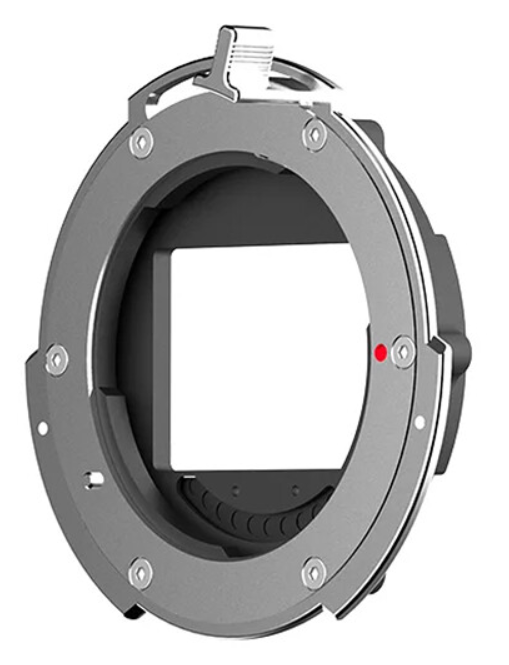

Kinefinity E Mounting Adapter

The Kinefinity E Mounting Adapter (A230-007-01) is a cordless, cine-style breech-lock E-mount adapter for KineMOUNT (MAVO Edge/mark2/TERRA). Tool-free 10-sec swap, zero-play steel/aluminum construction—unlocks full-frame on large-format Kinefinity bodies.

The Kinefinity E Mounting Adapter (A230-007-01) is the world’s first native E-mount adapter with true cine breech-lock for KineMOUNT-equipped cameras (MAVO Edge 8K/6K, MAVO mark2 LF/S35, TERRA 4K). CNC-machined from aluminum + stainless steel, it delivers zero flex, zero tilt, and zero back-focus shift even with 1.5 kg E-mount zooms. PL-style counter-clockwise lever lock seats lenses with a satisfying click—rock-solid for gimbal, Steadicam, or drone work. Tool-free swap with EF, PL, LPL, or e-ND adapters in under 10 seconds—no shims, no recalibration. Short 18 mm flange design + precision 0.005 mm tolerance guarantees tack-sharp corner-to-corner performance.

Key Features:

• Native E-mount for KineMOUNT (MAVO Edge/mark2/TERRA)
• Cine breech-lock – 90° counter-clockwise lever, PL-style
• Zero electronics – no AF, no aperture control (manual E lenses only)
• Tool-free 10-sec swap with EF/PL/LPL/e-ND
• Stainless + aluminum, zero back-focus drift
• Supports full-frame FE & S35 E cine glass
