Kinefinity KineMON-7U2 Ultra-Bright Monitor

The Kinefinity KineMON-7U2 (A120-002-01) is a 7" 2000-nit Full HD IPS touchscreen monitor for MAVO/Edge cameras. Features 100% Rec.709, 441 ppi, Gorilla Glass, anti-glare/fingerprint coatings, and pro tools (waveform, false color). Aluminum body, 1/4"-20 anti-twist mount, powered via single proprietary cable.

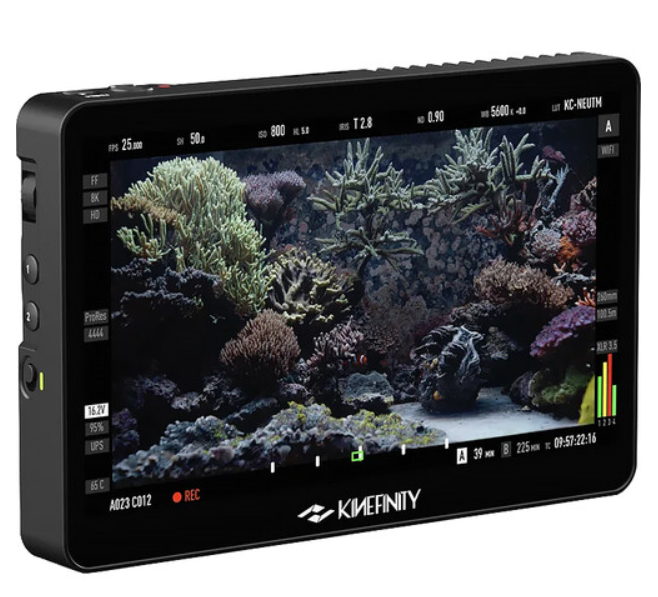

The Kinefinity KineMON-7U2 Ultra-Bright 7" Touchscreen Monitor (A120-002-01) is a daylight-viewable on-camera display engineered for Kinefinity MAVO, Edge, and TERRA cinema cameras. Its 1920 x 1080 IPS LCD delivers 2000 nits brightness, 1000:1 contrast, and 100% Rec.709 color with 16.7 million colors at 441 ppi—ensuring accurate, vibrant images even under direct sunlight. The Gorilla Glass panel resists scratches and features anti-glare and anti-fingerprint coatings for clear visibility and easy cleaning. Full touchscreen control enables intuitive menu navigation and tool activation, including waveform, histogram, RGB parade, false color, focus peaking, and custom LUTs. It mounts securely via a bottom 1/4"-20 anti-twist thread. The rugged aluminum alloy chassis (450 g) integrates seamlessly into professional rigs, making it ideal for DITs, DPs, and focus pullers in demanding outdoor and studio environments.

Key Features:

• 7" Full HD (1920 x 1080) IPS LCD with 2000 nits ultra-bright daylight viewability
• 100% Rec.709 color gamut, 1000:1 contrast, 178° viewing angle
• Gorilla Glass with anti-glare and anti-fingerprint coatings
• Full touchscreen interface with pro monitoring tools (waveform, histogram, false color, peaking)
• Single proprietary cable input for video + power from camera

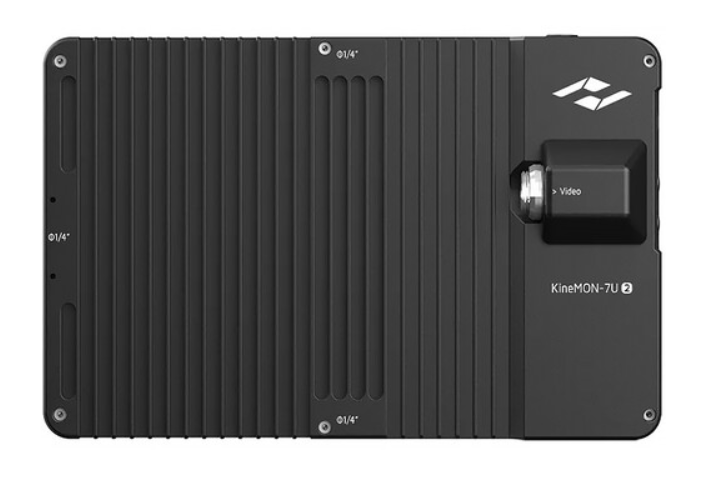

• 1/4"-20 female anti-twist mounting thread (bottom)
• Lightweight aluminum alloy body (450 g) with integrated sun hood
• Compatible with all Kinefinity cinema cameras (MAVO, Edge, TERRA)
