Kinefinity KineMON-5U2 Pack

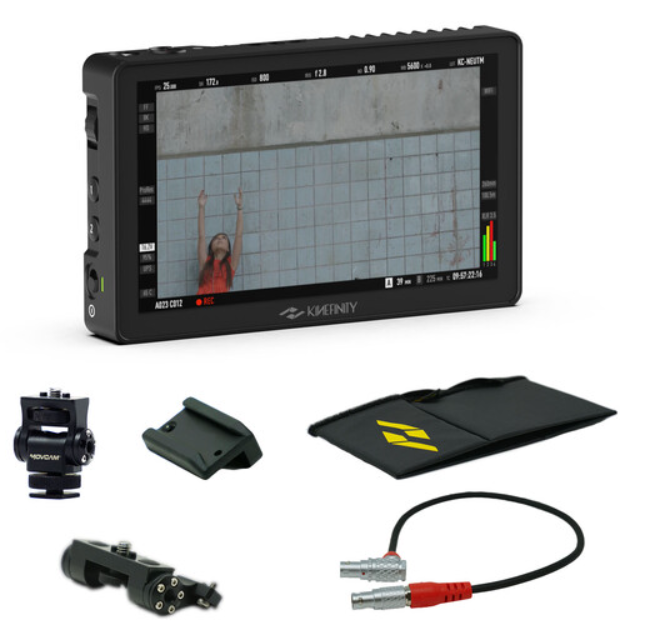

The Kinefinity A912-001-01 KineMON 5U II Complete Monitor Package is the all-in-one daylight-viewable monitoring solution for MAVO Edge 8K, MAVO LF, and TERRA 4K cameras, bundling the ultra-bright 2000-nit 5" KineMON-5U II touchscreen, 12" right-angle video/power cable, swivel mount, cold-shoe adapter, EVF wedge block, and foldable sun hood for instant on-camera or rig deployment in any lighting condition.

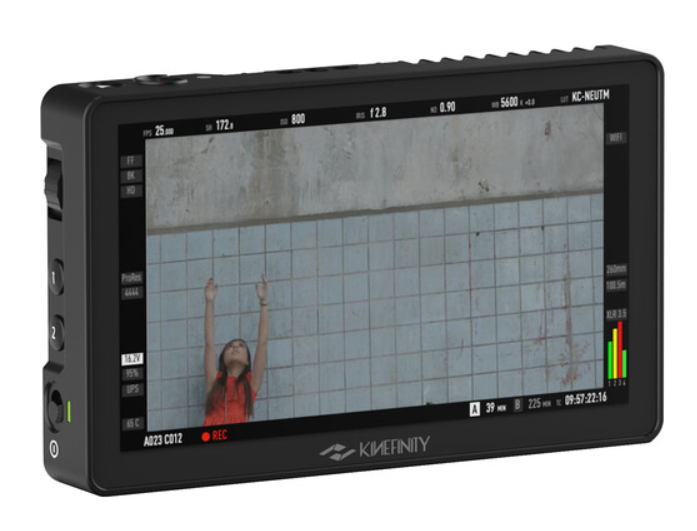

Delivering Hollywood-grade monitoring in a compact footprint, the Kinefinity A912-001-01 KineMON 5U II Complete Package turns any Kinefinity camera into a director-friendly powerhouse. The 5" 1920×1080 LCD pumps out 2000 nits with 100% Rec.709 accuracy, 1000:1 contrast, and 170° viewing angles, running full KineOS firmware for scopes, false color, zebras, focus peaking, and 3D LUTs. Power and uncompressed video flow through the included 12" right-angle 14-pin cable directly from the camera—no external batteries needed. Mount instantly via the direct swivel mount (captive screws), cold-shoe adapter, or stack the KineEVF on top using the wedge block. The four-sided snap-on sun hood kills glare in desert sunlight, yet folds flat for travel. At only 260 g and housed in CNC aluminum, this ready-to-shoot kit is the gold standard for owner-operators, DITs, and focus pullers who demand speed and precision.

Key features

• 2000-nit 5" 1080p touchscreen (441 ppi, 100% Rec.709)
• Full KineOS firmware: waveform, vectorscope, false color, zebras, 3D LUTs
• Single-cable video + power via 12" right-angle 14-pin
• Three mounting options: swivel mount, cold-shoe adapter, EVF wedge block
• Four-sided foldable sun hood with elastic straps

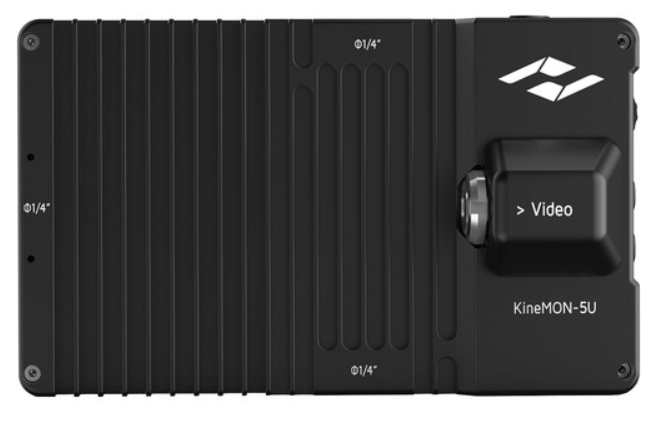

• 1/4"-20 threads on top, bottom, and right side
• Ultra-low 5.5 W power draw
• Instant boot + glove-friendly touchscreen
