Kinefinity KineMON-7U2 Pack

The Kinefinity KineMON-7U2 Ultra-Bright Monitor Kit (A912-002-01) is a 7" 1920×1200 2000-nit touchscreen with ultra-low latency DirectClear FPGA, 7 W max, one-cable video+power, full KineOS tools, 6" articulating arm, sun hood, and Gorilla Glass—perfect daylight onboard for MAVO Edge/mark2.

The Kinefinity KineMON-7U2 Ultra-Bright Monitor Kit (A912-002-01) is the flagship 7-inch onboard monitor engineered for MAVO Edge 8K/6K, MAVO mark2, and TERRA cameras. Its 7" 1920×1200 IPS Retina panel pumps 2000 cd/m² through scratch-proof Gorilla Glass, delivering 100 % Rec.709, 1200:1 contrast, and 16.7M colors visible in direct sunlight. Powered by the revolutionary DirectClear FPGA platform, it achieves 50 % lower latency than any field monitor, instant boot/shut-down, and only 7 W at full brightness—no fans, no heat issues. A single proprietary 14-pin cable feeds 1080p60 video + power; full touchscreen plus three physical buttons give instant access to FPS, ISO, shutter, waveform, histogram, false color (ARRI scale), peaking, zoom, and 3D LUTs. The kit includes a 6" articulating arm with 1/4"-20 + rosette, four-sided folding sun hood, and three 1/4"-20 threads (top/bottom/left). At just 480 g, it’s the brightest, fastest, coolest-running 7" monitor in cinema—ideal for gimbal, Steadicam, documentary, and desert expeditions.

Key Features:

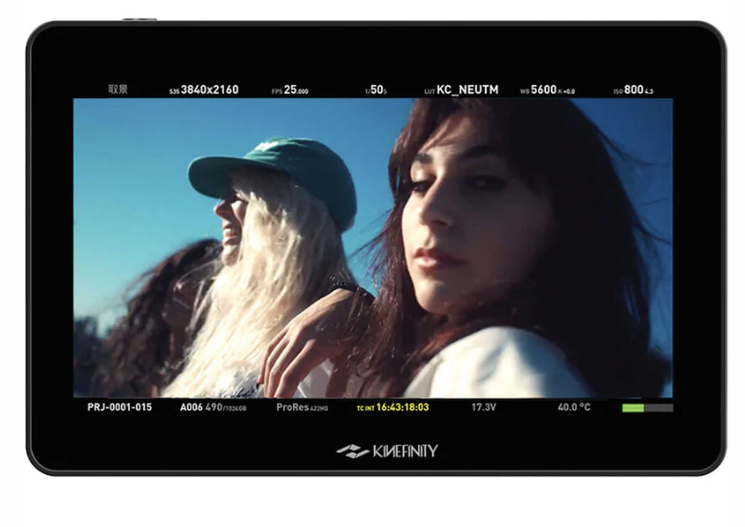

• 7" 1920×1200 2000-nit touchscreen, Gorilla Glass
• DirectClear FPGA: 50 % lower latency, 7 W max, instant boot
• One-cable video + power (14-pin)
• Full KineOS: ARRI false color, waveform, peaking, 3D LUTs

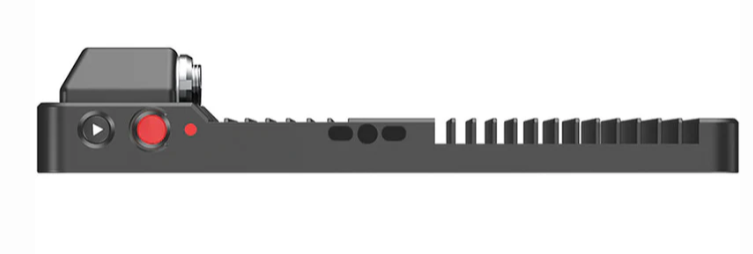

• Physical buttons + wheel for blind operation
• Included 6" artic arm + four-sided sun hood

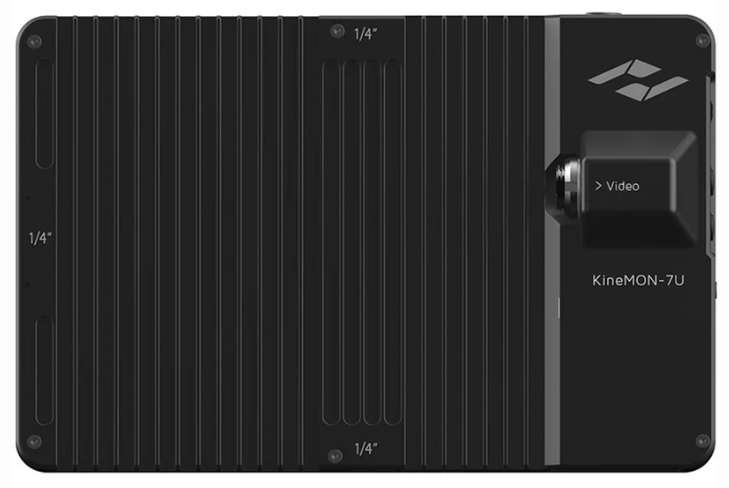

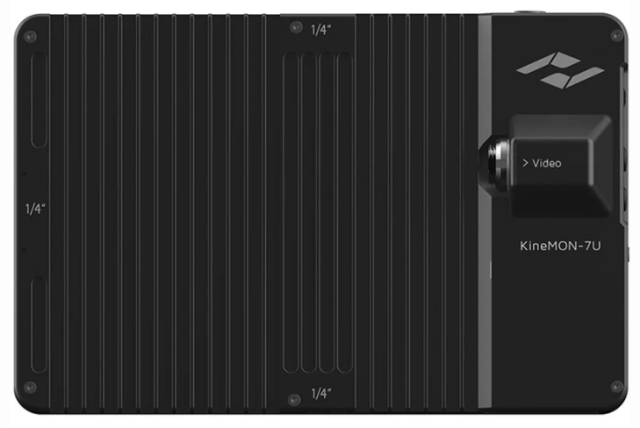

• 1/4"-20 on three sides + rosette ready
