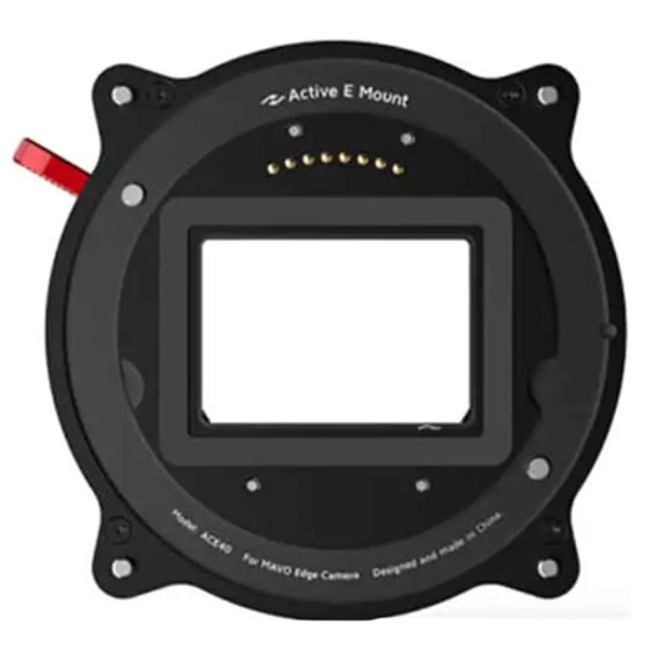

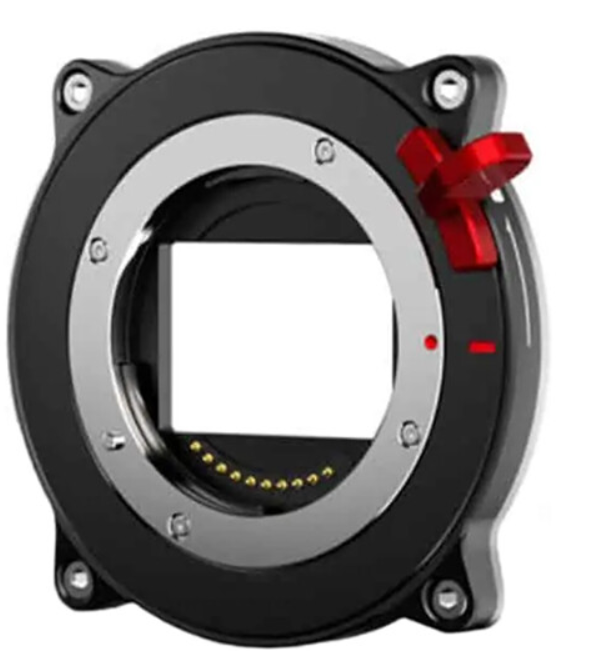

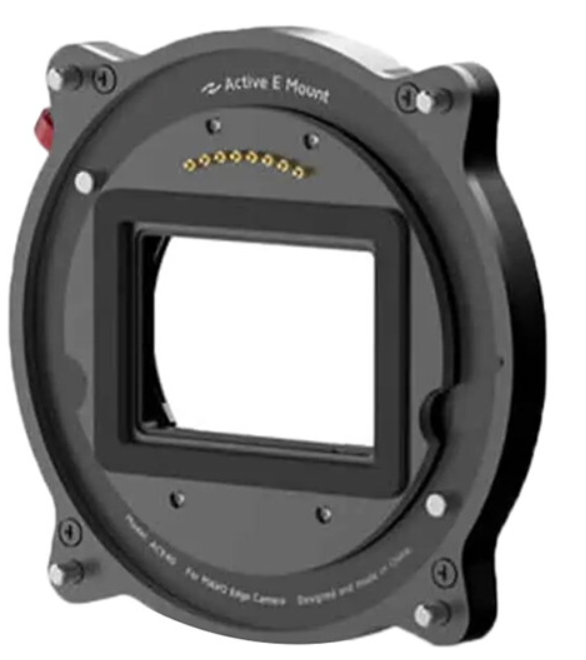

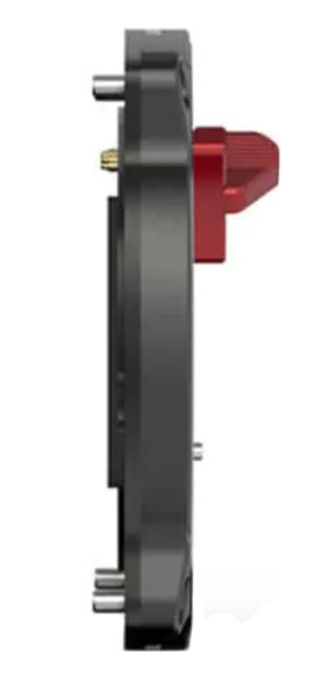

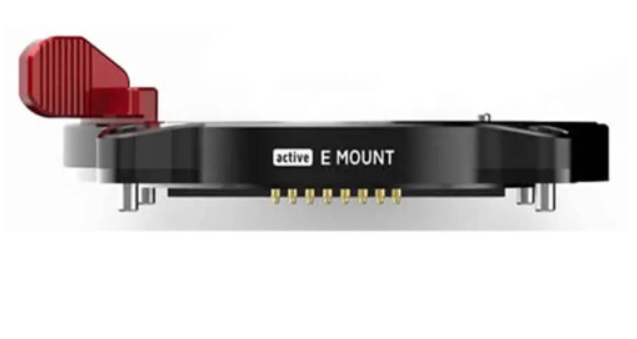

Kinefinity Active E Mount

The Kinefinity A240-007-01 Active E Mount Adapter is a precision-engineered, tool-free bridge that transforms any MAVO Edge 8K/6K into a full-featured Sony E-mount cinema camera, delivering autofocus, iris, zoom, IS, and EXIF metadata passthrough for GM, G, and third-party E lenses in a featherlight 127 g aluminum/stainless package.

Unlock the full electronic potential With the Kinefinity A240-007-01 Active E Mount Adapter. Designed exclusively for MAVO Edge 8K and 6K, this active adapter transmits 12-pin electronic signals for servo-driven autofocus (contrast + phase-detect), aperture control, power zoom, optical stabilization (OSS), and full lens metadata (focal length, T-stop, focus distance) directly into KineOS firmware. The stainless-steel bayonet and aluminum barrel lock with a 60° twist—no tools, no shims, zero back-focus drift. A built-in 0.8-mod iris gear integrates seamlessly with any follow-focus motor, while the recessed rear element protects lens glass.

Key features

• Full electronic control: AF, iris, zoom, OSS, EXIF
• 12-pin active contact array + lens metadata in KineOS
• Tool-free 60° locking bayonet (KineMOUNT to E)
• Zero-shim factory calibration
• Recessed rear for lens protection
• Aluminum + stainless steel, 127 g
