Feelworld Seetec ATEM215S 21.5" Multiview Monitor HDMI/SDI

Large 21.5" variant of the Feelworld/Seetec ATEM switcher quad-view displays! The "S" versions of these monitors offer 4x 3G-SDI inputs/outputs in addition to the HDMI input and are therefore ideal additions to e.g. ATEM SDI/SDI Pro/SDI Extreme ISO switchers. Of course, the Quad View function is available to display all four SDI inputs.

21.5" 3G-SDI / HDMI broadcast monitor

For live production, broadcast and post production

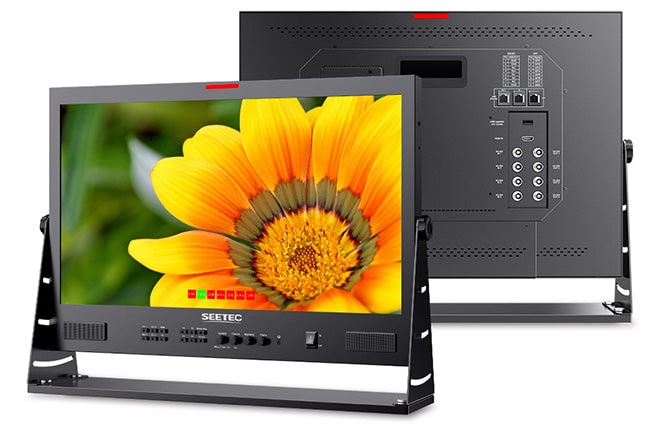

SEETEC ATEM215S is a full HD broadcast monitor with four 3G-SDI inputs and outputs, one HDMI input and RS485 and GPI control interfaces. It holds the Rec.709 colour standard, so the image is accurate. The housing is aluminium — rugged and good at dissipating heat. It offers 3D LUT, waveform, vectorscope, histogram, peaking focus and other functions, all operated from the front panel buttons. It supports the VESA standard, so it can be wall-mounted or racked.

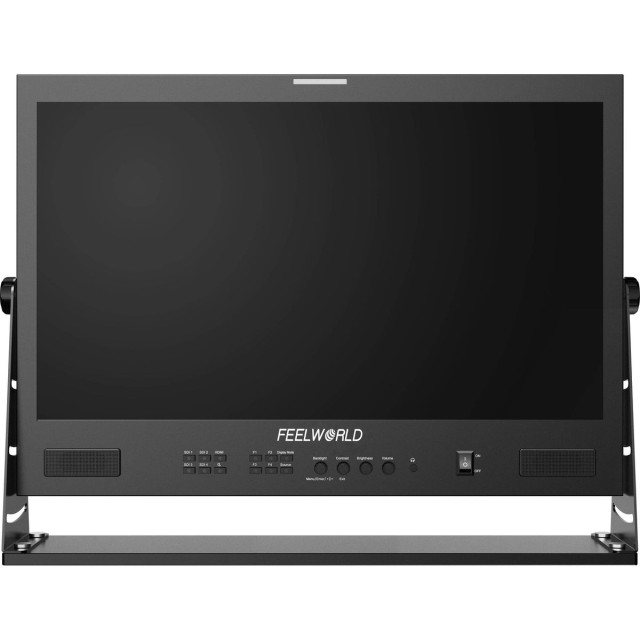

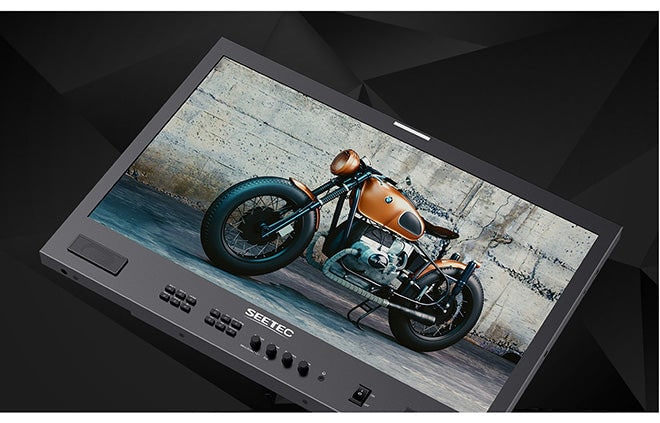

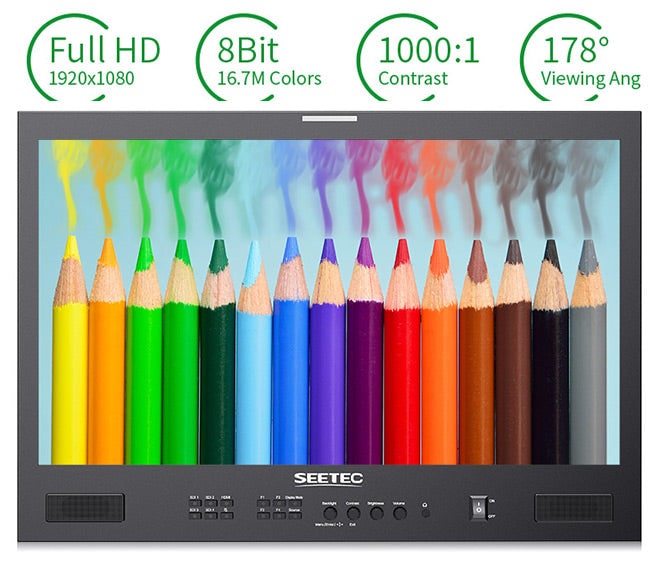

21.5" Full HD LCD

The 1920x1080 panel delivers accurate colour and a natural image. 250 cd/m² brightness, a 1000:1 contrast ratio and a 178° viewing angle mean the whole crew can see the monitor, not just whoever stands in front of it.

Rugged aluminium housing

Solid and cool

The full aluminium alloy frame makes the device more solid and at the same time solves heat dissipation, so the monitor does not overheat even in all-day operation.

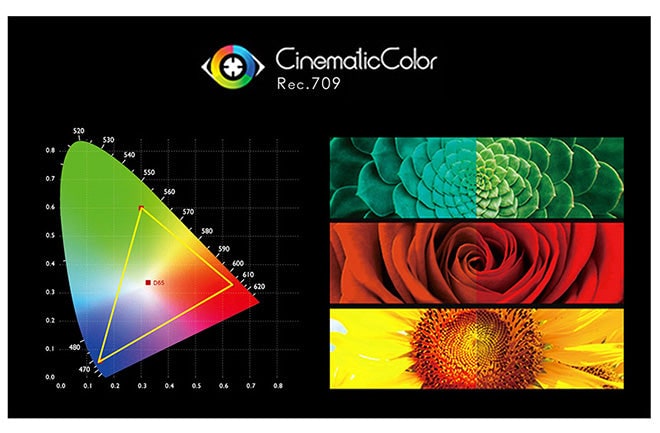

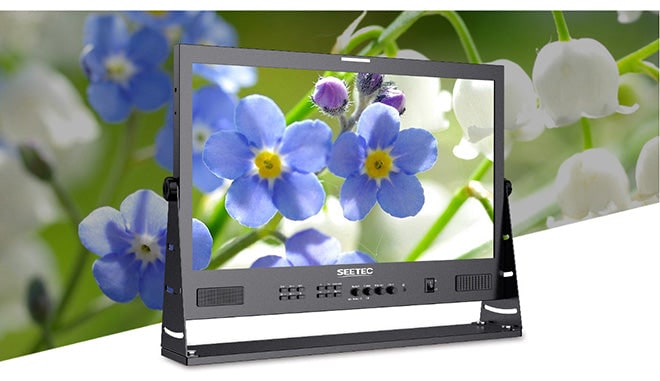

Accurate colour reproduction

Rec.709 standard

Colour accuracy is one of the key measures of a professional monitor. The ATEM215S has a built-in 3D LUT, holds the Rec.709 standard, and every unit is calibrated at the factory with a professional instrument — so colours come out the same on every monitor.

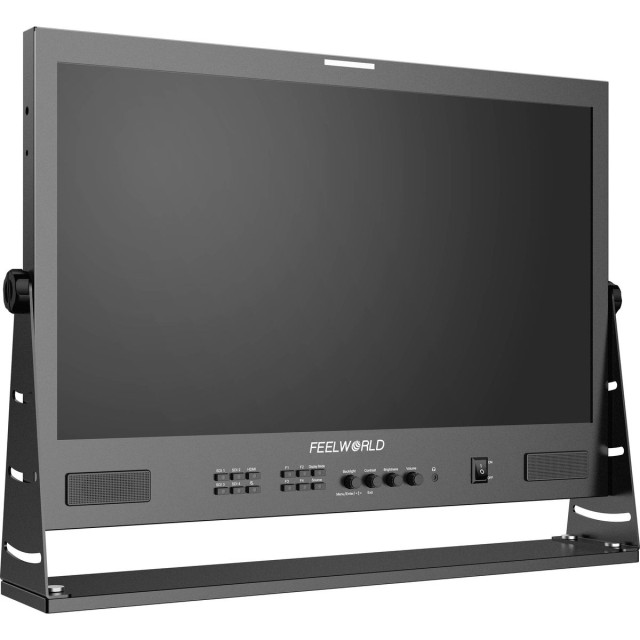

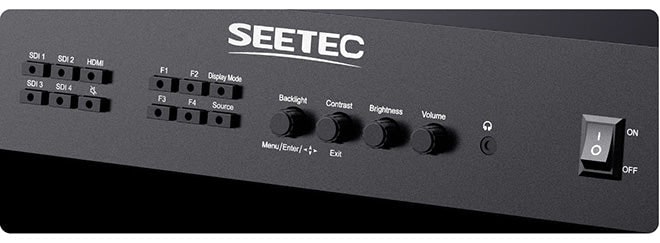

Button operation

Quick even in the dark

On set you need to control the device without thinking. The ATEM215S switches sources with one button, has custom shortcuts and quick adjustment of brightness, contrast and volume. The buttons are backlit, so you can tell the current input and the shortcuts in use even in a dim studio or outdoors.

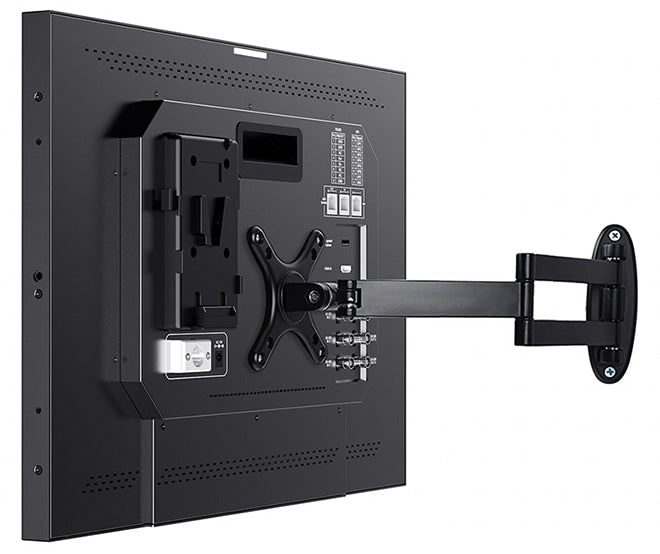

Standard VESA mounting points

The monitor has four standard VESA points — rack it or hang it on a wall.

Note: the bracket is not included, please purchase separately.

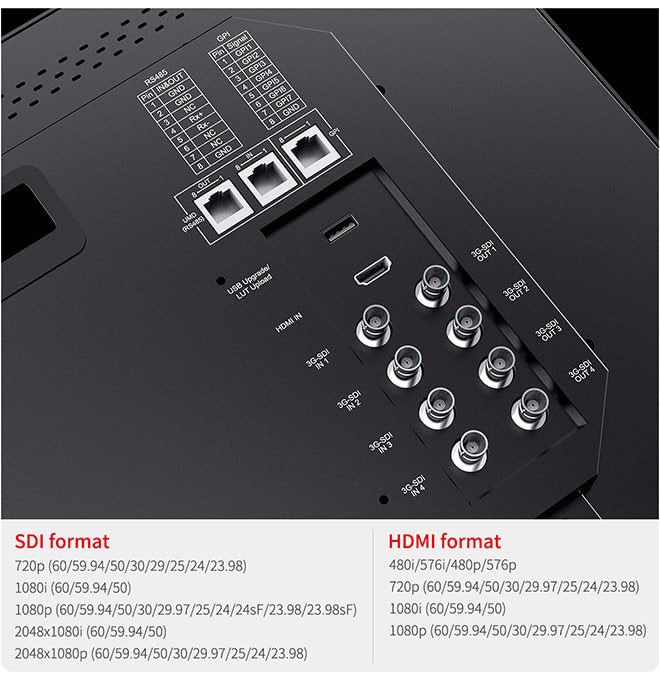

4× 3G-SDI inputs and outputs

SDI monitoring wherever you need it

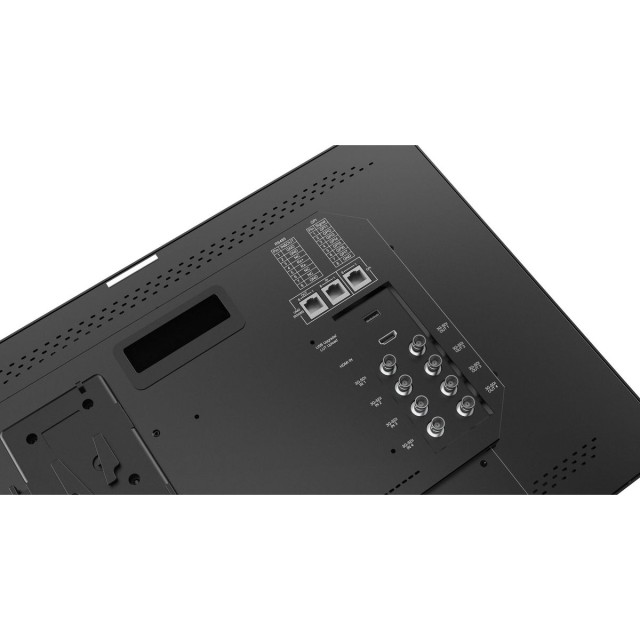

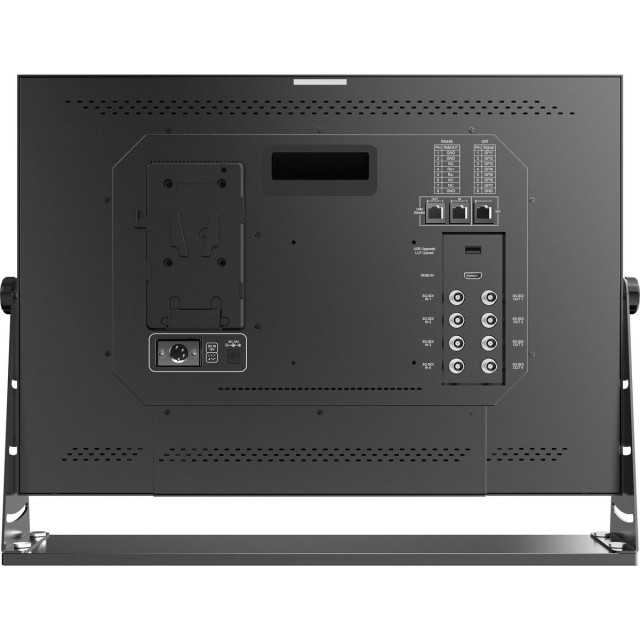

Four 3G-SDI inputs and outputs suit multi-camera shooting where several people watch at once. There is also an HDMI input and RS485 and GPI control interfaces.

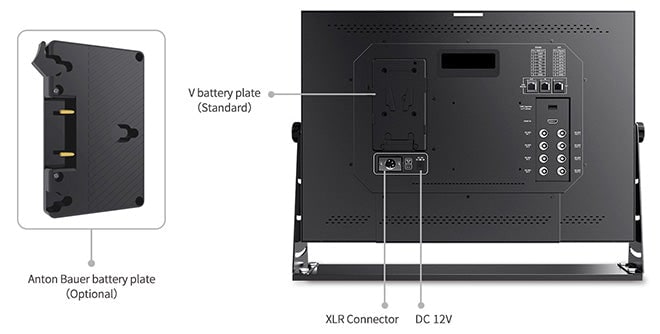

Multiple power options

Lasts a whole shift

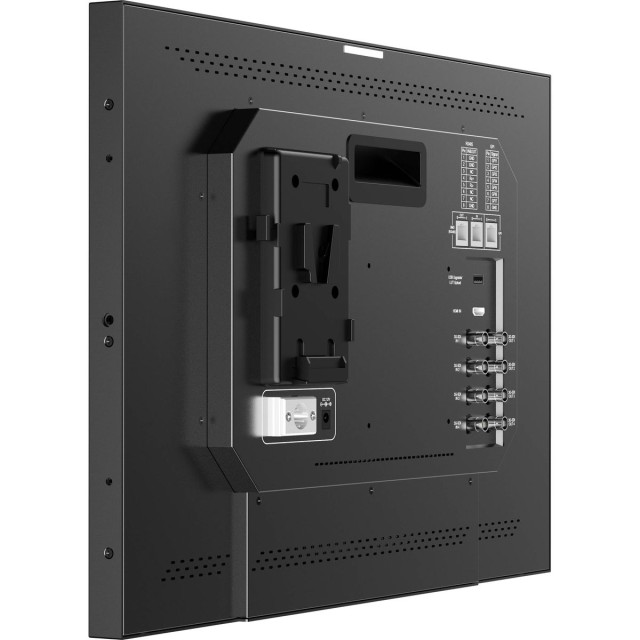

The monitor has a DC 12V input, an XLR connector and a plate for Sony V-mount batteries.

Note: the battery plate is V-mount by default; an Anton Bauer plate is available on request.

Professional on-set monitoring tools

Accurate focus, efficient monitoring

The monitor offers a range of assist tools: waveform, 3D LUT, peaking filter, histogram, vectorscope, audio meter, time code and anamorphic mode. You pick them from the menu, assign them to a shortcut button or control them over GPI.

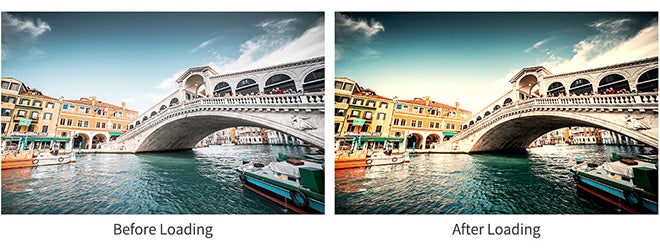

3D LUT, recreate film looks

Up to 36 custom LUTs

A 3D LUT is a table the monitor uses to convert colour data quickly. Loading different tables gives you different colour styles. Four DE-log LUTs are built in; you upload your own .cube files via USB — up to 36 of them.

HDR monitoring

What you see is what you get

HDR monitoring brings more detail and better overall picture quality. With it switched on, you pick the gamma and gamut matching your camera — Sony, Canon, Panasonic, Fujifilm, Bolex, RED or ARRI.

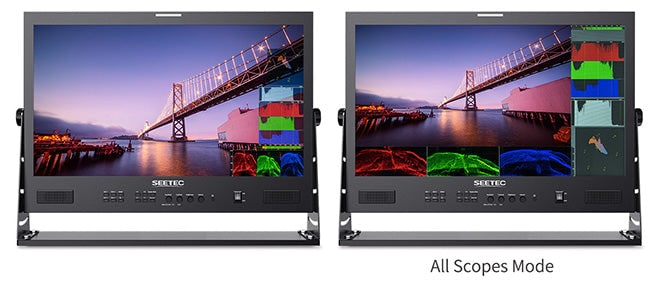

Accurate waveform monitoring

Saves you a separate scope

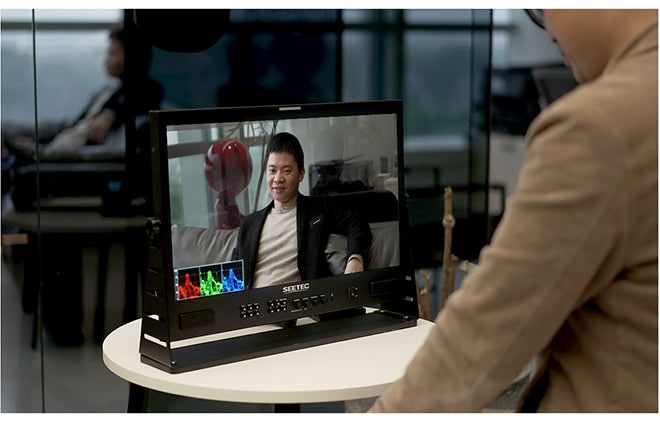

The built-in measurement offers waveform (RGB parade, YUV parade, Y parade), vectorscope, histogram and audio phase and level displays. The functions open separately, or all at once with a single command — with left/right adjustment.

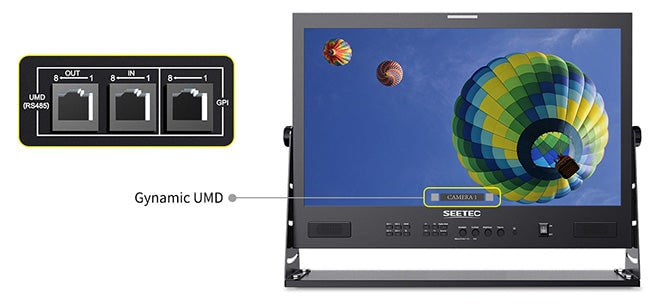

Dynamic UMD

TSL 3.1 / 4.0 protocol

The ATEM215S supports UMD of the TSL 3.1 and 4.0 protocol, with 0–126 address selection and up to sixteen characters displayed. UMD comes in and goes out over the RS485 port.

Tally lights

The red and green tally lights are controlled over GPI, so the operator knows when recording is live without having to ask.

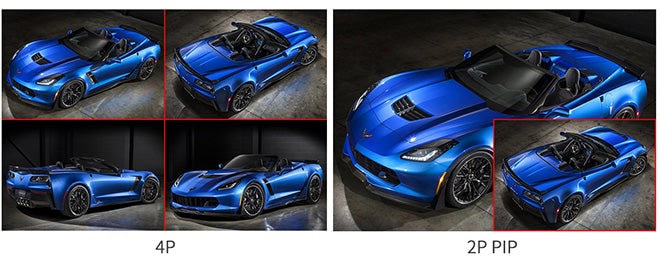

Multiple display modes

Whatever you need to watch

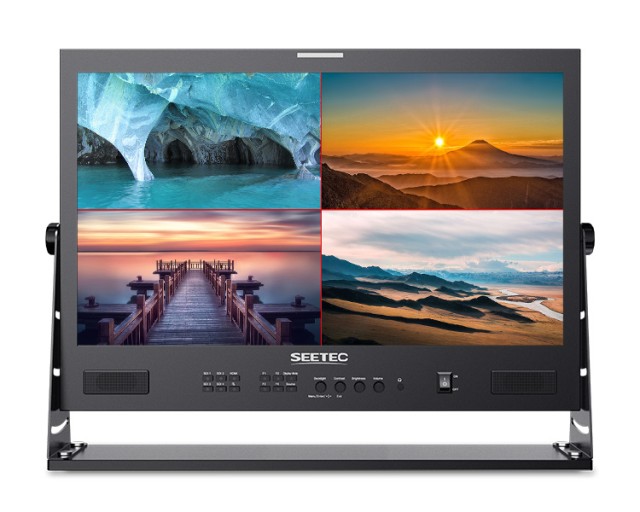

Set the screen to full screen, picture-in-picture or quad. In picture-in-picture the size and position of the sub-window can be adjusted. In quad mode an SDI signal shows four audio meters and four time codes at once.

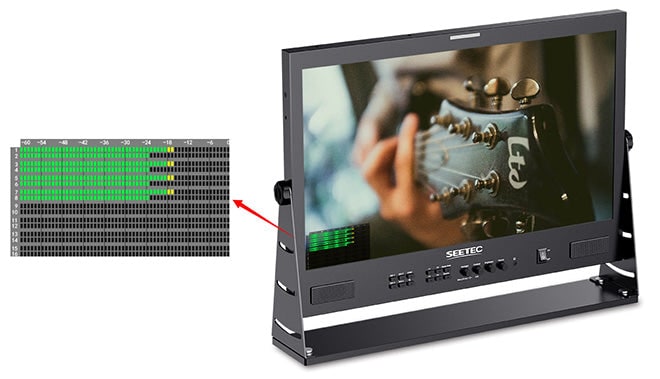

16-channel audio level meters

The monitor de-embeds audio from both SDI and HDMI and can send any two channels to the 3.5mm headphone output. Under SDI it displays up to sixteen embedded audio meters, under HDMI two.

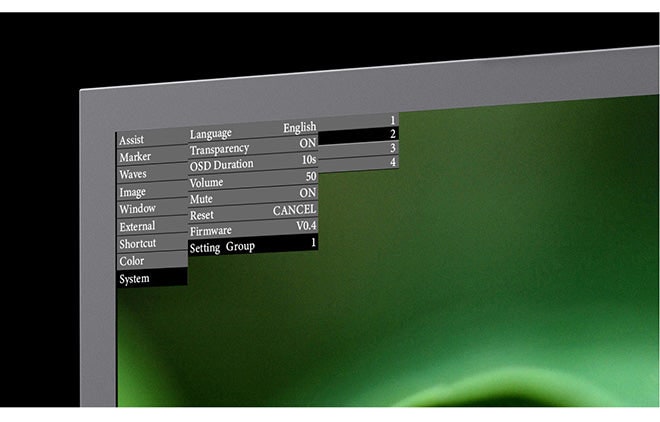

Custom menu settings

The ATEM215S provides four groups of custom menu settings. They are saved automatically, so nothing needs resetting the next time you switch on.

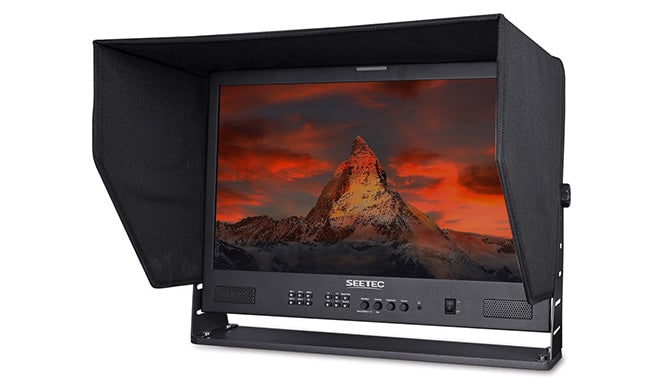

Portable sunshade

The extended screen sun hood helps keep the image readable in almost any environment.

Flexible U-shape bracket

The monitor comes with a U-shape bracket featuring three standard 1/4" mounting points. Attach it to a magic arm, to a stand, or stand it on a desk — and turn it to whatever angle you need.

Time code

With an SDI signal the monitor displays time code synchronised with the camera. Finding a specific frame is then quick and precise, which helps above all in post.

Specifications

• Screen size: 21.5" IPS
• Colour depth: 16.7M colours
• Resolution: 1920 × 1080
• Pixel pitch: 0.17925 × 0.17925 mm
• Aspect ratio: 16:9
• Brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Backlight: LED
• Viewing angle: 89°/89° horizontal, 89°/89° vertical
• Inputs: 4× 3G-SDI, 1× HDMI, 1× RS485, 1× GPI, 1× USB
• Outputs: 4× 3G-SDI, 1× RS485, 3.5mm headphone
• Input voltage: DC 12V
• Power consumption: ≤ 37W
• Working temperature: 0 °C to 50 °C
• Storage temperature: −20 °C to 60 °C
• Dimensions: 511.6 × 355.6 × 23.3 mm (without bracket)
• Weight: 4.27 kg
