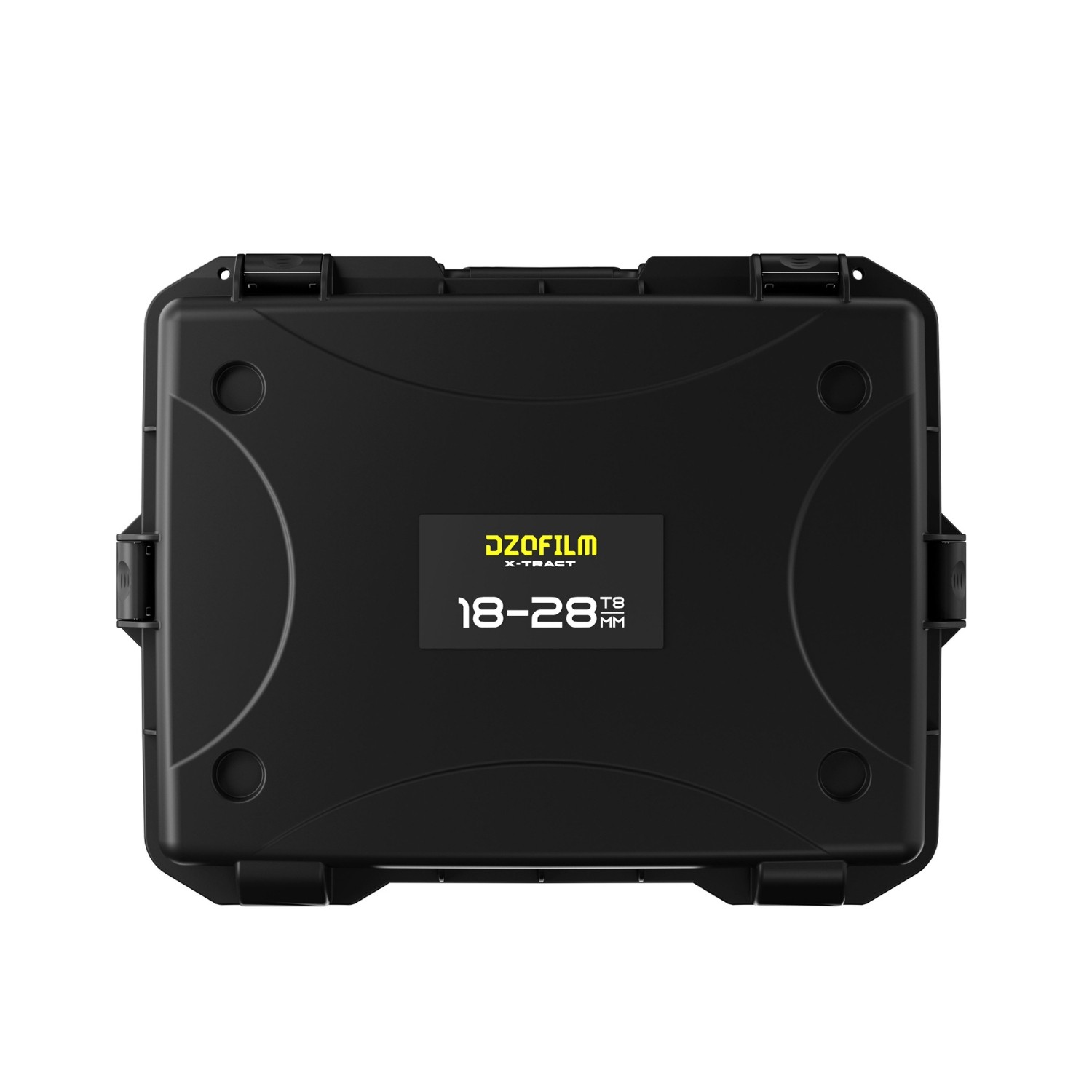

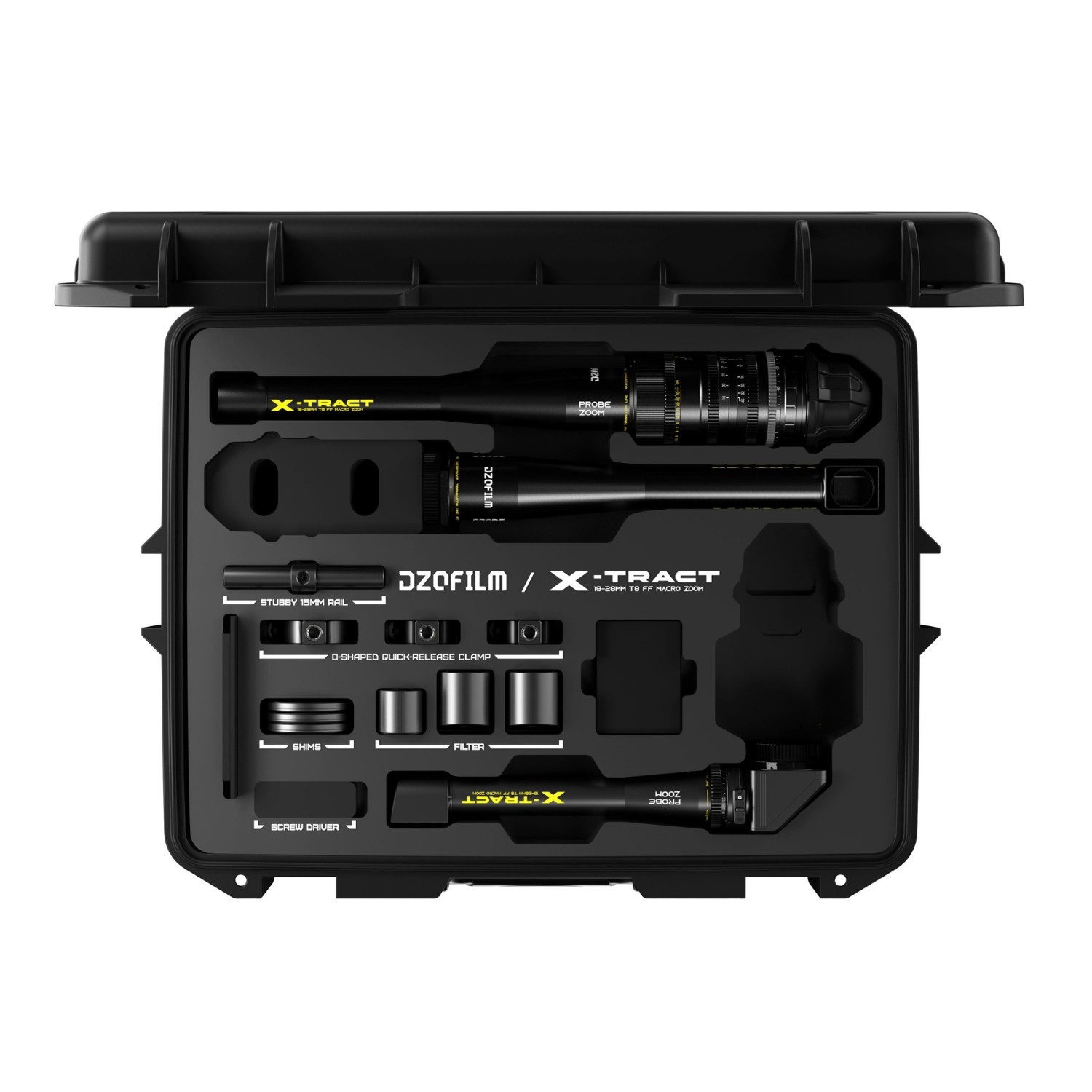

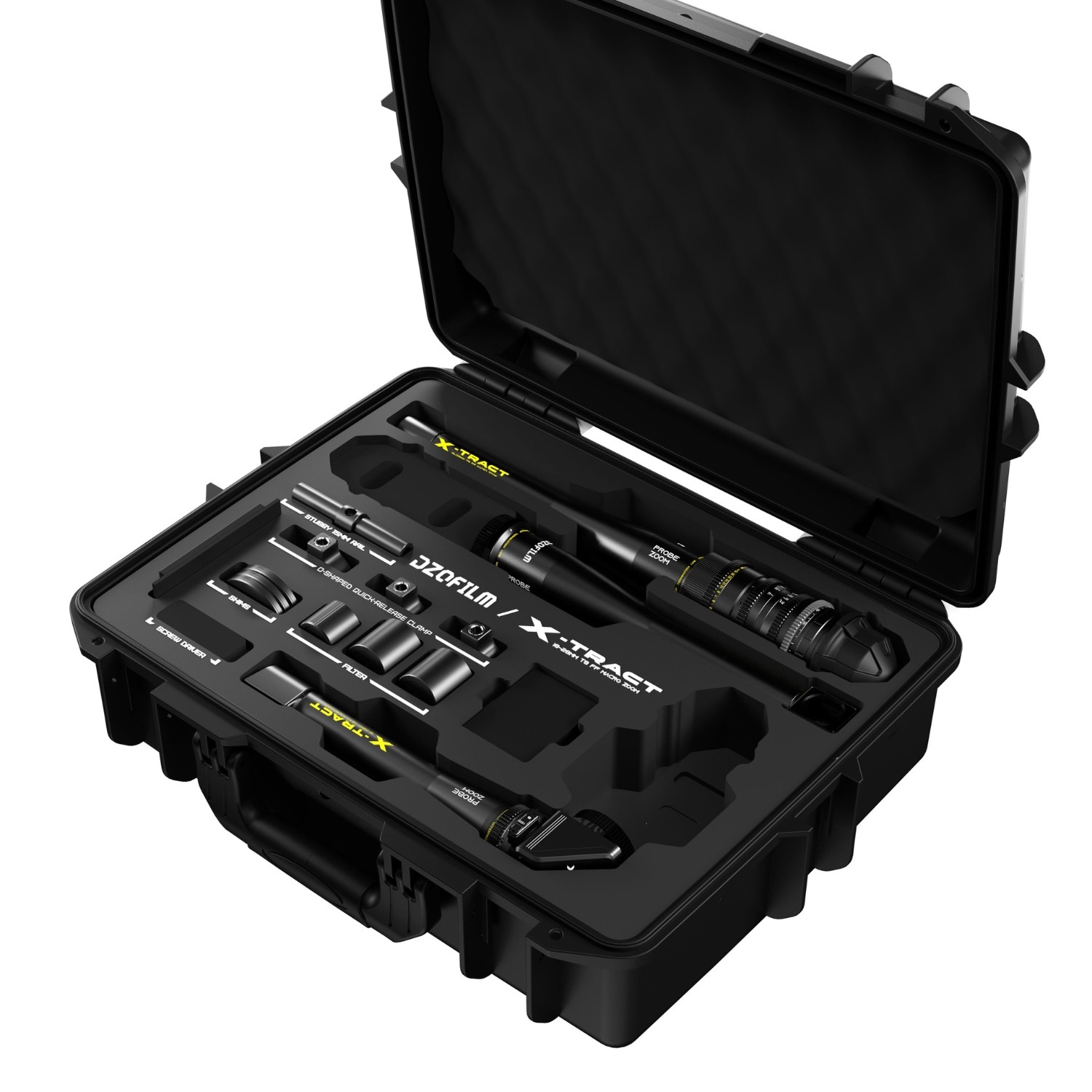

DZOFILM X‑tract 18–28mm T8 – 90°/360° kit, 1× R‑Unit, PL, metric, black case

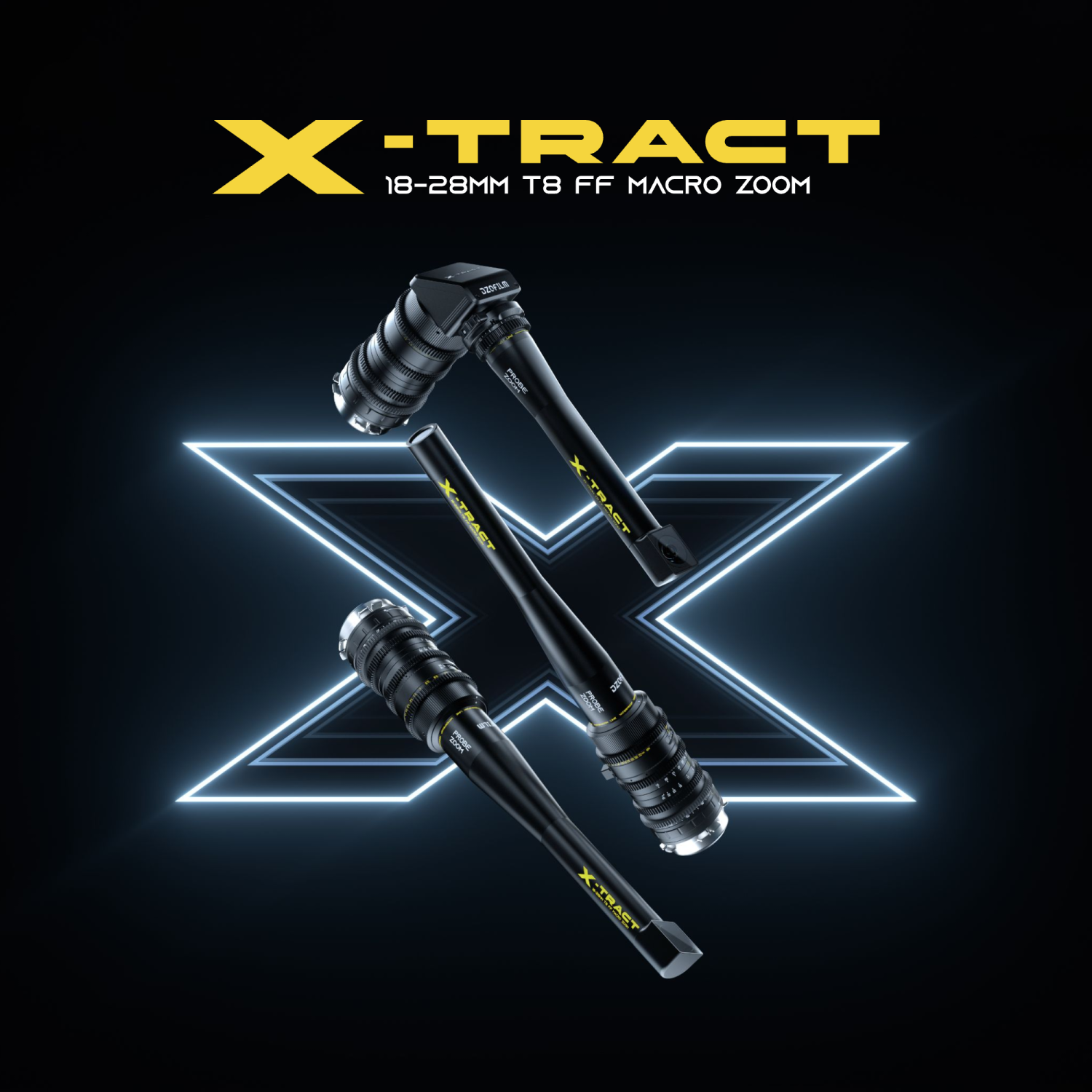

DZOFILM X-TRACT

MODULAR MACRO PROBE ZOOM

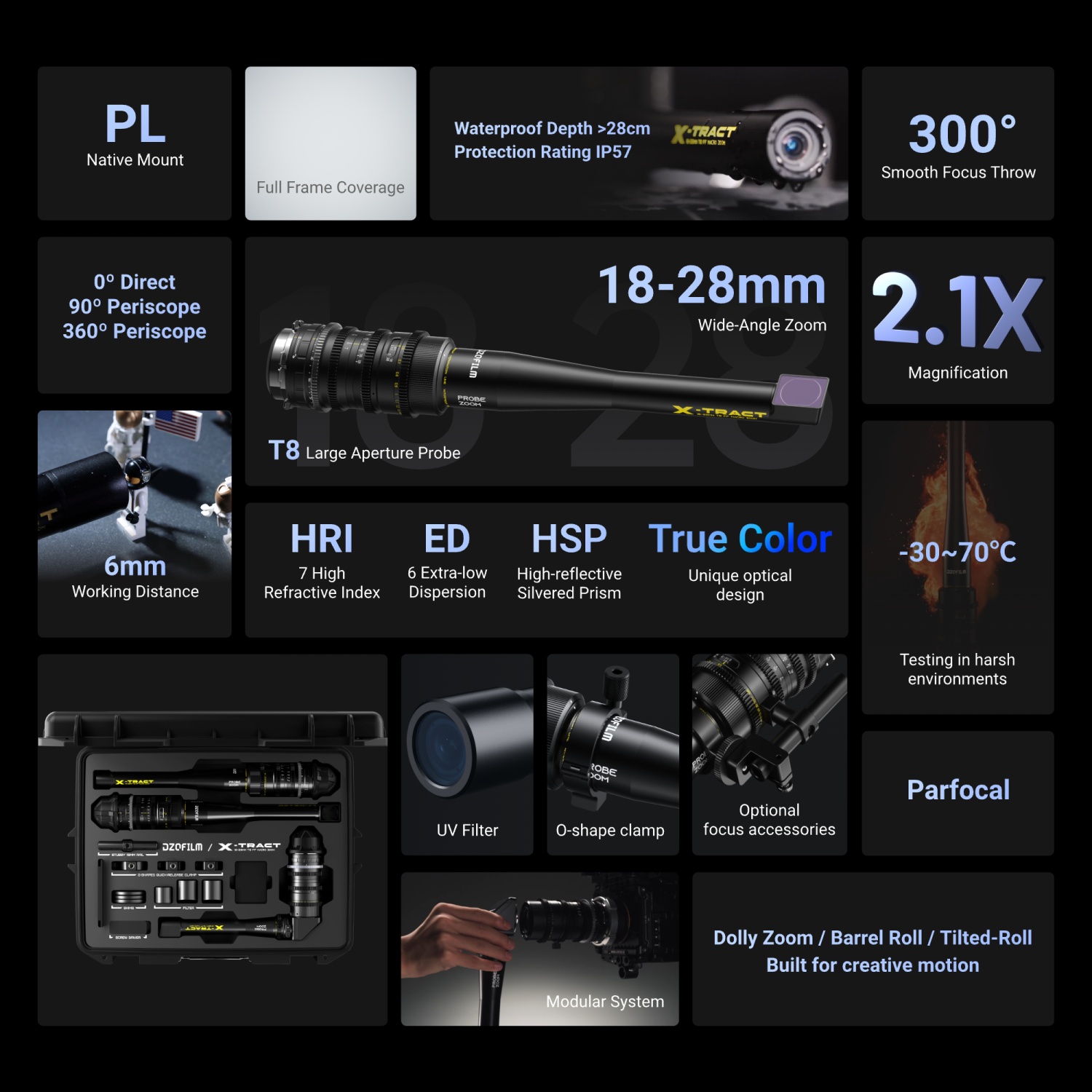

DZOFILM X-tract 18–28 mm T8 is a modular full-frame macro probe zoom with a PL mount. This kit combines 90° / 360° viewing-angle modules with one interchangeable R unit, letting you change perspective while retaining the same 18–28 mm zoom, T8–T45 aperture and cine controls. It covers a 43.2 mm image circle, reaches a 6 mm working distance and up to 2.1× magnification at 28 mm for detailed product, tabletop and creative work in confined spaces.

CHANGE THE ANGLE, KEEP THE WORKFLOW

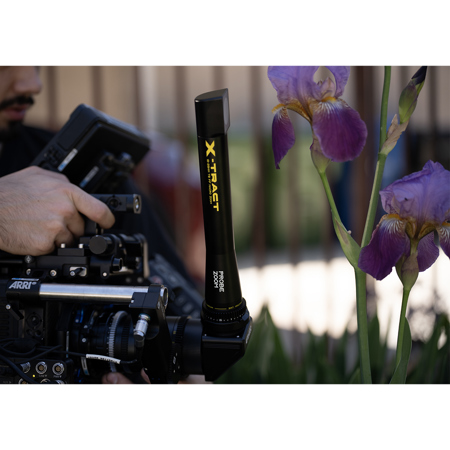

The 90° and 360° modules included in this kit provide both a fixed and a rotating periscope perspective. The optics retain focus through zooming, while the 300° manual throw supports precise follow-focus work. DZOFILM notes that footage from the 90° module requires a mirror flip.

MACRO IN CONFINED SPACES

Focus begins at 0.47 m from the sensor plane, while the working distance in front of the lens is just 6 mm. With up to 2.1× magnification at 28 mm, it can capture fine textures, liquids and miniatures from extremely close range.
