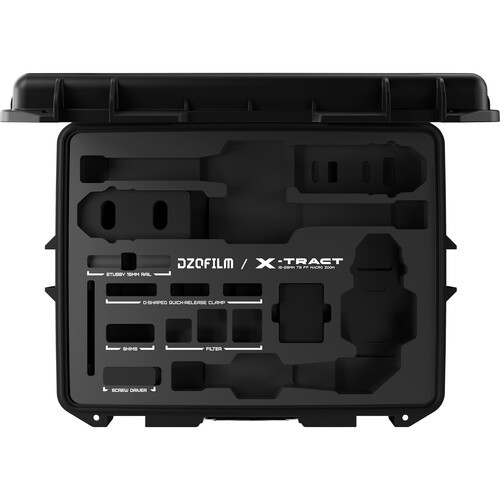

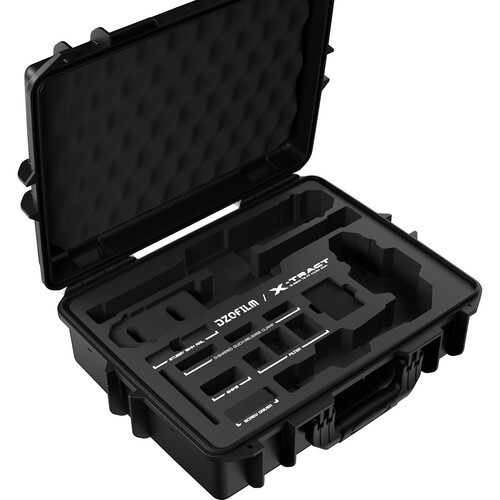

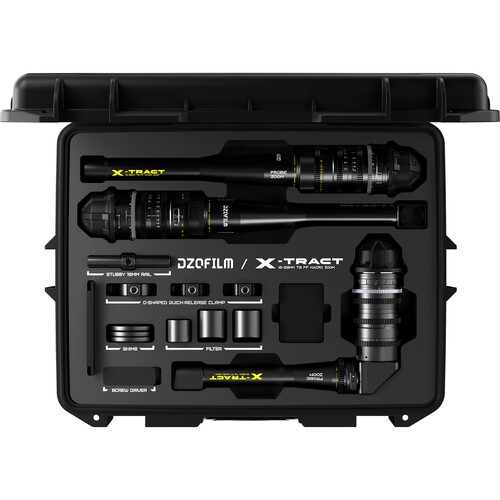

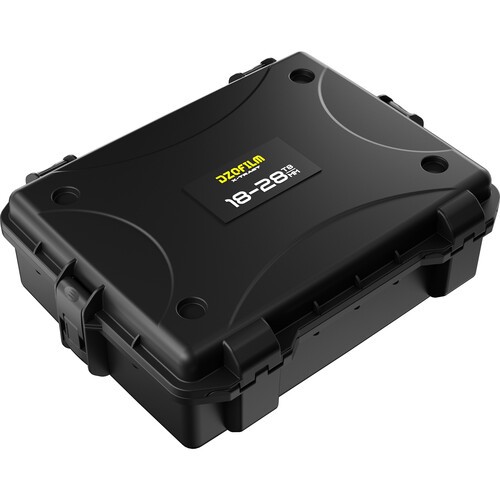

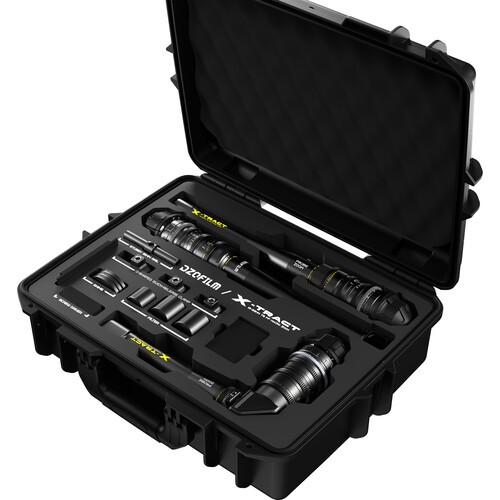

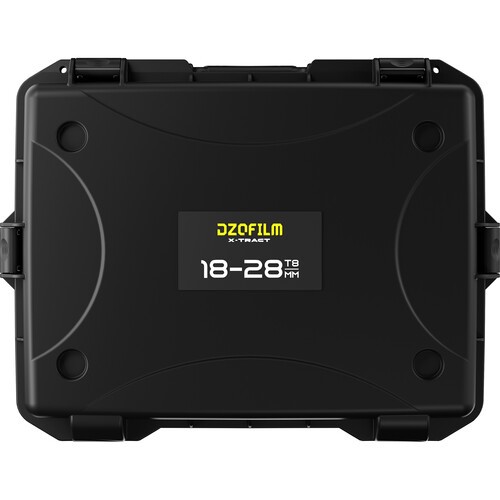

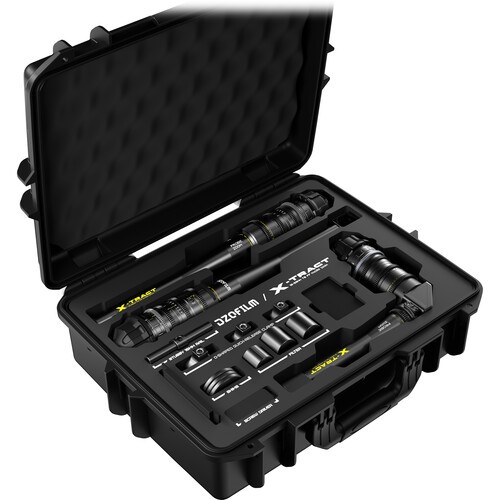

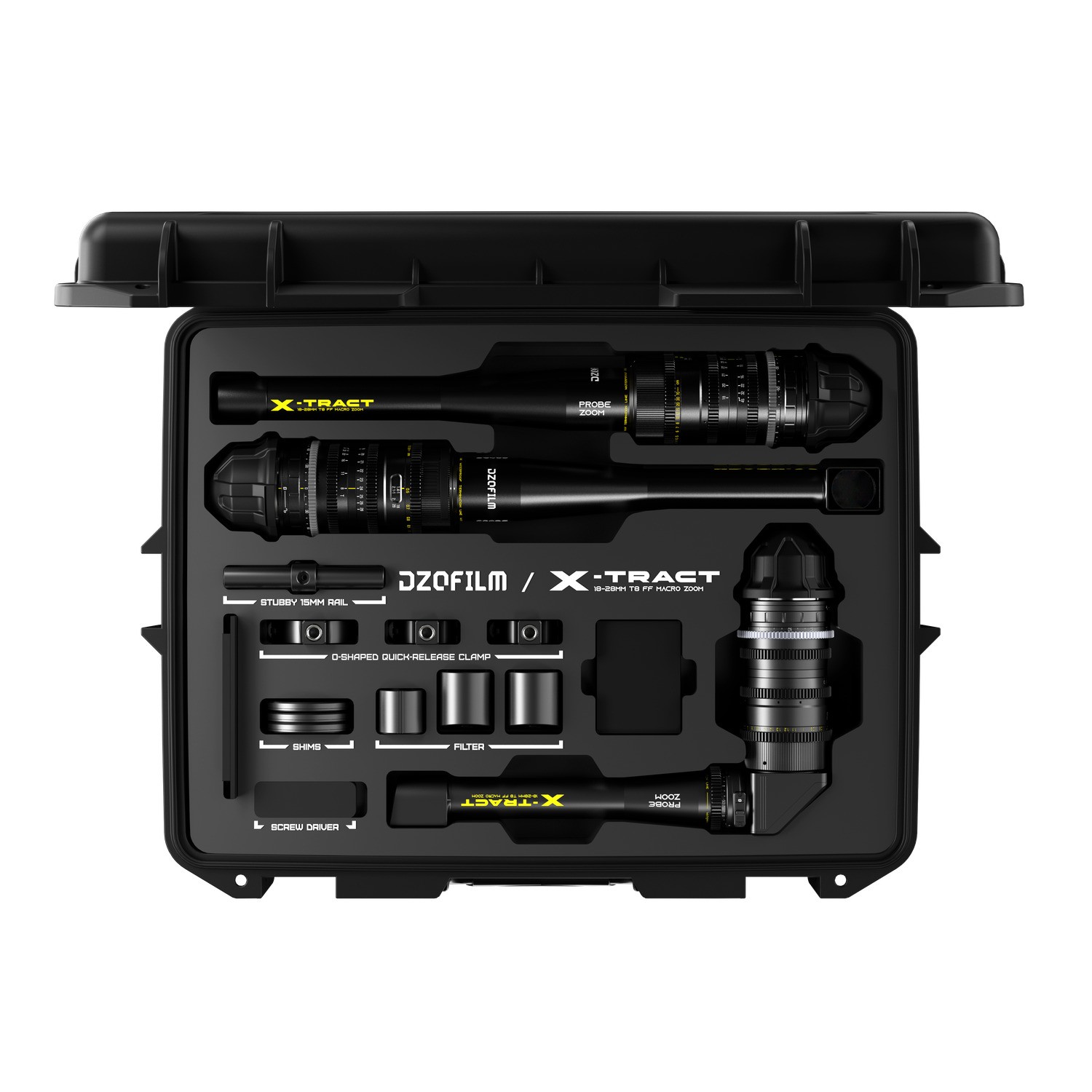

DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° 3-Lens Set, PL, Metric, Black Case
SKU: DZO-X1828ABC
The DZOFILM X-tract 18–28 mm T8 0° / 90° / 360° is a three-piece full-frame set of parfocal macro zoom probes. It combines a straight 0° probe, a 90° right-angle periscope, and a 360° periscope for product shots, tabletop photography, liquids, and detailed work in confined spaces.
Promotion: -22% ends in: 34d: 10h: 29m
10 092.61 €
7 887.99 € with VAT
6 519 € without VAT
Availability
on request
DZOFILM X‑tract 18–28 mm T8 0° – PL, Metric, Hard Case
2 854.39 €without VAT 2 359 €
DZOFILM X‑tract 18–28 mm T8 90° – PL, Metric, Hard Case
In stock 2 pcs2 455.09 €without VAT 2 029 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° Kit, 1× R‑Unit, PL, Metric, Black Case
5 867.29 €without VAT 4 849 €
DZOFILM X‑tract 18–28mm T8 360° – PL, metric markings, hard case
3 156.89 €without VAT 2 609 €
DZOFILM X‑tract 18–28mm T8 – 0°/360° kit, 1× R‑Unit, PL, metric, black case
4 826.69 €without VAT 3 989 €
DZOFILM X‑tract 18–28mm T8 – 90°/360° kit, 1× R‑Unit, PL, metric, black case
4 826.69 €without VAT 3 989 €Top accessories for DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° 3-Lens Set, PL, Metric, Black Case
K&F Concept Microfibre Cleaning Cloth Set 15 × 15 cm, White, 3 pcs
A set of 3 white K&F Concept cloths made of optical microfibre, each 15 × 15 cm.
6.2 €
In stock > 5 pcs
K&F Concept 23-in-1 Lens and Full Frame Sensor Cleaning Kit with Storage Bag
A 23-in-1 cleaning kit for lenses, filters and full-frame sensors in a storage bag.
55 €
In stock > 5 pcs
DZOFILM Octopus Adapter PL → Sony E
Promotion: -38% ends in: 34d: 10h: 30m
The DZOFILM Octopus Adapter PL → Sony E is a mechanical adapter for mounting PL lenses
180.29 €
290.4 €
In stock > 5 pcs
K&F Concept 4-in-1 Lens Cleaning Kit: Air Blower, Cleaning Pen, Fluid and Cloths
The K&F Concept 4-in-1 lens cleaning kit has everything a photographer needs for
27 €
In stock 1 pcs
K&F Concept Air Blower with Long Nozzle for Lenses and Sensors
The K&F Concept rubber air blower with a long orange nozzle blows dust off lenses,
7.7 €
Backordered > 5 pcs
DZOFILM EF Mount for X‑tract (DZO‑MFEF)
The DZO EF Mount for X‑Tract (DZO‑MFEF) is the official Canon EF mount adapter for
108 €
To be sent 1 pcs
DZOFILM Octopus Adapter PL → Canon RF
Promotion: -38% ends in: 34d: 10h: 30m
The DZOFILM Octopus Adapter PL → Canon RF is a mechanical adapter for mounting PL
180.29 €
290.4 €
In stock 2 pcs
Product description
SPECIFICATIONS
Product description
The DZOFILM X-tract 18–28 mm T8 0° / 90° / 360° is a three-piece full-frame set of parfocal macro zoom probes. It combines a straight 0° probe, a 90° right-angle periscope, and a 360° periscope for product shots, tabletop photography, liquids, and detailed work in confined spaces.
X‑tract · full-frame macro zoom
Three complete probes, three perspectives
The set combines three separate, fixed and non-detachable X‑tract lenses: a straight 0° probe, a right-angle 90° periscope and a 360° periscope with front, oblique or rear viewing directions.
All three are parfocal full-frame 18–28mm zooms with a T8–T45 range, PL mount and metric markings. Moving between perspectives therefore keeps the same focus, zoom and iris workflow.
18–28 mmT8–T450° / 90° / 360°
90° periscope
A right-angle view along a surface; the rotating ring helps set the orientation precisely.
360° periscope
Front, oblique or rear viewing directions with vertical and horizontal rotation and locks.

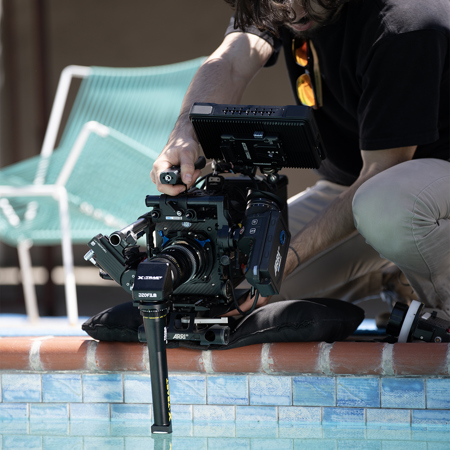

Working setup with the straight 0° X‑tract probe; this is not output footage from the lens.
As close as 6mm from the subject
Minimum focus is 0.47m from the sensor plane and working distance from the lens front is only 6mm. At 28mm the set reaches up to 2.1× magnification, making it useful for products, textures, liquids and small mechanisms.

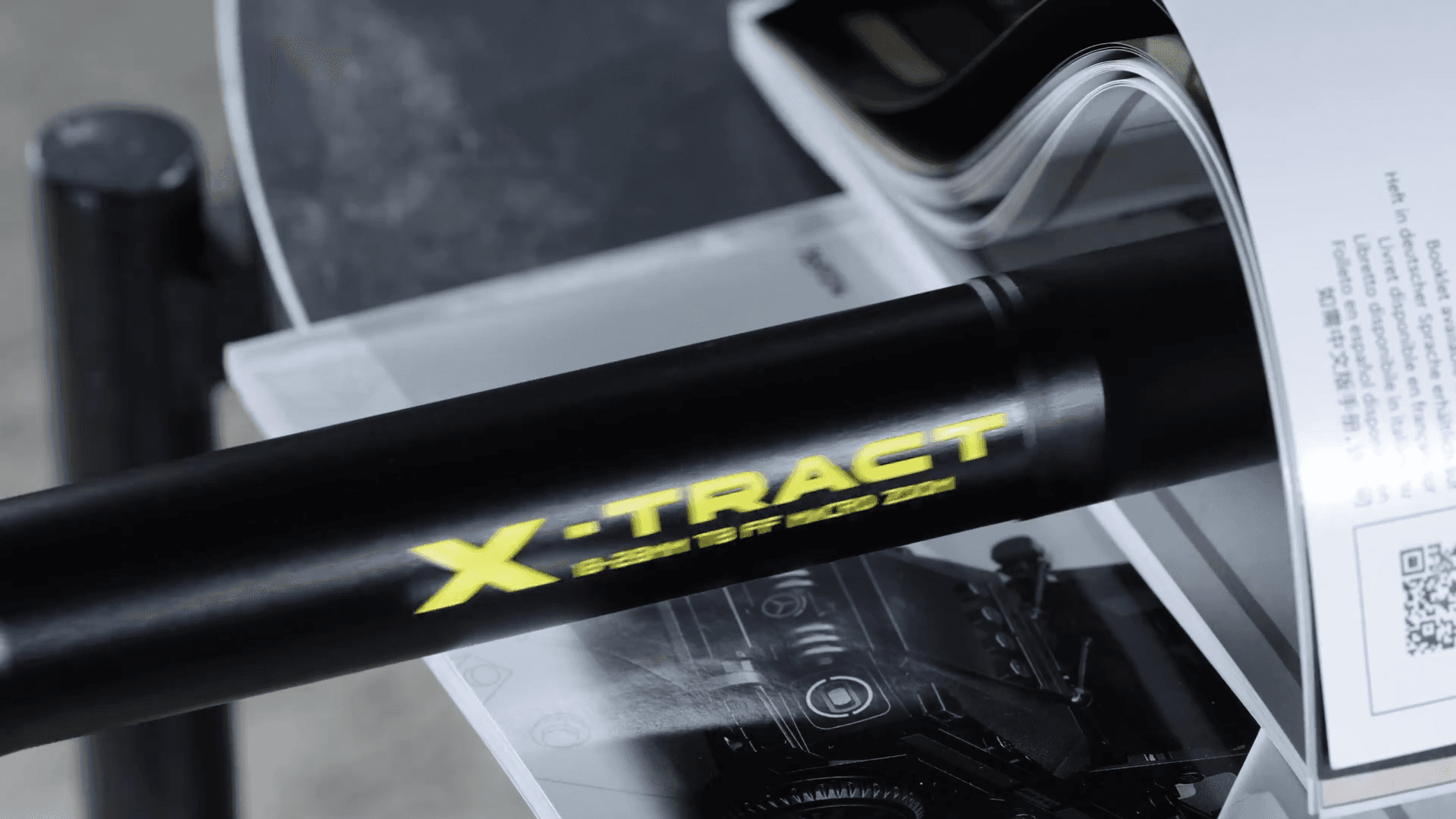

Built for demanding camera moves
The all-metal aluminium-alloy body uses standard 0.8 MOD gears. The design is rated IP57, supports more than 28cm of front-section immersion, and the hydrophobic front coating helps reduce water adhesion and fogging.
Official X‑tract series image sample; it is not a test of this exact boxed three-lens SKU.
The X‑tract series image character
Sample showing how extreme magnification and the long probe design turn an everyday detail into a spatial, cinematic motif. The 1.55× zoom lets you fine-tune framing without moving the whole rig.
SPECIFICATIONS
- Configuration: 3 separate fixed lenses: 0° / 90° / 360°
- Focal length: 18–28mm
- Mount: PL; metric markings
- Format / image circle: Full Frame / 43.2mm
- Aperture: T8–T45; 10 blades
- Optical construction: 0°: 25/18; 90°: 26/19; 360°: 27/20
- Flange distance: 52mm
- Minimum focus: 0.47m from sensor plane
- Working distance: 6mm from lens front
- Zoom / maximum magnification: 1.55× / 2.1× at 28mm
- Control rotation: iris 72.1° / focus 300° / zoom 100°
- Length / dimensions: 0°: 415mm; 90°: 421mm; 360° on camera: 161mm horizontal / 302mm vertical
- Front dimensions: 0°: Ø 29.6mm; 90°/360°: 37.7 × 30.58mm
- Lens weight: 0°: 1,089g; 90°: 1,132g; 360°: 1,141g
- Gears / material: 0.8 MOD / aluminium alloy
- Protection: IP57; front-section immersion over 28cm; hydrophobic coating
Parameters
Parameters
| Manufacturer: | DZO Optics |
| Category: | Lenses |
Main parameters
| Minimum Focusing Distance | 470mm |
| Maximum magnification | 2.1x |
| Number of aperture blades | 10 |
| Lens mount | PL |
| Lens color | Black |
| Lens type | Zoom |
| Lens suitable for | Full frame |
| Minimum focal length | 18mm |
| Maximum focal length | 28mm |
| Optical stabilisation | No |
| Auto focus | No |
| Zoom | Yes |
| Anamorphic | No |
| Macro | Yes |
