DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° Kit, 1× R‑Unit, PL, Metric, Black Case

+2
  • Free transport
SKU: DZO-X1828ABCS

DZOFILM X-tract 18–28 mm T8 is a modular full-frame macro probe zoom with a PL mount. This kit combines 0° / 90° / 360° viewing-angle modules with one interchangeable R unit, letting you change perspective while retaining the same 18–28 mm zoom, T8–T45 aperture and cine controls. It covers a 43.2 mm image circle, reaches a 6 mm working distance and up to 2.1×…

More information

7 049 € with VAT 5 825.62 € without VAT
Add to Compare Price history
Availability
on request
SKU:
DZO-X1828ABCS
Add to Compare Price history

DZOFILM X‑tract 18–28 mm T8 0° – PL, Metric, Hard Case

3 999 €without VAT 3 304.96 €

DZOFILM X‑tract 18–28 mm T8 90° – PL, Metric, Hard Case

In stock 2 pcs3 899 €without VAT 3 222.31 €

DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° 3-Lens Set, PL, Metric, Black Case

10 099 €without VAT 8 346.28 €

DZOFILM X‑tract 18–28mm T8 360° – PL, metric markings, hard case

4 359 €without VAT 3 602.48 €

DZOFILM X‑tract 18–28mm T8 – 0°/360° kit, 1× R‑Unit, PL, metric, black case

5 689 €without VAT 4 701.65 €

DZOFILM X‑tract 18–28mm T8 – 90°/360° kit, 1× R‑Unit, PL, metric, black case

5 689 €without VAT 4 701.65 €

Top accessories for DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° Kit, 1× R‑Unit, PL, Metric, Black Case

K&F 3pcs* Microfiber Cleaning cloth Kit, 15*15cm, White, Dry, in vacuum

Imported optical microfiber cleaning cloth is used to ensure that the coating of
6.2 €
In stock > 5 pcs

K&F Concept 23-in-1 Camera Lens Cleaning Kit

K&F Concept 23-in-1 Camera Lens Cleaning Kit with Replacement Cleaning Pen, 15ml
55 €
In stock > 5 pcs

K&F Concept 4-In-1 Camera Lens Cleaning Kit for DSLR Camera

KF 4-in-1 Cleaning Kit (1*Cleaning pen + 1*Silicone air blower + 6*vacuum cleaning
27 €
In stock 3 pcs

DZOFilm Octopus Adapter for PL Lens to E Mount Camera

  • SHOWROOM PRAHA
The DZOFilm Octopus PL → Sony E is a precision mechanical adapter for mounting PL
290 €
In stock > 5 pcs

K&F Concept Lens Air Blower, Rubber Bulb Air Pump Dust Blower Cleaner, with Long Nozzle for Cell

  • SHOWROOM PRAHA
The K&F Concept Lens Air Blower is a versatile and efficient dust blower cleaner
7.7 €
Backordered > 5 pcs

DZOFILM EF Mount for X‑tract (DZO‑MFEF)

  • LAST PIECE
The DZO EF Mount for X‑Tract (DZO‑MFEF) is the official Canon EF mount adapter for
108 €
In stock 1 pcs

DZOFilm Octopus Adapter for PL Lens to RF Mount Camera

  • SHOWROOM PRAHA
The DZOFilm Octopus PL → Canon RF is a precision mechanical adapter designed to mount
290 €
In stock 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

DZOFILM X-tract 18–28 mm T8 is a modular full-frame macro probe zoom with a PL mount. This kit combines 0° / 90° / 360° viewing-angle modules with one interchangeable R unit, letting you change perspective while retaining the same 18–28 mm zoom, T8–T45 aperture and cine controls. It covers a 43.2 mm image circle, reaches a 6 mm working distance and up to 2.1× magnification at 28 mm for detailed product, tabletop and creative work in confined spaces.

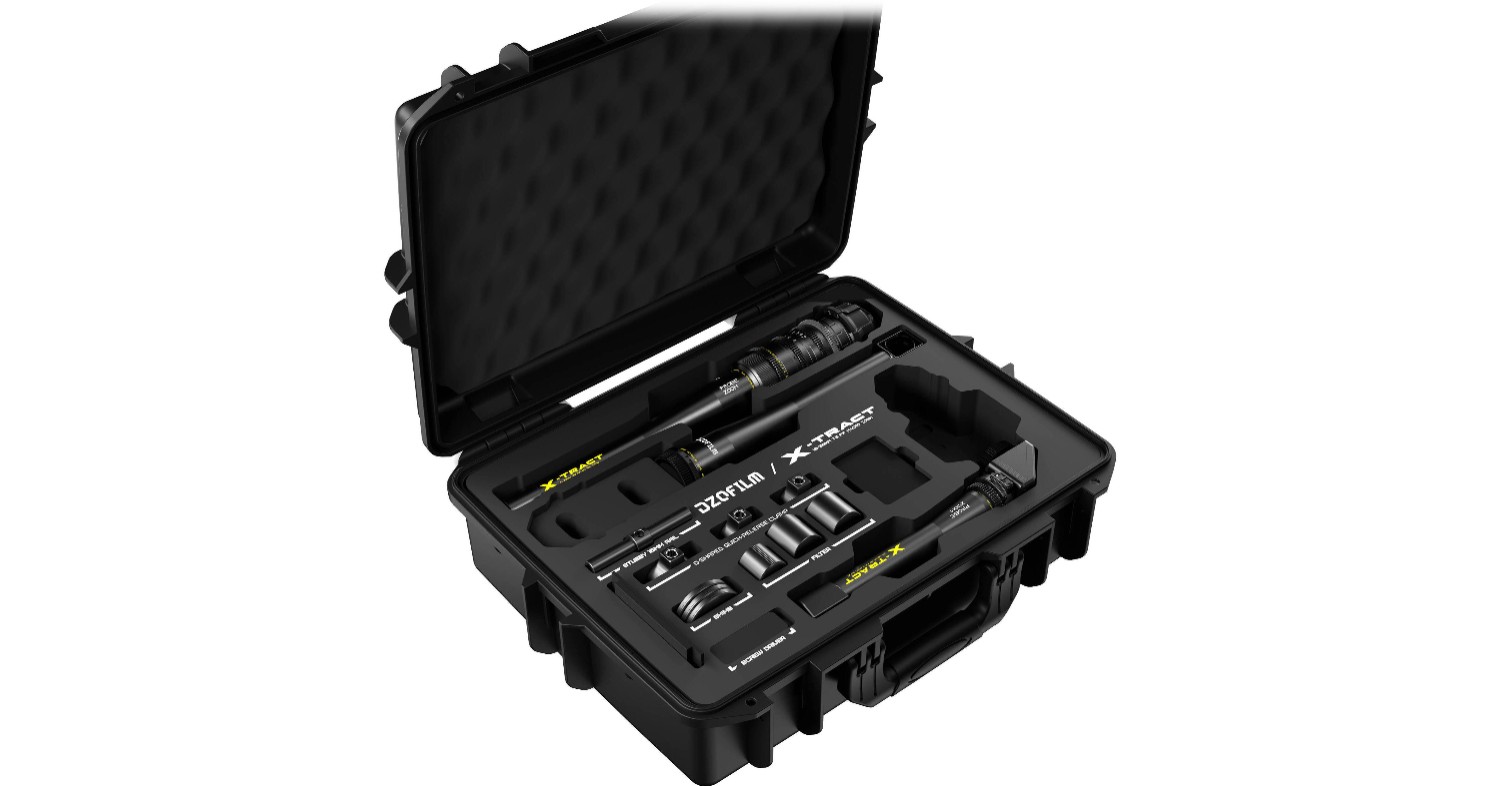

DZOFILM X-tract 18–28 mm T8 0° / 90° / 360°

DZOFILM X-TRACT

MODULAR MACRO PROBE ZOOM

DZOFILM X-tract 18–28 mm T8 is a modular full-frame macro probe zoom with a PL mount. This kit combines 0° / 90° / 360° viewing-angle modules with one interchangeable R unit, letting you change perspective while retaining the same 18–28 mm zoom, T8–T45 aperture and cine controls. It covers a 43.2 mm image circle, reaches a 6 mm working distance and up to 2.1× magnification at 28 mm for detailed product, tabletop and creative work in confined spaces.

CHANGE THE ANGLE, KEEP THE WORKFLOW

The 0°, 90° and 360° system opens up direct, periscope and rotating perspectives. The optics retain focus through zooming, while the 300° manual throw supports precise follow-focus work. DZOFILM notes that footage from the 90° module requires a mirror flip.

MACRO IN CONFINED SPACES

Focus begins at 0.47 m from the sensor plane, while the working distance in front of the lens is just 6 mm. With up to 2.1× magnification at 28 mm, it can capture fine textures, liquids and miniatures from extremely close range.

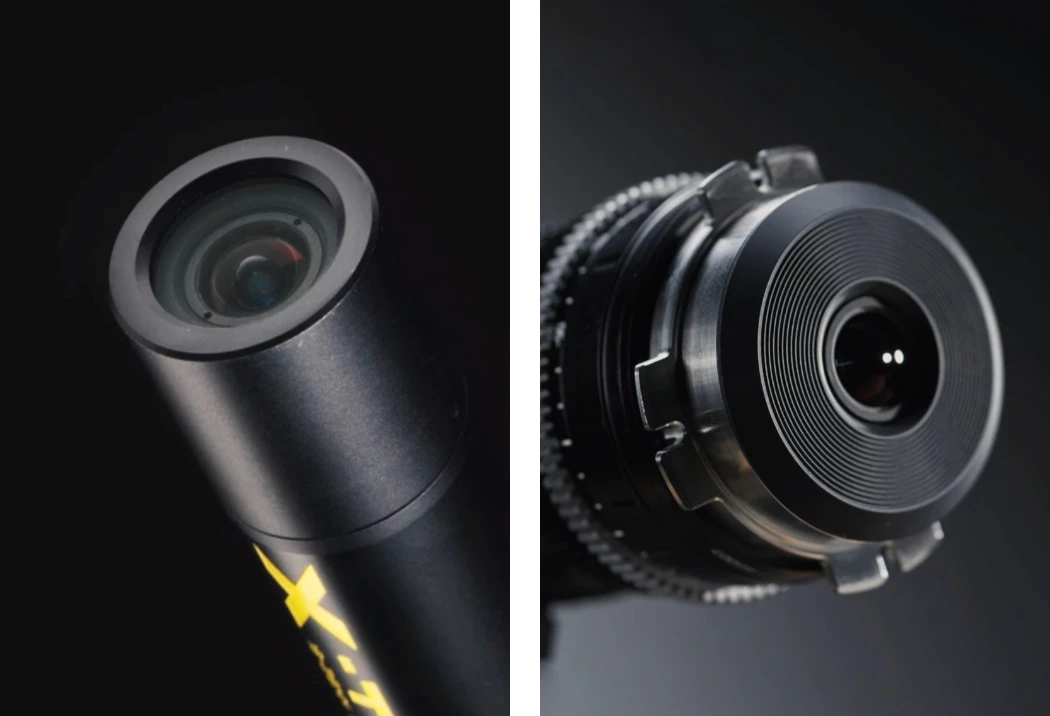

DZOFILM X-tract – detail sondového modulu

CONSTRUCTION AND MODULES

These detail images show X-tract's interchangeable probe modules. The 0°, 90° and 360° options change perspective while the 18–28 mm zoom and cine controls remain consistent.

DETAIL AND PERSPECTIVE

A 6 mm working distance and up to 2.1× magnification at 28 mm let the camera move extremely close to a surface while retaining control of the shot.

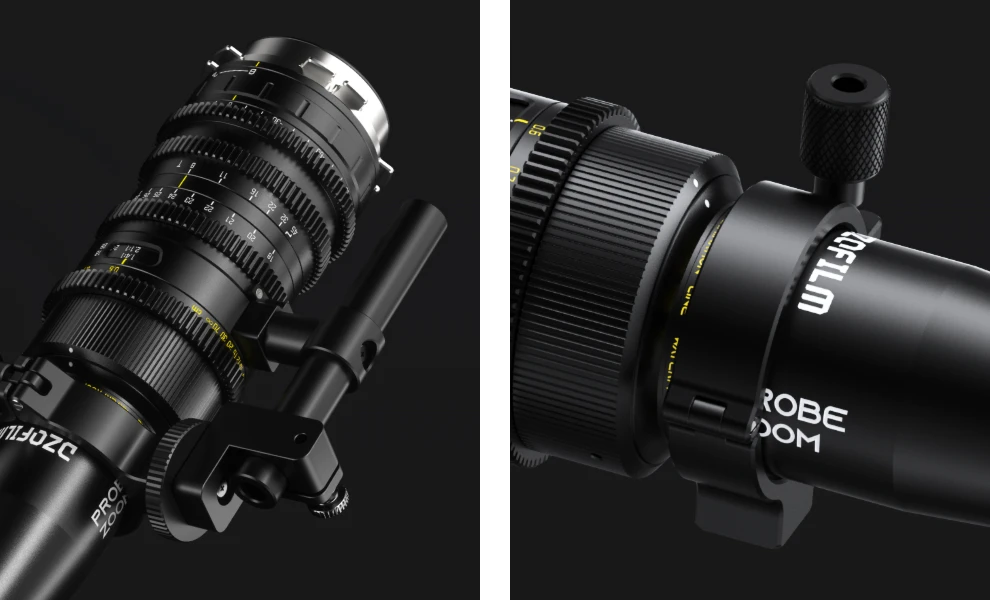

DZOFILM X-tract – detail konstrukce modulu

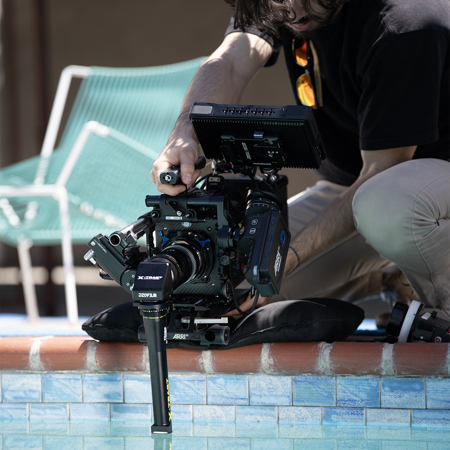

DZOFILM X-tract – 0° module in use

0° MODULE IN USE

This photograph shows a working rig with the direct-view 0° module included in this kit. It illustrates the position of the front element at the subject; it is not footage recorded by the lens.

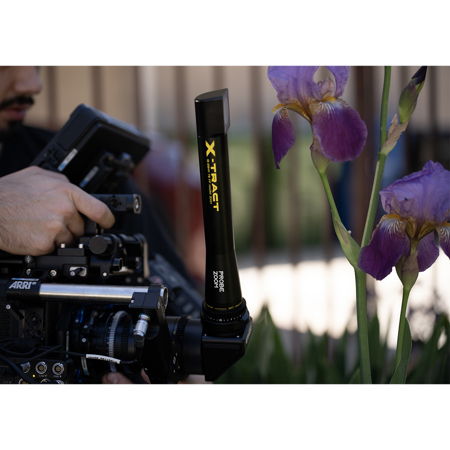

90° MODULE IN USE

This photograph shows a working rig with the 90° module included in this kit. It illustrates the position of the front element at the subject; it is not footage recorded by the lens.

DZOFILM X-tract – 90° module in use
Official DZOFILM X‑tract series image sample

Official X‑tract image sample

This frame comes from DZOFILM’s official X‑tract series image samples. It demonstrates the probe system’s imaging character; it is not a test of this exact three-module kit.

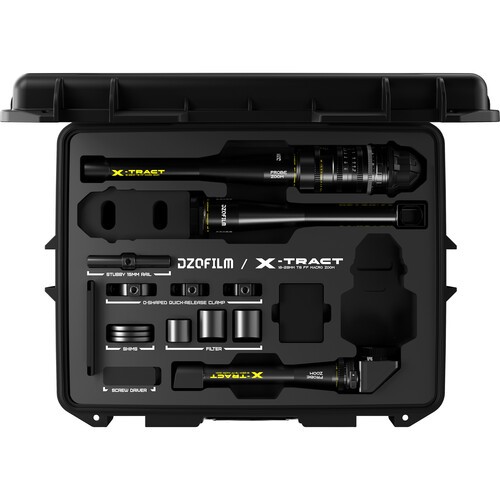

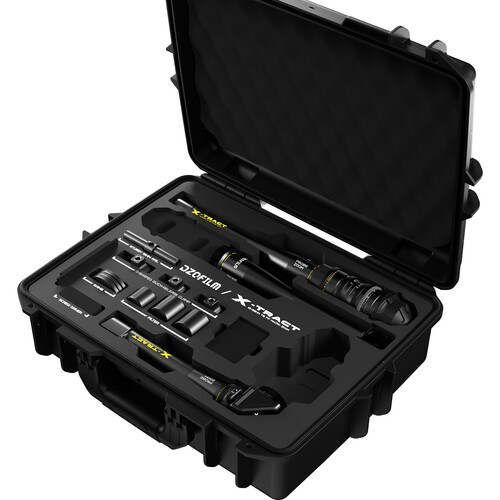

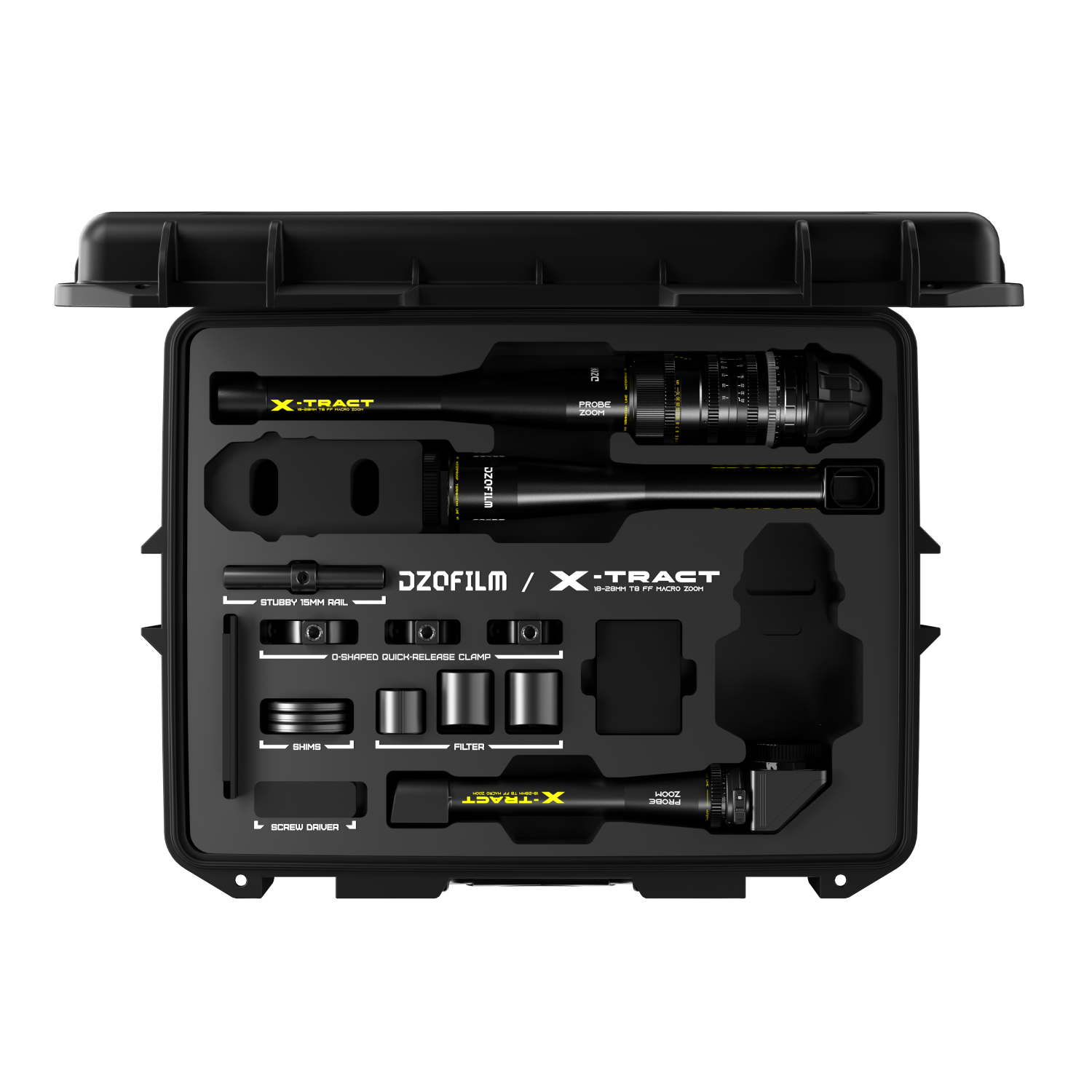

PACKAGE CONTENT

  • 1× removable X-tract lens assembly with R unit
  • 1× 0° straight tube
  • 1× 90° periscopic tube
  • 1× 360° periscopic tube
  • 1× 15mm follow-focus rod with mounts
  • 1× front cap
  • 1× rear cap
  • 1× large 1.8″ quick-release O-clamp
  • 2× small 1.2″ quick-release O-clamps
  • 2× set of spacer washers
  • 1× UV filter No. 1
  • 1× UV filter No. 2

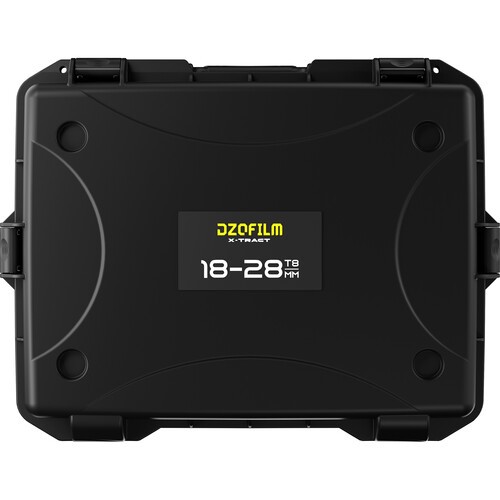

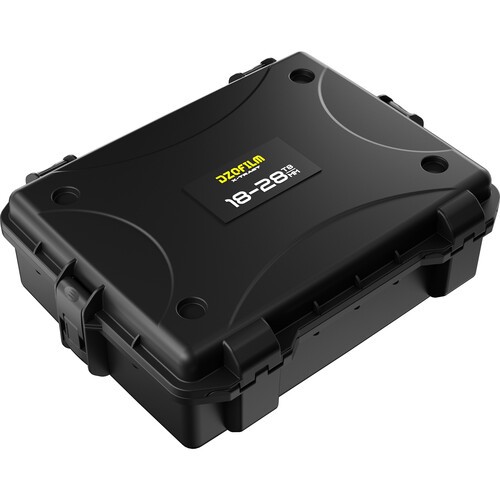

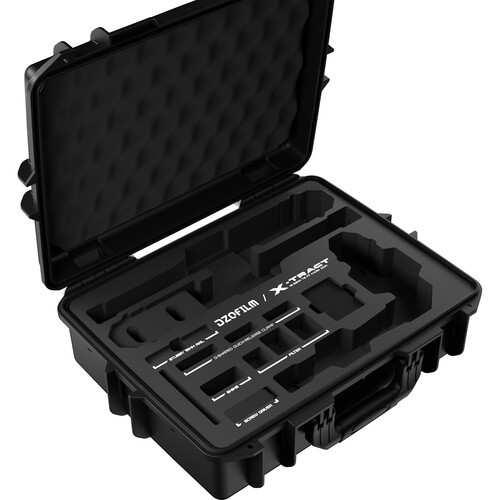

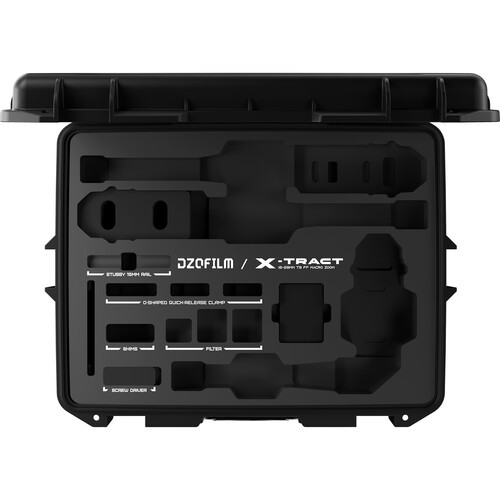

  • 1× hard case with foam insert

SPECIFICATIONS

  • Type: modular full-frame macro probe zoom
  • Focal length: 18–28 mm
  • Modules in the set: 0° / 90° / 360°
  • Mount: PL; flange distance 52 mm
  • Aperture: T8–T45; 10 blades
  • Image circle: Ø 43.2 mm
  • Optical design: 0°: 25 elements / 18 groups; 90°: 26 / 19; 360°: 27 / 20
  • Closest focusing distance: 0.47 m from the sensor plane; working distance 6 mm
  • Zoom / magnification: 1.55× zoom ratio; maximum 2.1× at 28 mm
  • Controls: focus 300° / zoom 100° / aperture 72°; 0.8 MOD
  • Front element: 0° Ø 29.6 mm; 90° and 360° 37.7 × 30.58 mm
  • Construction: aluminum alloy; parfocal design
  • Probe durability: hydrophobic front coating; submersible up to 28 cm
  • Rear element protrusion: 13.7 mm beyond the bayonet mount
  • 90° module view: images require mirror reversal
  • Assembled configuration weight: approximately 1,090 g (0°), 1,132 g (90°), 1,144 g (360°)
  • Net weight of the entire set: the manufacturer does not publicly list this for this SKU
Parameters

Parameters

Manufacturer: DZO Optics
Category: Lenses

Main parameters

Minimum Focusing Distance470mm
Maximum magnification2.1x
Number of aperture blades10
BayonetPL
Lens colorBlack
Lens TypeZoom
Lens suitable forFull frame
Minimal focal length18mm
Maximum focal length28mm
Optical stabilisationNo
Auto focusNo
ZoomYes
AnamorphicNo
MacroYes
