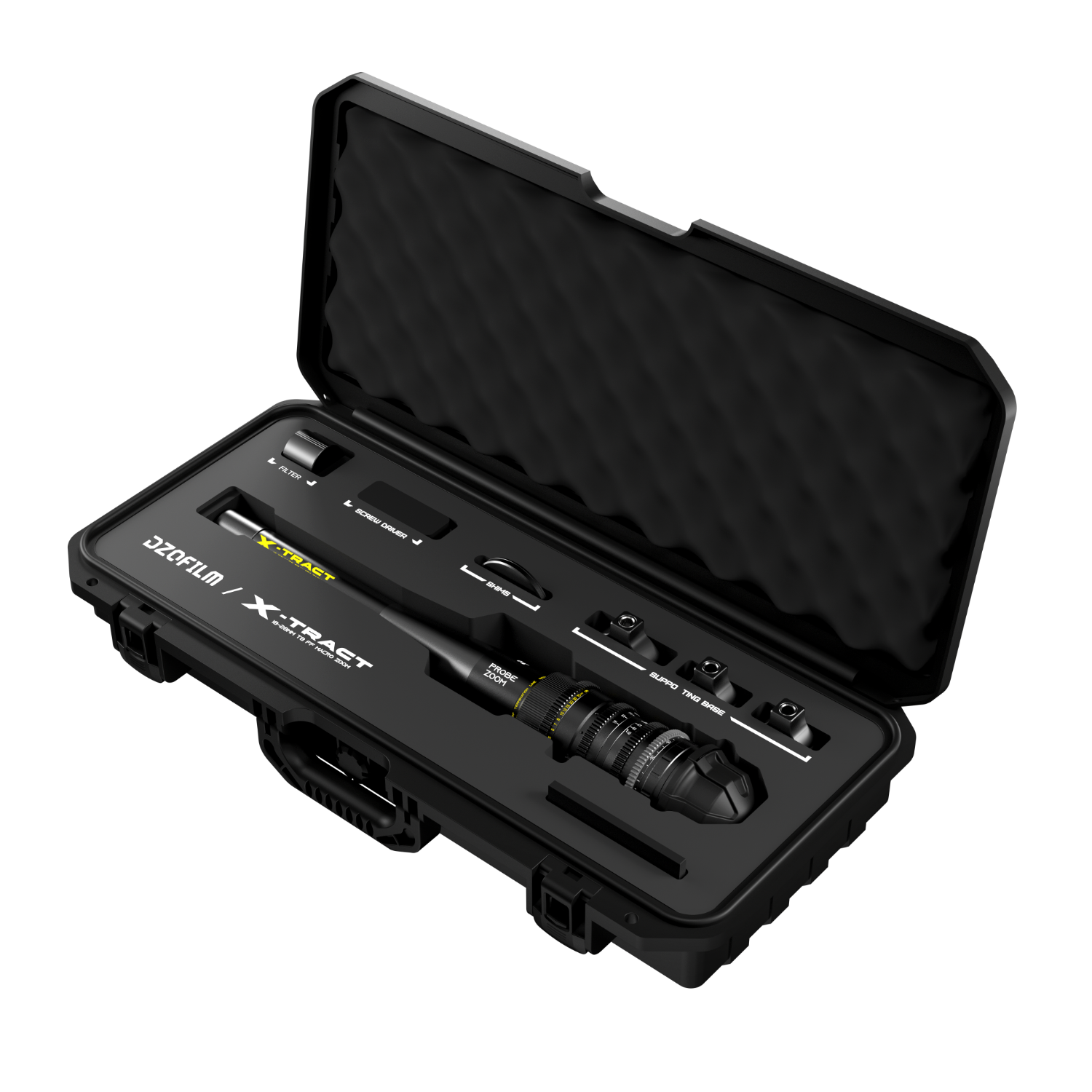

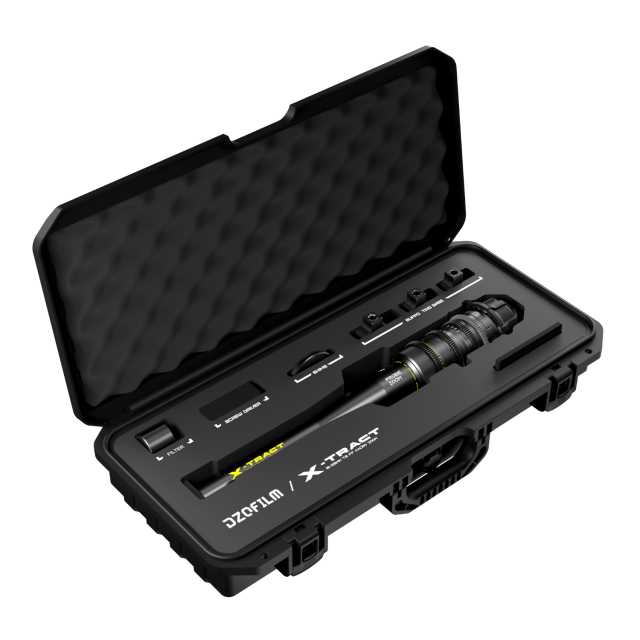

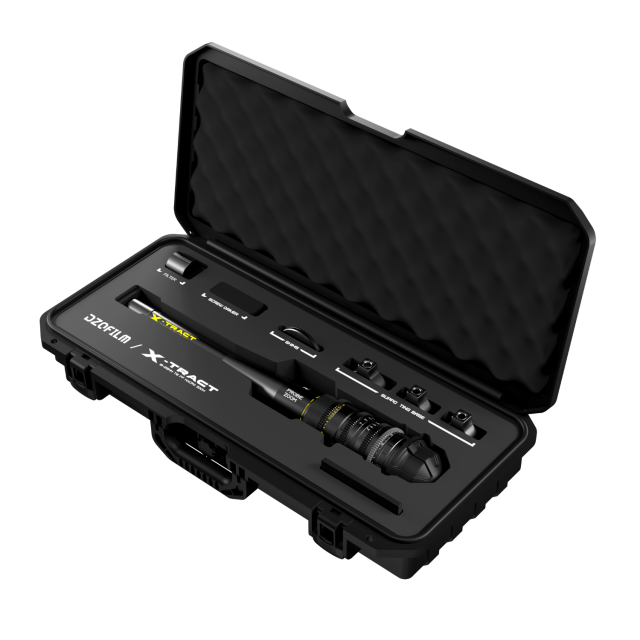

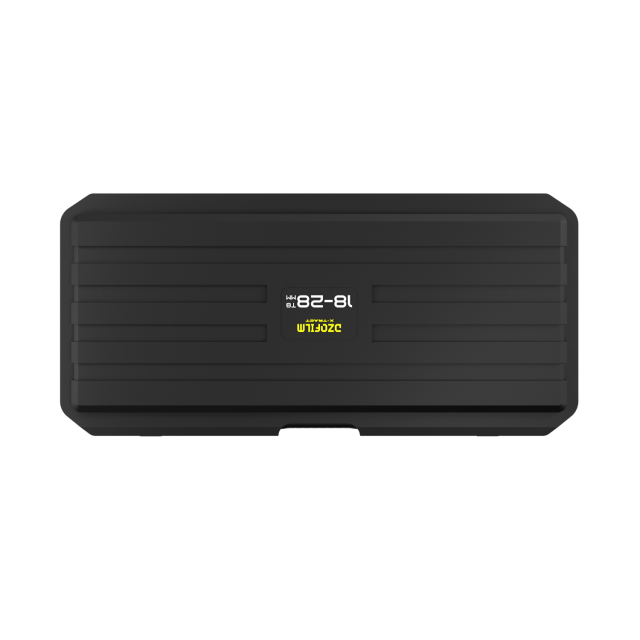

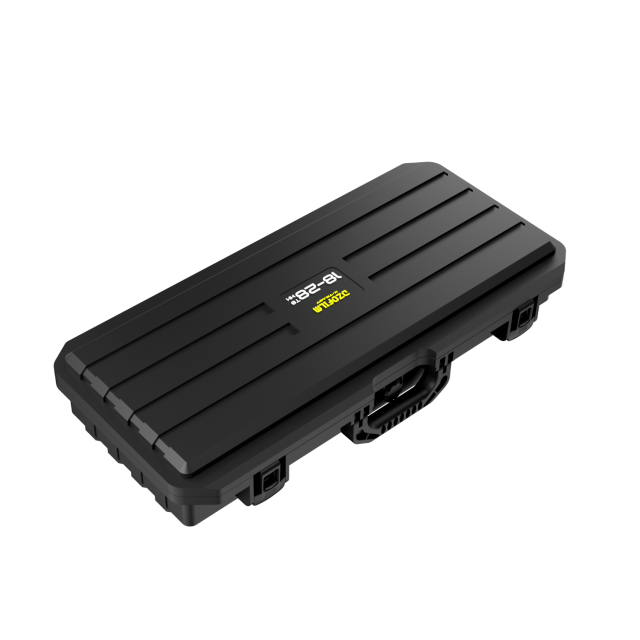

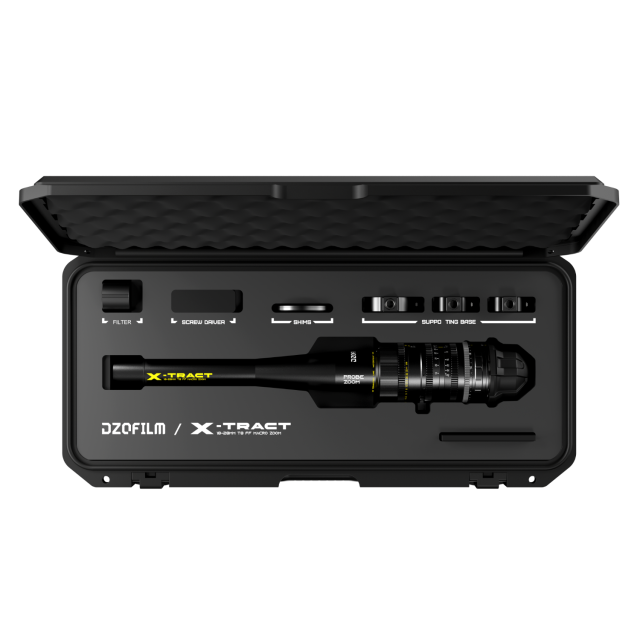

DZOFILM X‑tract 18–28 mm T8 0° – PL, Metric, Hard Case
SKU: DZO-X1828A

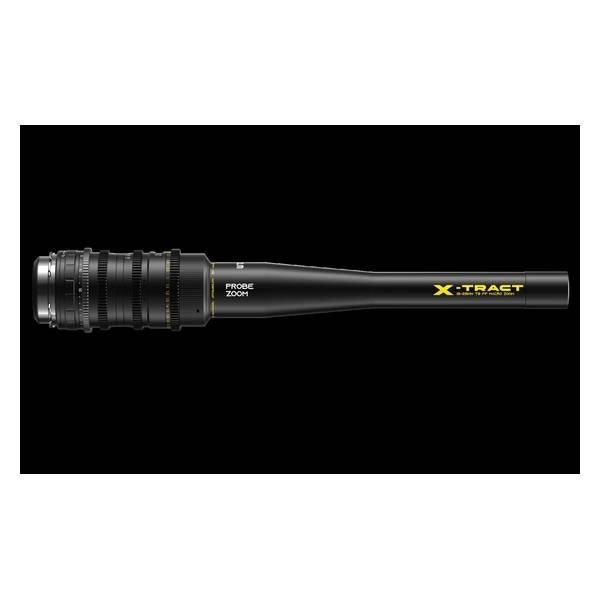

The DZOFILM X-tract 18–28 mm T8 0° is a full-frame, parfocal, direct-view macro zoom probe designed for detailed product shots, liquids, miniatures, and work in confined spaces. It offers a focal length range of 18–28 mm at T8–T45, focusing from 0.47 m from the sensor plane, and up to 2.1× magnification at 28 mm.
3 999 € with VAT
3 304.96 € without VAT
Availability
on request
DZOFILM X‑tract 18–28 mm T8 90° – PL, Metric, Hard Case
In stock 2 pcs3 899 €without VAT 3 222.31 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° Kit, 1× R‑Unit, PL, Metric, Black Case
7 049 €without VAT 5 825.62 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° 3-Lens Set, PL, Metric, Black Case
10 099 €without VAT 8 346.28 €
DZOFILM X‑tract 18–28mm T8 360° – PL, metric markings, hard case
4 359 €without VAT 3 602.48 €
DZOFILM X‑tract 18–28mm T8 – 0°/360° kit, 1× R‑Unit, PL, metric, black case
5 689 €without VAT 4 701.65 €
DZOFILM X‑tract 18–28mm T8 – 90°/360° kit, 1× R‑Unit, PL, metric, black case
5 689 €without VAT 4 701.65 €Top accessories for DZOFILM X‑tract 18–28 mm T8 0° – PL, Metric, Hard Case
DZOFILM EF Mount for X‑tract (DZO‑MFEF)
The DZO EF Mount for X‑Tract (DZO‑MFEF) is the official Canon EF mount adapter for
108 €
In stock 1 pcs
DZOFILM Octopus Adapter II PL → L-Mount
The DZOFILM Octopus Adapter II PL → L-Mount is the second generation of the mechanical
204 €
Backordered > 5 pcs
DZOFILM Octopus Adapter II PL → Canon RF
The DZOFILM Octopus Adapter II PL → Canon RF is the second generation of the mechanical
204 €
Backordered > 5 pcs
DZOFILM Octopus Adapter II PL → Sony E
The DZOFILM Octopus Adapter II PL → Sony E is the second generation of the mechanical
204 €
Backordered > 5 pcs
Product description
ARTICLES
SPECIFICATIONS
Product description

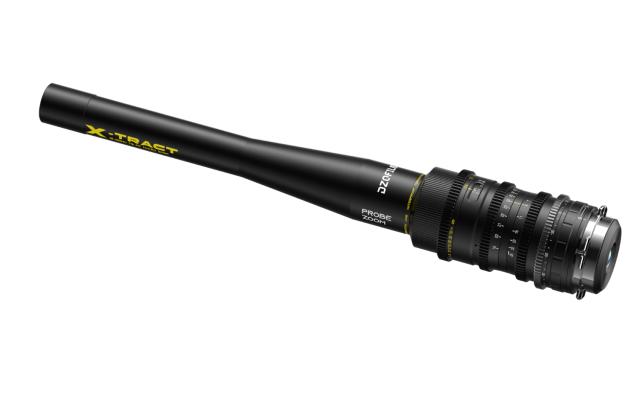

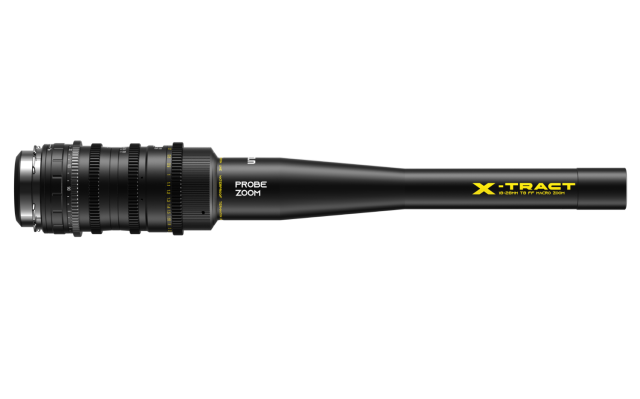

The DZOFILM X-tract 18–28 mm T8 0° is a full-frame, parfocal, direct-view macro zoom probe designed for detailed product shots, liquids, miniatures, and work in confined spaces. It offers a focal length range of 18–28 mm at T8–T45, focusing from 0.47 m from the sensor plane, and up to 2.1× magnification at 28 mm.
A Direct View into the Microscopic World
The X-tract 18–28 mm T8 0° combines a direct probe, a parfocal zoom, and a full-frame image circle. Its slim front element fits where a standard macro setup cannot, allowing you to transform minute details into a three-dimensional cinematic shot.
Focus is maintained while zooming. A 300° focus travel and 0.8 MOD gear teeth facilitate precise operation with follow focus and motors.
Full-frame zoom
18–28 mm, 43.2 mm image circle, and constant T8–T45.
Macro with reach
Focusing from 0.47 m from the sensor plane, working distance from the front 6 mm, and 2.1× magnification at 28 mm.
Optics and Construction
The 0° version uses 25 elements in 18 groups, including seven high-refractive-index lenses and six ED lenses. The manufacturer specifies distortion control within ±2% and minimal focus breathing around 24 mm.
The waterproof section of the probe allows for submersion up to 28 cm; a double-sided hydrophobic UV filter and an O-ring are included in the design for more demanding shots.

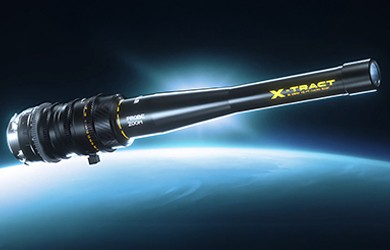

Official X-tract series sample
This frame comes from DZOFilm’s official X-tract series imagery. It is an inspirational example of the series in use, not a test of this exact 0° version.

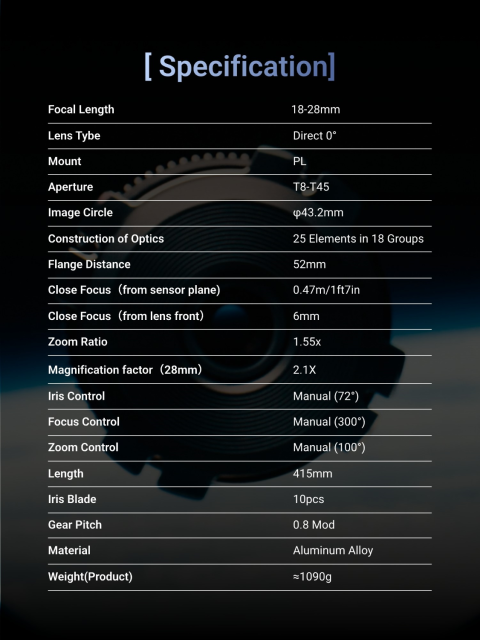

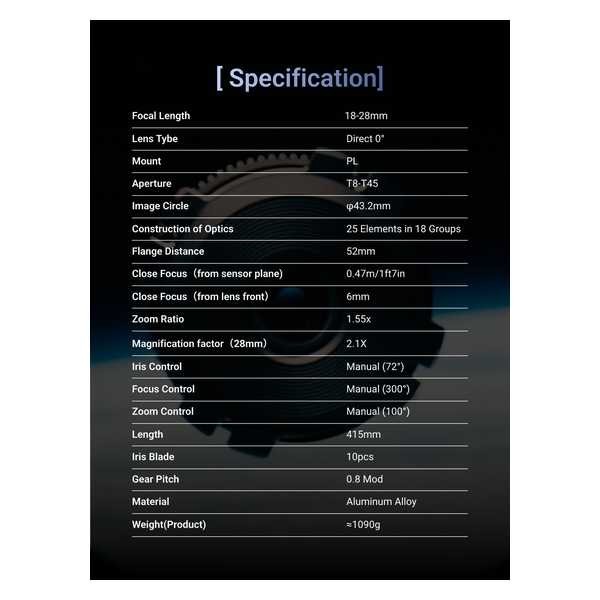

SPECIFICATIONS
- Type: 0° straight macro zoom lens
- Focal length: 18–28 mm
- Mount: PL
- Aperture: T8–T45, 10 blades
- Image circle: 43.2 mm
- Optical design: 25 elements / 18 groups
- Minimum focus distance: 0.47 m from the sensor plane; 6 mm from the front element
- Zoom / magnification: 1.55×; up to 2.1× at 28 mm
- Aperture / Focus / Zoom Control: 72° / 300° / 100°
- Front diameter: 29.6 mm
- Length: 415 mm
- Tooth pitch: 0.8 MOD
- Material / weight: aluminum alloy / approximately 1,090 g
ARTICLES
Parameters
![]()
Parameters
| Manufacturer: | DZO Optics |
| Category: | Lenses |
Main parameters
| Minimum Focusing Distance | 470mm |
| Maximum magnification | 2.1x |
| Number of aperture blades | 10 |
| Lens diameter | 29.6mm |
| Lens Length | 415mm |
| Bayonet | PL |
| Lens color | Black |
| Lens Type | Zoom |
| Lens suitable for | Full frame |
| Minimal focal length | 18mm |
| Maximum focal length | 28mm |
| Optical stabilisation | No |
| Auto focus | No |
| Zoom | Yes |
| Anamorphic | No |
| Macro | Yes |
| Weight | 1090g |
